KM35V-JDZE (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )4KJ,5K#

Click highlighted areas on diagram

diagram 11302 11302A 11302D 11302H 11311 11312 11328 11355 11355A 11381 11381A 11381B 11383 9017908068 9161160612 9161160622 9161160816 9161160828 9161160828 9161161020 9165140820 9165140855 9165140855 9165140855 9165160655 9165160655
Part # Description Qty Price

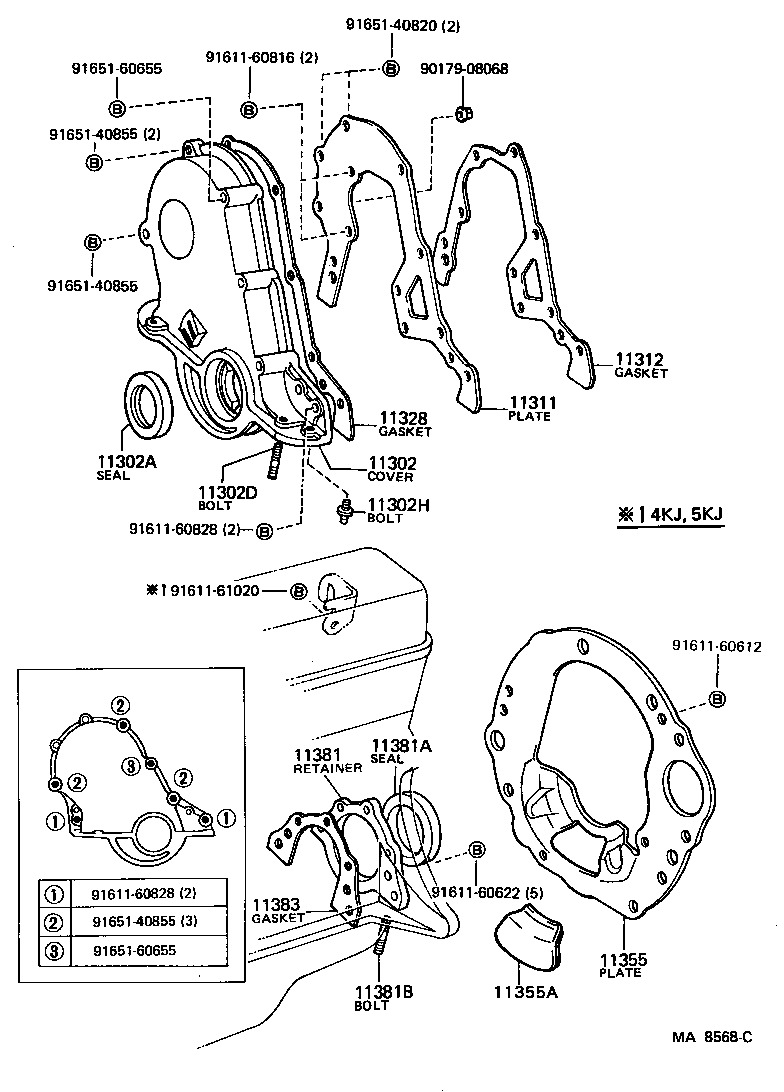

11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-13042

4KJ,5K#..KM3#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38022

4KJ,5K#..KM3#

HTC 38.5 58 8.5

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
90116-06012

4KJ,5K#..KM3#

L=26,S=12&12

 2
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90116-06006

4KJ,5K#..KM3#

L=26.4,S=12&12

 2
11311 - PLATE, FRONT END
11311-13010

4KJ,5K#..KM3#

 1
11312 - GASKET, FRONT END PLATE
11312-13040

4KJ,5K#..KM3#

 1
11312-13011

4KJ..KM35

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-13011

4KJ,5K#..KM3#

 1
11355 - PLATE, REAR END
11355-24043

4KJ,5K#..KM3#

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01343

4KJ,5K#..KM3#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-13011

4KJ,5K#..KM3#

 1
11381A - SEAL, ENGINE REAR OIL
90311-70004

4KJ,5K#..KM3#

HTC 70 92 8.5

 1
11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
90116-06035

4KJ,5K#..KM3#

L=23,S=12&9

 2
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-13010

4KJ,5K#..KM3#

 1
Common parts
90179-08068
91611-60612
91611-60622
91611-60816
91611-60828
91611-61020
91651-40820
91651-40855
91651-60655
