KM35V-JDZ (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Aug 1990
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CM3#,4#

Click highlighted areas on diagram

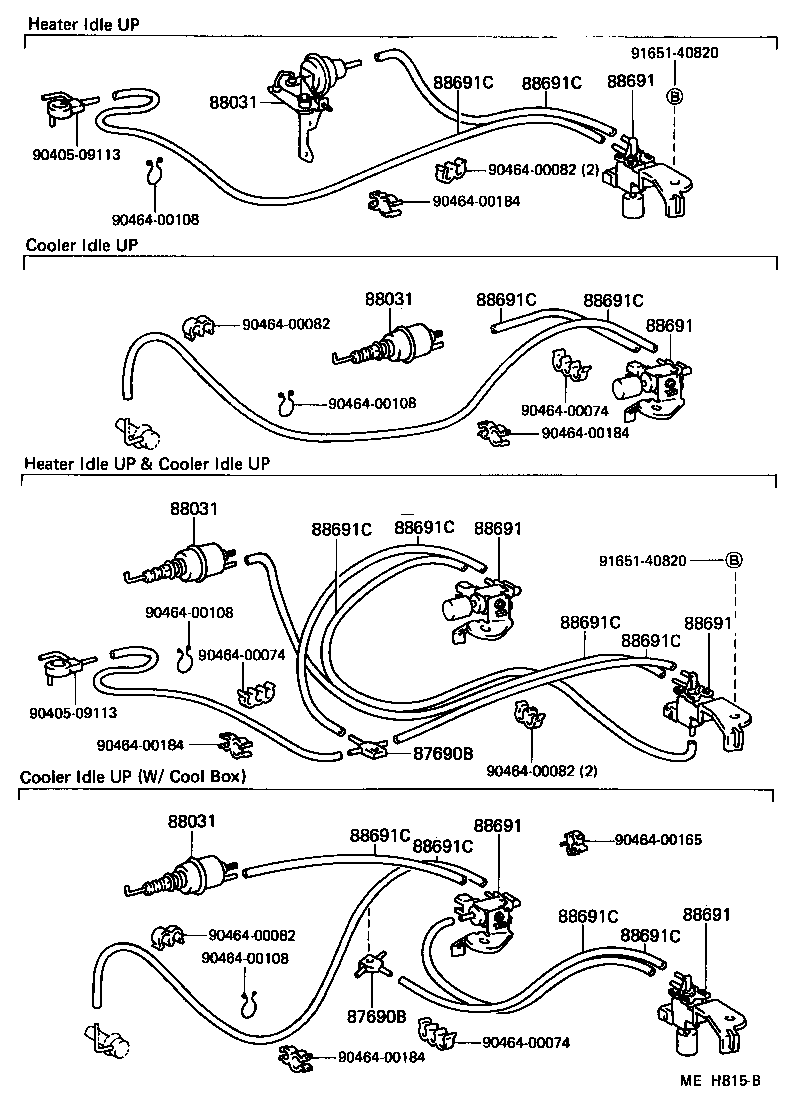

diagram 87690B 87690B 88031 88031 88031 88031 88691 88691 88691 88691 88691 88691 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 9040509113 9040509113 9046400074 9046400074 9046400074 9046400082 9046400082 9046400082 9046400082 9046400108 9046400108 9046400108 9046400108 9046400165 9046400184 9046400184 9046400184 9046400184 9165140820 9165140820
Part # Description Qty Price
87690B - WAY, 3
90413-04005

CM40..4FC;CM40..W5D;CM31,36,41..V1;CM30..W5D..HRF..SW;CM30..(HRF,SRF)..(LD,SSW);CM30,KM35..(V4D,V5D,W4D)..(DLX,SW)

 1
87690B - WAY, 3
90413-04005

CM40..4FC;CM40..W5D;CM31,36,41..V1;CM30..W5D..HRF..SW;CM30..(HRF,SRF)..(LD,SSW);CM30,KM35..(V4D,V5D,W4D)..(DLX,SW)

 1
88031 - ACTUATOR SET, IDLE-UP
88031-27040

CM30,40..4FC;CM31,36,4#..V4D,V5D,W5D

 1
88031-12081

KM35

ｸ-ﾗ ﾖｳ

 1
88031-27030

KM35

ﾋ-ﾀ ﾖｳ

 1
88031 - ACTUATOR SET, IDLE-UP
88031-27040

CM30,40..4FC;CM31,36,4#..V4D,V5D,W5D

 1
88031-12081

KM35

ｸ-ﾗ ﾖｳ

 1
88031-27030

KM35

ﾋ-ﾀ ﾖｳ

 1
88031 - ACTUATOR SET, IDLE-UP
88031-27040

CM30,40..4FC;CM31,36,4#..V4D,V5D,W5D

 1
88031-12081

KM35

ｸ-ﾗ ﾖｳ

 1
88031-27030

KM35

ﾋ-ﾀ ﾖｳ

 1
88031 - ACTUATOR SET, IDLE-UP
88031-27040

CM30,40..4FC;CM31,36,4#..V4D,V5D,W5D

 1
88031-12081

KM35

ｸ-ﾗ ﾖｳ

 1
88031-27030

KM35

ﾋ-ﾀ ﾖｳ

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-10010

CM30,40..4FC;CM31,36,4#..V4D,V5D,W5D

 1
88691-10010

KM35

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ OR ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-10010

CM30,40..4FC;CM31,36,4#..V4D,V5D,W5D

 1
88691-10010

KM35

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ OR ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-10010

CM30,40..4FC;CM31,36,4#..V4D,V5D,W5D

 1
88691-10010

KM35

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ OR ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-10010

CM30,40..4FC;CM31,36,4#..V4D,V5D,W5D

 1
88691-10010

KM35

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ OR ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-10010

CM30,40..4FC;CM31,36,4#..V4D,V5D,W5D

 1
88691-10010

KM35

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ OR ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-10010

CM30,40..4FC;CM31,36,4#..V4D,V5D,W5D

 1
88691-10010

KM35

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ OR ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CM31,36,4#..V4D,V5D,W5D

*H,L=300

 1
90999-92004

KM35

長さ=950

 1
90999-92004

CM31,36,4#..V4D,V5D,W5D

長さ=950

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CM31,36,4#..V4D,V5D,W5D

*H,L=300

 1
90999-92004

KM35

長さ=950

 1
90999-92004

CM31,36,4#..V4D,V5D,W5D

長さ=950

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CM31,36,4#..V4D,V5D,W5D

*H,L=300

 1
90999-92004

KM35

長さ=950

 1
90999-92004

CM31,36,4#..V4D,V5D,W5D

長さ=950

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CM31,36,4#..V4D,V5D,W5D

*H,L=300

 1
90999-92004

KM35

長さ=950

 1
90999-92004

CM31,36,4#..V4D,V5D,W5D

長さ=950

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CM31,36,4#..V4D,V5D,W5D

*H,L=300

 1
90999-92004

KM35

長さ=950

 1
90999-92004

CM31,36,4#..V4D,V5D,W5D

長さ=950

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CM31,36,4#..V4D,V5D,W5D

*H,L=300

 1
90999-92004

KM35

長さ=950

 1
90999-92004

CM31,36,4#..V4D,V5D,W5D

長さ=950

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CM31,36,4#..V4D,V5D,W5D

*H,L=300

 1
90999-92004

KM35

長さ=950

 1
90999-92004

CM31,36,4#..V4D,V5D,W5D

長さ=950

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CM31,36,4#..V4D,V5D,W5D

*H,L=300

 1
90999-92004

KM35

長さ=950

 1
90999-92004

CM31,36,4#..V4D,V5D,W5D

長さ=950

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CM31,36,4#..V4D,V5D,W5D

*H,L=300

 1
90999-92004

KM35

長さ=950

 1
90999-92004

CM31,36,4#..V4D,V5D,W5D

長さ=950

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CM31,36,4#..V4D,V5D,W5D

*H,L=300

 1
90999-92004

KM35

長さ=950

 1
90999-92004

CM31,36,4#..V4D,V5D,W5D

長さ=950

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CM31,36,4#..V4D,V5D,W5D

*H,L=300

 1
90999-92004

KM35

長さ=950

 1
90999-92004

CM31,36,4#..V4D,V5D,W5D

長さ=950

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CM31,36,4#..V4D,V5D,W5D

*H,L=300

 1
90999-92004

KM35

長さ=950

 1
90999-92004

CM31,36,4#..V4D,V5D,W5D

長さ=950

 1
Common parts
90405-09113
90464-00074
90464-00082
90464-00108
90464-00165
90464-00184
91651-40820

(8808- )KM31,35,36

Click highlighted areas on diagram

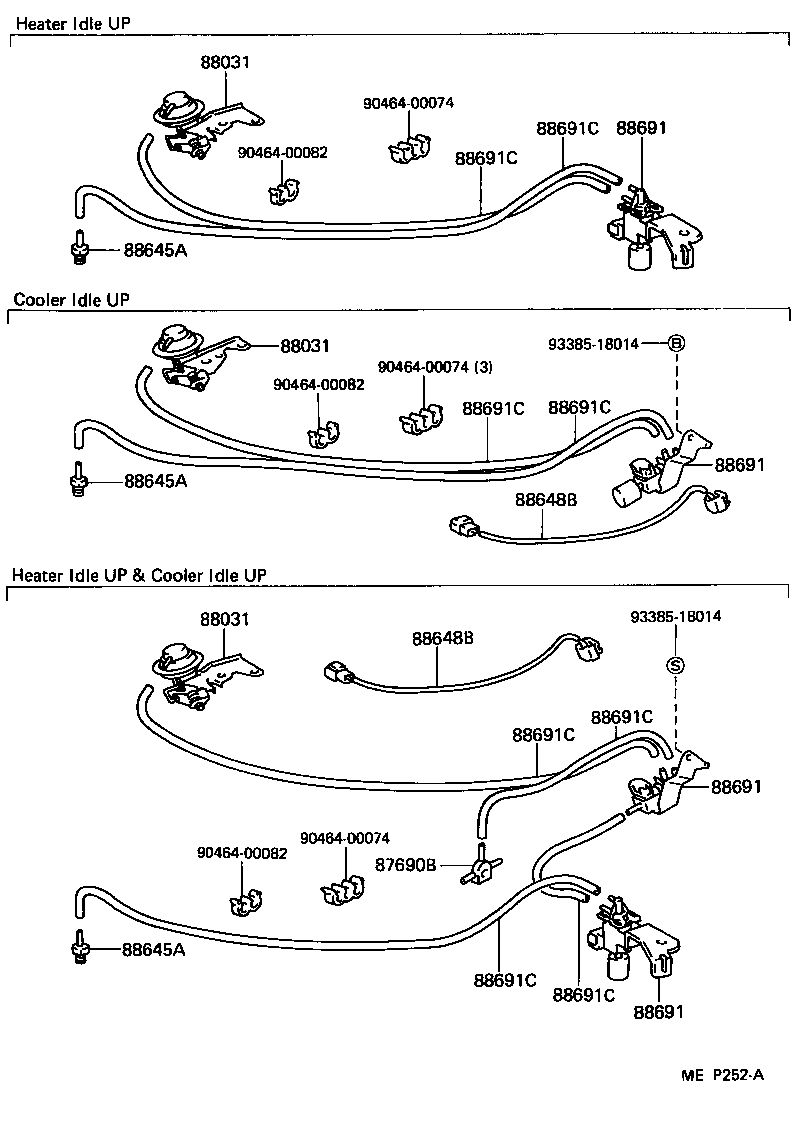

diagram 87690B 88031 88031 88031 88645A 88645A 88645A 88648B 88648B 88691 88691 88691 88691 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 9046400074 9046400074 9046400074 9046400082 9046400082 9046400082 9338518014 9338518014
Part # Description Qty Price
87690B - WAY, 3
90413-04005

CM40..4FC;CM40..W5D;CM31,36,41..V1;CM30..W5D..HRF..SW;CM30..(HRF,SRF)..(LD,SSW);CM30,KM35..(V4D,V5D,W4D)..(DLX,SW)

 1
88031 - ACTUATOR SET, IDLE-UP
88031-27040

CM30,40..4FC;CM31,36,4#..V4D,V5D,W5D

 1
88031-12081

KM35

ｸ-ﾗ ﾖｳ

 1
88031-27030

KM35

ﾋ-ﾀ ﾖｳ

 1
88031 - ACTUATOR SET, IDLE-UP
88031-27040

CM30,40..4FC;CM31,36,4#..V4D,V5D,W5D

 1
88031-12081

KM35

ｸ-ﾗ ﾖｳ

 1
88031-27030

KM35

ﾋ-ﾀ ﾖｳ

 1
88031 - ACTUATOR SET, IDLE-UP
88031-27040

CM30,40..4FC;CM31,36,4#..V4D,V5D,W5D

 1
88031-12081

KM35

ｸ-ﾗ ﾖｳ

 1
88031-27030

KM35

ﾋ-ﾀ ﾖｳ

 1
88645A - UNION (FOR IDLE UP DEVICE)
90404-51093

KM35

ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ(ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ)

 1
90404-51010

KM35

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88645A - UNION (FOR IDLE UP DEVICE)
90404-51093

KM35

ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ(ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ)

 1
90404-51010

KM35

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88645A - UNION (FOR IDLE UP DEVICE)
90404-51093

KM35

ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ(ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ)

 1
90404-51010

KM35

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88648B - WIRING, COOLER, NO.1
88648-95718

KM35

 1
88648B - WIRING, COOLER, NO.1
88648-95718

KM35

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-10010

CM30,40..4FC;CM31,36,4#..V4D,V5D,W5D

 1
88691-10010

KM35

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ OR ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-10010

CM30,40..4FC;CM31,36,4#..V4D,V5D,W5D

 1
88691-10010

KM35

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ OR ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-10010

CM30,40..4FC;CM31,36,4#..V4D,V5D,W5D

 1
88691-10010

KM35

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ OR ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-10010

CM30,40..4FC;CM31,36,4#..V4D,V5D,W5D

 1
88691-10010

KM35

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ OR ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CM31,36,4#..V4D,V5D,W5D

*H,L=300

 1
90999-92004

KM35

長さ=950

 1
90999-92004

CM31,36,4#..V4D,V5D,W5D

長さ=950

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CM31,36,4#..V4D,V5D,W5D

*H,L=300

 1
90999-92004

KM35

長さ=950

 1
90999-92004

CM31,36,4#..V4D,V5D,W5D

長さ=950

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CM31,36,4#..V4D,V5D,W5D

*H,L=300

 1
90999-92004

KM35

長さ=950

 1
90999-92004

CM31,36,4#..V4D,V5D,W5D

長さ=950

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CM31,36,4#..V4D,V5D,W5D

*H,L=300

 1
90999-92004

KM35

長さ=950

 1
90999-92004

CM31,36,4#..V4D,V5D,W5D

長さ=950

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CM31,36,4#..V4D,V5D,W5D

*H,L=300

 1
90999-92004

KM35

長さ=950

 1
90999-92004

CM31,36,4#..V4D,V5D,W5D

長さ=950

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CM31,36,4#..V4D,V5D,W5D

*H,L=300

 1
90999-92004

KM35

長さ=950

 1
90999-92004

CM31,36,4#..V4D,V5D,W5D

長さ=950

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CM31,36,4#..V4D,V5D,W5D

*H,L=300

 1
90999-92004

KM35

長さ=950

 1
90999-92004

CM31,36,4#..V4D,V5D,W5D

長さ=950

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CM31,36,4#..V4D,V5D,W5D

*H,L=300

 1
90999-92004

KM35

長さ=950

 1
90999-92004

CM31,36,4#..V4D,V5D,W5D

長さ=950

 1
Common parts
90464-00074
90464-00082
93385-18014
