KM35V-JDZ (1988)
Toyota Liteace Van,Wagon

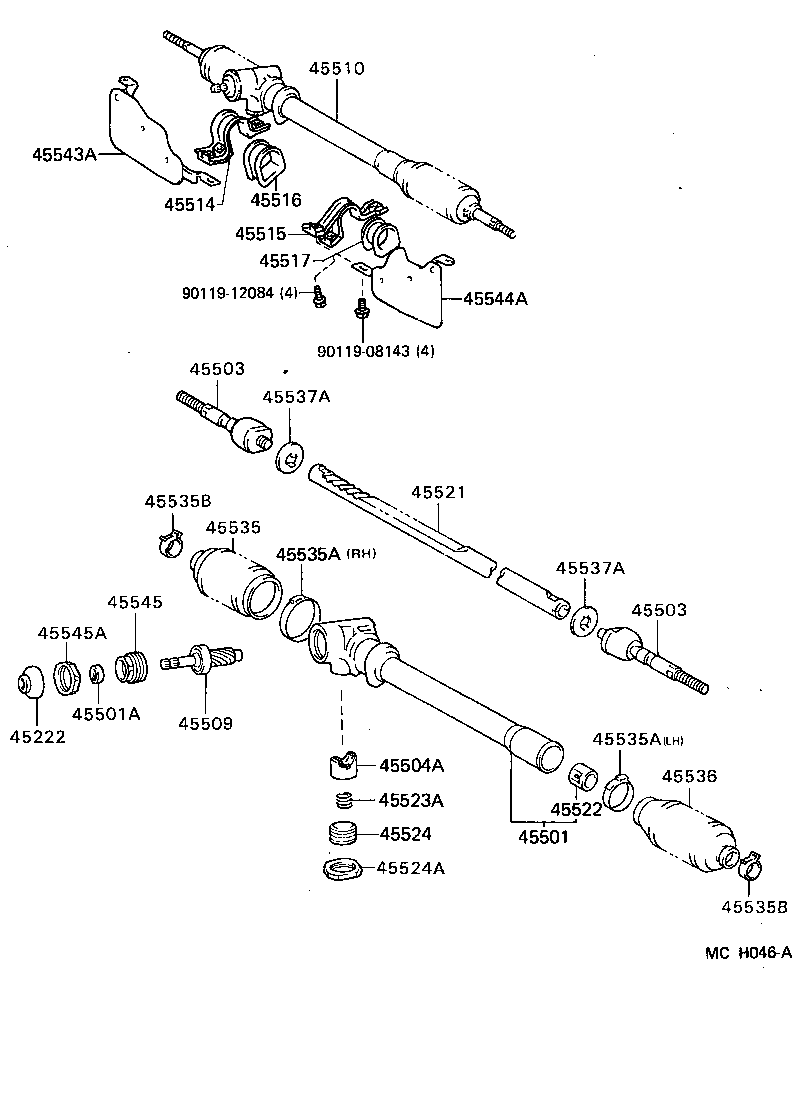

ILLUST NO. 1 OF 3(8808- )CM3#,KM3#,YM31..DLX,LD,SUP,SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-27020 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-27010 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15002 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29215 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29215 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
2 | ||
| 45504A - GUIDE SUB-ASSY, RACK | ||||
| 45504-27010 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45509 - PINION SUB-ASSY, STEERING | ||||
| 45509-27010 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-27030 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-28020 |
CM3#,KM3#,YM3# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-28020 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-27010 |
CM3#,KM3#,YM3# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-27010 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-27010 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-27010 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23075 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16030 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-27020 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-42001 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),LH |
1 | ||
| 90460-64002 |
CM3#,4#,KM30,31,36,YM3#,40 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),RH & LH |
2 | ||
| 90460-56001 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),RH |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-42001 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),LH |
1 | ||
| 90460-64002 |
CM3#,4#,KM30,31,36,YM3#,40 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),RH & LH |
2 | ||
| 90460-56001 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),RH |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-15017 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-15017 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-27020 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14005 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
2 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14005 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
2 | ||
| 45543A - PROTECTOR, STEERING RACK BOOT, RH | ||||
| 45057-95700 |
CM3#,KM3#,YM3# |
1 | ||
| 45544A - PROTECTOR, STEERING RACK BOOT, LH | ||||
| 45058-95700 |
CM3#,KM3#,YM3# |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-27010 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-38001 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| Common parts | ||||
| 90119-08143 | ||||
| 90119-12084 | ||||

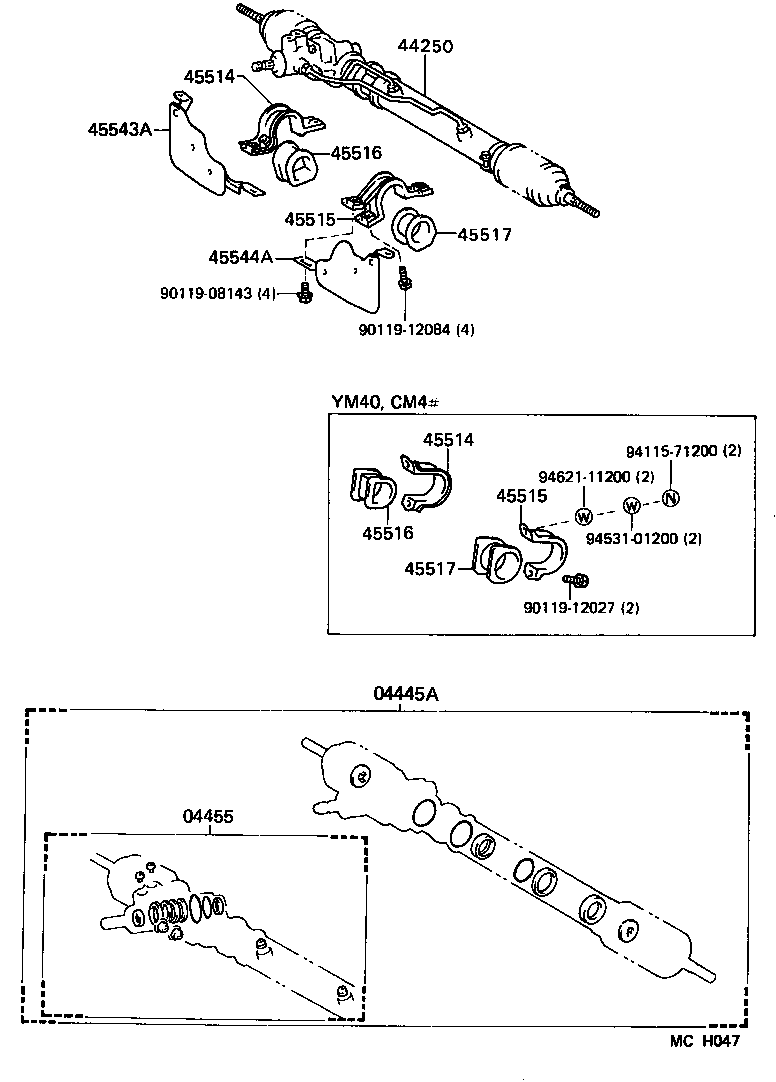

ILLUST NO. 1 OF 3(8808- )CM3#,4#,KM30,31,36,YM3#,40
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-27020 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-27020 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-28020 |
CM3#,KM3#,YM3# |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-28020 |
CM3#,KM3#,YM3# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-28020 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-28020 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-27010 |
CM3#,KM3#,YM3# |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-27010 |
CM3#,KM3#,YM3# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-27010 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-27010 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45543A - PROTECTOR, STEERING RACK BOOT, RH | ||||
| 45057-95700 |
CM3#,KM3#,YM3# |
1 | ||
| 45544A - PROTECTOR, STEERING RACK BOOT, LH | ||||
| 45058-95700 |
CM3#,KM3#,YM3# |
1 | ||
| Common parts | ||||
| 90119-08143 | ||||
| 90119-12027 | ||||
| 90119-12084 | ||||
| 94115-71200 | ||||
| 94531-01200 | ||||
| 94621-11200 | ||||

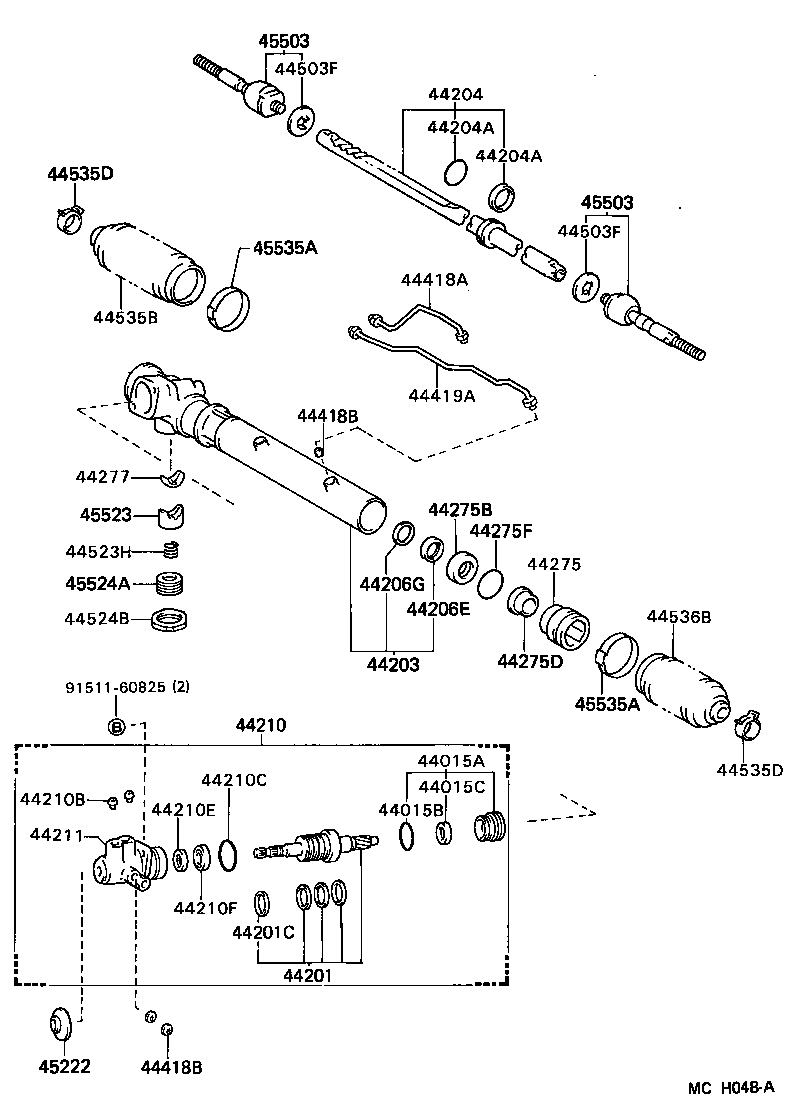

ILLUST NO. 2 OF 3(8808- )CM3#,4#,KM30,31,36,YM3#,40
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-22020 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25020 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
CM3#,4#,KM30,31,36,YM3#,40 |
4 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-39003 |
CM3#,4#,KM30,31,36,YM3#,40 内側 |
1 | ||
| 90562-43001 |
CM3#,4#,KM30,31,36,YM3#,40 外側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-39003 |
CM3#,4#,KM30,31,36,YM3#,40 内側 |
1 | ||
| 90562-43001 |
CM3#,4#,KM30,31,36,YM3#,40 外側 |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-30009 |
CM3#,4#,KM30,31,36,YM30,40 |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-30007 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
CM3#,4#,KM30,31,36,YM3#,40 |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-22010 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-28020 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-30009 |
CM3#,4#,KM30,31,36,YM30,40 |
1 | ||
| 44275D - BUSH(FOR CYLINDER END STOPPER) | ||||
| 90386-30001 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44275F - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-41004 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-28010 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04002 |
CM3#,4#,KM30,31,36,YM3#,40 CYLINDER TUBE SIDE |
2 | ||
| 90410-04001 |
CM3#,4#,KM30,31,36,YM3#,40 CONTROL VALVE SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04002 |
CM3#,4#,KM30,31,36,YM3#,40 CYLINDER TUBE SIDE |
2 | ||
| 90410-04001 |
CM3#,4#,KM30,31,36,YM3#,40 CONTROL VALVE SIDE |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14005 |
CM3#,4#,KM30,31,36,YM3#,40 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14005 |
CM3#,4#,KM30,31,36,YM3#,40 |
2 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-27030 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-15017 |
CM3#,4#,KM30,31,36,YM3#,40 |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-15017 |
CM3#,4#,KM30,31,36,YM3#,40 |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-27030 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-27020 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29215 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29215 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-28010 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-42001 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),LH |
1 | ||
| 90460-64002 |
CM3#,4#,KM30,31,36,YM3#,40 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),RH & LH |
2 | ||
| 90460-56001 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),RH |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-42001 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),LH |
1 | ||
| 90460-64002 |
CM3#,4#,KM30,31,36,YM3#,40 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),RH & LH |
2 | ||
| 90460-56001 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),RH |
1 | ||
| Common parts | ||||
| 91511-60825 | ||||
ILLUST NO. 3 OF 3(8808- )CM3#,KM3#,YM3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29185 |
CM3#,KM3#,YM3# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CM3#,KM3#,YM3# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CM3#,KM3#,YM3# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29185 |
CM3#,KM3#,YM3# |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-28030 |
CM3#,KM3#,YM3# |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10032 |
CM3#,KM3#,YM3# |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-28030 |
CM3#,KM3#,YM3# |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14020 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| Common parts | ||||
| 90170-14012 | ||||
| 90252-03006 | ||||
| 94531-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
