KM35V-JDST (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Aug 1990
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8808- )KM30,31..V4D,W4D,W5D ; (8808- )KM35,36..V4D..05S,06S

Click highlighted areas on diagram

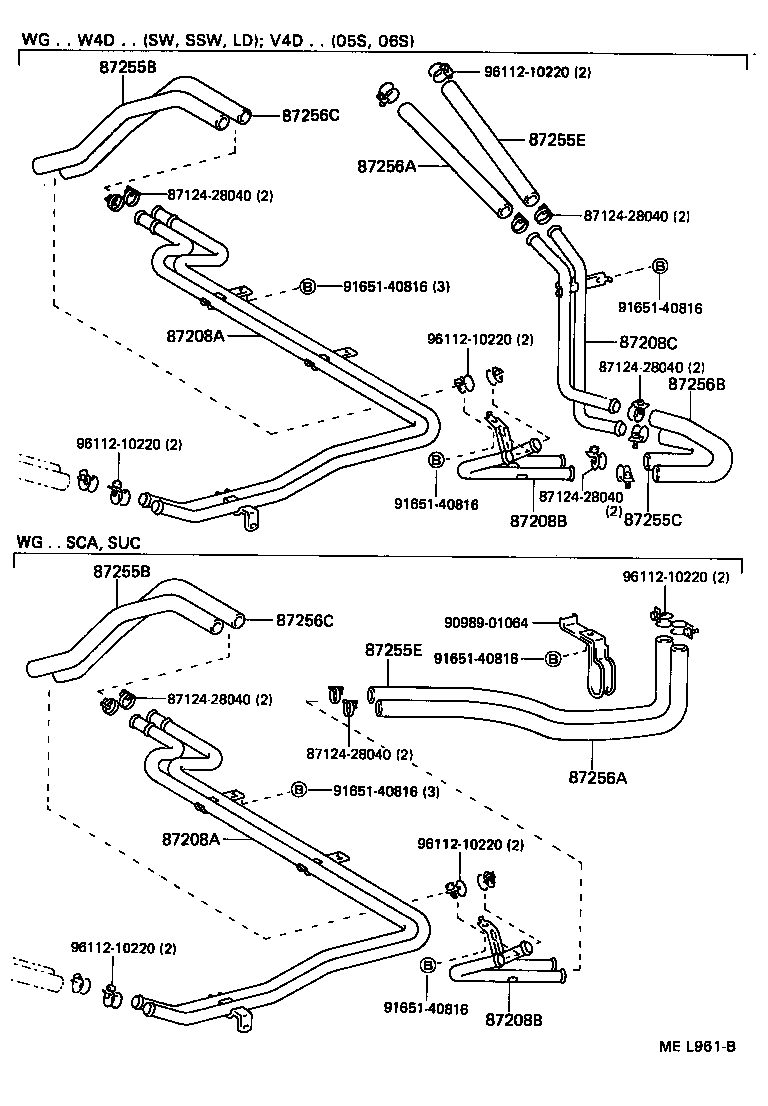

REAR HEATER PIPING

diagram 8712428040 8712428040 8712428040 8712428040 8712428040 8712428040 87208A 87208A 87208B 87208B 87208C 87255B 87255B 87255C 87255E 87255E 87256A 87256A 87256B 87256C 87256C 9098901064 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-95737

KM35,36..V4D..VSG..MRF

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-95737

KM35,36..V4D..VSG..MRF

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95729

KM35,36..V4D..VSG..MRF

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95729

KM35,36..V4D..VSG..MRF

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-95730

CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM31,40..(V4D,W4D)..(DLX,LD,SSW,SUP,SW)

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-95742

KM30,31..V4D,W4D;KM35,36..V4D..(05S,06S)

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-95742

KM30,31..V4D,W4D;KM35,36..V4D..(05S,06S)

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-95749

CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM31,40..(V4D,W4D)..(DLX,LD,SSW,SUP,SW)

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99556-20200

CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM31,40..(V4D,W4D)..(DLX,LD,SSW,SUP,SW)

長さ=200

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99556-20200

CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM31,40..(V4D,W4D)..(DLX,LD,SSW,SUP,SW)

長さ=200

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20200

CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM31,40..(V4D,W4D)..(DLX,LD,SSW,SUP,SW)

長さ=200

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20200

CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM31,40..(V4D,W4D)..(DLX,LD,SSW,SUP,SW)

長さ=200

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-95750

CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM31,40..(V4D,W4D)..(DLX,LD,SSW,SUP,SW)

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-95743

KM30,31..V4D,W4D;KM35,36..V4D..(05S,06S)

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-95743

KM30,31..V4D,W4D;KM35,36..V4D..(05S,06S)

 1
Common parts
87124-28040
90989-01064
91651-40816
96112-10220

ILLUST NO. 1 OF 2(8808- )KM3#

Click highlighted areas on diagram

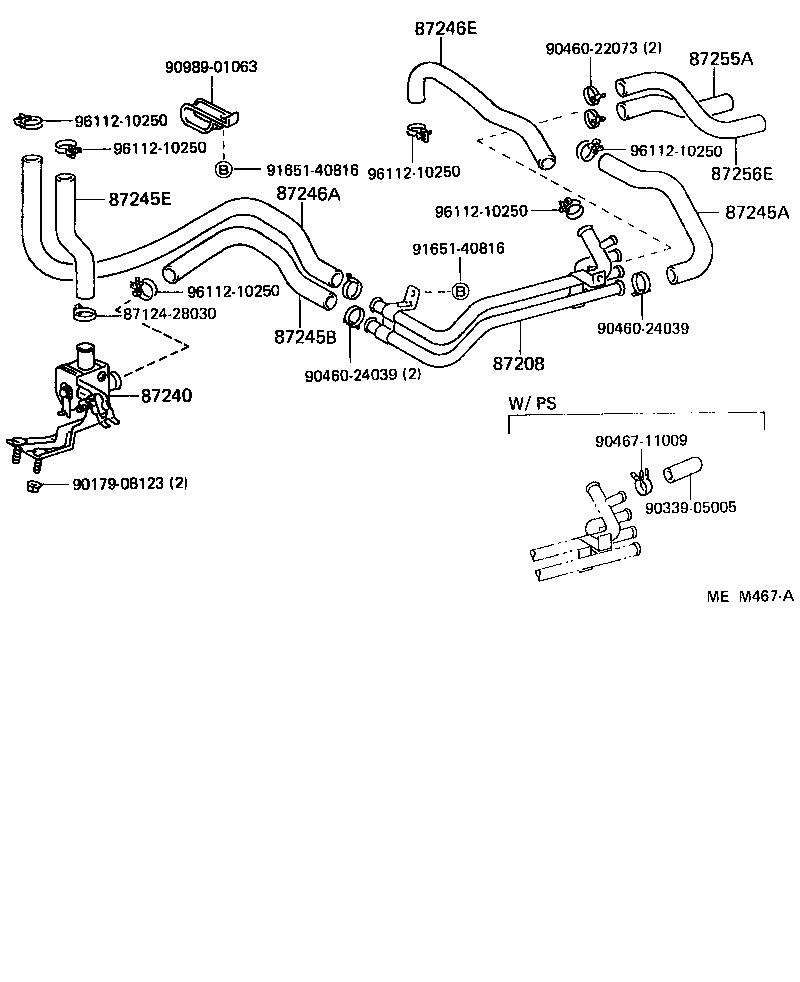

FRONT HEATER PIPING

diagram 8712428030 87208 87240 87245A 87245B 87245E 87246A 87246E 87255A 87256E 9017908123 9033905005 9046022073 9046024039 9046024039 9046711009 9098901063 9165140816 9165140816 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95748

KM31,35,36

 1
87208-95752

KM31,35,36..V4D..(05S,06S)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87240 - VALVE ASSY, HEATER WATER
87240-95712

CM3#,4#,KM3#,YM3#,40

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95734

KM3#

 1
87245-95736

CM3#,4#

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30260

CM3#,4#,YM3#,40

*H,L=260

 1
99556-30380

KM3#

*H,L=380

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30210

CM3#,4#,KM3#,YM3#,40

*H,L=210

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30500

KM3#

長さ=500

 1
99556-30700

CM3#,4#,YM3#,40

長さ=700

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95739

CM3#,4#

 1
87245-95732

KM3#

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-95754

KM35,36..V4D..(05S,06S);KM30,31..(V4D,W4D)..(3FC,4H,5F)..(SUP,SW)

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20230

KM35,36..V4D..(05S,06S);KM30,31..(V4D,W4D)..(3FC,4H,5F)..(SUP,SW)

*H,L=300

 1
Common parts
87124-28030
90179-08123
90339-05005
90460-22073
90460-24039
90467-11009
90989-01063
91651-40816
96112-10250

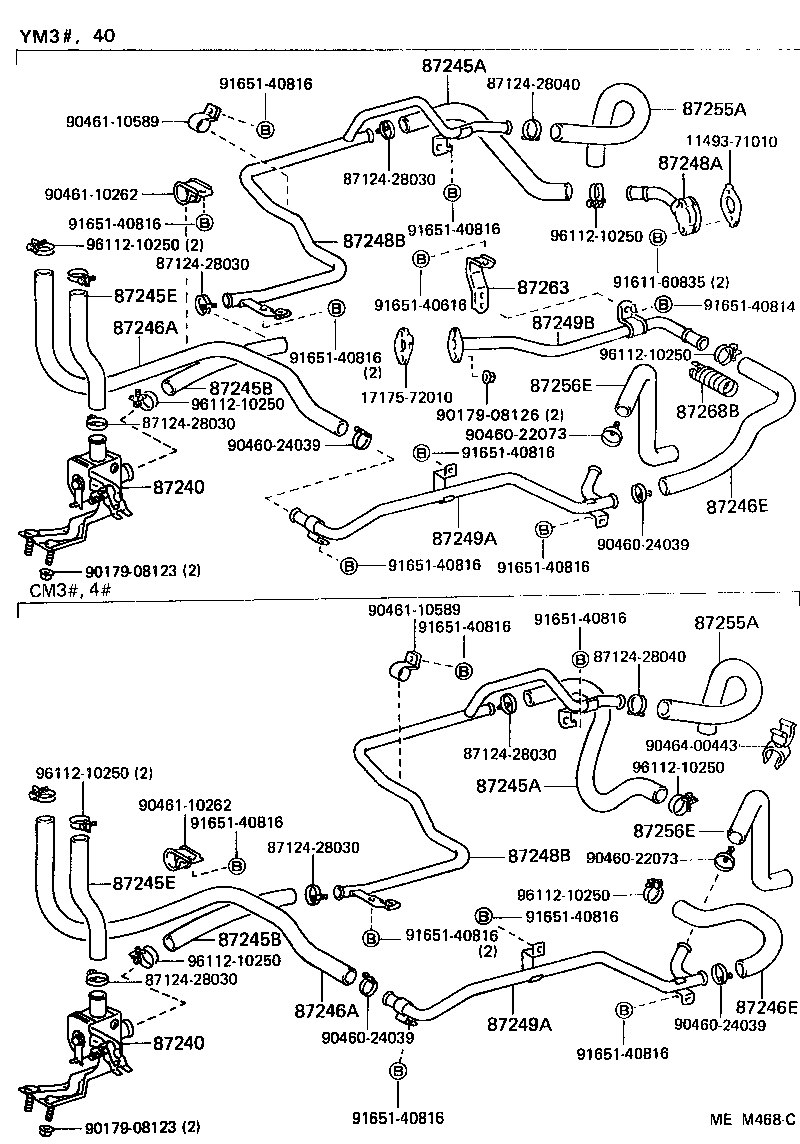

ILLUST NO. 1 OF 2(8808- )CM3#,4#,YM3#,40

Click highlighted areas on diagram

FRONT HEATER PIPING

diagram 1149371010 1717572010 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 8712428040 8712428040 87240 87240 87245A 87245A 87245B 87245B 87245E 87245E 87246A 87246A 87246E 87246E 87248A 87248B 87248B 87249A 87249A 87249B 87255A 87255A 87256E 87256E 87263 87268B 9017908123 9017908123 9017908126 9046022073 9046022073 9046024039 9046024039 9046024039 9046024039 9046110262 9046110262 9046110589 9046110589 9046400443 9161160835 9165140616 9165140814 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-95712

CM3#,4#,KM3#,YM3#,40

 1
87240 - VALVE ASSY, HEATER WATER
87240-95712

CM3#,4#,KM3#,YM3#,40

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95734

KM3#

 1
87245-95736

CM3#,4#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95734

KM3#

 1
87245-95736

CM3#,4#

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30260

CM3#,4#,YM3#,40

*H,L=260

 1
99556-30380

KM3#

*H,L=380

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30260

CM3#,4#,YM3#,40

*H,L=260

 1
99556-30380

KM3#

*H,L=380

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30210

CM3#,4#,KM3#,YM3#,40

*H,L=210

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30210

CM3#,4#,KM3#,YM3#,40

*H,L=210

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30500

KM3#

長さ=500

 1
99556-30700

CM3#,4#,YM3#,40

長さ=700

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30500

KM3#

長さ=500

 1
99556-30700

CM3#,4#,YM3#,40

長さ=700

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95739

CM3#,4#

 1
87245-95732

KM3#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95739

CM3#,4#

 1
87245-95732

KM3#

 1
87248B - PIPE, HEATER WATER INLET, B
87208-95721

CM3#,4#,YM31,40..DLX,LD,SSW,SUP,SW

 1
87248B - PIPE, HEATER WATER INLET, B
87208-95721

CM3#,4#,YM31,40..DLX,LD,SSW,SUP,SW

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-95747

CM3#,4#,YM31,40..DLX,LD,SSW,SUP,SW

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-95747

CM3#,4#,YM31,40..DLX,LD,SSW,SUP,SW

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-95754

KM35,36..V4D..(05S,06S);KM30,31..(V4D,W4D)..(3FC,4H,5F)..(SUP,SW)

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-95754

KM35,36..V4D..(05S,06S);KM30,31..(V4D,W4D)..(3FC,4H,5F)..(SUP,SW)

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20230

KM35,36..V4D..(05S,06S);KM30,31..(V4D,W4D)..(3FC,4H,5F)..(SUP,SW)

*H,L=300

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20230

KM35,36..V4D..(05S,06S);KM30,31..(V4D,W4D)..(3FC,4H,5F)..(SUP,SW)

*H,L=300

 1
Common parts
11493-71010
17175-72010
87124-28030
87124-28040
90179-08123
90179-08126
90460-22073
90460-24039
90461-10262
90461-10589
90464-00443
91611-60835
91651-40616
91651-40814
91651-40816
96112-10250
