KM35V-JDST (1988)
Toyota Liteace Van,Wagon
(8808- )4H..SW ; (8808- )CM30,40,KM30,35,36,YM40..MTM..DLX,LD

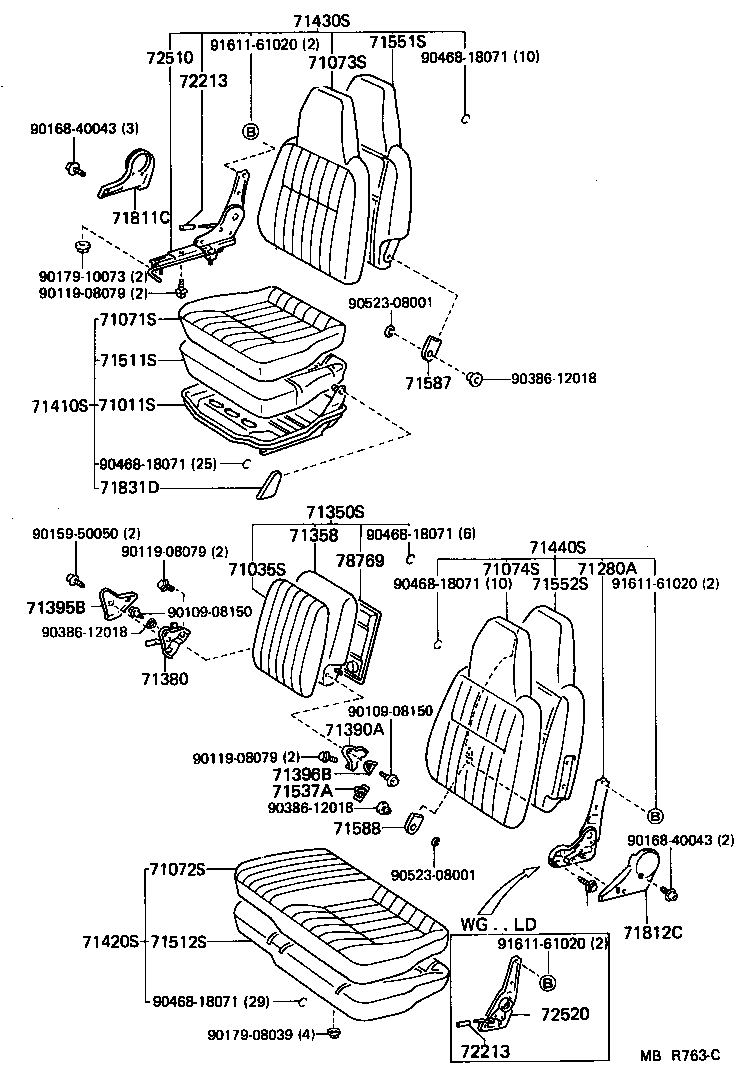

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95706 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-9570903 |
KM30,35,36..MTM..(DLX,SW) GRAY,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-9573503 |
CM30,36,4#,KM30,35,36,YM31,40..DLX,SW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-9575403 |
KM30,35,36..MTM..(DLX,SW) GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-9573803 |
CM30,36,4#,KM30,35,36,YM31,40..DLX,SW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-9574503 |
CM30,36,4#,KM30,35,36,YM31,40..DLX,SW GRAY,TRIM1# |
1 | ||
| 71280A - HINGE ASSY, FRONT SEAT BACK, LH | ||||
| 71320-9570101 |
CM30,36,4#,KM30,35,36,YM31,40..DLX,SW BLACK,TRIM1# |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-9572703 |
KM30,35,36..MTM..(DLX,SW) ***,GRAY,TRIM1# |
1 | ||
| 71358 - PAD, CENTER SEAT BACK | ||||
| 71033-95702 |
KM30,35,36..4H,5H |
1 | ||
| 71380 - HINGE ASSY, CENTER SEAT, RH | ||||
| 71380-9570013 |
KM30,35,36..4H,5H GRAY,TRIM1# |
1 | ||
| 71390A - HINGE ASSY, CENTER SEAT, LH | ||||
| 71378-9570413 |
KM30,35,36..4H,5H GRAY,TRIM1# |
1 | ||
| 71395B - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-9570113 |
KM30,35,36..4H,5H GRAY,TRIM1# |
1 | ||
| 71396B - COVER, CENTER SEAT HINGE, LH | ||||
| 71396-9570413 |
KM30,35,36..4H,5H GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-9578703 |
CM30,36,4#,KM30,35,36,YM31,40..DLX,SW ***,GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-9575103 |
KM30,35,36..MTM..(DLX,SW) ***,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-9574603 |
CM30,36,4#,KM30,35,36,YM31,40..DLX,SW ***,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-9575403 |
CM30,36,4#,KM30,35,36,YM31,40..DLX,SW ***,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95701 |
CM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-95716 |
KM30,35,36..4H,5H |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-95702 |
CM30,36,4#,KM30,35,36,YM31,40..DLX,LD,SW |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-95702 |
CM30,36,4#,KM30,35,36,YM31,40..DLX,LD,SW |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71588-9570013 |
CM3#,4#,KM3#,YM3#,40 GRAY,TRIM1# |
1 | ||
| 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71588-9570013 |
CM3#,4#,KM3#,YM3#,40 GRAY,TRIM1# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71801-9570003 |
CM3#,4#,KM3#,YM3#,40 GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-9570003 |
CM30,36,4#,KM30,35,36,YM31,40..DLX,SW GRAY,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-9570013 |
CM3#,4#,KM3#,YM3#,40 GRAY,TRIM1# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-9570803 |
CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW GRAY,TRIM1# |
1 | ||
| 78769 - TRAY, SUB SEAT BACK | ||||
| 78769-9570213 |
KM30,35,36..4H,5H GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90109-08150 | ||||
| 90119-08079 | ||||
| 90159-50050 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90179-10073 | ||||
| 90386-12018 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91611-61020 | ||||
(8808- )CM31,36,41,KM31,35,36,YM31

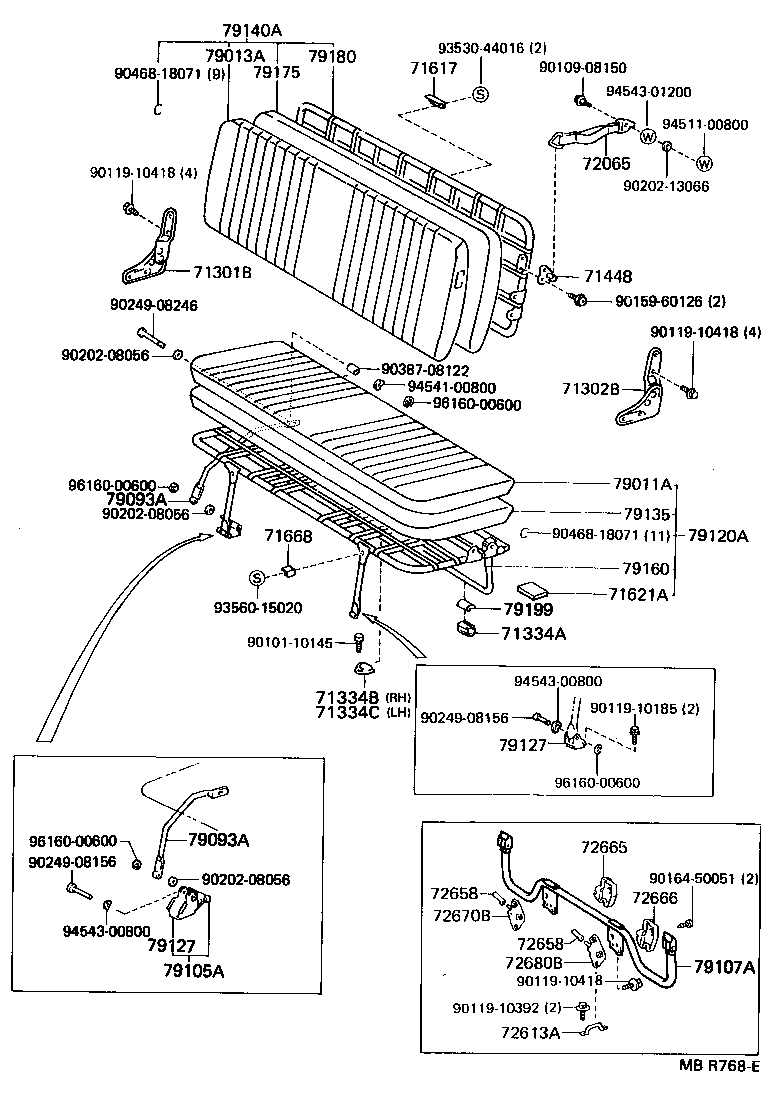

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71301B - HINGE SUB-ASSY, REAR NO.1 SEAT, RH | ||||
| 71301-9570603 |
CM31,36,41,KM31,35,36,YM31..05S,06S GRAY,TRIM1# |
1 | ||
| 71302B - HINGE SUB-ASSY, REAR NO.1 SEAT, LH | ||||
| 71302-9570503 |
CM31,36,41,KM31,35,36,YM31..05S,06S GRAY,TRIM1# |
1 | ||
| 71334A - STOPPER, REAR SEAT LEG | ||||
| 71334-95704 |
CM31,36,41,KM31,35,36,YM31..05S,06S |
1 | ||
| 71334B - STOPPER, REAR SEAT LEG, RH | ||||
| 71334-95703 |
CM31,36,41,KM31,35,36,YM31..05S,06S |
1 | ||
| 71334C - STOPPER, REAR SEAT LEG, LH | ||||
| 71334-95703 |
CM31,36,41,KM31,35,36,YM31..05S,06S |
1 | ||
| 71448 - STOPPER, REAR SEAT BACK | ||||
| 71448-9570303 |
CM36,41,KM35,36..05S,06S;CM31,KM30,31,YM31..DLX,SCA,SUP GRAY,TRIM1# |
1 | ||
| 71617 - PROTECTOR, REAR SEAT BACK | ||||
| 71617-95A0303 |
CM36,41,KM35,36..05S,06S;CM30,31,40,KM30,31,YM31,40..DLX,SSW,SUP,SW GRAY,TRIM1# |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-95701 |
CM36,41,KM35,36..05S,06S;CM30,31,40,KM30,31,YM31,40..DLX,SSW,SUP,SW |
6 | ||
| 71668 - CUSHION, REAR NO.3 SEAT | ||||
| 71668-95700 |
KM31,35,36..05S,06S |
2 | ||
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-95703 |
CM31,36,41,KM31,35,36,YM31..05S,06S |
1 | ||
| 72613A - STRIKER, FRONT SEAT LOCK | ||||
| 72613-95703 |
CM36,41,KM35,36..05S,06S;CM30,31,40,KM30,31,YM31,40..DLX,SSW,SUP,SW |
2 | ||
| 72658 - KNOB, REAR SEAT HANDLE | ||||
| 72658-9570103 |
CM36,41,KM35,36..05S,06S;CM30,31,40,KM30,31,YM31,40..DLX,SSW,SUP,SW GRAY,TRIM1# |
2 | ||
| 72658 - KNOB, REAR SEAT HANDLE | ||||
| 72658-9570103 |
CM36,41,KM35,36..05S,06S;CM30,31,40,KM30,31,YM31,40..DLX,SSW,SUP,SW GRAY,TRIM1# |
2 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-9570403 |
CM36,41,KM35,36..05S,06S;CM30,31,40,KM30,31,YM31,40..DLX,SSW,SUP,SW GRAY,TRIM1# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72665-9570403 |
CM36,41,KM35,36..05S,06S;CM30,31,40,KM30,31,YM31,40..DLX,SSW,SUP,SW GRAY,TRIM1# |
1 | ||
| 72670B - LOCK ASSY, REAR SEAT CUSHION, RH | ||||
| 72670-95700 |
CM36,41,KM35,36..05S,06S;CM30,31,40,KM30,31,YM31,40..DLX,SSW,SUP,SW |
1 | ||
| 72680B - LOCK ASSY, REAR SEAT CUSHION, LH | ||||
| 72670-95700 |
CM36,41,KM35,36..05S,06S;CM30,31,40,KM30,31,YM31,40..DLX,SSW,SUP,SW |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-9572303 |
CM36,41,KM35,36,YM31..DLX..(05S,06S) GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-9572303 |
CM36,41,KM35,36,YM31..DLX..(05S,06S) GRAY,TRIM1# |
1 | ||
| 79107A - LEG SUB-ASSY, NO.1 SEAT, REAR | ||||
| 79107-95706 |
CM31,36,41,KM31,35,36..05S,06S |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-9572403 |
KM35,36..06S ***,GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95J03 |
CM36,41,KM35,36..05S,06S;CM30,31,40,KM30,31,YM31,40..DLX,SSW,SUP,SW |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-9572603 |
CM36,41,KM35,36,YM31..DLX..(05S,06S) ***,GRAY,TRIM1# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-9570501 |
KM31,35,36..05S,06S BLACK,TRIM1# |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95J02 |
CM36,41,KM35,36..05S,06S;CM30,31,40,KM30,31,YM31,40..DLX,SSW,SUP,SW |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-95702 |
CM31,36,41,KM31,35,36,YM31..05S,06S |
1 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
CM31,36,41,KM31,35,36,YM31..05S,06S |
2 | ||
| Common parts | ||||
| 90101-10145 | ||||
| 90109-08150 | ||||
| 90119-10185 | ||||
| 90119-10392 | ||||
| 90119-10418 | ||||
| 90159-60126 | ||||
| 90164-50051 | ||||
| 90202-08056 | ||||
| 90202-13066 | ||||
| 90249-08156 | ||||
| 90249-08246 | ||||
| 90387-08122 | ||||
| 90468-18071 | ||||
| 93530-44016 | ||||
| 93560-15020 | ||||
| 94511-00800 | ||||
| 94541-00800 | ||||
| 94543-00800 | ||||
| 94543-01200 | ||||
| 96160-00600 | ||||
