KM35V-JDST (1988)
Toyota Liteace Van,Wagon
Production
Aug 1988
-
Aug 1990
Engine
4KJ
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808-9008)4H

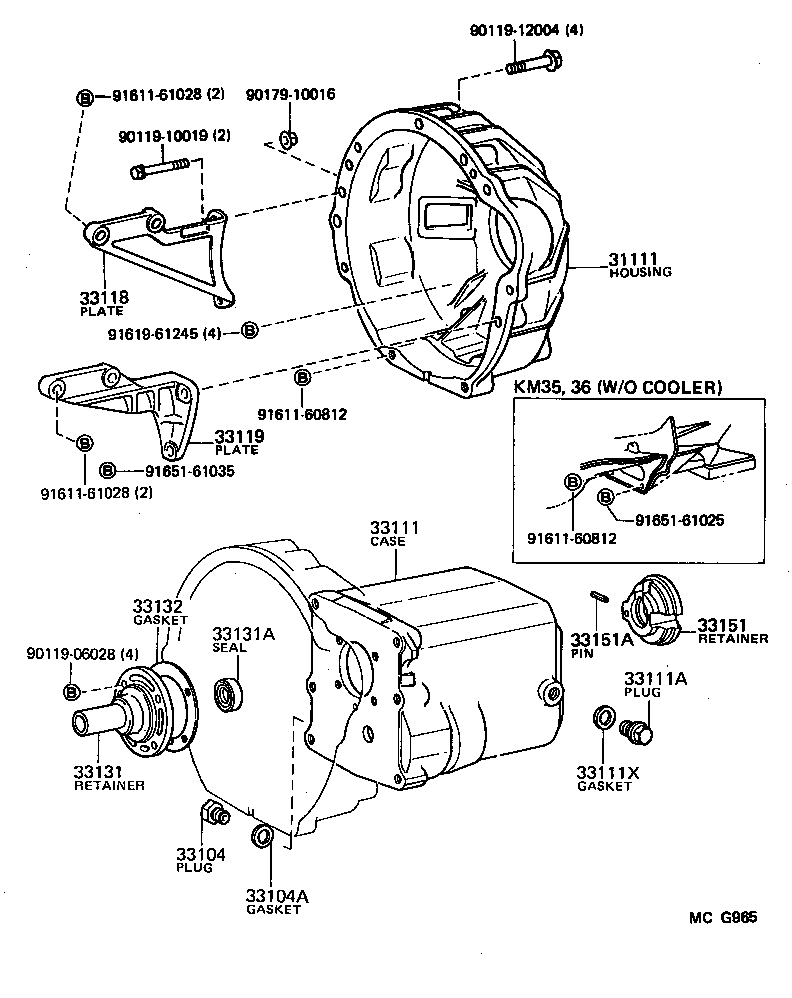

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-27020 |
KM30,35,36..4H |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
KM30,31,35,YM3#,40..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
CM3#,4#,KM3#,YM3#,40..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-35031 |
KM30,35,36..4H |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
CM3#,4#,KM3#,YM3#,40..MTM |
1 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
CM3#,4#,KM3#,YM3#,40..MTM |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-12080 |
KM3#..MTM |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-12050 |
KM36;KM31..HRF..3FC;KM30,31,35..MTM |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-20050 |
KM30,35,36..4H |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32106 |
KM30,35,36..4H |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-30030 |
KM30,35,36..4H |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-26010 |
KM30,35,36..4H |
1 | ||
| 33151A - PIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAI | ||||
| 90254-05005 |
KM30,35,36..4H |
1 | ||
| Common parts | ||||
| 90119-06028 | ||||
| 90119-10019 | ||||
| 90119-12004 | ||||
| 90179-10016 | ||||
| 91611-60812 | ||||
| 91611-61028 | ||||
| 91619-61245 | ||||
| 91651-61025 | ||||
| 91651-61035 | ||||
