KM35V-JDST (1988)
Toyota Liteace Van,Wagon
Production
Aug 1988
-
Aug 1990
Engine
4KJ
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )4KJ

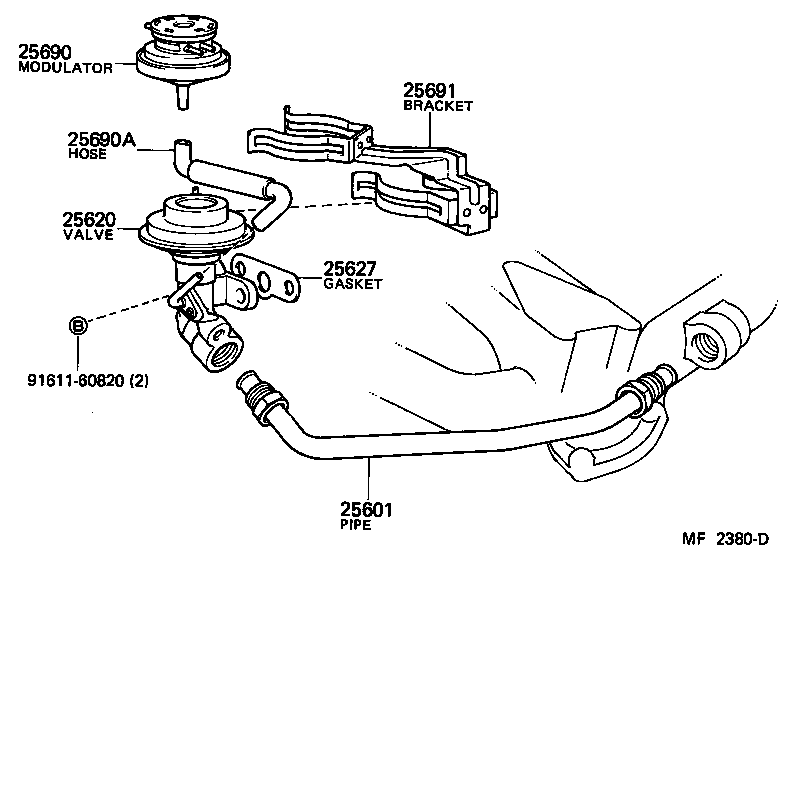

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-13010 |
4KJ..KM35 |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-13160 |
4KJ..KM35 |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-13010 |
4KJ..KM35 |
1 | ||
| 25627-13011 |
4KJ..KM35 |
1 | ||
| 25690 - MODULATOR ASSY, EGR VACUUM | ||||
| 25870-13120 |
4KJ..KM35 |
1 | ||
| 25690A - HOSE(FOR EGR VACUUM MODULATOR) | ||||
| 25695-13010 |
4KJ..KM35 |
1 | ||
| 25691 - BRACKET, EGR VACUUM MODULATOR | ||||
| 25691-13010 |
4KJ..KM35 |
1 | ||
| Common parts | ||||
| 91611-60820 | ||||
