KM35V-JDSFET (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Aug 1990
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

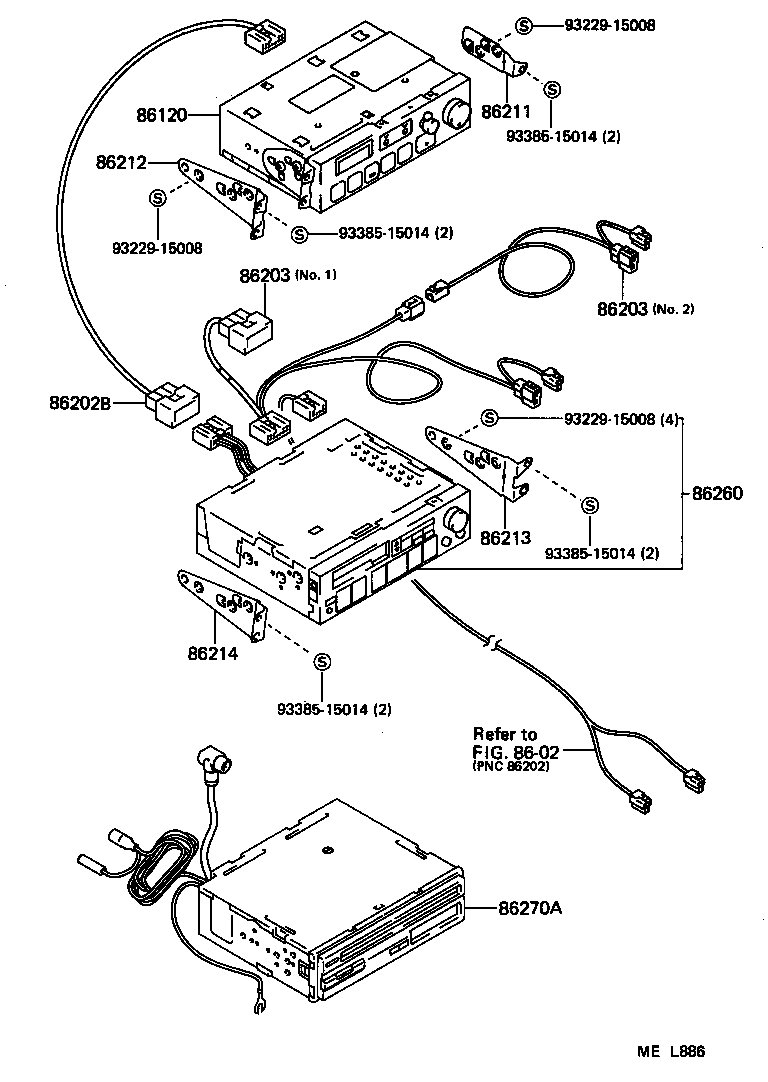

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 8602 86120 86202B 86203 86203 86211 86212 86213 86214 86260 86270A 9322915008 9322915008 9322915008 9338515014 9338515014 9338515014 9338515014
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-16350

CM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

FUJITSU TEN,AM 5 ﾎﾞﾀﾝ

 1
86202B - WIRE, TAPE PLAYER
86203-95715

CM3#,4#,KM3#,YM30,40

 1
86211 - BRACKET, RADIO, NO.1
86211-95714

CM3#,4#,KM3#,YM3#,40

 1
86212 - BRACKET, RADIO, NO.2
86212-95706

CM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

 1
86213 - BRACKET, RADIO, NO.3
86211-95712

CM3#,4#,KM3#,YM3#,40

 1
86214 - BRACKET, RADIO, NO.4
86212-95705

CM3#,4#,KM3#,YM3#,40

 1
86260 - TAPE PLAYER ASSY
86260-19105

CM31,36,41,KM31,35,36

 1
Common parts
93229-15008
93385-15014
Linked diagrams
8602

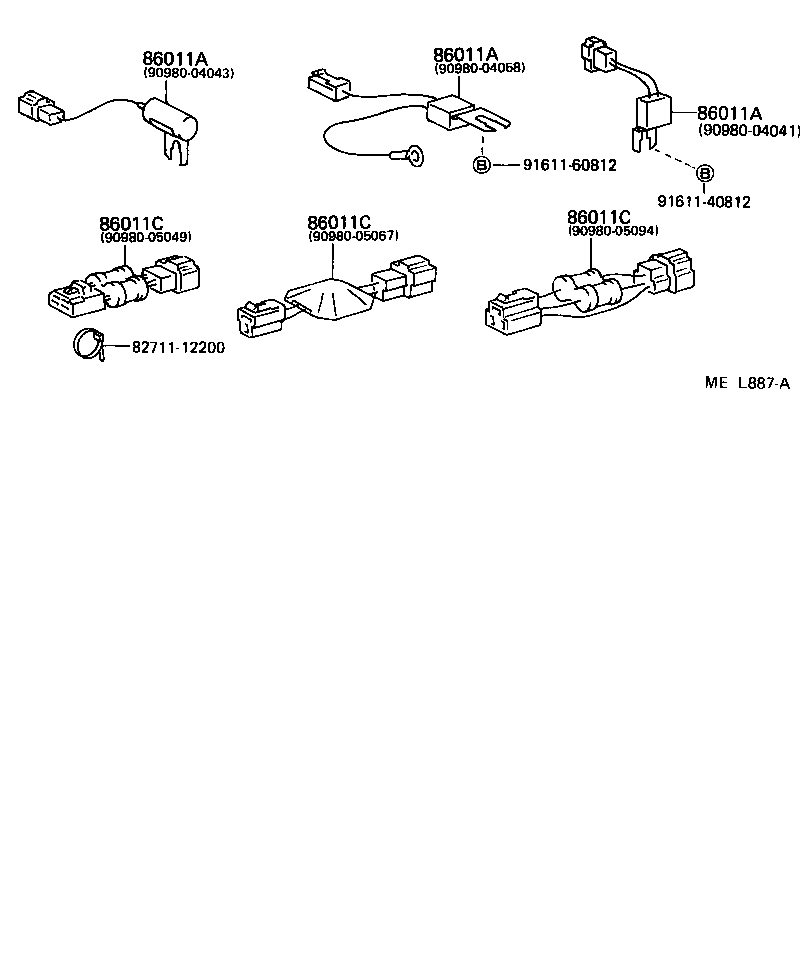

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 8271112200 86011A 86011A 86011A 86011C 86011C 86011C 9098004041 9098004043 9098004058 9098005049 9098005067 9098005094 9161140812 9161160812
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04043

KM31,35,36

REGULATOR

 1
90980-04058

KM3#

I.G COIL

 1
86011A - CONDENSER, RADIO SETTING
90980-04043

KM31,35,36

REGULATOR

 1
90980-04058

KM3#

I.G COIL

 1
86011A - CONDENSER, RADIO SETTING
90980-04043

KM31,35,36

REGULATOR

 1
90980-04058

KM3#

I.G COIL

 1
86011C - FILTER, NOISE
90980-05067

CM3#,4#,KM3#,YM3#,40

STOP LAMP SW

 1
90980-05094

CM3#,4#,KM3#,YM3#,40

FLASHER RELAY

 1
86011C - FILTER, NOISE
90980-05067

CM3#,4#,KM3#,YM3#,40

STOP LAMP SW

 1
90980-05094

CM3#,4#,KM3#,YM3#,40

FLASHER RELAY

 1
86011C - FILTER, NOISE
90980-05067

CM3#,4#,KM3#,YM3#,40

STOP LAMP SW

 1
90980-05094

CM3#,4#,KM3#,YM3#,40

FLASHER RELAY

 1
Common parts
82711-12200
90980-04041
90980-04043
90980-04058
90980-05049
90980-05067
90980-05094
91611-40812
91611-60812
