KM35V-JDSFET (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Aug 1990
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

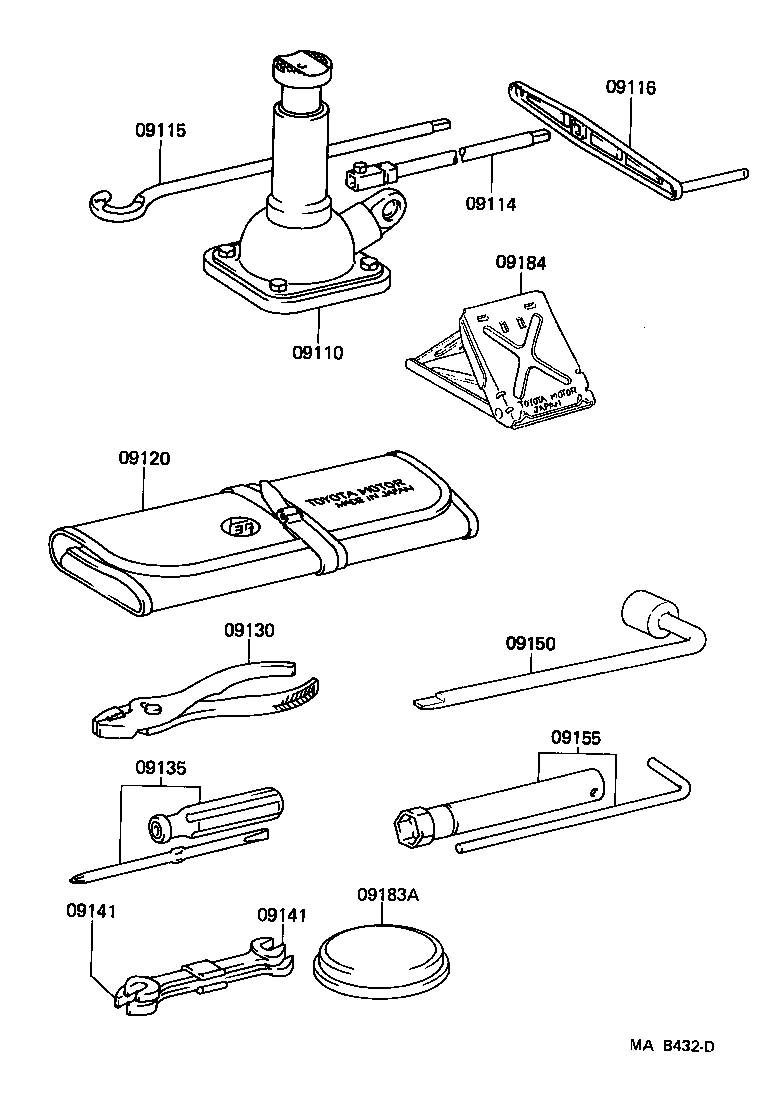

Click highlighted areas on diagram

diagram 09110 09114 09115 09116 09120 09130 09135 09141 09141 09150 09155 09183A 09184
Part # Description Qty Price
09110 - JACK ASSY
09111-27050

KM35..HRF,MRF;KM35..SRF..06S;CM3#,KM30,31,36,YM30

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-60050

CM3#,4#,KM3#,YM3#,40

 2
09115 - ROD SUB-ASSY, JACK HANDLE
09115-60030

CM3#,4#,KM3#,YM30,40

 1
09116 - LEVER, JACK HANDLE
09116-35040

CM3#,4#,KM3#,YM30,40

 1
09120 - BAG, TOOL
09120-26021

CM3#,KM3#,YM3#

 1
09130 - PLIERS
99913-11500

CM3#,4#,KM3#,YM3#,40

 1
09135 - DRIVER, SCREW
99915-10700

CM3#,4#,KM3#,YM3#,40

 1
09141 - SPANNER
99914-10810

CM3#,4#,KM3#,YM3#,40

8 X 10

 1
99914-11214

CM3#,4#,KM3#,YM3#,40

12 X 14

 1
09141 - SPANNER
99914-10810

CM3#,4#,KM3#,YM3#,40

8 X 10

 1
99914-11214

CM3#,4#,KM3#,YM3#,40

12 X 14

 1
09155 - WRENCH, SPARK PLUG
09155-44010

KM3#

 1
