KM35V-JDSET (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8509- )CM3#,41,KM30,35,36..DLX,SW

Click highlighted areas on diagram

diagram 83100B 83100G 83101 83101 83102 83109 83110 83128 83132 83145 83145A 83145B 83145C 8316120380 8316120440 83310 9018305032 9356055016
Part # Description Qty Price

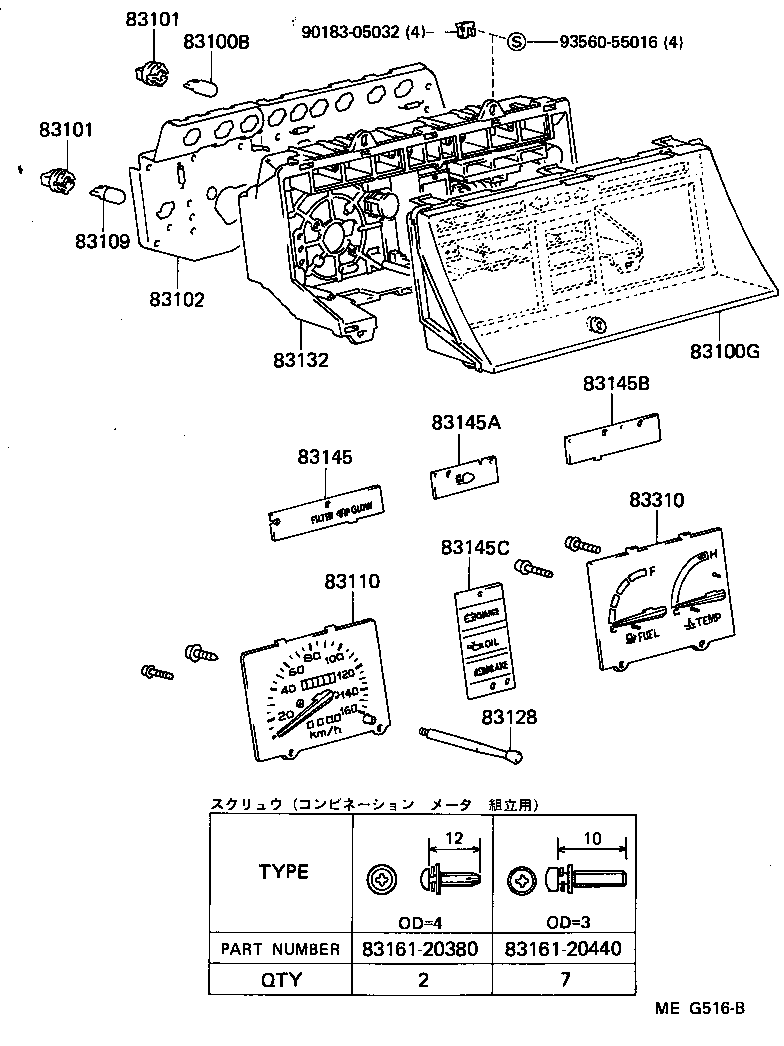

83100B - BULB, COMBINATION METER, NO.1
99132-12034

CM3#,4#,KM3#,YM30,40

12V 3.4W,12V 3.4W

 12
83100G - GLASS, COMBINATION METER
83134-95706

CM3#,41,KM30,35,36..DLX,SW

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

CM3#,4#,KM3#,YM30,40

BULB:12V 3.4W

 12
83101-20070

CM3#,4#,KM3#,YM30,40

BULB:GREEN CAP,12V 3.4W

 4
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

CM3#,4#,KM3#,YM30,40

BULB:12V 3.4W

 12
83101-20070

CM3#,4#,KM3#,YM30,40

BULB:GREEN CAP,12V 3.4W

 4
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-95712

KM35,36..DLX

 1
83109 - BULB, COMBINATION METER, NO.2
83109-24030

CM3#,4#,KM3#,YM30,40

12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,GREEN CAP,12V 3.4W

 4
83110 - SPEEDOMETER ASSY
83110-95714

KM30,35,36..DLX,SW

 1
83110-95714

CM3#,41,KM30,35,36..DLX,SW

 1
83128 - KNOB, TRIP COUNTER
83128-95J00

CM3#,4#,KM3#,YM30,40

 1
83132 - CASE, COMBINATION METER
83132-95J02

CM3#,41,KM30,35,36..DLX,SW

 1
83145 - LENS, METER, NO.1
83145-95721

KM35,36..DLX

 1
83145A - LENS, METER, NO.2
83145-95722

CM3#,41,KM30,35,36..DLX,SW

 1
83145-95G04

CM3#,41,KM30,35,36..DLX,SW

 1
83145B - LENS, METER, NO.3
83145-95723

CM30,35,41,KM30,35,36..(3FC,4H,5F)..(DLX,SW)

 1
83145C - LENS, METER, NO.4
83145-95724

CM3#,41,KM30,35,36..DLX,SW

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-95711

CM3#,41,KM30,35,36..DLX,SW

 1
Common parts
83161-20380
83161-20440
90183-05032
93560-55016

ILLUST NO. 2 OF 3(8509- )

Click highlighted areas on diagram

diagram 83710 83710 83770 83770 8379195706 8379195706 8379195708 8379195708 9046708069 9046708069 9046804021 9098901065 9161160814 9161160814 9161160814 9161160814 9161160814
Part # Description Qty Price

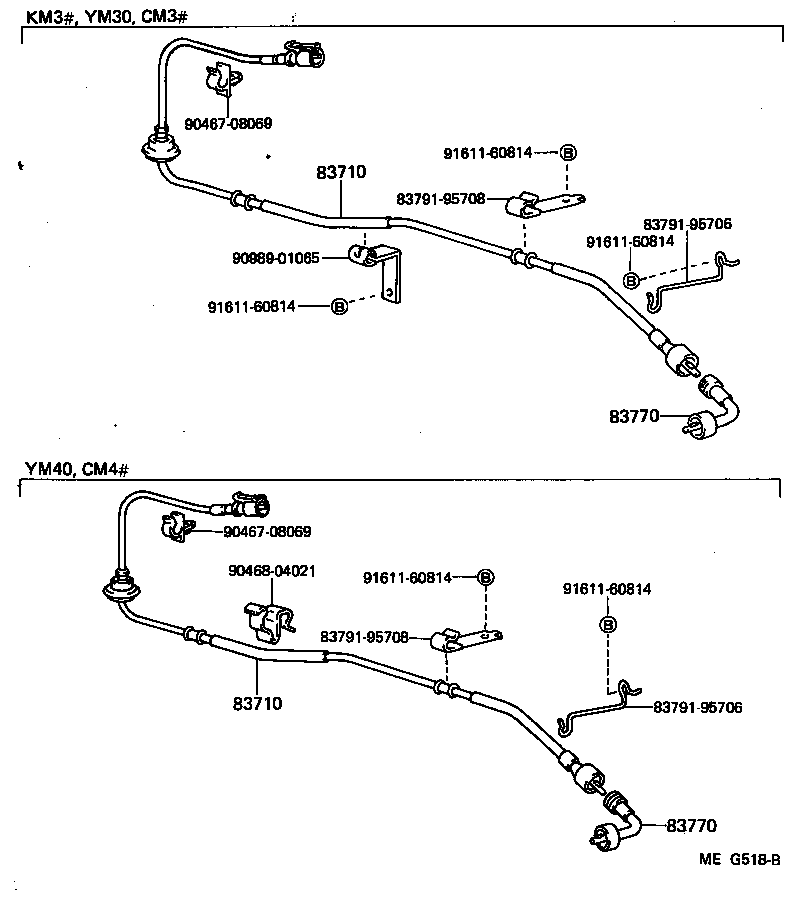

83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95715

KM30,35,36..4F,4H

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95715

KM30,35,36..4F,4H

 1
Common parts
83791-95706
83791-95708
90467-08069
90468-04021
90989-01065
91611-60814

ILLUST NO. 3 OF 3(8509- )

Click highlighted areas on diagram

diagram 5551 8202 83180 83189 83890 83890B 83891 83891 83901 83910 83910 83919A 83919A 9017906007 9018305033 9018305033 9356755016 9356755016
Part # Description Qty Price

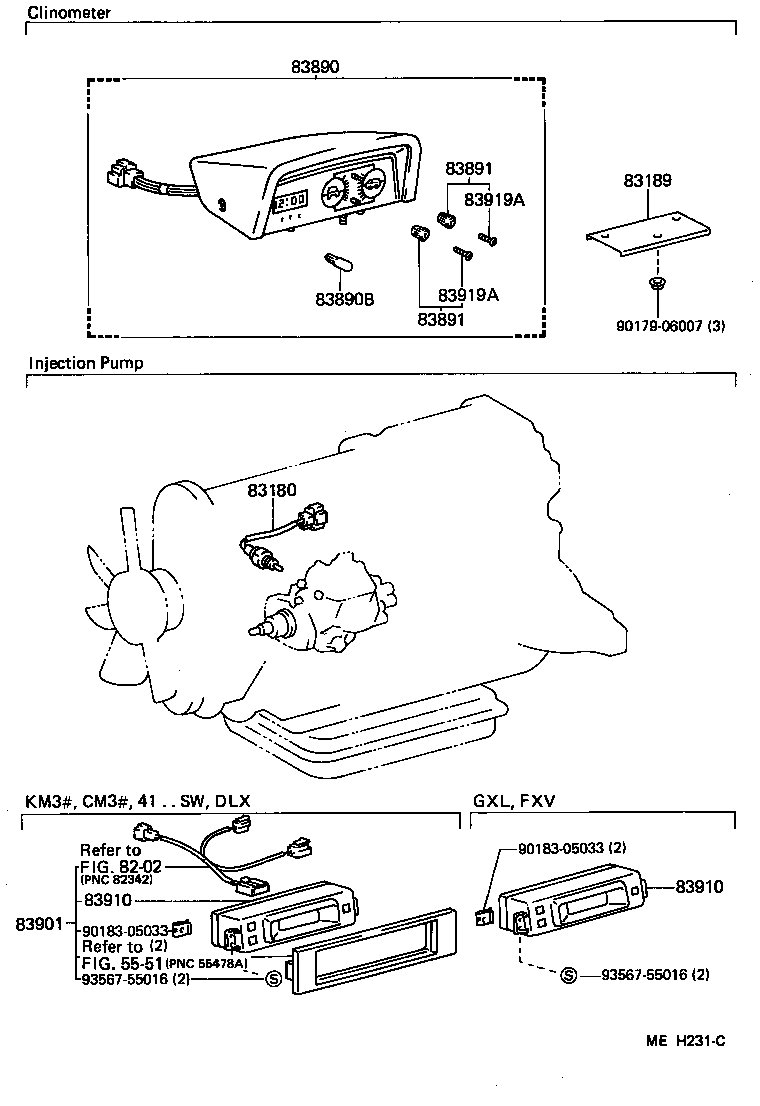

83901 - CLOCK AND SETTING PARTS SET
83901-9570306

CM35,36,41,KM35,36..DLX

BROWN,BROWN,TRIM4#

 1
83901-9570406

CM35,36,41,KM35,36..DLX

BROWN,BROWN,TRIM4#

 1
83901-9570404

CM35,36,41,KM35,36..VSG..DLX

BLUE,BLUE,TRIM4#,8#

 1
83901-9570304

CM35,36,41,KM35,36..VSG..DLX

BLUE,BLUE,TRIM4#,8#

 1
83910 - CLOCK ASSY
83910-95705

CM3#,41,KM30,35,36,YM30..DLX,FXV,GXL,SW

 1
83910 - CLOCK ASSY
83910-95705

CM3#,41,KM30,35,36,YM30..DLX,FXV,GXL,SW

 1
Common parts
90179-06007
90183-05033
93567-55016
Linked diagrams
5551
8202
