KM35V-JDSET (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )CM35,KM35,36..VSG ; (8509- )CM30,36,4#,KM30,31,YM40..DLX,SUP,SW,XL7

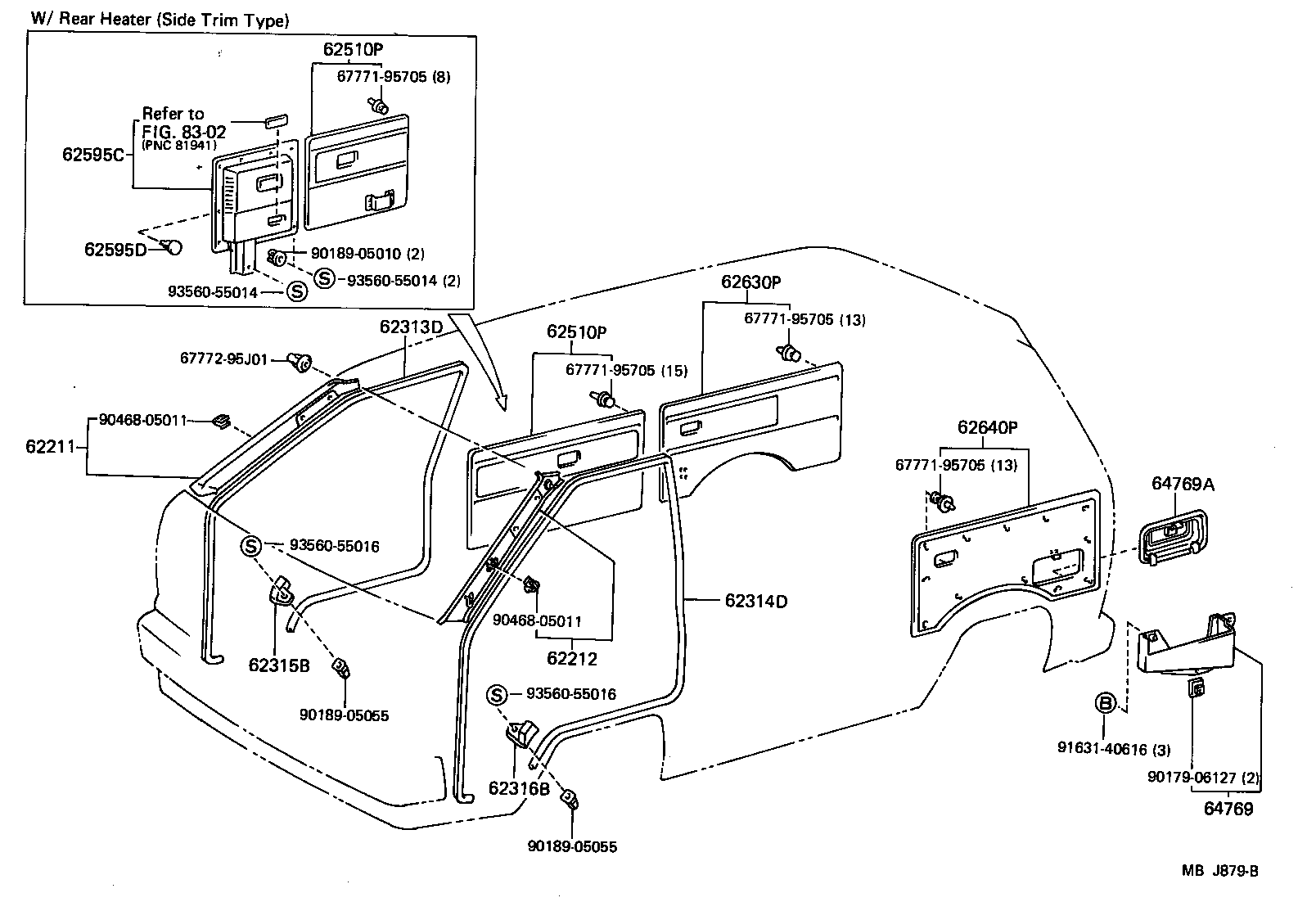

Click highlighted areas on diagram

diagram 62211 62212 62313D 62314D 62315B 62316B 62510P 62510P 62595C 62595D 62630P 62640P 64769 64769A 6777195705 6777195705 6777195705 6777195705 6777295J01 8302 9017906127 9018905010 9018905055 9018905055 9046805011 9046805011 9163140616 9356055014 9356055014 9356055016 9356055016
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-9570603

CM3#,4#..DLX,GXL,SUC,SW,XL7

GRAY,GRAY

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-9570703

CM35,36,4#,KM30,36,YM30,40..DLX,GXL,SCA,SUC,SW,XL7

GRAY,GRAY,TRIM4#,8#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-9571004

CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7

BLUE,BLUE,TRIM4#,8#

 1
62313-9571006

CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP

BROWN,BROWN,TRIM4#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-9571006

CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP

BROWN,BROWN,TRIM4#

 1
62313-9571004

CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7

BLUE,BLUE,TRIM4#,8#

 1
62315B - COVER, FRONT DOOR OPENING TRIM, RH
62317-9570004

CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7

BLUE,BLUE,TRIM4#,8#

 1
62317-9570006

CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP

BROWN,BROWN,TRIM4#

 1
62316B - COVER, FRONT DOOR OPENING TRIM, LH
62318-9570006

CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP

BROWN,BROWN,TRIM4#

 1
62318-9570004

CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7

BLUE,BLUE,TRIM4#,8#

 1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62510-9571306

KM35,36..V4D..VSG..DLX

BROWN,BROWN,TRIM4#

 1
62510-9571304

KM35,36..V4D..VSG..DLX

BLUE,BLUE,TRIM4#,8#

 1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62510-9571306

KM35,36..V4D..VSG..DLX

BROWN,BROWN,TRIM4#

 1
62510-9571304

KM35,36..V4D..VSG..DLX

BLUE,BLUE,TRIM4#,8#

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62630-9571406

CM35,KM35,36..V4D..VSG..MRF

BROWN,BROWN,TRIM4#

 1
62630-9571404

CM35,KM35,36..V4D..VSG..MRF

BLUE,BLUE,TRIM4#,8#

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-9571606

CM35,KM35..MRF..(02S,03S)

BROWN,BROWN,TRIM4#

 1
62640-9571604

CM35,KM35..MRF..(02S,03S)

BLUE,BLUE,TRIM4#,8#

 1
Common parts
67771-95705
67772-95J01
90179-06127
90189-05010
90189-05055
90468-05011
91631-40616
93560-55014
93560-55016
Linked diagrams
8302
