KM35V-JDFE (1988)
Toyota Liteace Van,Wagon
(8808- )DLX,SSW,SUP,SW

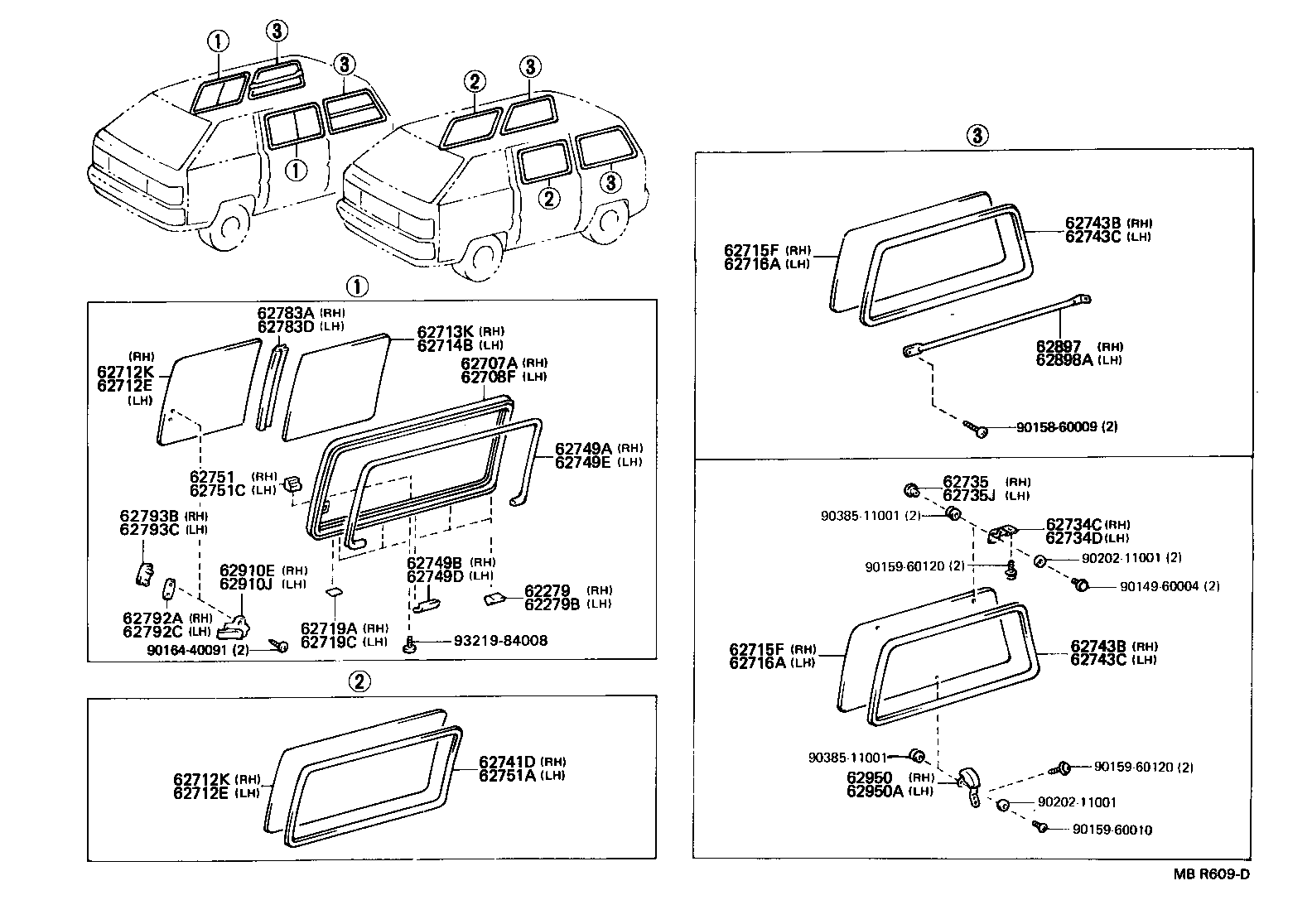

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62707A - FRAME SUB-ASSY, SIDE FRONT WINDOW, RH | ||||
| 67043-95700 |
CM36..V5D..HRF;KM35,36..V5D..(05S,06S);CM36..V5D..(MRF,SRF)..05S;CM30,31,4#,KM30,31,YM31..V5D,W5D |
1 | ||
| 62712E - GLASS, SIDE FRONT WINDOW, LH | ||||
| 62732-95717 |
CM36,41,KM35,36..VSG..(02S,03S) *TEM,厚さ=3.5 |
1 | ||
| 62712E - GLASS, SIDE FRONT WINDOW, LH | ||||
| 62732-95717 |
CM36,41,KM35,36..VSG..(02S,03S) *TEM,厚さ=3.5 |
1 | ||
| 62712K - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62732-95717 |
CM36,41,KM35,36..V5D..(02S,03S) *TEM,厚さ=3.5 |
1 | ||
| 62732-95715 |
CM36..V5D..HRF;CM36..V5D..(MRF,SRF)..05S;KM35,36..V5D..DLX..(05S,06S);CM30,4#,KM30,YM31..(V5D,W5D)..(DLX,SW) *TEM,厚さ=4.0 |
1 | ||
| 62712K - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62732-95717 |
CM36,41,KM35,36..V5D..(02S,03S) *TEM,厚さ=3.5 |
1 | ||
| 62732-95715 |
CM36..V5D..HRF;CM36..V5D..(MRF,SRF)..05S;KM35,36..V5D..DLX..(05S,06S);CM30,4#,KM30,YM31..(V5D,W5D)..(DLX,SW) *TEM,厚さ=4.0 |
1 | ||
| 62713K - GLASS, SIDE WINDOW, REAR RH | ||||
| 62735-95704 |
CM36..V5D..HRF;CM36..V5D..(MRF,SRF)..05S;KM35,36..V5D..DLX..(05S,06S);CM30,4#,KM30,YM31..(V5D,W5D)..(DLX,SW) *TEM,厚さ=4.0 |
1 | ||
| 62715F - GLASS, SIDE REAR WINDOW, RH | ||||
| 62715-95700 |
CM36,KM35,36..VSG;CM30,31,4#,KM30,31,YM31,40..DLX,SSW,SUP,SW *TEM,厚さ=3.5 |
1 | ||
| 62715F - GLASS, SIDE REAR WINDOW, RH | ||||
| 62715-95700 |
CM36,KM35,36..VSG;CM30,31,4#,KM30,31,YM31,40..DLX,SSW,SUP,SW *TEM,厚さ=3.5 |
1 | ||
| 62716A - GLASS, SIDE REAR WINDOW, LH | ||||
| 62716-95700 |
CM36,KM35,36..VSG;CM30,31,4#,KM30,31,YM31,40..DLX,LD,SSW,SUP,SW *TEM,厚さ=3.5 |
1 | ||
| 62716A - GLASS, SIDE REAR WINDOW, LH | ||||
| 62716-95700 |
CM36,KM35,36..VSG;CM30,31,4#,KM30,31,YM31,40..DLX,LD,SSW,SUP,SW *TEM,厚さ=3.5 |
1 | ||
| 62741D - WEATHERSTRIP, SIDE FRONT WINDOW | ||||
| 62751-95705 |
CM36,41,KM35,36..V5D..(02S,03S) |
1 | ||
| 62743B - WEATHERSTRIP, SIDE REAR WINDOW | ||||
| 62743-95702 |
CM36,KM35,36..VSG;CM30,31,4#,KM30,31,YM31,40..DLX,SSW,SUP,SW |
1 | ||
| 62743B - WEATHERSTRIP, SIDE REAR WINDOW | ||||
| 62743-95702 |
CM36,KM35,36..VSG;CM30,31,4#,KM30,31,YM31,40..DLX,SSW,SUP,SW |
1 | ||
| 62743C - WEATHERSTRIP, SIDE REAR WINDOW | ||||
| 62743-95702 |
CM36,KM35,36..VSG;CM30,31,4#,KM30,31,YM3#,40..DLX,FXV,GXL,LD,SCA,SSW,SUP,SW |
1 | ||
| 62743C - WEATHERSTRIP, SIDE REAR WINDOW | ||||
| 62743-95702 |
CM36,KM35,36..VSG;CM30,31,4#,KM30,31,YM3#,40..DLX,FXV,GXL,LD,SCA,SSW,SUP,SW |
1 | ||
| 62749A - SEAL, SIDE WINDOW, UPPER | ||||
| 62749-95702 |
CM36..V5D..HRF;KM35,36..V5D..(05S,06S);CM36..V5D..(MRF,SRF)..05S;CM30,31,4#,KM30,31,YM31..V5D,W5D |
1 | ||
| 62751A - WEATHERSTRIP, SLIDE DOOR WINDOW | ||||
| 62751-95705 |
CM36,41,KM35,36..VSG..(02S,03S) |
1 | ||
| 62897 - TUBE, SIDE WINDOW GUARD | ||||
| 62897-95703 |
CM31,36,41,KM31,35,36,YM31..V5D |
1 | ||
| 62898A - TUBE, SIDE WINDOW GUARD, LH | ||||
| 62898-95702 |
CM31,36,41,KM31,35,36,YM31..VSG |
1 | ||
| Common parts | ||||
| 90149-60004 | ||||
| 90158-60009 | ||||
| 90159-60010 | ||||
| 90159-60120 | ||||
| 90164-40091 | ||||
| 90202-11001 | ||||
| 90385-11001 | ||||
| 93219-84008 | ||||
