KM35V-JDF (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )DLX,SUP,SW

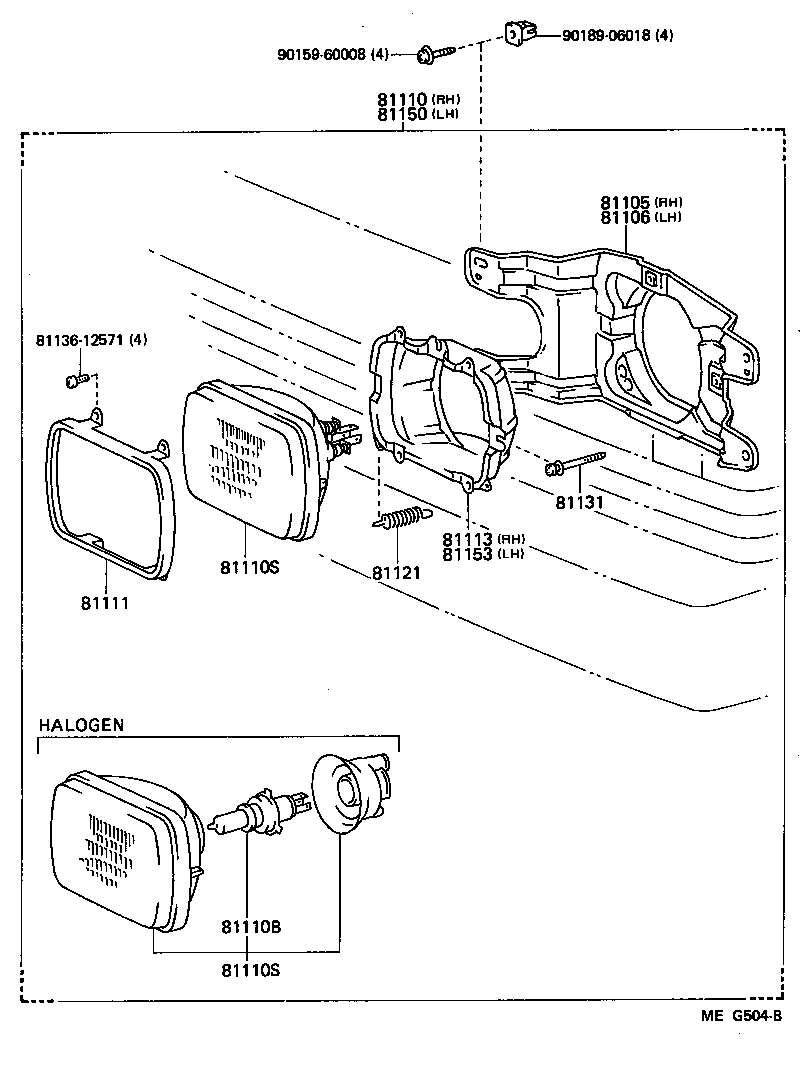

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110S 81110S 81111 81113 81121 81131 8113612571 81150 81153 9015960008 9018906018
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-95728

CM3#,4#,KM3#,YM40..DLX,SUP,SW

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-95728

CM3#,4#,KM3#,YM40..DLX,SUP,SW

 1
81110 - HEADLAMP ASSY, RH
81110-95742

CM3#,4#,KM3#,YM40..DLX,SUP,SW

 1
81110S - SEALED BEAM UNIT, NO.1
90981-04029

CM3#,4#,KM3#,YM40..DLX,SUP,SW

12V 65/55W,*WB,12V 65/55W

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04029

CM3#,4#,KM3#,YM40..DLX,SUP,SW

12V 65/55W,*WB,12V 65/55W

 2
81111 - RING, SEALED BEAM RETAINING
81111-16020

CM3#,4#,KM3#,YM40..DLX,SUP,SW

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-16220

CM3#,4#,KM3#,YM40..DLX,SUP,SW

 1
81121 - SPRING, HEADLAMP TENSION
81121-16020

CM3#,4#,KM3#,YM40..DLX,SUP,SW

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

CM3#,4#,KM3#,YM40..DLX,SUP,SW

 4
81150 - HEADLAMP ASSY, LH
81150-95742

CM3#,4#,KM3#,YM40..DLX,SUP,SW

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-16220

CM3#,4#,KM3#,YM40..DLX,SUP,SW

 1
Common parts
81136-12571
90159-60008
90189-06018
