KM35V-JDF (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

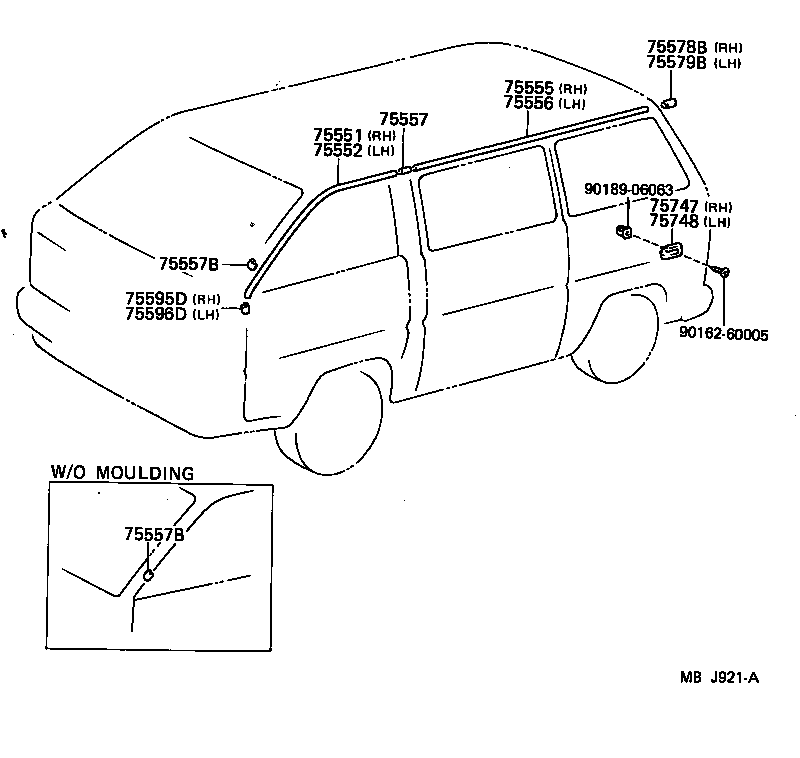

Click highlighted areas on diagram

diagram 75551 75552 75555 75556 75557 75557B 75557B 75578B 75579B 75595D 75596D 75747 75748 9016260005 9018906063
Part # Description Qty Price
75557B - MOULDING, ROOF DRIP, FRONT
75557-95700

CM3#,41,KM3#..DLX,SUP,SW

COLD SPEC,W/O MOULDING

 2
75557B - MOULDING, ROOF DRIP, FRONT
75557-95700

CM3#,41,KM3#..DLX,SUP,SW

COLD SPEC,W/O MOULDING

 2
75578B - COVER, ROOF DRIP MOULDING END, REAR RH
75578-95J00

CM3#,41,KM3#..DLX,SUP,SW

 1
75579B - COVER, ROOF DRIP MOULDING END, REAR LH
75579-95J00

CM3#,41,KM3#..DLX,SUP,SW

 1
75595D - COVER, ROOF DRIP SIDE MOULDING, FRONT RH
75595-95J00

CM3#,41,KM3#..DLX,SUP,SW

 1
75596D - COVER, ROOF DRIP SIDE MOULDING, FRONT LH
75596-95J00

CM3#,41,KM3#..DLX,SUP,SW

 1
75747 - MOULDING, SLIDE DOOR END, RH
75747-95J00

CM35,36,41,KM31,35,36..V5D

 1
75748 - MOULDING, SLIDE DOOR END, LH
75748-95J00

CM3#,4#,KM3#,YM30,40

 1
Common parts
90162-60005
90189-06063
