KM31V-MNZFH (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 5KJ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )DLX,SSW,SUP,SW

Click highlighted areas on diagram

diagram 63311A 63311A 63311A 63312A 63312A 63312A 63313A 63313A 63313A 63375 63375 63375A 63375A 63379B 63395
Part # Description Qty Price
63311A - HEADLINING, ROOF NO.1
63311-9572303

CM3#,KM3#,YM31..HRF

GRAY,TRIM1#

 1
63311A - HEADLINING, ROOF NO.1
63311-9572303

CM3#,KM3#,YM31..HRF

GRAY,TRIM1#

 1
63311A - HEADLINING, ROOF NO.1
63311-9572303

CM3#,KM3#,YM31..HRF

GRAY,TRIM1#

 1
63312A - HEADLINING, ROOF, NO.2
63312-9572503

CM3#,KM3#,YM31..HRF

GRAY,TRIM1#

 1
63312A - HEADLINING, ROOF, NO.2
63312-9572503

CM3#,KM3#,YM31..HRF

GRAY,TRIM1#

 1
63312A - HEADLINING, ROOF, NO.2
63312-9572503

CM3#,KM3#,YM31..HRF

GRAY,TRIM1#

 1
63313A - HEADLINING, ROOF, NO.3
63313-9570603

CM3#,KM3#,YM31..HRF

GRAY,TRIM1#

 1
63313A - HEADLINING, ROOF, NO.3
63313-9570603

CM3#,KM3#,YM31..HRF

GRAY,TRIM1#

 1
63313A - HEADLINING, ROOF, NO.3
63313-9570603

CM3#,KM3#,YM31..HRF

GRAY,TRIM1#

 1
63375 - MOULDING, ROOF VINYL
63375-9570203

CM3#,4#,KM3#,YM31,40..(HRF,MRF)..(DLX,SSW,SUP,SW)

GRAY,TRIM1#

 1
63375 - MOULDING, ROOF VINYL
63375-9570203

CM3#,4#,KM3#,YM31,40..(HRF,MRF)..(DLX,SSW,SUP,SW)

GRAY,TRIM1#

 1
63375A - MOULDING, ROOF VINYL, NO.2
63375-9570403

KM36..VSG..(HRF,MRF);CM3#,4#,KM30,31,35,YM31,40..(HRF,MRF)..(DLX,SSW,SUP,SW)

GRAY,TRIM1#

 1
63375A - MOULDING, ROOF VINYL, NO.2
63375-9570403

KM36..VSG..(HRF,MRF);CM3#,4#,KM30,31,35,YM31,40..(HRF,MRF)..(DLX,SSW,SUP,SW)

GRAY,TRIM1#

 1
63379B - COVER, ROOF HEADLINING MOULDING END
63379-9570413

KM36..VSG..(HRF,MRF);CM3#,4#,KM30,31,35,YM31,40..(HRF,MRF)..(DLX,SSW,SUP,SW)

GRAY,TRIM1#,左側

 1
63379-9570313

KM36..VSG..(HRF,MRF);CM3#,4#,KM30,31,35,YM31,40..(HRF,MRF)..(DLX,SSW,SUP,SW)

GRAY,TRIM1#,右側

 1

(8808- )

Click highlighted areas on diagram

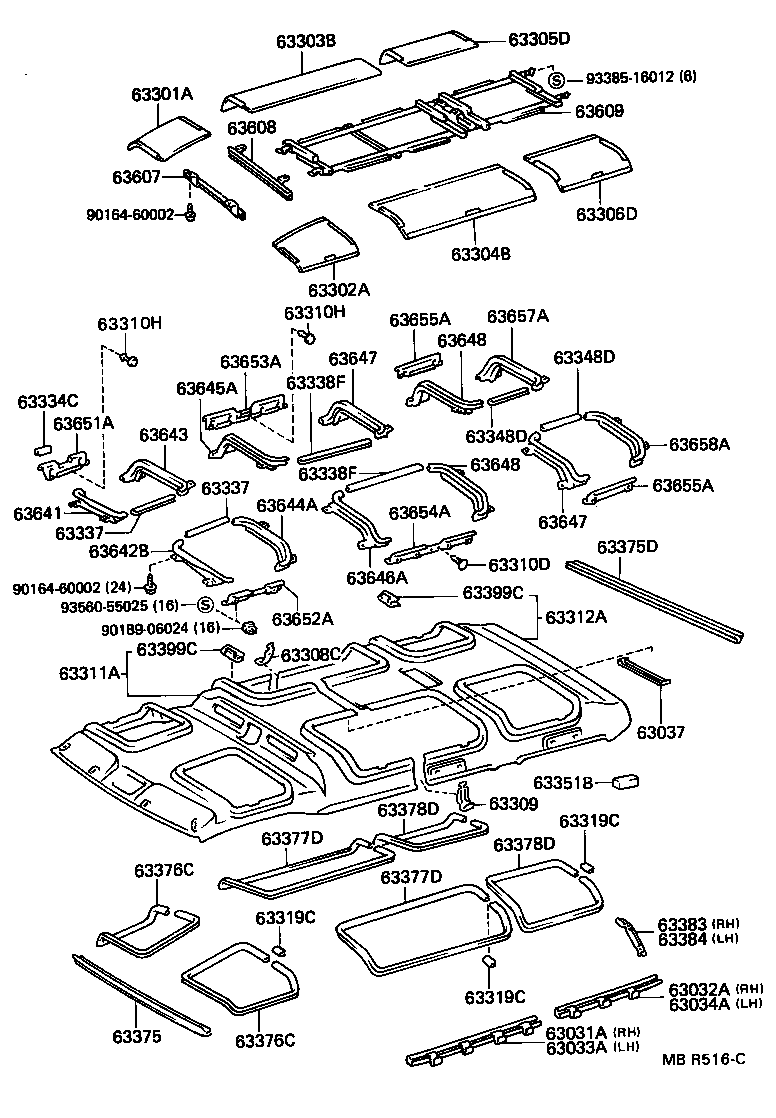

diagram 63031A 63032A 63033A 63034A 63037 63301A 63302A 63303B 63304B 63305D 63306D 63308C 63309 63310D 63310H 63310H 63311A 63312A 63319C 63319C 63319C 63334C 63337 63337 63338F 63338F 63348D 63348D 63351B 63375 63375D 63376C 63376C 63377D 63377D 63378D 63378D 63383 63384 63399C 63399C 63607 63608 63609 63641 63642B 63643 63644A 63645A 63646A 63647 63647 63648 63648 63651A 63652A 63653A 63654A 63655A 63655A 63657A 63658A 9016460002 9016460002 9018906024 9338516012 9356055025
Part # Description Qty Price
63311A - HEADLINING, ROOF NO.1
63311-9572303

CM3#,KM3#,YM31..HRF

GRAY,TRIM1#

 1
63312A - HEADLINING, ROOF, NO.2
63312-9572503

CM3#,KM3#,YM31..HRF

GRAY,TRIM1#

 1
63375 - MOULDING, ROOF VINYL
63375-9570203

CM3#,4#,KM3#,YM31,40..(HRF,MRF)..(DLX,SSW,SUP,SW)

GRAY,TRIM1#

 1
Common parts
90164-60002
90189-06024
93385-16012
93560-55025
