KM31V-MNZF (1985)
Toyota Liteace Van,Wagon

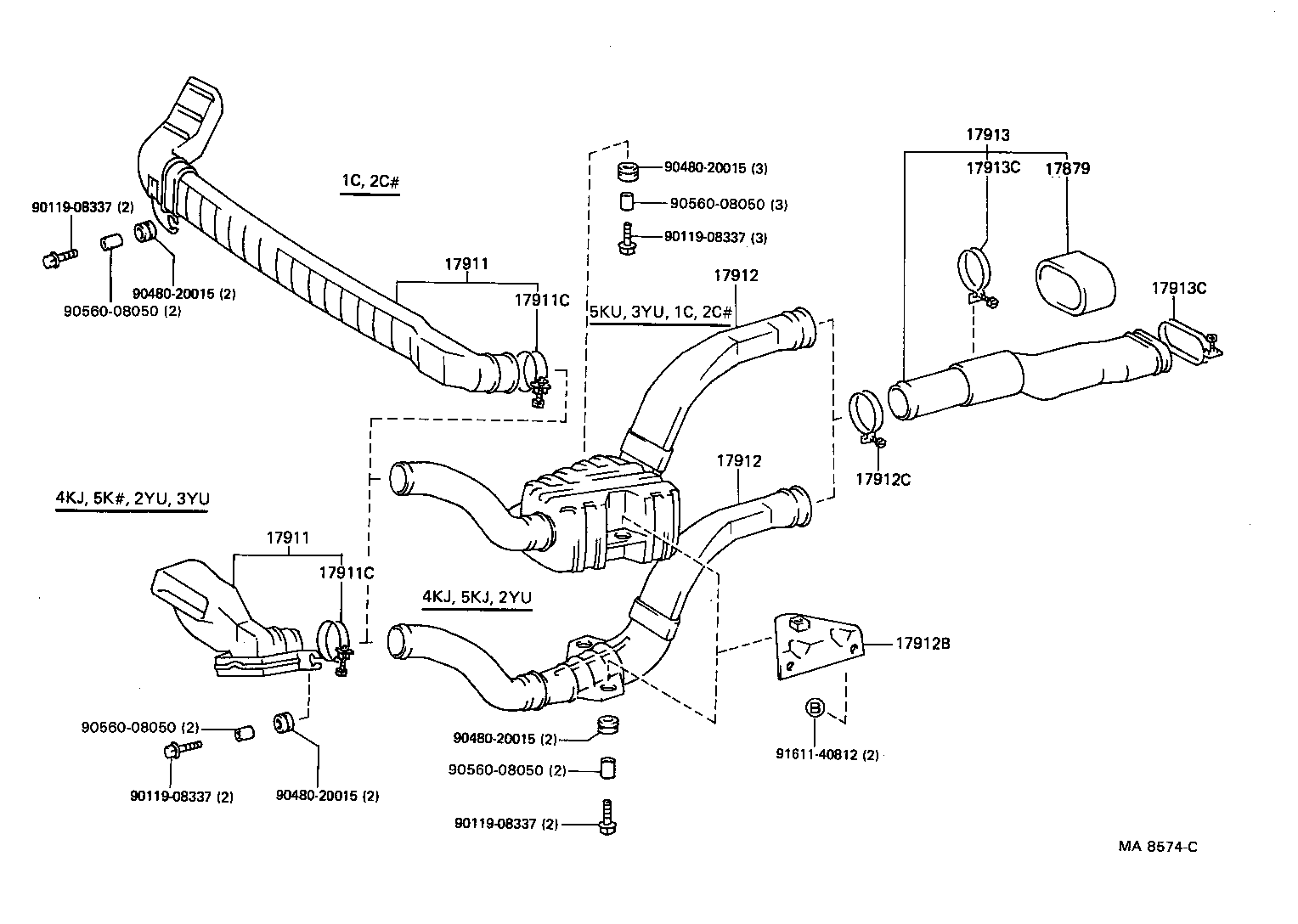

ILLUST NO. 2 OF 2(8509- )4KJ,5K#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17879 - PAD, AIR CLEANER INLET | ||||
| 17879-95701 |
5K#..KM30,31,36 |
1 | ||
| 17879-95701 |
5K#..KM30,31,36 |
1 | ||
| 17879-95701 |
5K#..KM30,31,36 |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52810-95700 |
5K#..KM30,31,36 |
1 | ||
| 52810-95700 |
5K#..KM30,31,36 |
1 | ||
| 52810-95700 |
5K#..KM30,31,36 |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52810-95700 |
5K#..KM30,31,36 |
1 | ||
| 52810-95700 |
5K#..KM30,31,36 |
1 | ||
| 52810-95700 |
5K#..KM30,31,36 |
1 | ||
| 17911C - CLAMP, COOL AIR INTAKE DUCT, NO.1 | ||||
| 96111-10710 |
5K#..KM30,31,36 |
1 | ||
| 96111-10710 |
5K#..KM30,31,36 |
1 | ||
| 96111-10710 |
5K#..KM30,31,36 |
1 | ||
| 17911C - CLAMP, COOL AIR INTAKE DUCT, NO.1 | ||||
| 96111-10710 |
5K#..KM30,31,36 |
1 | ||
| 96111-10710 |
5K#..KM30,31,36 |
1 | ||
| 96111-10710 |
5K#..KM30,31,36 |
1 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 52820-95701 |
5KJ..KM31,36 |
1 | ||
| 52820-95701 |
5KJ..KM31,36 |
1 | ||
| 52820-95701 |
5KJ..KM31,36 |
1 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 52820-95701 |
5KJ..KM31,36 |
1 | ||
| 52820-95701 |
5KJ..KM31,36 |
1 | ||
| 52820-95701 |
5KJ..KM31,36 |
1 | ||
| 17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2 | ||||
| 52854-95700 |
5K#..KM30,31,36 |
1 | ||
| 52854-95700 |
5K#..KM30,31,36 |
1 | ||
| 52854-95700 |
5K#..KM30,31,36 |
1 | ||
| 17912C - CLAMP, COOL AIR INTAKE DUCT, NO.2 | ||||
| 90460-71001 |
5K#..KM30,31,36 |
1 | ||
| 90460-71001 |
5K#..KM30,31,36 |
1 | ||
| 90460-71001 |
5K#..KM30,31,36 |
1 | ||
| 90460-69005 |
5K#..KM30,31,36 |
1 | ||
| 90460-69005 |
5K#..KM30,31,36 |
1 | ||
| 90460-69005 |
5K#..KM30,31,36 |
1 | ||
| 17913 - DUCT, COOL AIR INTAKE, NO.3 | ||||
| 52830-95700 |
5K#..KM30,31,36 |
1 | ||
| 52830-95700 |
5K#..KM30,31,36 |
1 | ||
| 52830-95700 |
5K#..KM30,31,36 |
1 | ||
| 17913C - CLAMP, COOL AIR INTAKE DUCT, NO.3 | ||||
| 90460-71001 |
5K#..KM30,31,36 DUCT SIDE |
1 | ||
| 90460-71001 |
5K#..KM30,31,36 DUCT SIDE |
1 | ||
| 90460-71001 |
5K#..KM30,31,36 DUCT SIDE |
1 | ||
| 90460-69005 |
5K#..KM30,31,36 DUCT SIDE |
1 | ||
| 90460-69005 |
5K#..KM30,31,36 DUCT SIDE |
1 | ||
| 90460-69005 |
5K#..KM30,31,36 DUCT SIDE |
1 | ||
| 90460-01041 |
5K#..KM30,31,36 AIR CLEANER SIDE |
1 | ||
| 90460-01041 |
5K#..KM30,31,36 AIR CLEANER SIDE |
1 | ||
| 90460-01041 |
5K#..KM30,31,36 AIR CLEANER SIDE |
1 | ||
| 17913C - CLAMP, COOL AIR INTAKE DUCT, NO.3 | ||||
| 90460-71001 |
5K#..KM30,31,36 DUCT SIDE |
1 | ||
| 90460-71001 |
5K#..KM30,31,36 DUCT SIDE |
1 | ||
| 90460-71001 |
5K#..KM30,31,36 DUCT SIDE |
1 | ||
| 90460-69005 |
5K#..KM30,31,36 DUCT SIDE |
1 | ||
| 90460-69005 |
5K#..KM30,31,36 DUCT SIDE |
1 | ||
| 90460-69005 |
5K#..KM30,31,36 DUCT SIDE |
1 | ||
| 90460-01041 |
5K#..KM30,31,36 AIR CLEANER SIDE |
1 | ||
| 90460-01041 |
5K#..KM30,31,36 AIR CLEANER SIDE |
1 | ||
| 90460-01041 |
5K#..KM30,31,36 AIR CLEANER SIDE |
1 | ||
| Common parts | ||||
| 90119-08337 | ||||
| 90480-20015 | ||||
| 90560-08050 | ||||
| 91611-40812 | ||||

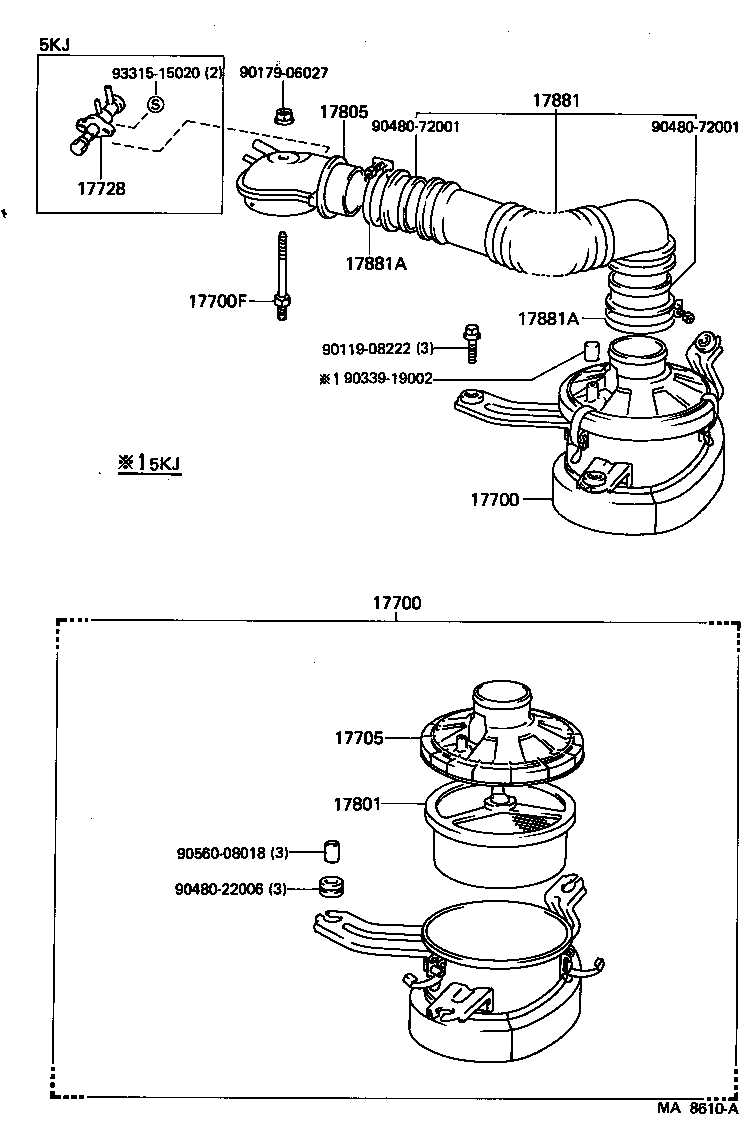

ILLUST NO. 1 OF 2(8509- )4KJ,5KJ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13590 |
5KJ..KM31,36 W/HOT AIR INTAKE |
1 | ||
| 17700-13590 |
5KJ..KM31,36 |
1 | ||
| 17700-13570 |
5KJ..KM31,36 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13590 |
5KJ..KM31,36 W/HOT AIR INTAKE |
1 | ||
| 17700-13590 |
5KJ..KM31,36 |
1 | ||
| 17700-13570 |
5KJ..KM31,36 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06060 |
4KJ,5K#..KM3# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-13130 |
5K#..KM30,31,36 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-13050 |
5K#..KM30,31,36 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-13050 |
4KJ,5K#..KM3# |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-13050 |
5K#..KM30,31,36 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-13140 |
4KJ,5K#..KM3# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80001 |
4KJ,5K#..KM3# |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80001 |
4KJ,5K#..KM3# |
2 | ||
| Common parts | ||||
| 90119-08222 | ||||
| 90179-06027 | ||||
| 90339-19002 | ||||
| 90480-22006 | ||||
| 90480-72001 | ||||
| 90560-08018 | ||||
| 93315-15020 | ||||

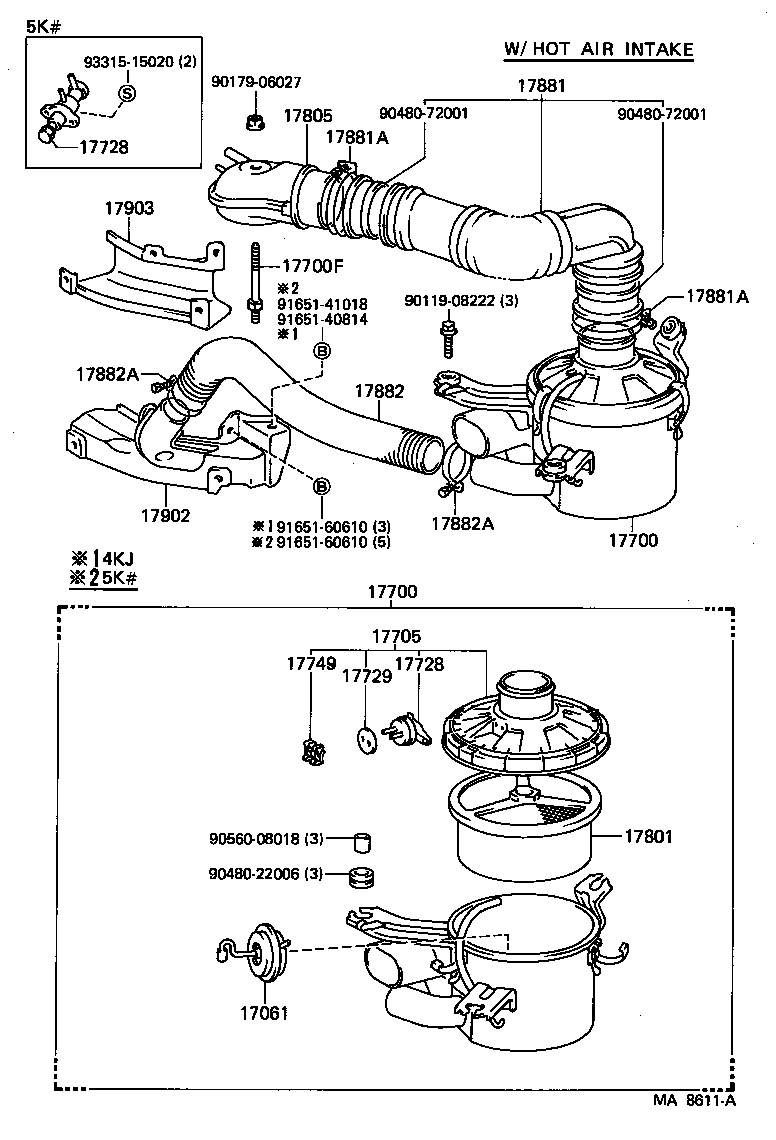

ILLUST NO. 1 OF 2(8509- )4KJ,5K#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-13040 |
4KJ,5K#..KM3# W/HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13590 |
5KJ..KM31,36 W/HOT AIR INTAKE |
1 | ||
| 17700-13590 |
5KJ..KM31,36 |
1 | ||
| 17700-13570 |
5KJ..KM31,36 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13590 |
5KJ..KM31,36 W/HOT AIR INTAKE |
1 | ||
| 17700-13590 |
5KJ..KM31,36 |
1 | ||
| 17700-13570 |
5KJ..KM31,36 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06060 |
4KJ,5K#..KM3# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-13130 |
5K#..KM30,31,36 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-13050 |
5K#..KM30,31,36 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-13050 |
5K#..KM30,31,36 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-13050 |
4KJ,5K#..KM3# |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-13050 |
5K#..KM30,31,36 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-13140 |
4KJ,5K#..KM3# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80001 |
4KJ,5K#..KM3# |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80001 |
4KJ,5K#..KM3# |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-74040 |
4KJ,5K#..KM3# W/HOT AIR INTAKE |
1 | ||
| 17882-72020 |
4KJ,5K#..KM3# W/HOT AIR INTAKE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10460 |
4KJ,5K#..KM3# W/HOT AIR INTAKE |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10460 |
4KJ,5K#..KM3# W/HOT AIR INTAKE |
2 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17167-13080 |
5K#..KM30,31,36 W/HOT AIR INTAKE |
1 | ||
| 17903 - INLET SUB-ASSY, HOT AIR INTAKE, NO.2 | ||||
| 17168-13030 |
5K#..KM30,31,36 W/HOT AIR INTAKE |
1 | ||
| Common parts | ||||
| 90119-08222 | ||||
| 90179-06027 | ||||
| 90480-22006 | ||||
| 90480-72001 | ||||
| 90560-08018 | ||||
| 91651-40814 | ||||
| 91651-41018 | ||||
| 91651-60610 | ||||
| 93315-15020 | ||||
(8808-9008)4KJ,5K#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08222 | ||||
| 90179-06027 | ||||
| 90480-22006 | ||||
| 90480-72001 | ||||
| 90560-08018 | ||||
| 91651-40814 | ||||
| 91651-41018 | ||||
| 91651-60610 | ||||
| 93315-15020 | ||||
