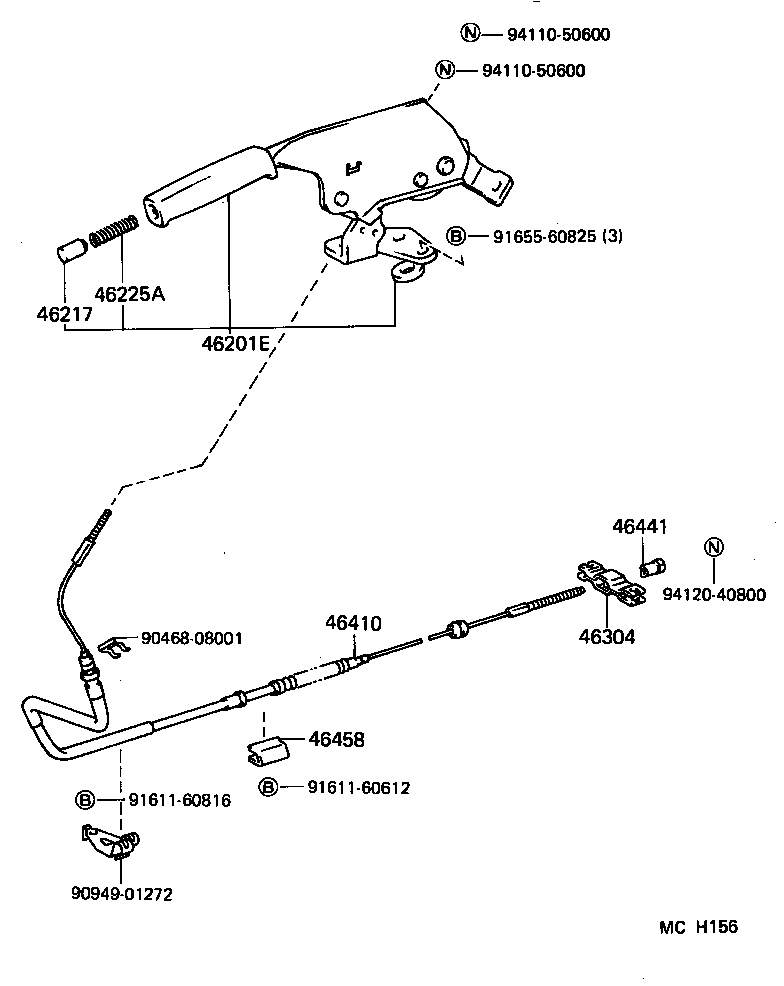

Toyota Liteace van,wagon KM31 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-2702113	CM3#,4#,KM3#,YM3#,40 GRAY,TRIM1#	08/1988 - 01/1992	1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-12020	CM3#,4#,KM3#,YM31,40..DLX,LD,SSW,SUP,SW	09/1990 - 01/1992	1
46217-1202003	CM3#,4#,KM3#,YM3#,40 SHADOW GRAY,TRIM1#	08/1988 - 09/1990	1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10745	CM3#,4#,KM3#,YM30,40	08/1988 - 10/1988	1
90501-10132	CM3#,4#,KM3#,YM3#,40	10/1988 - 01/1992	1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-22020	CM3#,4#,KM3#,YM3#,40	08/1988 - 01/1992	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-27120	KM3#,YM3#,40	08/1988 - 01/1992	1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-35010	CM3#,4#,KM3#,YM3#,40	08/1988 - 01/1992	1
46458 - RETAINER, CABLE
46458-28010	CM3#,4#,KM3#,YM3#,40	08/1988 - 01/1992	2
Common parts
90468-08001
90949-01272
91611-60612
91611-60816
91655-60825
94110-50600
94120-40800

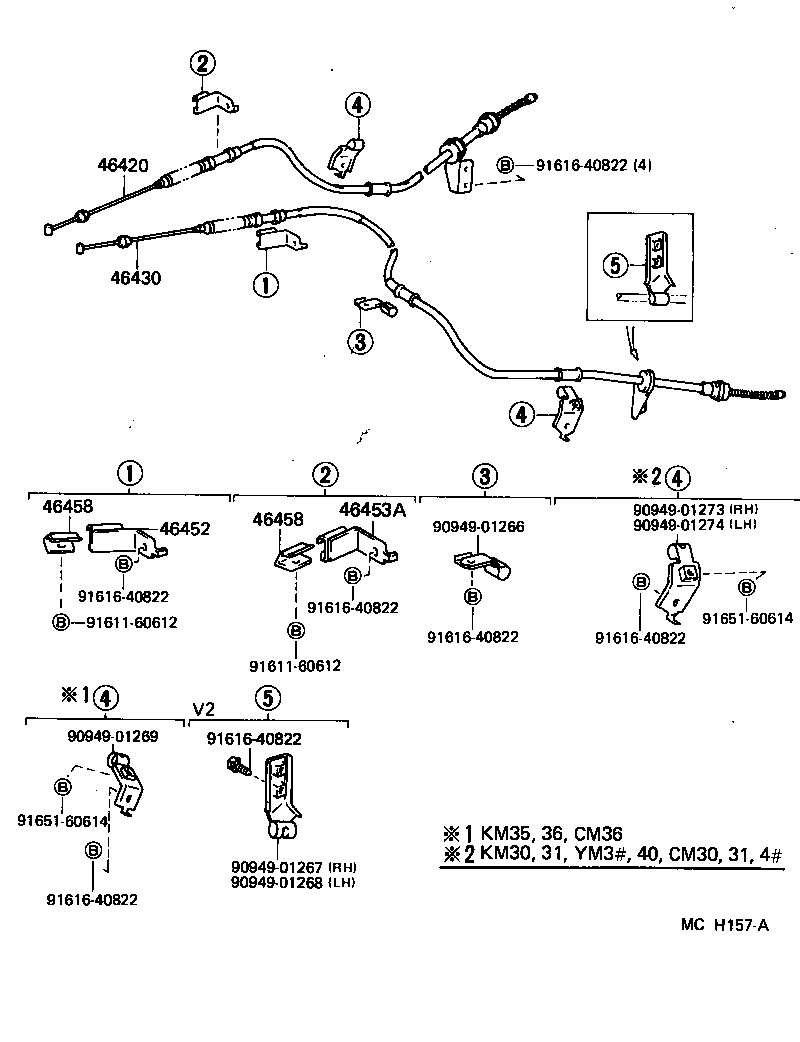

Part #	Description	Period	Qty
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-27140	CM30,31,KM30,31,YM3#	08/1988 - 01/1992	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-27140	CM30,31,KM30,31,YM30	08/1988 - 08/1990	1
46430-27141	CM30,31,KM30,31,YM3#	08/1990 - 01/1992	1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46452-28060	CM3#,4#,KM3#,YM3#,40	08/1988 - 01/1992	1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-28010	CM3#,4#,KM3#,YM3#,40	08/1988 - 01/1992	1
46458 - RETAINER, CABLE
46458-28010	CM3#,4#,KM3#,YM3#,40	08/1988 - 01/1992	2
46458 - RETAINER, CABLE
46458-28010	CM3#,4#,KM3#,YM3#,40	08/1988 - 01/1992	2
Common parts
90949-01266
90949-01267
90949-01268
90949-01269
90949-01273
90949-01274
91611-60612
91616-40822
91651-60614

KM31V-MNFH (1988)
