KM31V-MNF (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 5KJ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

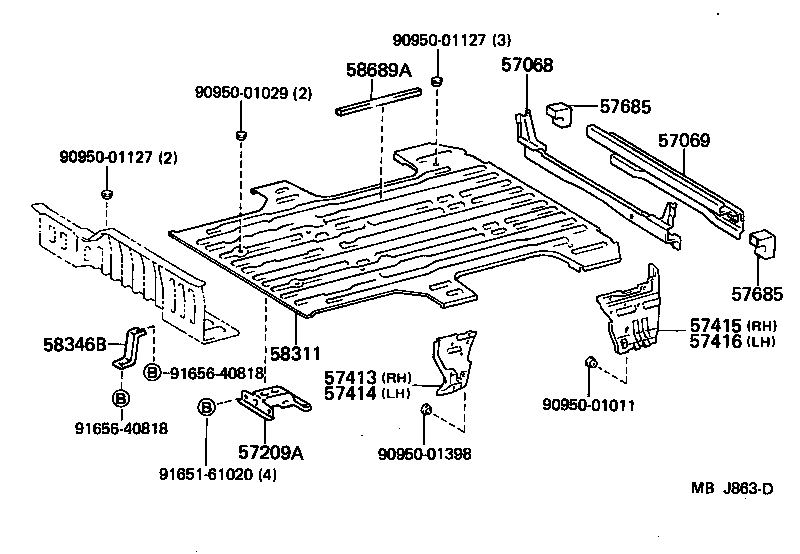

ILLUST NO. 1 OF 2(8509- )V5D

Click highlighted areas on diagram

diagram 57068 57069 57209A 57413 57414 57415 57416 57685 57685 58311 58346B 58689A 9095001011 9095001029 9095001127 9095001127 9095001398 9165161020 9165640818 9165640818
Part # Description Qty Price
57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57068-95700

CM35,36,KM31,35,36..V1

 1
57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
57069-95701

CM3#,KM3#,YM30

 1
57069-95700

CM35,36,40,KM31,35,36,YM40

 1
57413 - RAIL, FLOOR SIDE, CENTER RH
57413-95735

CM35,41,KM31,35,36..V1..V5D

 1
57405-95738

CM35,36,KM31,35,36..V1..V5D..(05S,06S)

 1
57414 - RAIL, FLOOR SIDE, CENTER LH
57414-95718

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM40..DLX,FXV,GXL,SUC,SUP,XL7

 1
57406-95714

CM35,36,41,KM31,35,36..V1..(05S,06S)

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57047-95705

CM35,36,41,KM35,36..V1;CM30,40,KM30,31,YM40..SUP,SW

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57048-95705

CM35,36,41,KM35,36..V1;CM30,40,KM30,31,YM40..SUP,SW

 1
57685 - DUST PROOF, REAR FLOOR CROSSMEMBER
57685-95700

CM3#,KM3#,YM30

 2
57685 - DUST PROOF, REAR FLOOR CROSSMEMBER
57685-95700

CM3#,KM3#,YM30

 2
58311 - PAN, REAR FLOOR
58311-95776

KM31,35,36..V1..V5D..(05S,06S)

 1
58311-95G33

CM35,36,KM31,35,36..V1..V5D..(05S,06S)

 1
58346B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58348-95700

KM31,35,36..V1

 1
58689A - WEIGHT, REAR FLOOR
58688-95700

KM31

L=460

 14
58688-95701

KM30,31..SUP,SW

L=300

 6
Common parts
90950-01011
90950-01029
90950-01127
90950-01398
91651-61020
91656-40818

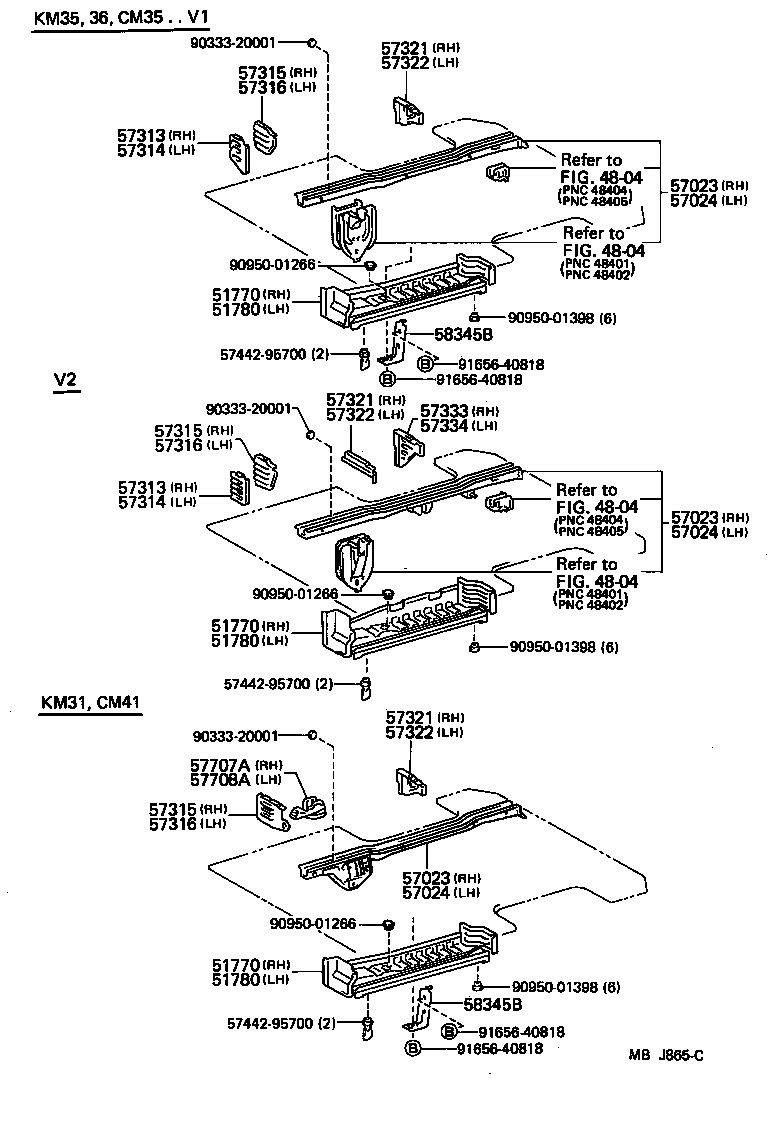

ILLUST NO. 2 OF 2(8509- )V5D

Click highlighted areas on diagram

diagram 4804 4804 4804 4804 51770 51770 51770 51780 51780 51780 57023 57023 57023 57024 57024 57024 57313 57313 57314 57314 57315 57315 57315 57316 57316 57316 57321 57321 57321 57322 57322 57322 57333 57334 5744295700 5744295700 5744295700 57707A 57708A 58345B 58345B 9033320001 9033320001 9033320001 9095001266 9095001266 9095001266 9095001398 9095001398 9095001398 9165640818 9165640818 9165640818 9165640818
Part # Description Qty Price
51770 - STEP ASSY, FRONT, RH
51730-95700

CM35,36,41,KM31,35,36..V1..V5D

 1
51770 - STEP ASSY, FRONT, RH
51730-95700

CM35,36,41,KM31,35,36..V1..V5D

 1
51770 - STEP ASSY, FRONT, RH
51730-95700

CM35,36,41,KM31,35,36..V1..V5D

 1
51780 - STEP ASSY, FRONT, LH
51740-95702

CM35,36,41,KM31,35,36..V1

 1
51780 - STEP ASSY, FRONT, LH
51740-95702

CM35,36,41,KM31,35,36..V1

 1
51780 - STEP ASSY, FRONT, LH
51740-95702

CM35,36,41,KM31,35,36..V1

 1
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-95900

CM30,KM30,31,YM30

 1
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-95900

CM30,KM30,31,YM30

 1
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-95900

CM30,KM30,31,YM30

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-95901

KM31

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-95901

KM31

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-95901

KM31

 1
57315 - OUTRIGGER, NO.3 RH
57333-95704

CM30,KM30,31,YM30

 1
57315 - OUTRIGGER, NO.3 RH
57333-95704

CM30,KM30,31,YM30

 1
57315 - OUTRIGGER, NO.3 RH
57333-95704

CM30,KM30,31,YM30

 1
57316 - OUTRIGGER, NO.3 LH
57334-95704

CM30,KM30,31,YM30

 1
57316 - OUTRIGGER, NO.3 LH
57334-95704

CM30,KM30,31,YM30

 1
57316 - OUTRIGGER, NO.3 LH
57334-95704

CM30,KM30,31,YM30

 1
57321 - OUTRIGGER, NO.4 RH
57307-95701

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

 1
57321 - OUTRIGGER, NO.4 RH
57307-95701

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

 1
57321 - OUTRIGGER, NO.4 RH
57307-95701

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

 1
57322 - OUTRIGGER, NO.4 LH
57308-95701

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

 1
57322 - OUTRIGGER, NO.4 LH
57308-95701

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

 1
57322 - OUTRIGGER, NO.4 LH
57308-95701

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

 1
57707A - PLATE SUB-ASSY, REAR SPRING, RH
57707-95702

CM30,KM30,31,YM30

 1
57708A - PLATE SUB-ASSY, REAR SPRING, LH
57708-95703

CM30,KM30,31,YM30

 1
58345B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58345-95701

KM31,35,36..V1

 1
58345B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58345-95701

KM31,35,36..V1

 1
Common parts
57442-95700
90333-20001
90950-01266
90950-01398
91656-40818
Linked diagrams
4804
