KM31V-HNZFH (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 5KJ
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CM3#,KM30,31,36,YM3#..ATM

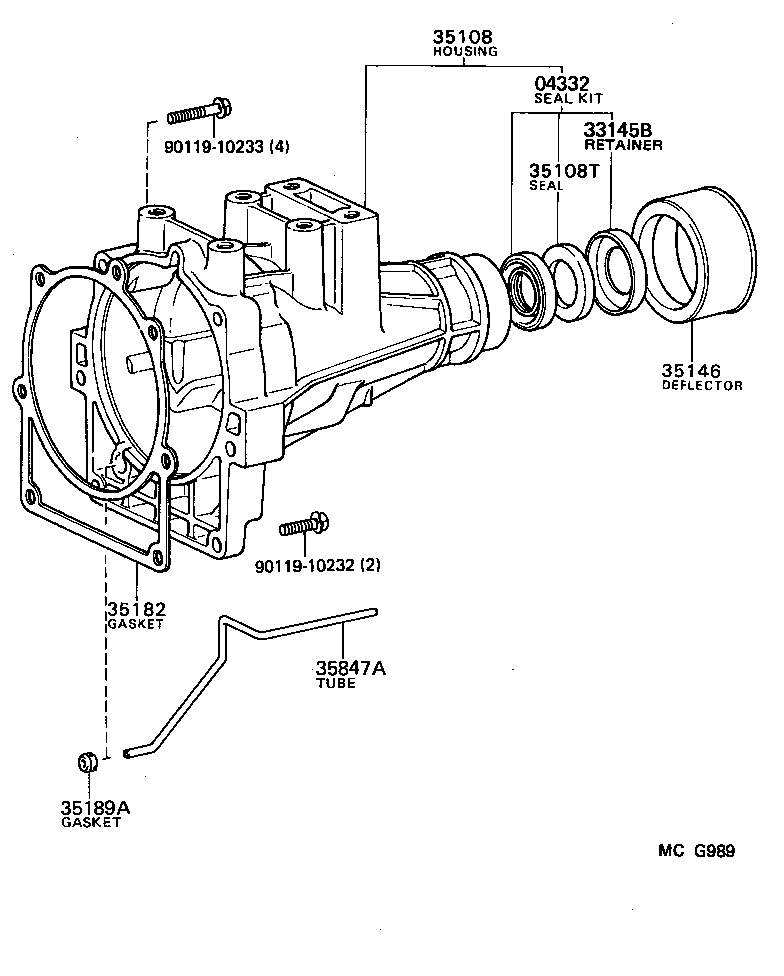

Click highlighted areas on diagram

diagram 04332 33145B 35108 35108T 35146 35182 35189A 35847A 9011910232 9011910233
Part # Description Qty Price
04332 - SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)
04332-30030

CM3#,KM30,31,36,YM3#..ATM

 1
33145B - RETAINER, EXTENSION HOUSING DUST SEAL
33145-30010

CM3#,KM30,31,36,YM3#..ATM

 1
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35108-26014

KM30,31,36..3FC

 1
35108T - SEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSIN
90303-38010

CM3#,KM30,31,36,YM3#..ATM

 1
35146 - DEFLECTOR, EXTENSION HOUSING DUST (ATM)
33146-30010

CM3#,KM30,31,36,YM3#..ATM

 1
35182 - GASKET, EXTENSION HOUSING (ATM)
35182-28010

CM3#,40,KM3#,YM3#,40..ATM

 1
35182-22010

CM3#,40,KM30,31,36,YM3#,40..ATM

 1
35189A - GASKET, EXTENSION HOUSING BUSH APPLY TUBE
35189-30010

CM3#,KM30,31,36,YM3#..ATM

 1
35847A - TUBE, EXTENSION HOUSING BUSH APPLY
35847-27010

CM3#,KM30,31,36,YM3#..ATM

 1
Common parts
90119-10232
90119-10233
