KM31V-HNFH (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 5KJ
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

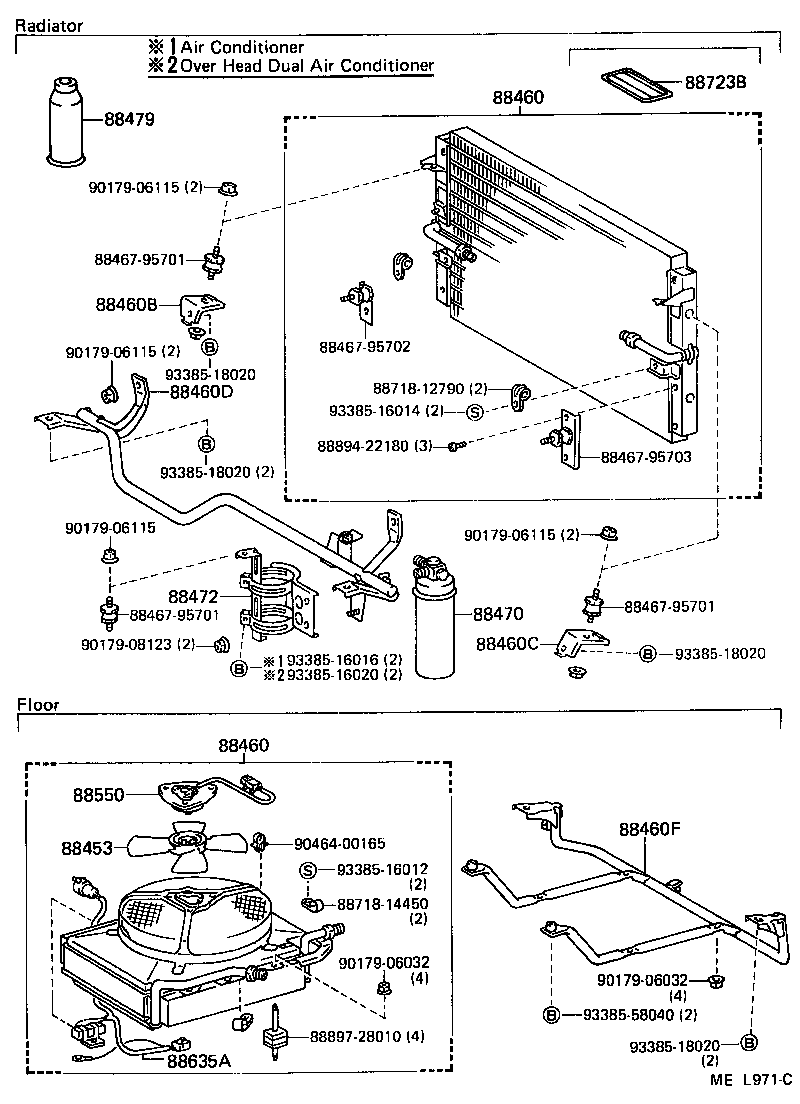

ILLUST NO. 1 OF 3(8808- )CM3#,4#,KM3#,YM3#

Click highlighted areas on diagram

diagram 88453 88460 88460 88460B 88460C 88460D 88460F 8846195702 8846795701 8846795701 8846795701 8846795703 88470 88472 88479 88550 88635A 8871812790 8871814450 88723B 8889422180 8889728010 9017906032 9017906032 9017906115 9017906115 9017906115 9017906115 9017908123 9046400165 9338516012 9338516014 9338516016 9338516020 9338518020 9338518020 9338518020 9338518020 9338558040
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-95716

CM31,36,KM31,35,36,YM30..DLX,GXL,SUP

RADIATOR

 1
88460-95718

CM41;KM31,36..3FC

FLOOR

 1
88460 - CONDENSER ASSY, COOLER
88460-95716

CM31,36,KM31,35,36,YM30..DLX,GXL,SUP

RADIATOR

 1
88460-95718

CM41;KM31,36..3FC

FLOOR

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-95743

CM31,36,KM31,35,36,YM30

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-95744

CM31,36,KM31,35,36,YM30

 1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-95746

CM31,36,KM31,35,36,YM30

 1
88460F - BRACKET, COOLER CONDENSER, NO.4
88463-95703

KM31,36..3FC

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16010

YM30;CM31,36,4#,KM31,35,36..V4D,V5D,W5D

 1
88471-95700

KM31,36..3FC

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95707

CM31,36,KM31,35,36,YM30..DLX,GXL,SUP

 1
88472-27010

KM31,36..3FC

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

CM31,36,41,KM31,35,36

400G

 2
90986-02004

CM31,36,41,KM31,35,36

250G

 2
90986-02004

CM31,36,KM31,36,YM31

250G

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12040

CM31,36,KM31,35,36

 1
88723-20010

CM41;KM31,36..3FC

 1
Common parts
88461-95702
88467-95701
88467-95703
88718-12790
88718-14450
88894-22180
88897-28010
90179-06032
90179-06115
90179-08123
90464-00165
93385-16012
93385-16014
93385-16016
93385-16020
93385-18020
93385-58040

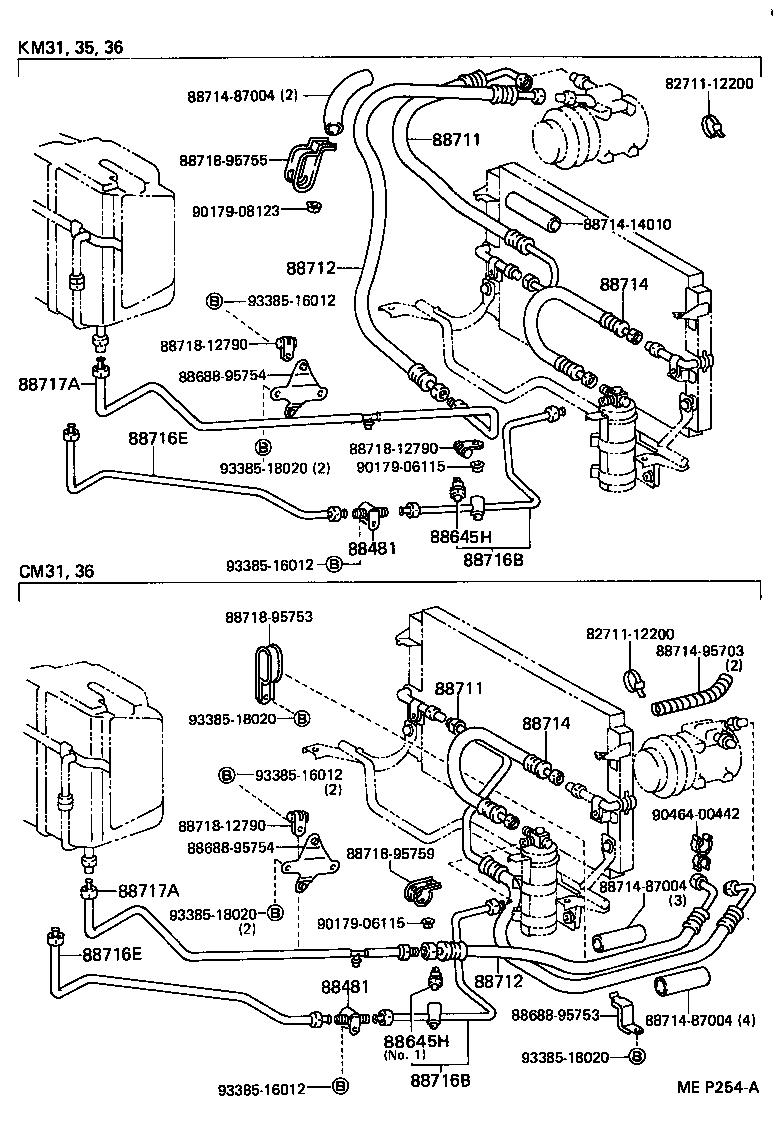

ILLUST NO. 2 OF 3(8808- )CM31,36,KM31,35,36

Click highlighted areas on diagram

diagram 8271112200 8271112200 88481 88481 88645H 88645H 8868895753 8868895754 8868895754 88711 88711 88712 88712 88714 88714 8871414010 8871487004 8871487004 8871487004 8871495703 88716B 88716B 88716E 88716E 88717A 88717A 8871812790 8871812790 8871812790 8871895753 8871895755 8871895759 9017906115 9017906115 9017908123 9046400442 9338516012 9338516012 9338516012 9338516012 9338518020 9338518020 9338518020 9338518020
Part # Description Qty Price
88481 - GLASS, SIGHT
88481-87002

CM31,36,41,KM31,36,YM31

 1
88481-87002

CM31,36,4#,KM31,35,36,YM40

 1
88481 - GLASS, SIGHT
88481-87002

CM31,36,41,KM31,36,YM31

 1
88481-87002

CM31,36,4#,KM31,35,36,YM40

 1
88645H - SWITCH, PRESSURE NO.1
88645-12020

CM31,36,KM31,35,36

NO.1

 1
88645-10020

KM31,36..3FC

NO.1

 1
88645H - SWITCH, PRESSURE NO.1
88645-12020

CM31,36,KM31,35,36

NO.1

 1
88645-10020

KM31,36..3FC

NO.1

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95731

KM31,35,36

 1
88711-95702

KM31,36..3FC

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95731

KM31,35,36

 1
88711-95702

KM31,36..3FC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95726

KM31,35,36

 1
88712-95740

KM31,36..3FC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95726

KM31,35,36

 1
88712-95740

KM31,36..3FC

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95709

CM31,36,KM31,35,36,YM30

 1
88721-27010

KM31,36..3FC

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95709

CM31,36,KM31,35,36,YM30

 1
88721-27010

KM31,36..3FC

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95732

CM31,36,KM31,35,36

 1
88710-27020

KM31,36..SRF..3FC

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95732

CM31,36,KM31,35,36

 1
88710-27020

KM31,36..SRF..3FC

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95734

CM31,36,KM31,35,36

 1
88716-95758

CM41;KM31,36..3FC

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95734

CM31,36,KM31,35,36

 1
88716-95758

CM41;KM31,36..3FC

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95723

KM31,36..3FC

 1
88717-95756

KM31,36..3FC

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95723

KM31,36..3FC

 1
88717-95756

KM31,36..3FC

 1
Common parts
82711-12200
88688-95753
88688-95754
88714-14010
88714-87004
88714-95703
88718-12790
88718-95753
88718-95755
88718-95759
90179-06115
90179-08123
90464-00442
93385-16012
93385-18020

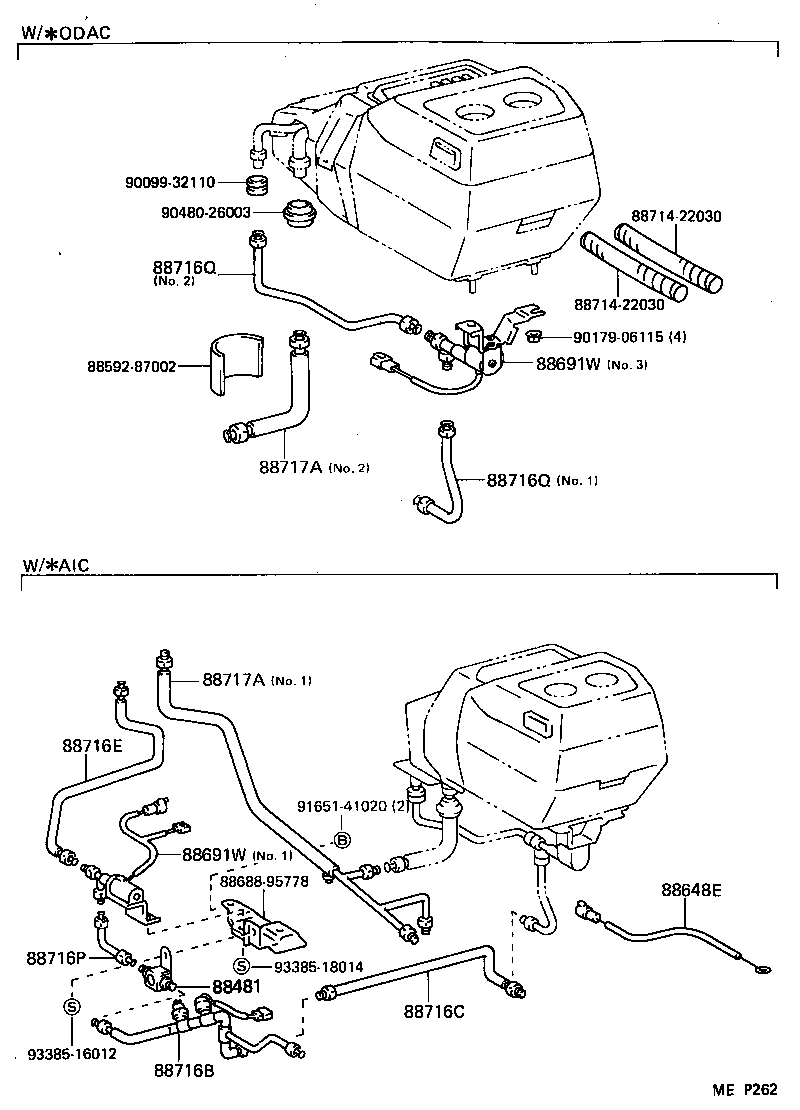

ILLUST NO. 3 OF 3(8808- )

Click highlighted areas on diagram

diagram 88481 8859287002 88648E 8868895778 88691W 88691W 8871422030 8871422030 88716B 88716C 88716E 88716P 88716Q 88716Q 88717A 88717A 9009932110 9017906115 9048026003 9165141020 9338516012 9338518014
Part # Description Qty Price
88481 - GLASS, SIGHT
88481-87002

CM31,36,41,KM31,36,YM31

 1
88481-87002

CM31,36,4#,KM31,35,36,YM40

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95732

CM31,36,KM31,35,36

 1
88710-27020

KM31,36..SRF..3FC

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95734

CM31,36,KM31,35,36

 1
88716-95758

CM41;KM31,36..3FC

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95723

KM31,36..3FC

 1
88717-95756

KM31,36..3FC

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95723

KM31,36..3FC

 1
88717-95756

KM31,36..3FC

 1
Common parts
88592-87002
88688-95778
88714-22030
90099-32110
90179-06115
90480-26003
91651-41020
93385-16012
93385-18014
