KM31V-HNFH (1988)
Toyota Liteace Van,Wagon
Production
Aug 1988
-
Jan 1992
Engine
5KJ
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

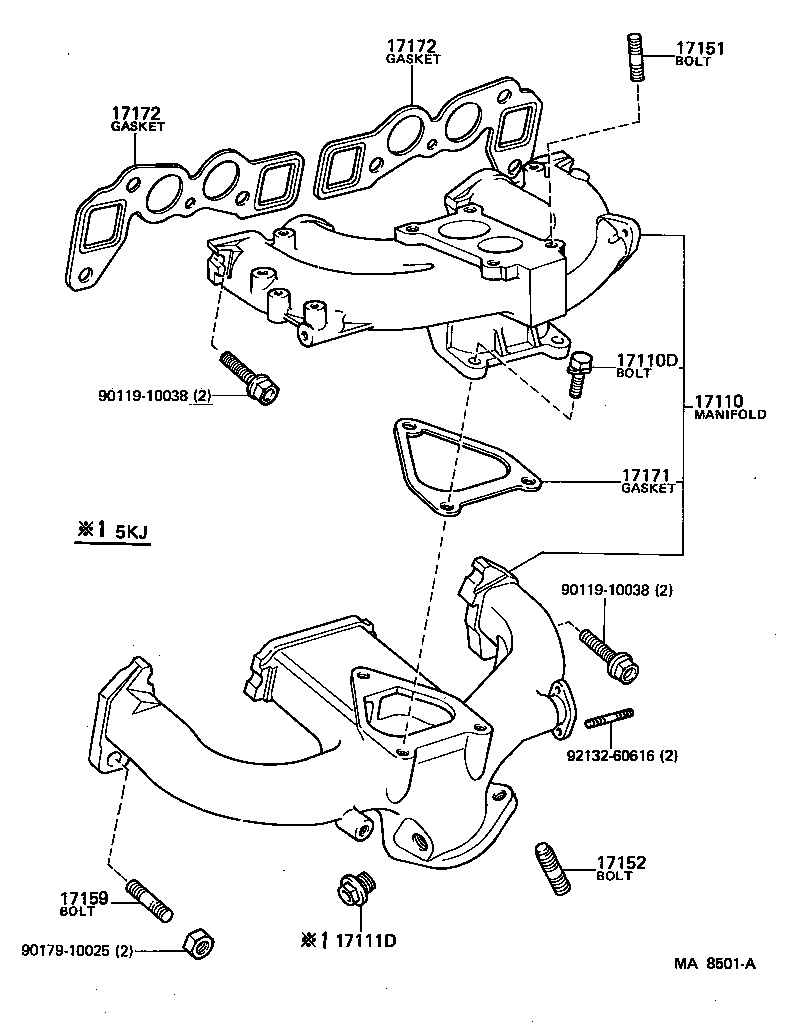

(8808-9008)5K# ; (9008- )5KU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17110 - MANIFOLD ASSY | ||||
| 17110-13150 |
5K#..KM30,31,36 |
1 | ||
| 17110-13190 |
5KJ..KM31 |
1 | ||
| 17110D - BOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD) | ||||
| 91611-60822 |
5KJ..KM31 |
3 | ||
| 91611-60822 |
4KJ,5K#..KM3# |
3 | ||
| 17111D - PLUG, NO.4 | ||||
| 90341-18063 |
5KJ..KM31,36 |
1 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08010 |
4KJ,5K#..KM3# |
4 | ||
| 90116-08010 |
5KJ..KM31 |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10087 |
4KJ,5K#..KM3# |
2 | ||
| 90116-10087 |
5KJ..KM31 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-61028 |
5KJ..KM31 |
2 | ||
| 92122-41028 |
4KJ,5K#..KM3# |
2 | ||
| 92122-61028 |
5K#..KM30,31,36 |
2 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-13040 |
4KJ,5K#..KM3# |
1 | ||
| 17171-13050 |
5KJ..KM31 |
1 | ||
| 17171-13050 |
4KJ,5K#..KM3# |
1 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-13030 |
4KJ,5K#..KM3# |
2 | ||
| 17172-13021 |
4KJ,5K#..KM3# |
2 | ||
| 17172-13030 |
5KJ..KM31 |
2 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-13030 |
4KJ,5K#..KM3# |
2 | ||
| 17172-13021 |
4KJ,5K#..KM3# |
2 | ||
| 17172-13030 |
5KJ..KM31 |
2 | ||
| Common parts | ||||
| 90119-10038 | ||||
| 90179-10025 | ||||
| 92132-60616 | ||||

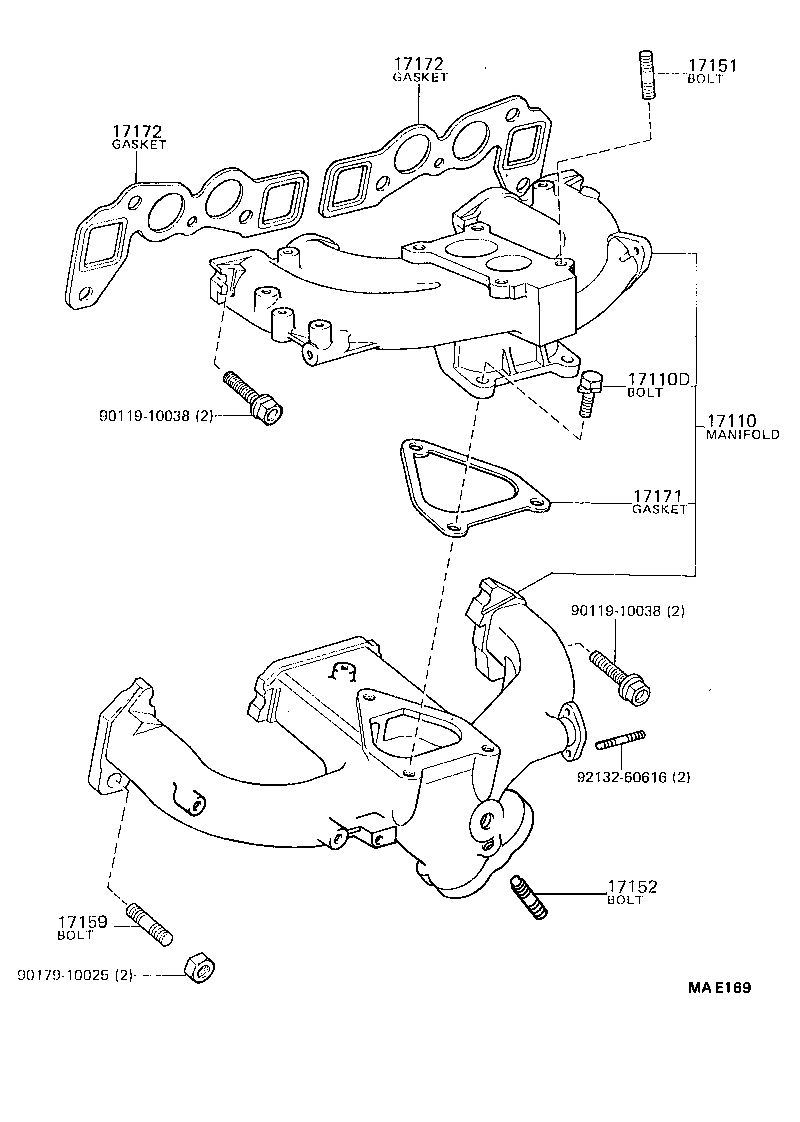

(9008- )5KJ
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17110 - MANIFOLD ASSY | ||||
| 17110-13150 |
5K#..KM30,31,36 |
1 | ||
| 17110-13190 |
5KJ..KM31 |
1 | ||
| 17110D - BOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD) | ||||
| 91611-60822 |
5KJ..KM31 |
3 | ||
| 91611-60822 |
4KJ,5K#..KM3# |
3 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08010 |
4KJ,5K#..KM3# |
4 | ||
| 90116-08010 |
5KJ..KM31 |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10087 |
4KJ,5K#..KM3# |
2 | ||
| 90116-10087 |
5KJ..KM31 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-61028 |
5KJ..KM31 |
2 | ||
| 92122-41028 |
4KJ,5K#..KM3# |
2 | ||
| 92122-61028 |
5K#..KM30,31,36 |
2 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-13040 |
4KJ,5K#..KM3# |
1 | ||
| 17171-13050 |
5KJ..KM31 |
1 | ||
| 17171-13050 |
4KJ,5K#..KM3# |
1 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-13030 |
4KJ,5K#..KM3# |
2 | ||
| 17172-13021 |
4KJ,5K#..KM3# |
2 | ||
| 17172-13030 |
5KJ..KM31 |
2 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-13030 |
4KJ,5K#..KM3# |
2 | ||
| 17172-13021 |
4KJ,5K#..KM3# |
2 | ||
| 17172-13030 |
5KJ..KM31 |
2 | ||
| Common parts | ||||
| 90119-10038 | ||||
| 90179-10025 | ||||
| 92132-60616 | ||||
