Toyota Liteace van,wagon KM30 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
LITEACE VAN,WAGON
KM30G-MGS (1985)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

KM30G-MGS (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988

Engine 5KU

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8509- )CM3#,41,KM3#,YM30

Click highlighted areas on diagram

Part #	Description	Period	Qty
88453 - FAN, COOLING (FOR CONDENSER)
88453-12030	CM30,KM30,YM30	09/1985 - 05/1987	1
88453-28010	CM30,4#,KM30,YM30,40	05/1987 - 08/1988	1
88460 - CONDENSER ASSY, COOLER
88460-95717	CM30,KM30,YM30 FLOOR	09/1985 - 08/1988	1
88460-95716	CM3#,KM3#,YM30 RADIATOR	09/1985 - 08/1988	1
88460-95719	CM30,KM30 RADIATOR,W/SHUTTER	02/1986 - 08/1988	1
88460 - CONDENSER ASSY, COOLER
88460-95717	CM30,KM30,YM30 FLOOR	09/1985 - 08/1988	1
88460-95716	CM3#,KM3#,YM30 RADIATOR	09/1985 - 08/1988	1
88460-95719	CM30,KM30 RADIATOR,W/SHUTTER	02/1986 - 08/1988	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-95743	CM3#,KM3#,YM30	09/1985 - 08/1988	1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-95744	CM3#,KM3#,YM30	09/1985 - 08/1988	1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-95746	CM3#,KM3#,YM30	09/1985 - 08/1988	1
88460F - BRACKET, COOLER CONDENSER, NO.4
88688-95777	CM30,41,KM30,YM30	09/1985 - 08/1988	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16010	CM3#,4#,KM3#,YM30,40	10/1986 - 08/1988	1
88470-16010	CM3#,4#,KM3#,YM30,40	09/1985 - 10/1986	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95707	CM3#,KM3#,YM30	09/1985 - 08/1988	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001	CM3#,4#,KM3#,YM30,40 400G	09/1985 - 08/1988	4
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-87002	CM30,4#,KM30,YM30	09/1985 - 08/1988	1
88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)
88635-95702	CM30,KM30,YM30	09/1985 - 08/1988	1
Common parts
88467-95701
88467-95702
88467-95703
88718-12790
88718-14450
88894-22180
88897-28010
90179-06032
90179-06115
90179-08123
90464-00165
93385-16012
93385-16014
93385-16016
93385-16020
93385-18020
93385-58040

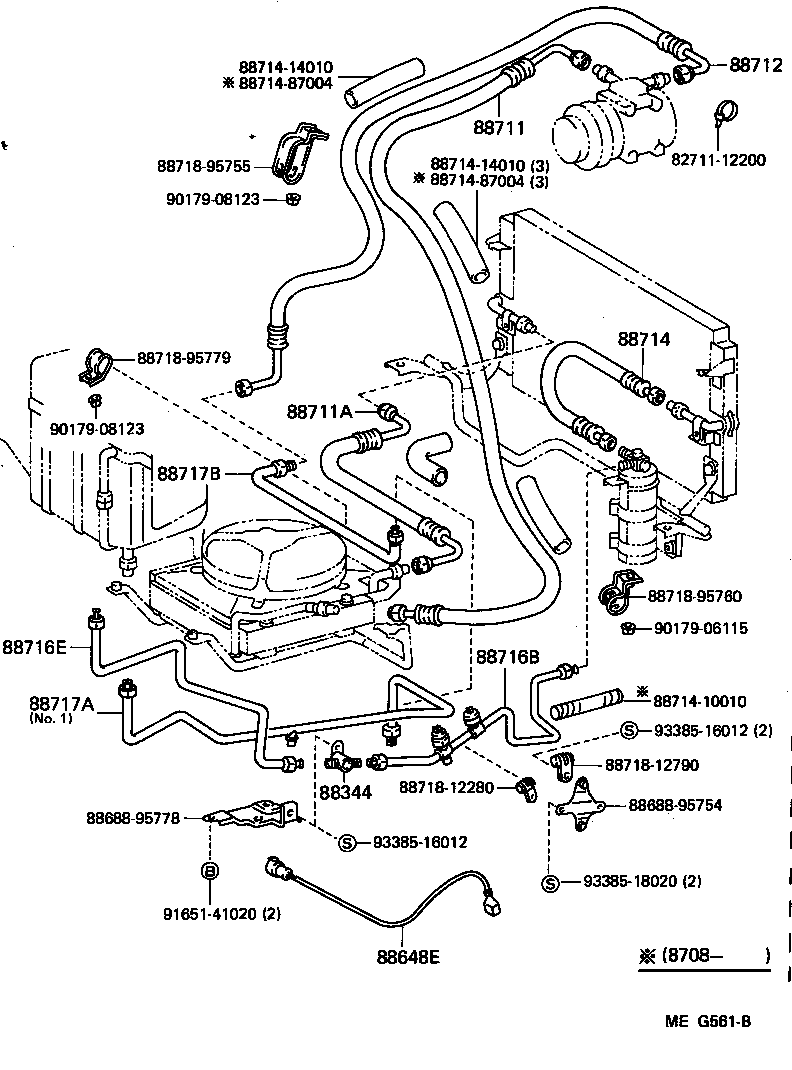

ILLUST NO. 2 OF 3(8509- )KM30

Click highlighted areas on diagram

Part #	Description	Period	Qty
88344 - GLASS SUB-ASSY, SIGHT
88481-87002	CM3#,4#,KM3#,YM30,40	09/1985 - 08/1988	1
88648E - WIRING, COOLER
88648-95715	CM30,KM30	09/1985 - 08/1988	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95729	KM30	09/1985 - 08/1988	1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711-95730	CM30,KM30,YM30	09/1985 - 08/1988	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95725	KM30	09/1985 - 08/1988	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95709	CM3#,KM3#,YM30	09/1985 - 08/1988	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95736	CM30,KM30,YM30..MRF W/*ODAC	09/1985 - 08/1986	1
88716-95736	CM30,KM30,YM30..HRF,MRF W/*ODAC OR COOL BOX	08/1986 - 08/1988	1
88716-95747	CM30,KM30	09/1985 - 08/1988	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95758	CM30,41,KM30	09/1985 - 08/1988	1
88716-95738	CM30,40,KM30,YM30,40..HRF,MRF W/*ODAC OR COOL BOX	08/1986 - 08/1988	1
88716-95738	CM30,40,KM30,YM30,40..MRF W/*ODAC	09/1985 - 08/1986	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95743	KM30	09/1985 - 08/1988	1
88717-95729	KM30,YM30..HRF,MRF NO.1,W/*ODAC OR COOL BOX	08/1986 - 08/1988	1
88717-95741	CM30,40,KM30,YM30,40..MRF NO.2(COOL BOX)	09/1985 - 08/1986	1
88717-95729	KM30,YM30..MRF NO.1,W/*ODAC	09/1985 - 08/1986	1
88717-95741	CM30,40,KM30,YM30,40..3FC,4F,4FC,5F NO.2(COOL BOX)	08/1986 - 08/1988	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-95726	CM30,40,KM30,YM30,40..MRF W/*ODAC	09/1985 - 08/1986	1
88717-95726	CM30,40,KM30,YM30,40..HRF,MRF W/*ODAC	08/1986 - 08/1988	1
88717-95735	KM30	09/1985 - 08/1988	1
Common parts
82711-12200
88688-95754
88688-95778
88714-10010
88714-14010
88714-87004
88718-12280
88718-12790
88718-95755
88718-95760
88718-95779
90179-06115
90179-08123
91651-41020
93385-16012
93385-18020

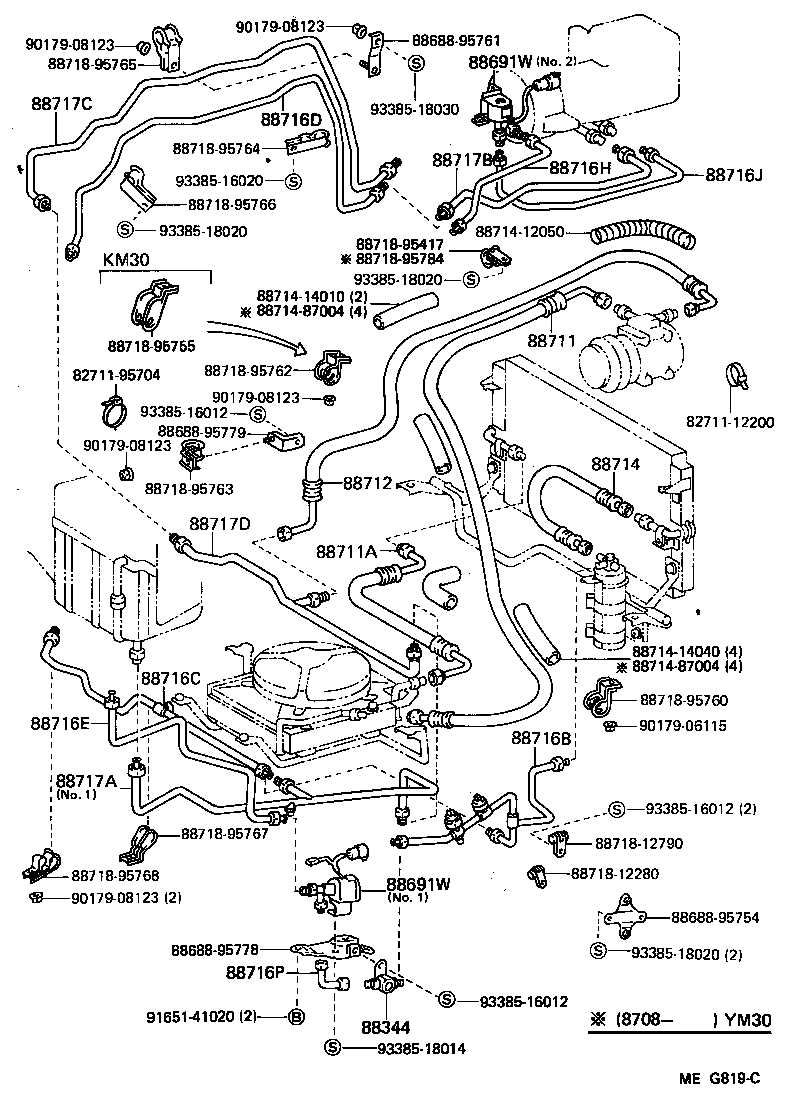

ILLUST NO. 2 OF 3(8509- )KM30,YM30..FXV,GXL,SUC,XL7

Click highlighted areas on diagram

Part #	Description	Period	Qty
88344 - GLASS SUB-ASSY, SIGHT
88481-87002	CM3#,4#,KM3#,YM30,40	09/1985 - 08/1988	1
88691W - VALVE, MAGNET
88690-95754	CM30,40,KM30,YM30,40..MRF NO.2	09/1985 - 08/1986	1
88690-95739	CM30,40,KM30,YM30,40..MRF NO.3	09/1985 - 08/1986	1
88690-95739	CM30,40,KM30,YM30,40..3FC,4F,4FC,5F NO.3(COOL BOX)	08/1986 - 08/1988	1
88690-95752	CM30,40,KM30,YM30,40..MRF NO.1	09/1985 - 08/1986	1
88690-95754	CM30,40,KM30,YM30,40..HRF,MRF NO.2	08/1986 - 08/1988	1
88690-95752	CM30,40,KM30,YM30,40..HRF,MRF NO.1(W/*ODAC OR COOL BOX)	08/1986 - 08/1988	1
88691W - VALVE, MAGNET
88690-95754	CM30,40,KM30,YM30,40..MRF NO.2	09/1985 - 08/1986	1
88690-95739	CM30,40,KM30,YM30,40..MRF NO.3	09/1985 - 08/1986	1
88690-95739	CM30,40,KM30,YM30,40..3FC,4F,4FC,5F NO.3(COOL BOX)	08/1986 - 08/1988	1
88690-95752	CM30,40,KM30,YM30,40..MRF NO.1	09/1985 - 08/1986	1
88690-95754	CM30,40,KM30,YM30,40..HRF,MRF NO.2	08/1986 - 08/1988	1
88690-95752	CM30,40,KM30,YM30,40..HRF,MRF NO.1(W/*ODAC OR COOL BOX)	08/1986 - 08/1988	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95729	KM30	09/1985 - 08/1988	1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711-95730	CM30,KM30,YM30	09/1985 - 08/1988	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95725	KM30	09/1985 - 08/1988	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95709	CM3#,KM3#,YM30	09/1985 - 08/1988	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95736	CM30,KM30,YM30..MRF W/*ODAC	09/1985 - 08/1986	1
88716-95736	CM30,KM30,YM30..HRF,MRF W/*ODAC OR COOL BOX	08/1986 - 08/1988	1
88716-95747	CM30,KM30	09/1985 - 08/1988	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-95739	CM30,KM30,YM30..MRF	09/1985 - 08/1986	1
88716-95739	CM30,KM30,YM30..HRF,MRF	08/1986 - 08/1988	1
88716-95763	CM30,KM30,YM30..3FC,4F,4FC,5F W/*AIC & COOL BOX	08/1986 - 08/1988	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-95743	CM30,40,KM30,YM30,40..MRF	09/1985 - 08/1986	1
88716-95743	CM30,40,KM30,YM30,40..HRF,MRF	08/1986 - 08/1988	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95758	CM30,41,KM30	09/1985 - 08/1988	1
88716-95738	CM30,40,KM30,YM30,40..HRF,MRF W/*ODAC OR COOL BOX	08/1986 - 08/1988	1
88716-95738	CM30,40,KM30,YM30,40..MRF W/*ODAC	09/1985 - 08/1986	1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88716-95742	CM30,40,KM30,YM30,40..MRF	09/1985 - 08/1986	1
88716-95742	CM30,40,KM30,YM30,40..HRF,MRF	08/1986 - 08/1988	1
88716J - PIPE, COOLER REFRIGERANT LIQUID, J
88716-95757	CM30,40,KM30,YM30,40..MRF	09/1985 - 08/1986	1
88716-95757	CM30,40,KM30,YM30,40..HRF,MRF	08/1986 - 08/1988	1
88716P - PIPE, COOLER REFRIGERANT LIQUID, P
88716-95755	CM30,40,KM30,YM30,40..HRF,MRF W/*ODAC OR COOL BOX	08/1986 - 08/1988	1
88716-95755	CM30,40,KM30,YM30,40..MRF	09/1985 - 08/1986	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95743	KM30	09/1985 - 08/1988	1
88717-95729	KM30,YM30..HRF,MRF NO.1,W/*ODAC OR COOL BOX	08/1986 - 08/1988	1
88717-95741	CM30,40,KM30,YM30,40..MRF NO.2(COOL BOX)	09/1985 - 08/1986	1
88717-95729	KM30,YM30..MRF NO.1,W/*ODAC	09/1985 - 08/1986	1
88717-95741	CM30,40,KM30,YM30,40..3FC,4F,4FC,5F NO.2(COOL BOX)	08/1986 - 08/1988	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-95726	CM30,40,KM30,YM30,40..MRF W/*ODAC	09/1985 - 08/1986	1
88717-95726	CM30,40,KM30,YM30,40..HRF,MRF W/*ODAC	08/1986 - 08/1988	1
88717-95735	KM30	09/1985 - 08/1988	1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-95727	CM30,40,KM30,YM30,40..MRF	09/1985 - 08/1986	1
88717-95727	CM30,40,KM30,YM30,40..HRF,MRF	08/1986 - 08/1988	1
88717D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-95732	KM30,YM30..MRF	09/1985 - 08/1986	1
88717-95732	KM30,YM30..HRF,MRF	08/1986 - 08/1988	1
Common parts
82711-12200
82711-95704
88688-95754
88688-95761
88688-95778
88688-95779
88714-12050
88714-14010
88714-14040
88714-87004
88718-12280
88718-12790
88718-95417
88718-95755
88718-95760
88718-95762
88718-95763
88718-95764
88718-95765
88718-95766
88718-95767
88718-95768
88718-95784
90179-06115
90179-08123
91651-41020
93385-16012
93385-16020
93385-18014
93385-18020
93385-18030

ILLUST NO. 3 OF 3(8509- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88344 - GLASS SUB-ASSY, SIGHT
88481-87002	CM3#,4#,KM3#,YM30,40	09/1985 - 08/1988	1
88648E - WIRING, COOLER
88648-95715	CM30,KM30	09/1985 - 08/1988	1
88691W - VALVE, MAGNET
88690-95754	CM30,40,KM30,YM30,40..MRF NO.2	09/1985 - 08/1986	1
88690-95739	CM30,40,KM30,YM30,40..MRF NO.3	09/1985 - 08/1986	1
88690-95739	CM30,40,KM30,YM30,40..3FC,4F,4FC,5F NO.3(COOL BOX)	08/1986 - 08/1988	1
88690-95752	CM30,40,KM30,YM30,40..MRF NO.1	09/1985 - 08/1986	1
88690-95754	CM30,40,KM30,YM30,40..HRF,MRF NO.2	08/1986 - 08/1988	1
88690-95752	CM30,40,KM30,YM30,40..HRF,MRF NO.1(W/*ODAC OR COOL BOX)	08/1986 - 08/1988	1
88691W - VALVE, MAGNET
88690-95754	CM30,40,KM30,YM30,40..MRF NO.2	09/1985 - 08/1986	1
88690-95739	CM30,40,KM30,YM30,40..MRF NO.3	09/1985 - 08/1986	1
88690-95739	CM30,40,KM30,YM30,40..3FC,4F,4FC,5F NO.3(COOL BOX)	08/1986 - 08/1988	1
88690-95752	CM30,40,KM30,YM30,40..MRF NO.1	09/1985 - 08/1986	1
88690-95754	CM30,40,KM30,YM30,40..HRF,MRF NO.2	08/1986 - 08/1988	1
88690-95752	CM30,40,KM30,YM30,40..HRF,MRF NO.1(W/*ODAC OR COOL BOX)	08/1986 - 08/1988	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95736	CM30,KM30,YM30..MRF W/*ODAC	09/1985 - 08/1986	1
88716-95736	CM30,KM30,YM30..HRF,MRF W/*ODAC OR COOL BOX	08/1986 - 08/1988	1
88716-95747	CM30,KM30	09/1985 - 08/1988	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-95739	CM30,KM30,YM30..MRF	09/1985 - 08/1986	1
88716-95739	CM30,KM30,YM30..HRF,MRF	08/1986 - 08/1988	1
88716-95763	CM30,KM30,YM30..3FC,4F,4FC,5F W/*AIC & COOL BOX	08/1986 - 08/1988	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95758	CM30,41,KM30	09/1985 - 08/1988	1
88716-95738	CM30,40,KM30,YM30,40..HRF,MRF W/*ODAC OR COOL BOX	08/1986 - 08/1988	1
88716-95738	CM30,40,KM30,YM30,40..MRF W/*ODAC	09/1985 - 08/1986	1
88716P - PIPE, COOLER REFRIGERANT LIQUID, P
88716-95755	CM30,40,KM30,YM30,40..HRF,MRF W/*ODAC OR COOL BOX	08/1986 - 08/1988	1
88716-95755	CM30,40,KM30,YM30,40..MRF	09/1985 - 08/1986	1
88716Q - PIPE, COOLER REFRIGERANT LIQUID, Q
88716-95750	CM30,40,KM30,YM30,40..3FC,4F,4FC,5F NO.2	08/1986 - 08/1988	1
88716-95730	CM30,KM30,YM30..3FC,4F,4FC,5F NO.1	08/1986 - 08/1988	1
88716-95730	CM30,KM30,YM30..MRF NO.1	09/1985 - 08/1986	1
88716-95750	CM30,40,KM30,YM30,40..MRF NO.2	09/1985 - 08/1986	1
88716Q - PIPE, COOLER REFRIGERANT LIQUID, Q
88716-95750	CM30,40,KM30,YM30,40..3FC,4F,4FC,5F NO.2	08/1986 - 08/1988	1
88716-95730	CM30,KM30,YM30..3FC,4F,4FC,5F NO.1	08/1986 - 08/1988	1
88716-95730	CM30,KM30,YM30..MRF NO.1	09/1985 - 08/1986	1
88716-95750	CM30,40,KM30,YM30,40..MRF NO.2	09/1985 - 08/1986	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95743	KM30	09/1985 - 08/1988	1
88717-95729	KM30,YM30..HRF,MRF NO.1,W/*ODAC OR COOL BOX	08/1986 - 08/1988	1
88717-95741	CM30,40,KM30,YM30,40..MRF NO.2(COOL BOX)	09/1985 - 08/1986	1
88717-95729	KM30,YM30..MRF NO.1,W/*ODAC	09/1985 - 08/1986	1
88717-95741	CM30,40,KM30,YM30,40..3FC,4F,4FC,5F NO.2(COOL BOX)	08/1986 - 08/1988	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95743	KM30	09/1985 - 08/1988	1
88717-95729	KM30,YM30..HRF,MRF NO.1,W/*ODAC OR COOL BOX	08/1986 - 08/1988	1
88717-95741	CM30,40,KM30,YM30,40..MRF NO.2(COOL BOX)	09/1985 - 08/1986	1
88717-95729	KM30,YM30..MRF NO.1,W/*ODAC	09/1985 - 08/1986	1
88717-95741	CM30,40,KM30,YM30,40..3FC,4F,4FC,5F NO.2(COOL BOX)	08/1986 - 08/1988	1
Common parts
88592-87002
88688-95778
88714-22030
90099-32110
90179-06115
90480-26003
91651-41020
93385-16012
93385-18014

KM30G-MGS (1985)

ILLUST NO. 1 OF 3(8509- )CM3#,41,KM3#,YM30

ILLUST NO. 2 OF 3(8509- )KM30

ILLUST NO. 2 OF 3(8509- )KM30,YM30..FXV,GXL,SUC,XL7

ILLUST NO. 3 OF 3(8509- )

Part Price Details
