KM30G-MFS (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 5KU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )FXV,GXL,LD,SCA,SUC

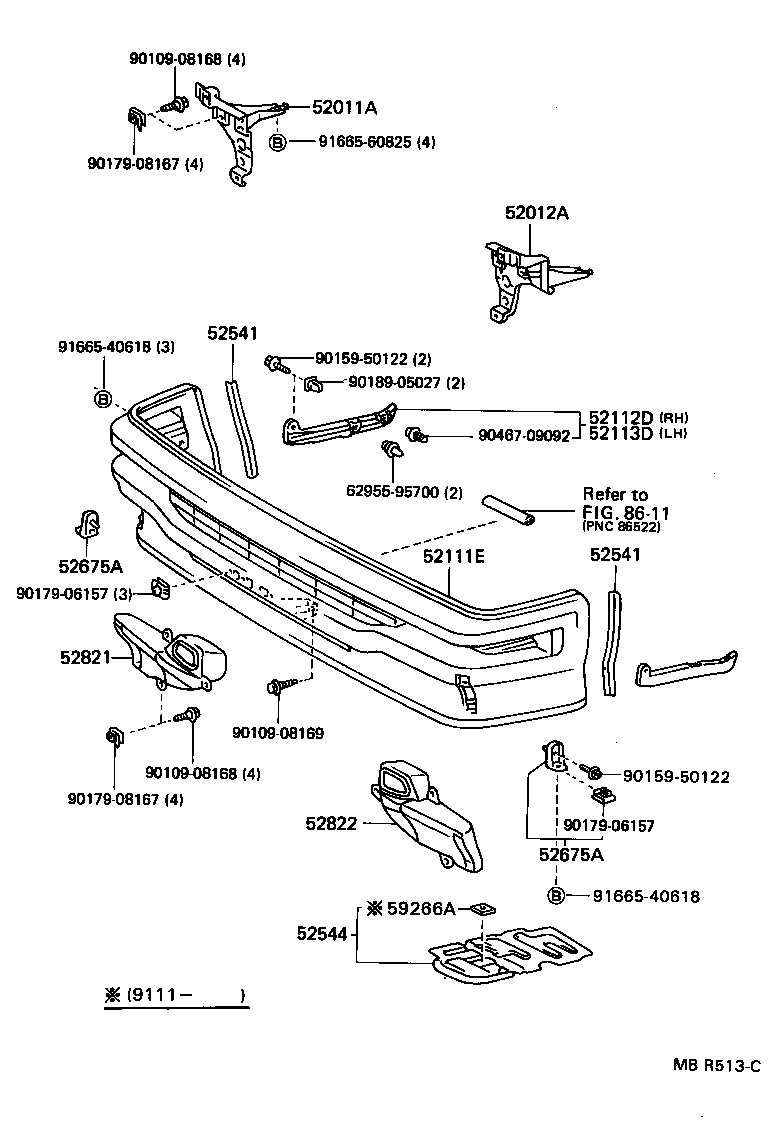

Click highlighted areas on diagram

diagram 52011A 52012A 52111E 52112D 52113D 52541 52541 52544 52675A 52675A 52821 52822 59266A 6295595700 8611 9010908168 9010908168 9010908169 9015950122 9015950122 9017906157 9017906157 9017908167 9017908167 9018905027 9046709092 9166540618 9166540618 9166560825
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-95703

CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-95703

CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC

 1
52111E - BAR, FRONT BUMPER
52111-9572005

CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC

BEIGE M,4K1

 1
52111-9572017

CM30,40,KM30,YM30,40..GXL,SCA,SUC

LIGHT GREEN M,6J9

 1
52111-9572023

CM30,40,KM30,YM30,40..GXL,SCA,SUC

SILVER M,148

 1
52111-9572003

CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC

SILVER M,23L

 1
52111-9572003

CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC

SILVER M,20T

 1
52111-95719

CM30,40,KM30,YM30,40..GXL,LD,SCA,SUC

 1
52111-9572013

CM30,40,KM30,YM30,40..GXL,SCA,SUC

GRAY.M,168

 1
52111-9572013

CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC

GRAY.M,168

 1
52541 - PROTECTOR, FRONT BUMPER
52541-95700

CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC

 2
52541 - PROTECTOR, FRONT BUMPER
52541-95700

CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC

 2
52675A - SUPPORT, FRONT BUMPER SIDE, NO.1
52675-95700

CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC

 2
52675A - SUPPORT, FRONT BUMPER SIDE, NO.1
52675-95700

CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC

 2
52821 - DUCT, AIR INTAKE, RH
52821-95700

CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC

 1
52822 - DUCT, AIR INTAKE, LH
52822-95700

CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC

 1
Common parts
62955-95700
90109-08168
90109-08169
90159-50122
90179-06157
90179-08167
90189-05027
90467-09092
91665-40618
91665-60825
Linked diagrams
8611
