KM30G-KES (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 5KU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )KM3#

Click highlighted areas on diagram

diagram 8712428030 87208 87240 87245A 87245B 87245E 87246A 87246E 87255A 87256E 9017908123 9033905005 9046022073 9046024039 9046024039 9046711009 9098901063 9165140816 9165140816 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95716

KM30

W/RR HEATER

 1
87240 - VALVE ASSY, HEATER WATER
87240-95707

CM3#,4#,KM3#,YM30,40

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95734

KM3#

 1
87245-95736

CM3#,4#

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30260

CM3#,4#,YM30,40

*H,L=250

 1
99556-30300

CM3#,4#,YM30,40

*H,L=250

 1
99556-30980

KM3#

*H,L=740

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30180

CM3#,4#,KM3#,YM30,40

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

CM3#,4#,YM30,40

*H,L=820

 1
99556-30980

KM3#

*H,L=840

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95739

CM3#,4#

 1
87245-95732

KM3#

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-95748

KM30

 1
87245-95754

KM30

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20300

KM30

*H,L=300

 1
Common parts
87124-28030
90179-08123
90339-05005
90460-22073
90460-24039
90467-11009
90989-01063
91651-40816
96112-10250

(8509- )KM30 ; (8509- )V4D..SUP

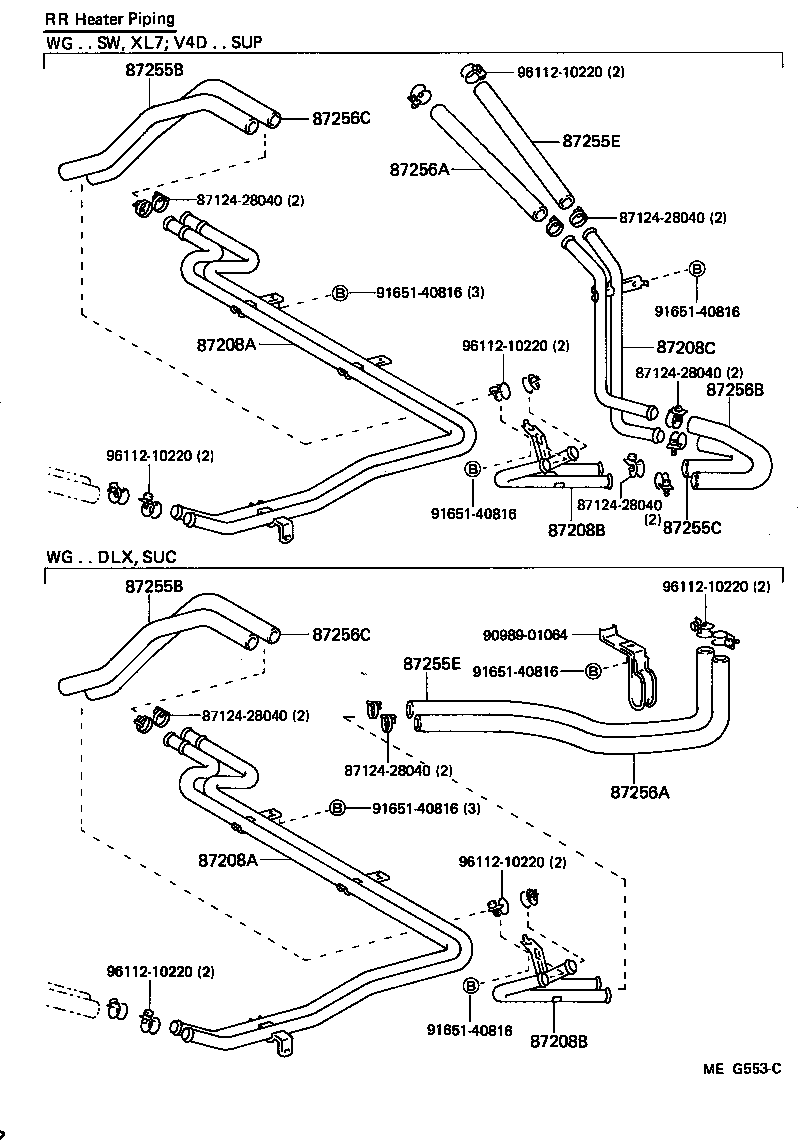

Click highlighted areas on diagram

diagram 8712428040 8712428040 8712428040 8712428040 8712428040 8712428040 87208A 87208A 87208B 87208B 87208C 87255B 87255B 87255C 87255E 87255E 87256A 87256A 87256B 87256C 87256C 9098901064 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-95725

KM30

 1
87208-95738

KM30

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-95725

KM30

 1
87208-95738

KM30

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95728

KM30

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95728

KM30

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-95730

CM30,40,KM30,YM40..SW,XL7

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-95742

KM30

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-95742

KM30

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-95749

CM30,40,KM30,YM40..SW,XL7

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99556-20200

CM30,40,KM30,YM40..SW,XL7

*H,L=130

 1
87245-95744

CM30,40,KM30,YM40..SW,XL7

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99556-20200

CM30,40,KM30,YM40..SW,XL7

*H,L=130

 1
87245-95744

CM30,40,KM30,YM40..SW,XL7

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20200

CM30,40,KM30,YM40..SW,XL7

*H,L=130

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20200

CM30,40,KM30,YM40..SW,XL7

*H,L=130

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-95750

CM30,40,KM30,YM40..SW,XL7

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-95743

KM30

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-95743

KM30

 1
Common parts
87124-28040
90989-01064
91651-40816
96112-10220

(8509- )CM3#,4#,YM30,40

Click highlighted areas on diagram

diagram 1149371010 1717572010 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 8712428040 8712428040 87240 87240 87245A 87245A 87245B 87245B 87245E 87245E 87246A 87246A 87246E 87246E 87248A 87248B 87248B 87249A 87249A 87249B 87255A 87255A 87256E 87256E 87263 87268B 9017908123 9017908123 9017908146 9046022073 9046022073 9046024039 9046024039 9046024039 9046024039 9046110262 9046110262 9046110589 9046110589 9046400443 9161160835 9165140616 9165140814 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-95707

CM3#,4#,KM3#,YM30,40

 1
87240 - VALVE ASSY, HEATER WATER
87240-95707

CM3#,4#,KM3#,YM30,40

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95734

KM3#

 1
87245-95736

CM3#,4#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95734

KM3#

 1
87245-95736

CM3#,4#

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30260

CM3#,4#,YM30,40

*H,L=250

 1
99556-30300

CM3#,4#,YM30,40

*H,L=250

 1
99556-30980

KM3#

*H,L=740

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30260

CM3#,4#,YM30,40

*H,L=250

 1
99556-30300

CM3#,4#,YM30,40

*H,L=250

 1
99556-30980

KM3#

*H,L=740

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30180

CM3#,4#,KM3#,YM30,40

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30180

CM3#,4#,KM3#,YM30,40

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

CM3#,4#,YM30,40

*H,L=820

 1
99556-30980

KM3#

*H,L=840

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

CM3#,4#,YM30,40

*H,L=820

 1
99556-30980

KM3#

*H,L=840

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95739

CM3#,4#

 1
87245-95732

KM3#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95739

CM3#,4#

 1
87245-95732

KM3#

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-95748

KM30

 1
87245-95754

KM30

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-95748

KM30

 1
87245-95754

KM30

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20300

KM30

*H,L=300

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20300

KM30

*H,L=300

 1
Common parts
11493-71010
17175-72010
87124-28030
87124-28040
90179-08123
90179-08146
90460-22073
90460-24039
90461-10262
90461-10589
90464-00443
91611-60835
91651-40616
91651-40814
91651-40816
96112-10250
