KM30G-KES (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 5KU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )4KJ,5K#

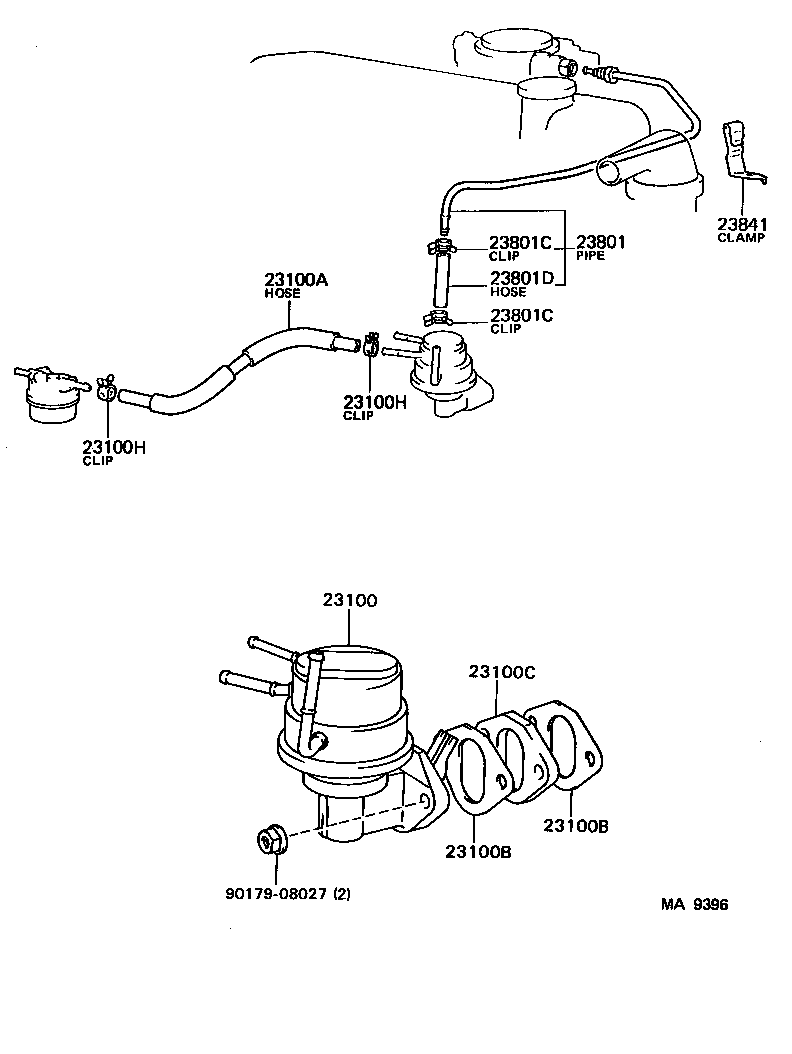

Click highlighted areas on diagram

diagram 23100 23100A 23100B 23100B 23100C 23100H 23100H 23801 23801C 23801C 23801D 23841 9017908027
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-13100

4KJ,5K#..KM3#

 1
23100-13101

4KJ,5K#..KM3#

 1
23100A - HOSE, FUEL
90447-12065

4KJ,5K#..KM3#

 1
23100B - GASKET, FUEL PUMP
90923-05006

4KJ,5K#..KM3#

 2
23100B - GASKET, FUEL PUMP
90923-05006

4KJ,5K#..KM3#

 2
23100C - INSULATOR, FUEL PUMP
90923-06003

4KJ,5K#..KM3#

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

4KJ,5K#..KM3#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

4KJ,5K#..KM3#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23801-13100

4KJ,5K#..KM3#

 1
23801-13120

4KJ,5K#..KM3#

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

4KJ,5K#..KM3#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

4KJ,5K#..KM3#

 4
23801D - HOSE, FUEL PIPE, NO.1
95333-06007

4KJ,5K#..KM3#

*H,L=70

 1
95332-06010

4KJ,5K#..KM3#

*H,L=70

 1
95333-06010

4KJ,5K#..KM3#

*H,L=70

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-13020

4KJ,5K#..KM3#

 1
90461-08532

4KJ,5K#..KM3#

 1
Common parts
90179-08027
