KM30G-JNS (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Aug 1990
Engine 5KU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

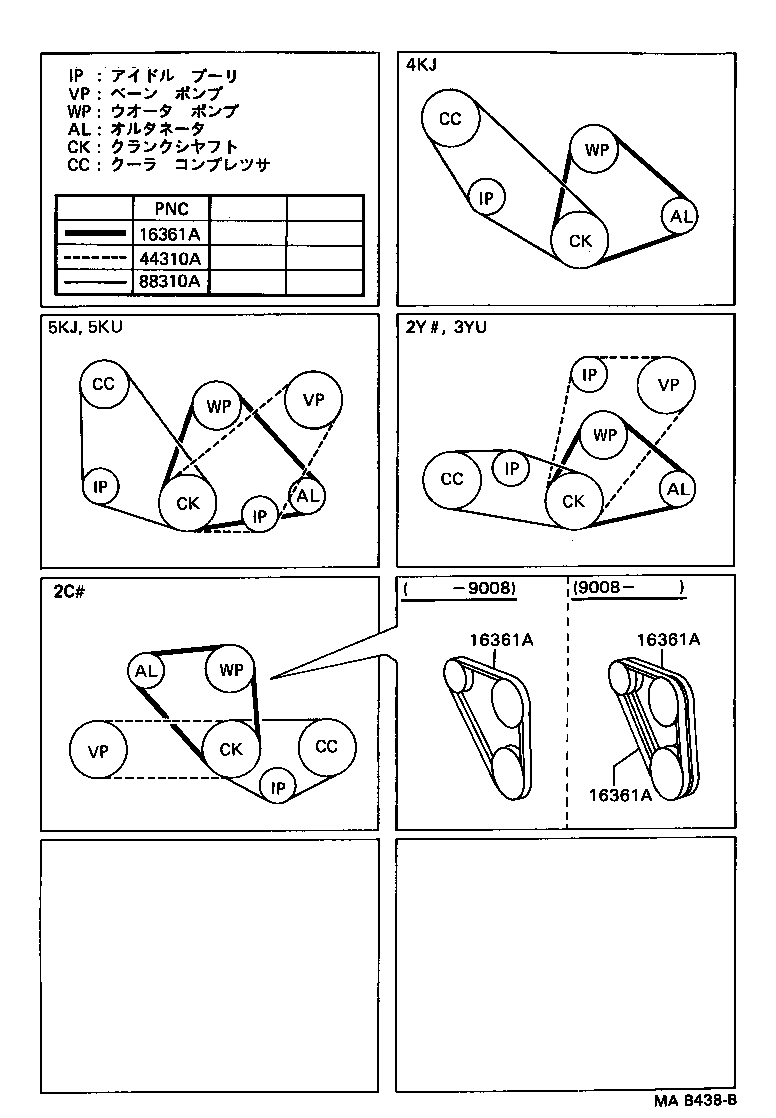

diagram 16361A 16361A 16361A 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99321-00885

5KU..KM30..LD,SW

 1
99321-00950

5K#..KM30,31,36..DLX,LD,SUP,SW

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99321-00885

5KU..KM30..LD,SW

 1
99321-00950

5K#..KM30,31,36..DLX,LD,SUP,SW

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99321-00885

5KU..KM30..LD,SW

 1
99321-00950

5K#..KM30,31,36..DLX,LD,SUP,SW

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99321-00885

5KU..KM30..LD,SW

 1
99321-00950

5K#..KM30,31,36..DLX,LD,SUP,SW

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
44310A - BELT, V(FOR VANE PUMP)
99332-00970

KM30,31,36

長さ=970

 1
90916-02122

CM3#,4#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-01000

KM30..W4D..(LD,SCA,SW)

ｱﾘ(ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅDOP)

 1
99322-00980

KM30

ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ﾌﾛﾝﾄ ｸ-ﾗ DOP)

 1
