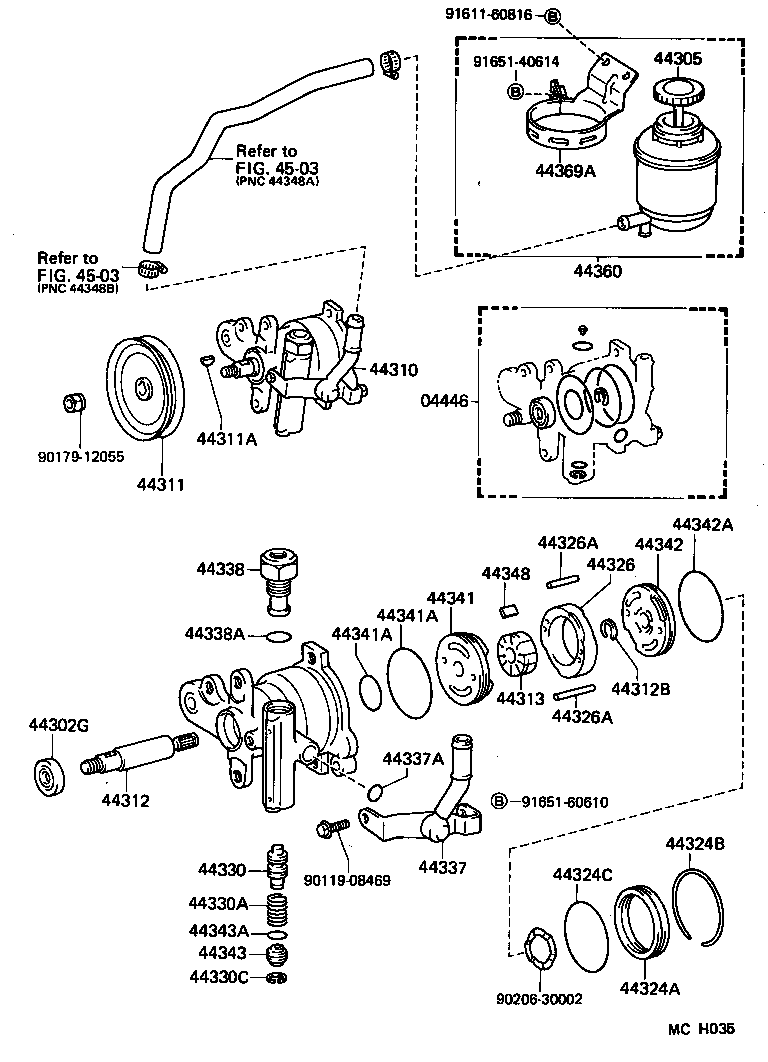

KM30G-JBZ (1988)
Toyota Liteace Van,Wagon
(8808- )KM30,31,36
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-27010 |
KM30,31,36 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-24001 |
CM3#,4#,YM30,40 |
1 | ||
| 90311-18007 |
KM30,31,36 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-32010 |
CM3#,KM30,31,36,YM3#,40 |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-27050 |
CM3#,4# |
1 | ||
| 44320-27032 |
KM30,31,36 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-12060 |
KM30,31,36 |
1 | ||
| 44311-27010 |
CM3#,4# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
CM3#,4#,KM30,31,36,YM30,40 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
KM30,31,36 |
1 | ||
| 44312-12010 |
CM3#,4#,YM30,40 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
KM30,31,36 |
1 | ||
| 90520-15001 |
CM3#,4#,YM30,40 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-12010 |
CM3#,4#,YM30,40 ﾏｰｸ無し |
1 | ||
| 44313-12020 |
CM3#,4#,YM30,40 ﾏｰｸ 1 |
1 | ||
| 44313-22040 |
KM30,31,36 ﾏｰｸ無し |
1 | ||
| 44313-12030 |
CM3#,4#,YM30,40 ﾏｰｸ 2 |
1 | ||
| 44313-22050 |
KM30,31,36 ﾏｰｸ 1 |
1 | ||
| 44313-22070 |
KM30,31,36 ﾏｰｸ 3 |
1 | ||
| 44313-22080 |
KM30,31,36 ﾏｰｸ 4 |
1 | ||
| 44313-22060 |
KM30,31,36 ﾏｰｸ 2 |
1 | ||
| 44313-12040 |
CM3#,4#,YM30,40 ﾏｰｸ 3 |
1 | ||
| 44313-12050 |
CM3#,4#,YM30,40 ﾏｰｸ 4 |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-12031 |
KM30,31,36 |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
KM30,31,36 |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-52001 |
KM30,31,36 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12030 |
CM3#,4#,YM3#,40 ﾏｰｸ 2 |
1 | ||
| 44325-12010 |
CM3#,4#,YM3#,40 ﾏｰｸ無し |
1 | ||
| 44325-12040 |
CM3#,4#,YM3#,40 ﾏｰｸ 3 |
1 | ||
| 44325-12140 |
KM30,31,36 ﾏｰｸ 3 |
1 | ||
| 44325-12050 |
CM3#,4#,YM3#,40 ﾏｰｸ 4 |
1 | ||
| 44325-12110 |
KM30,31,36 ﾏｰｸ無し |
1 | ||
| 44325-12150 |
KM30,31,36 ﾏｰｸ 4 |
1 | ||
| 44325-12130 |
KM30,31,36 ﾏｰｸ 2 |
1 | ||
| 44325-12120 |
KM30,31,36 ﾏｰｸ 1 |
1 | ||
| 44325-12020 |
CM3#,4#,YM3#,40 ﾏｰｸ 1 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
KM30,31,36 長さ=28,外径=4.0 |
1 | ||
| 90250-05008 |
CM3#,4#,YM3#,40 長さ=25,外径=5.0 |
2 | ||
| 90250-04049 |
KM30,31,36 長さ=43,外径=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
KM30,31,36 長さ=28,外径=4.0 |
1 | ||
| 90250-05008 |
CM3#,4#,YM3#,40 長さ=25,外径=5.0 |
2 | ||
| 90250-04049 |
KM30,31,36 長さ=43,外径=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12180 |
CM3#,4#,YM30,40 ﾏｰｸ F |
1 | ||
| 44330-14010 |
KM30,31,36 ﾏｰｸ A |
1 | ||
| 44330-12160 |
CM3#,4#,YM30,40 ﾏｰｸ D |
1 | ||
| 44330-14040 |
KM30,31,36 ﾏｰｸ D |
1 | ||
| 44330-12130 |
CM3#,4#,YM30,40 ﾏｰｸ A |
1 | ||
| 44330-12170 |
CM3#,4#,YM30,40 ﾏｰｸ E |
1 | ||
| 44330-14050 |
KM30,31,36 ﾏｰｸ E |
1 | ||
| 44330-14060 |
KM30,31,36 ﾏｰｸ F |
1 | ||
| 44330-12140 |
CM3#,4#,YM30,40 ﾏｰｸ B |
1 | ||
| 44330-14020 |
KM30,31,36 ﾏｰｸ B |
1 | ||
| 44330-14030 |
KM30,31,36 ﾏｰｸ C |
1 | ||
| 44330-12150 |
CM3#,4#,YM30,40 ﾏｰｸ C |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-27030 |
CM3#,4# |
1 | ||
| 44337-27021 |
KM30,31,36 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-12003 |
KM30,31,36 |
1 | ||
| 96711-19013 |
CM3#,4#,YM3#,40 |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44308-12042 |
KM30,31,36 |
1 | ||
| 44308-14041 |
CM3#,4#,YM3#,40 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
KM30,31,36 内径=19.5,外径=22.5 |
1 | ||
| 96711-19014 |
CM3#,4#,YM3#,40 外径=17.0,内径=13.0 |
1 | ||
| 90301-22001 |
CM3#,4#,YM3#,40 外径=25.5,内径=22.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32010 |
KM30,31,36 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
KM30,31,36 外側 |
1 | ||
| 90301-25001 |
KM30,31,36 内側 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
KM30,31,36 外側 |
1 | ||
| 90301-25001 |
KM30,31,36 内側 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-32010 |
KM30,31,36 |
1 | ||
| 44341-12010 |
CM3#,4#,YM3#,40 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53002 |
CM3#,4#,YM3#,40 |
1 | ||
| 90301-52001 |
KM30,31,36 |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12040 |
CM3#,4#,YM3#,40 |
1 | ||
| 44343-12010 |
KM30,31,36 |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44348 - PLATE, VANE PUMP | ||||
| 44345-12010 |
CM3#,4#,KM30,31,36,YM3#,40 長さ=14.997 |
10 | ||
| 44345-12020 |
CM3#,4#,KM30,31,36,YM3#,40 長さ=14.995 |
10 | ||
| 44345-12030 |
CM3#,4#,KM30,31,36,YM3#,40 長さ=14.993 |
10 | ||
| 44345-12040 |
CM3#,4#,KM30,31,36,YM3#,40 長さ=14.991 |
10 | ||
| 44345-12050 |
CM3#,4#,KM30,31,36,YM3#,40 長さ=14.989 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-27020 |
KM30,31,36,YM3#,40 |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-27010 |
KM30,31,36,YM3#,40 |
1 | ||
| Common parts | ||||
| 90119-08469 | ||||
| 90179-12055 | ||||
| 90206-30002 | ||||
| 91611-60816 | ||||
| 91651-40614 | ||||
| 91651-60610 | ||||
| Linked diagrams | ||||
| 4503 | ||||

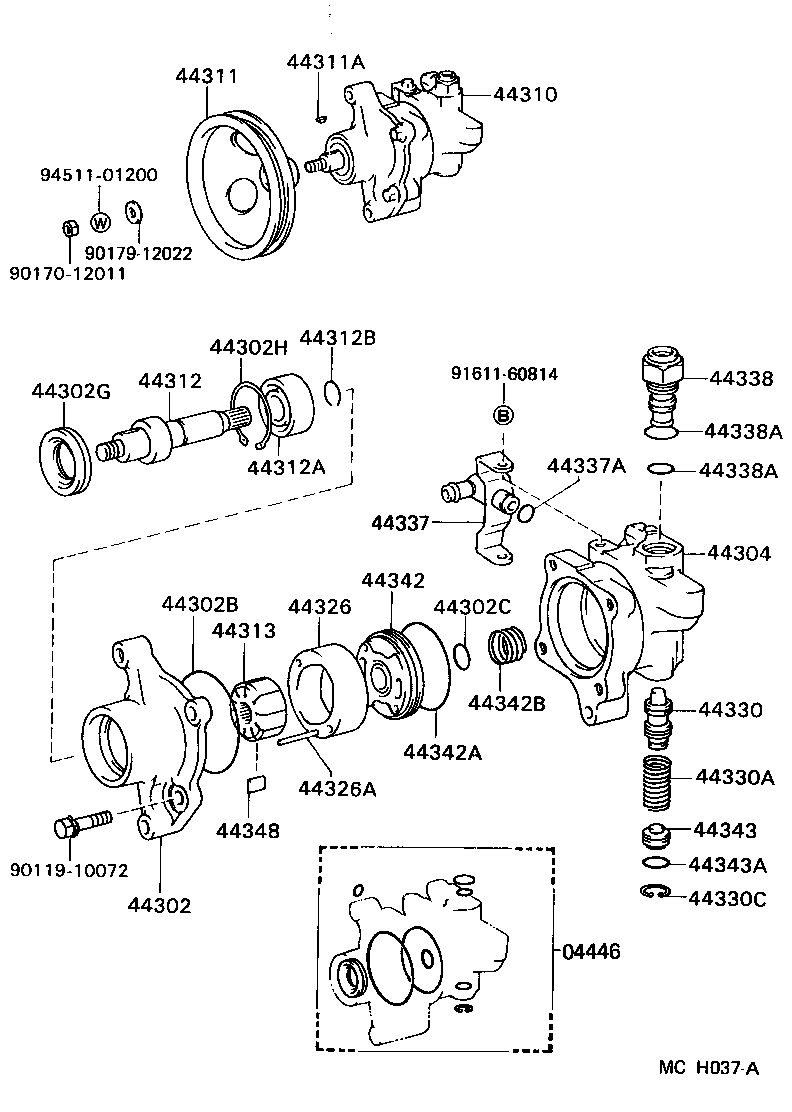

ILLUST NO. 1 OF 2(8808- )CM3#,4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-27010 |
KM30,31,36 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-14010 |
CM3#,4#,YM30,40 |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-60001 |
CM3#,4#,YM3#,40 |
1 | ||
| 44302C - RING, O, NO.2(FOR VANE PUMP HOUSING) | ||||
| 96711-19016 |
CM3#,4#,YM3#,40 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-24001 |
CM3#,4#,YM30,40 |
1 | ||
| 90311-18007 |
KM30,31,36 |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-44002 |
CM3#,4#,YM30,40 |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-28021 |
CM3#,4# |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-27050 |
CM3#,4# |
1 | ||
| 44320-27032 |
KM30,31,36 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-12060 |
KM30,31,36 |
1 | ||
| 44311-27010 |
CM3#,4# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
CM3#,4#,KM30,31,36,YM30,40 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
KM30,31,36 |
1 | ||
| 44312-12010 |
CM3#,4#,YM30,40 |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90363-17004 |
CM3#,4#,YM30,40 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
KM30,31,36 |
1 | ||
| 90520-15001 |
CM3#,4#,YM30,40 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-12010 |
CM3#,4#,YM30,40 ﾏｰｸ無し |
1 | ||
| 44313-12020 |
CM3#,4#,YM30,40 ﾏｰｸ 1 |
1 | ||
| 44313-22040 |
KM30,31,36 ﾏｰｸ無し |
1 | ||
| 44313-12030 |
CM3#,4#,YM30,40 ﾏｰｸ 2 |
1 | ||
| 44313-22050 |
KM30,31,36 ﾏｰｸ 1 |
1 | ||
| 44313-22070 |
KM30,31,36 ﾏｰｸ 3 |
1 | ||
| 44313-22080 |
KM30,31,36 ﾏｰｸ 4 |
1 | ||
| 44313-22060 |
KM30,31,36 ﾏｰｸ 2 |
1 | ||
| 44313-12040 |
CM3#,4#,YM30,40 ﾏｰｸ 3 |
1 | ||
| 44313-12050 |
CM3#,4#,YM30,40 ﾏｰｸ 4 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12030 |
CM3#,4#,YM3#,40 ﾏｰｸ 2 |
1 | ||
| 44325-12010 |
CM3#,4#,YM3#,40 ﾏｰｸ無し |
1 | ||
| 44325-12040 |
CM3#,4#,YM3#,40 ﾏｰｸ 3 |
1 | ||
| 44325-12140 |
KM30,31,36 ﾏｰｸ 3 |
1 | ||
| 44325-12050 |
CM3#,4#,YM3#,40 ﾏｰｸ 4 |
1 | ||
| 44325-12110 |
KM30,31,36 ﾏｰｸ無し |
1 | ||
| 44325-12150 |
KM30,31,36 ﾏｰｸ 4 |
1 | ||
| 44325-12130 |
KM30,31,36 ﾏｰｸ 2 |
1 | ||
| 44325-12120 |
KM30,31,36 ﾏｰｸ 1 |
1 | ||
| 44325-12020 |
CM3#,4#,YM3#,40 ﾏｰｸ 1 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
KM30,31,36 長さ=28,外径=4.0 |
1 | ||
| 90250-05008 |
CM3#,4#,YM3#,40 長さ=25,外径=5.0 |
2 | ||
| 90250-04049 |
KM30,31,36 長さ=43,外径=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12180 |
CM3#,4#,YM30,40 ﾏｰｸ F |
1 | ||
| 44330-14010 |
KM30,31,36 ﾏｰｸ A |
1 | ||
| 44330-12160 |
CM3#,4#,YM30,40 ﾏｰｸ D |
1 | ||
| 44330-14040 |
KM30,31,36 ﾏｰｸ D |
1 | ||
| 44330-12130 |
CM3#,4#,YM30,40 ﾏｰｸ A |
1 | ||
| 44330-12170 |
CM3#,4#,YM30,40 ﾏｰｸ E |
1 | ||
| 44330-14050 |
KM30,31,36 ﾏｰｸ E |
1 | ||
| 44330-14060 |
KM30,31,36 ﾏｰｸ F |
1 | ||
| 44330-12140 |
CM3#,4#,YM30,40 ﾏｰｸ B |
1 | ||
| 44330-14020 |
KM30,31,36 ﾏｰｸ B |
1 | ||
| 44330-14030 |
KM30,31,36 ﾏｰｸ C |
1 | ||
| 44330-12150 |
CM3#,4#,YM30,40 ﾏｰｸ C |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-27030 |
CM3#,4# |
1 | ||
| 44337-27021 |
KM30,31,36 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-12003 |
KM30,31,36 |
1 | ||
| 96711-19013 |
CM3#,4#,YM3#,40 |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44308-12042 |
KM30,31,36 |
1 | ||
| 44308-14041 |
CM3#,4#,YM3#,40 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
KM30,31,36 内径=19.5,外径=22.5 |
1 | ||
| 96711-19014 |
CM3#,4#,YM3#,40 外径=17.0,内径=13.0 |
1 | ||
| 90301-22001 |
CM3#,4#,YM3#,40 外径=25.5,内径=22.5 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
KM30,31,36 内径=19.5,外径=22.5 |
1 | ||
| 96711-19014 |
CM3#,4#,YM3#,40 外径=17.0,内径=13.0 |
1 | ||
| 90301-22001 |
CM3#,4#,YM3#,40 外径=25.5,内径=22.5 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-32010 |
KM30,31,36 |
1 | ||
| 44341-12010 |
CM3#,4#,YM3#,40 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53002 |
CM3#,4#,YM3#,40 |
1 | ||
| 90301-52001 |
KM30,31,36 |
1 | ||
| 44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90501-23014 |
CM3#,4#,YM3#,40 |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12040 |
CM3#,4#,YM3#,40 |
1 | ||
| 44343-12010 |
KM30,31,36 |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 44348 - PLATE, VANE PUMP | ||||
| 44345-12010 |
CM3#,4#,KM30,31,36,YM3#,40 長さ=14.997 |
10 | ||
| 44345-12020 |
CM3#,4#,KM30,31,36,YM3#,40 長さ=14.995 |
10 | ||
| 44345-12030 |
CM3#,4#,KM30,31,36,YM3#,40 長さ=14.993 |
10 | ||
| 44345-12040 |
CM3#,4#,KM30,31,36,YM3#,40 長さ=14.991 |
10 | ||
| 44345-12050 |
CM3#,4#,KM30,31,36,YM3#,40 長さ=14.989 |
10 | ||
| Common parts | ||||
| 90119-10072 | ||||
| 90170-12011 | ||||
| 90179-12022 | ||||
| 91611-60814 | ||||
| 94511-01200 | ||||

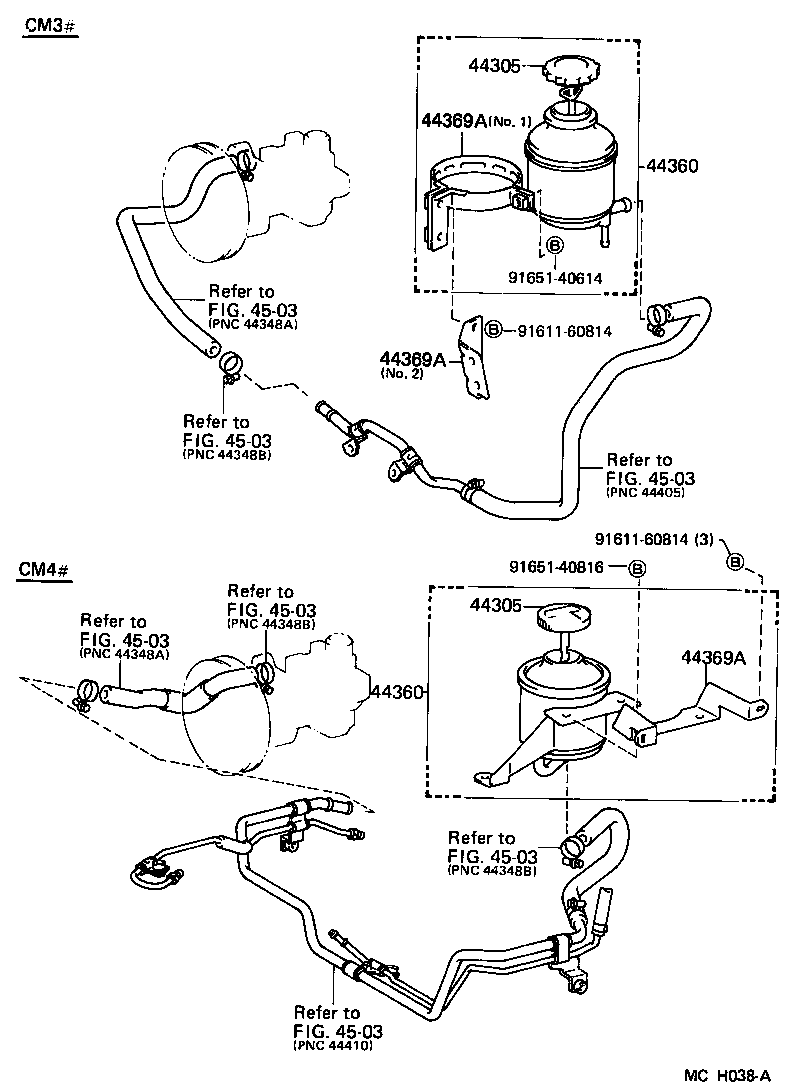

ILLUST NO. 2 OF 2(8808- )CM3#,4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-32010 |
CM3#,KM30,31,36,YM3#,40 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-32010 |
CM3#,KM30,31,36,YM3#,40 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-27020 |
KM30,31,36,YM3#,40 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-27020 |
KM30,31,36,YM3#,40 |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-27010 |
KM30,31,36,YM3#,40 |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-27010 |
KM30,31,36,YM3#,40 |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-27010 |
KM30,31,36,YM3#,40 |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 4503 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
