KM30G-JBZ (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Aug 1990
Engine 5KU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9008)4H

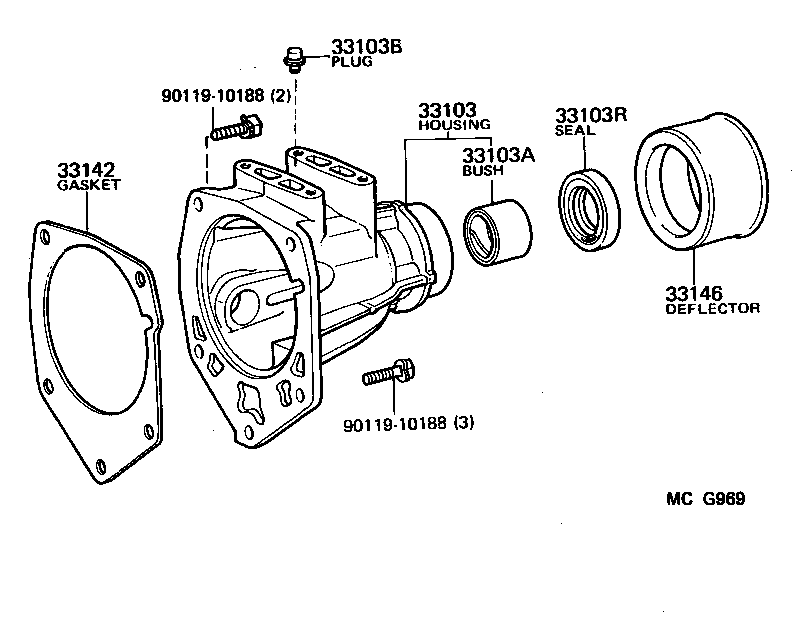

Click highlighted areas on diagram

diagram 33103 33103A 33103B 33103R 33142 33146 9011910188 9011910188
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-27021

KM30,35,36..4H

 1
33103-27020

KM30,35,36..4H

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72023

CM3#,KM3#,YM30..MTM

 1
90999-72023

KM3#,YM30..MTM

 1
90999-72023

KM30,35,36..4H

 1
33103B - PLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)
90930-03075

KM30,35,36..4H

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38140

KM30,35,36..4H

 1
90311-38040

KM30,35,36..4H

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-26010

KM30,35,36..4H

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

CM3#,KM3#,YM3#..MTM

 1
Common parts
90119-10188
