KM30G-JBZ (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 5KU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

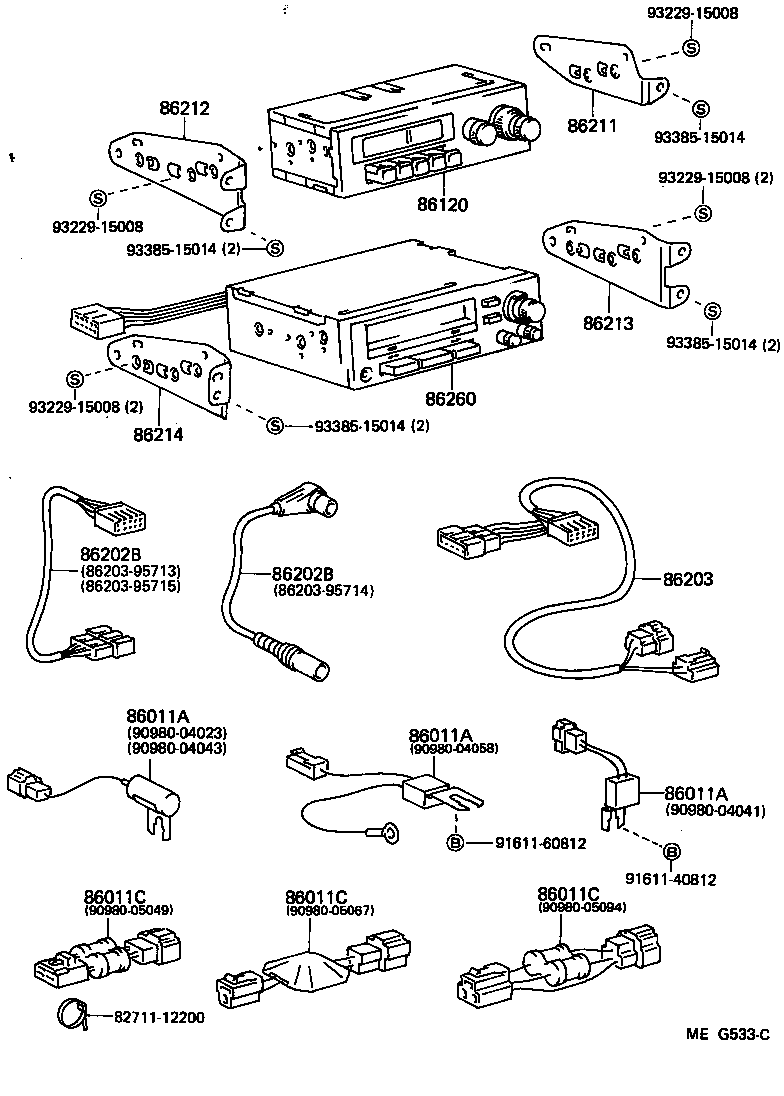

ILLUST NO. 1 OF 2(8509- )

Click highlighted areas on diagram

diagram 8271112200 86011A 86011A 86011A 86011C 86011C 86011C 86120 86202B 86202B 86203 8620395713 8620395714 8620395715 86211 86212 86213 86214 86260 9098004023 9098004041 9098004043 9098004058 9098005049 9098005067 9098005094 9161140812 9161160812 9322915008 9322915008 9322915008 9322915008 9338515014 9338515014 9338515014 9338515014
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04058

KM3#

IG COIL

 1
86011A - CONDENSER, RADIO SETTING
90980-04058

KM3#

IG COIL

 1
86011A - CONDENSER, RADIO SETTING
90980-04058

KM3#

IG COIL

 1
86011C - FILTER, NOISE
90980-05094

CM3#,4#,KM3#,YM30,40

FLASHER RELAY

 1
90980-05067

CM3#,4#,KM3#,YM30,40

STOP LAMP SW

 1
86011C - FILTER, NOISE
90980-05094

CM3#,4#,KM3#,YM30,40

FLASHER RELAY

 1
90980-05067

CM3#,4#,KM3#,YM30,40

STOP LAMP SW

 1
86011C - FILTER, NOISE
90980-05094

CM3#,4#,KM3#,YM30,40

FLASHER RELAY

 1
90980-05067

CM3#,4#,KM3#,YM30,40

STOP LAMP SW

 1
86120 - RECEIVER ASSY, RADIO
86120-20530

CM30,40,KM30,YM30,40

*18(TEN)

 1
86120-14421

CM3#,4#,KM3#,YM30,40..DLX,GXL,SUC,SUP,SW,XL7

AM

 1
86120-20310

CM30,40,KM30,YM30,40

*17(TEN)

 1
86120-16350

CM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7

FUJITSU TEN,AM

 1
86202B - WIRE, TAPE PLAYER
86203-95713

CM3#,4#,KM3#,YM30,40

W/RADIO AM OR *19

 1
86203-95715

CM3#,4#,KM3#,YM30,40

W/RADIO AM OR *19

 1
86203-95714

CM30,40,KM30,YM30,40

W/RADIO *17 OR *18(TEN)

 1
86202B - WIRE, TAPE PLAYER
86203-95713

CM3#,4#,KM3#,YM30,40

W/RADIO AM OR *19

 1
86203-95715

CM3#,4#,KM3#,YM30,40

W/RADIO AM OR *19

 1
86203-95714

CM30,40,KM30,YM30,40

W/RADIO *17 OR *18(TEN)

 1
86203 - WIRE, RADIO
86202-95707

CM30,40,KM30,YM30,40

W/RADIO *17 OR *18(TEN)

 1
86211 - BRACKET, RADIO, NO.1
86215-95700

CM3#,4#,KM3#,YM30,40

 1
86212 - BRACKET, RADIO, NO.2
86212-95704

CM3#,4#,KM3#,YM30,40

 1
86213 - BRACKET, RADIO, NO.3
86211-95712

CM3#,4#,KM3#,YM30,40

 1
86214 - BRACKET, RADIO, NO.4
86212-95705

CM3#,4#,KM3#,YM30,40

 1
86260 - TAPE PLAYER ASSY
86260-20090

CM30,40,KM30,YM30,40

W/RADIO *18(TEN)

 1
86260-20100

CM30,40,KM30,YM30,40

W/RADIO *17(TEN)

 1
86260-19105

CM3#,4#,KM3#,YM30,40

W/RADIO AM OR *19

 1
86260-19015

CM3#,4#,KM3#,YM30,40

W/RADIO AM OR *19

 1
Common parts
82711-12200
86203-95713
86203-95714
86203-95715
90980-04023
90980-04041
90980-04043
90980-04058
90980-05049
90980-05067
90980-05094
91611-40812
91611-60812
93229-15008
93385-15014
