KM30G-JB (1985)
Toyota Liteace Van,Wagon
Production
Sep 1985
-
Aug 1988
Engine
5KU
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)

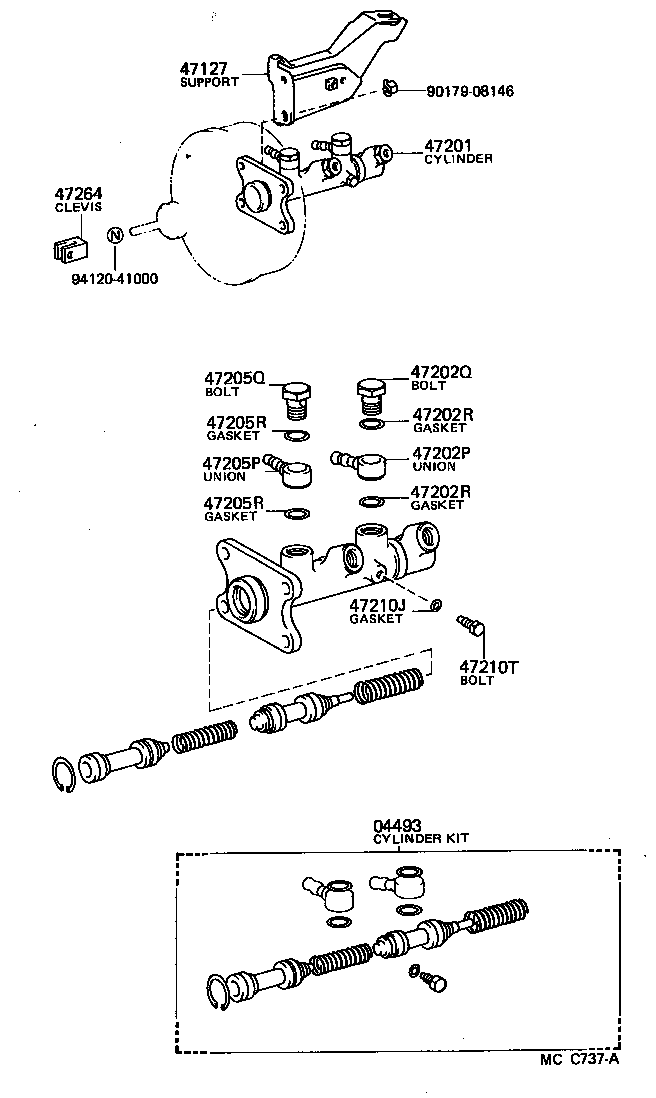

ILLUST NO. 1 OF 2(8509- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-27080 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 47127 - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 55175-95710 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-27150 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-10003 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16002 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 47205P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE) | ||||
| 90405-10003 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 47205Q - BOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SID | ||||
| 90401-16002 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR | ||||
| 90430-16242 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR | ||||
| 90430-16242 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-10080 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 94120-41000 | ||||

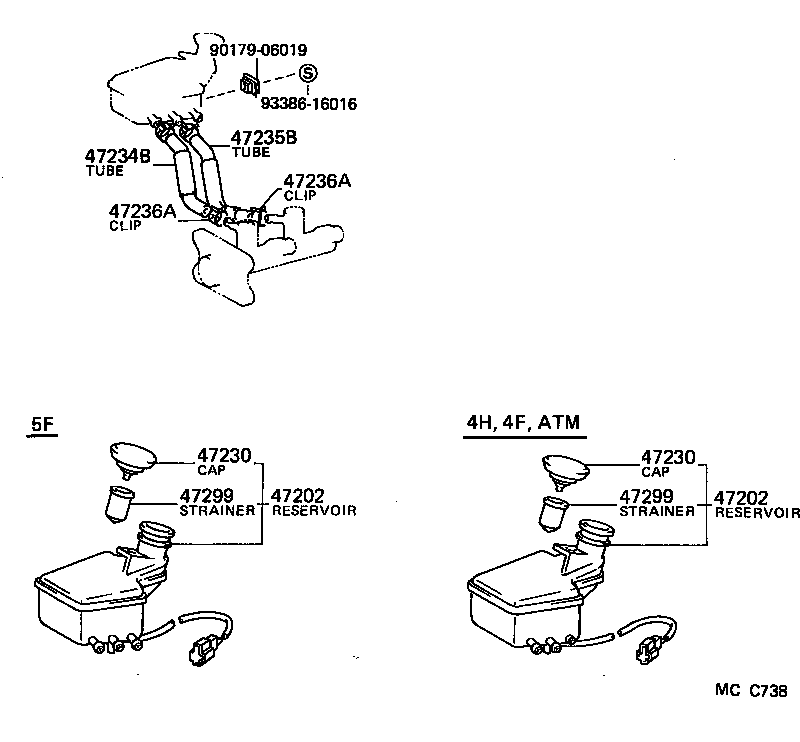

ILLUST NO. 2 OF 2(8509- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-28110 |
CM30,36,KM3#,YM30..3FC,4F,4FC,4H |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-28110 |
CM30,36,KM3#,YM30..3FC,4F,4FC,4H |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-28010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-28010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-27120 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-27080 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16002 |
CM3#,4#,KM3#,YM30,40 |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16002 |
CM3#,4#,KM3#,YM30,40 |
4 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-28010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-28010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| Common parts | ||||
| 90179-06019 | ||||
| 93386-16016 | ||||
