KM30G-HFS (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 5KU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

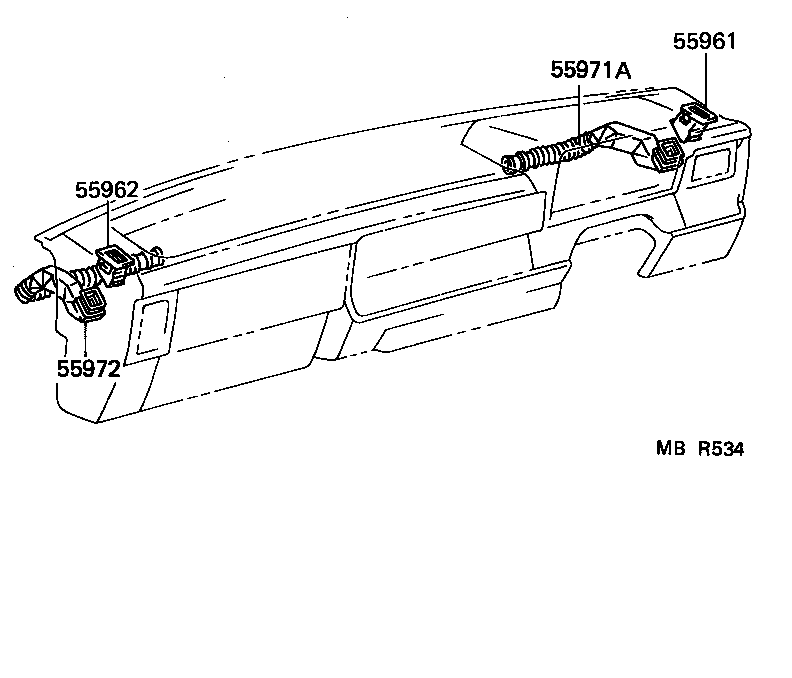

Click highlighted areas on diagram

diagram 55961 55962 55971A 55972
Part # Description Qty Price
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-9570113

CM3#,4#,KM3#,YM3#,40

GRAY,TRIM1#

 1
55961-9570116

CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC

SABLE,TRIM4#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-9570113

CM3#,4#,KM3#,YM3#,40

GRAY,TRIM1#

 1
55962-9570116

CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC

SABLE,TRIM4#

 1
55971A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-95700

CM3#,4#,KM3#,YM3#,40

 1
55972 - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-95700

CM3#,4#,KM3#,YM3#,40

 1
