KM30G-HBZ (1985)
Toyota Liteace Van,Wagon

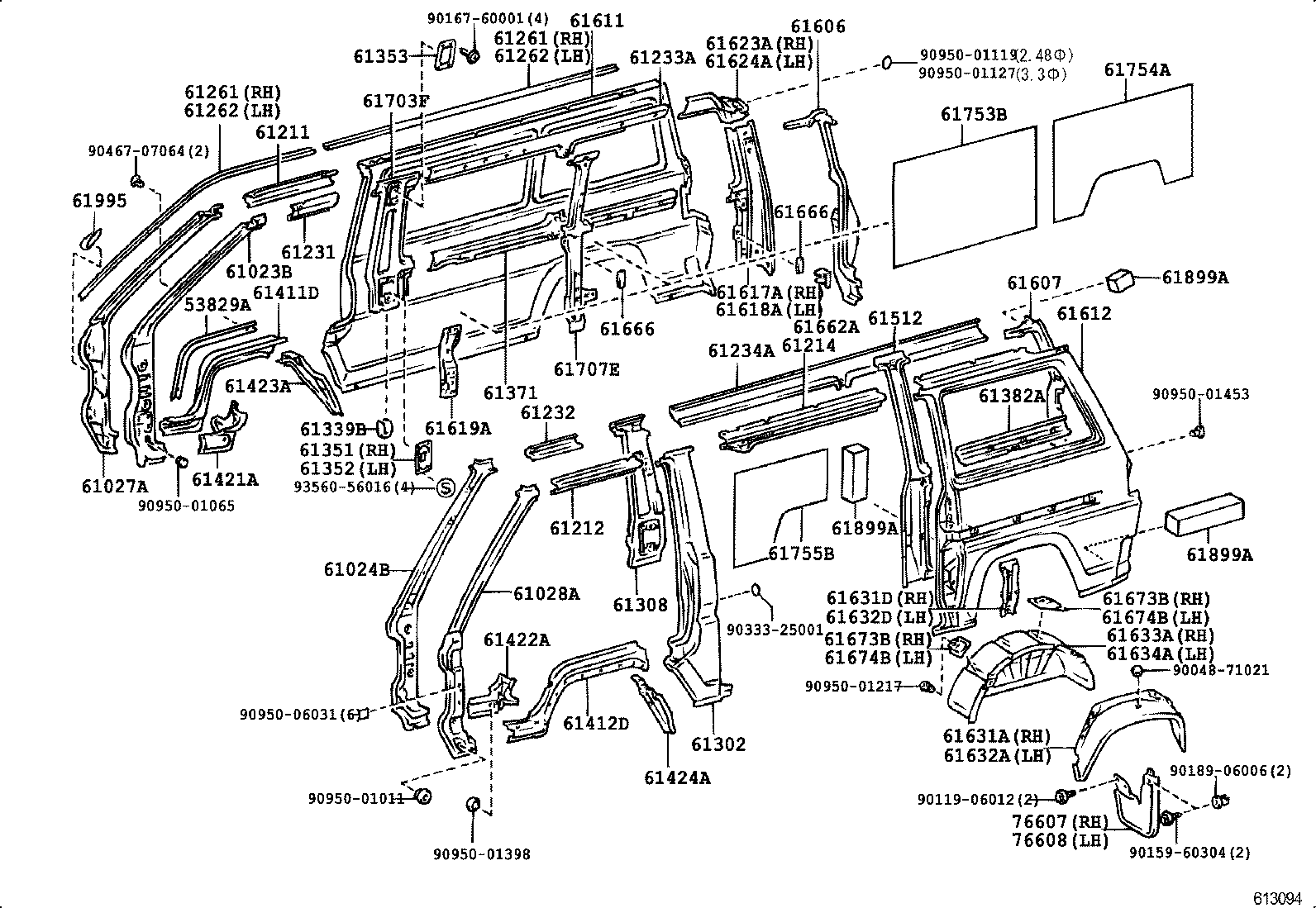

ILLUST NO. 1 OF 2(8509- )V1..V4D ; (8509- )CM30,40,KM30,YM30,40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53829A - PROTECTOR, FRONT FENDER, LOWER | ||||
| 53839-95700 |
CM3#,4#,KM3#,YM30,40 LH |
1 | ||
| 53829-95700 |
CM3#,4#,KM3#,YM30,40 RH |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-95704 |
CM3#,4#,KM30,31,36,YM30,40 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-95702 |
CM3#,4#,KM30,31,36,YM30,40 |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-95700 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-95702 |
CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-95705 |
CM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7 |
1 | ||
| 61211-95705 |
CM40,KM30,YM30,40..DLX,GXL,SCA,SUC,SW,XL7 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-95705 |
CM40,KM30,YM30,40..DLX,GXL,SCA,SUC,SW,XL7 |
1 | ||
| 61212-95705 |
CM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7 |
1 | ||
| 61214 - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61214-95701 |
CM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7 |
1 | ||
| 61214-95701 |
CM40,KM30,YM30,40..DLX,GXL,SCA,SUC,SW,XL7 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-95705 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-95704 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-95704 |
CM30,40,KM30,YM40..SW |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61208-95705 |
CM30,40,KM30,YM40..SW |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61267-95702 |
CM3#,4#,KM3#,YM30,40 RR |
1 | ||
| 61267-95701 |
CM3#,4#,KM3#,YM30,40 RR |
1 | ||
| 61263-95701 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 61263-95702 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61267-95702 |
CM3#,4#,KM3#,YM30,40 RR |
1 | ||
| 61267-95701 |
CM3#,4#,KM3#,YM30,40 RR |
1 | ||
| 61263-95701 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 61263-95702 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61264-95702 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 61268-95701 |
CM3#,4#,KM3#,YM30,40 RR |
1 | ||
| 61264-95701 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 61268-95702 |
CM3#,4#,KM3#,YM30,40 RR |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61264-95702 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 61268-95701 |
CM3#,4#,KM3#,YM30,40 RR |
1 | ||
| 61264-95701 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 61268-95702 |
CM3#,4#,KM3#,YM30,40 RR |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-95706 |
CM3#,4#,KM3#,YM40..DLX,SCA,SUC,SUP,SW,XL7 |
1 | ||
| 61302-95713 |
CM3#,4#,KM3#,YM40..DLX,SCA,SUC,SUP,SW,XL7 |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-95707 |
CM3#,4#,KM30,YM40..DLX,SW,XL7 |
1 | ||
| 61339B - SEAL, CENTER BODY PILLAR, INNER NO.1 | ||||
| 61339-95701 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 61351 - COVER, CENTER BODY, INNER RH | ||||
| 61347-95711 |
CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7 |
1 | ||
| 61352 - COVER, CENTER BODY, INNER, LH | ||||
| 61347-95711 |
CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7 |
1 | ||
| 61353 - COVER, CENTER PILLAR UPPER | ||||
| 61348-95706 |
CM30,40,KM30,YM40..DLX,SW,XL7 |
1 | ||
| 61371 - RAIL, NO.1 CENTER INNER, RH | ||||
| 61371-95700 |
CM30,40,KM30,YM40..DLX,SW,XL7 |
1 | ||
| 61382A - RAIL, NO.2 CENTER, INNER LH | ||||
| 61382-95700 |
CM30,40,KM30,YM40..DLX,SW,XL7 |
1 | ||
| 61411D - PANEL, FENDER, OUTER RH | ||||
| 61411-95702 |
CM3#,41,KM3#,YM30 |
1 | ||
| 61412D - PANEL, FENDER, OUTER LH | ||||
| 61412-95702 |
CM3#,41,KM3#,YM30 |
1 | ||
| 61421A - PANEL, FENDER, INNER RH | ||||
| 61421-95702 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 61422A - PANEL, FENDER, INNER LH | ||||
| 61422-95702 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-95702 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-95703 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61502-95701 |
CM30,40,KM30,YM40..DLX,SW,XL7 |
1 | ||
| 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-95702 |
CM3#,4#,KM3#,YM30,40..HRF,MRF |
1 | ||
| 61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-95701 |
CM3#,4#,KM3#,YM30,40..HRF,MRF |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-95775 |
CM30,40,KM30,YM40..(HRF,MRF)..(SCA,SUC,SW,XL7) |
1 | ||
| 61601-95G39 |
CM40,KM30,YM40..(HRF,MRF)..(SCA,SUC,SW,XL7) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-95747 |
CM40,KM30,YM40..(HRF,MRF)..(SCA,SUC,SW,XL7) |
1 | ||
| 61617A - PANEL, QUARTER INNER, REAR RH | ||||
| 61605-95702 |
CM30,40,KM30,YM40..SW |
1 | ||
| 61618A - PANEL, QUARTER, INNER REAR LH | ||||
| 61606-95702 |
CM30,40,KM30,YM40..SW |
1 | ||
| 61619A - REINFORCEMENT, QUARTER PANEL | ||||
| 61619-95704 |
CM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D |
1 | ||
| 61623A - EXTENSION, QUARTER PANEL, OUTER RH | ||||
| 61623-95704 |
KM36..VSG..(HRF,MRF);CM3#,4#,KM30,31,35,YM40..(HRF,MRF)..(DLX,SUP,SW,XL7) |
1 | ||
| 61624A - EXTENSION, QUARTER PANEL, OUTER LH | ||||
| 61624-95704 |
KM36..VSG..(HRF,MRF);CM3#,4#,KM30,31,35,YM40..(HRF,MRF)..(DLX,SUP,SW,XL7) |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-95705 |
CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40 |
1 | ||
| 61631D - REINFORCEMENT, QUARTER WHEEL HOUSE, RH | ||||
| 61647-95700 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61631-95705 |
CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40 |
1 | ||
| 61632D - REINFORCEMENT, QUARTER WHEEL HOUSE, LH | ||||
| 61647-95700 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-95701 |
CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40 |
1 | ||
| 61633-95702 |
CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-95701 |
CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40 |
1 | ||
| 61634-95702 |
CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40 |
1 | ||
| 61662A - PLATE, QUARTER PANEL OUTER EXTENSION, LOWER REAR | ||||
| 61662-95700 |
CM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D |
1 | ||
| 61703F - PANEL SUB-ASSY, QUARTER, INNER FRONT RH | ||||
| 61703-95700 |
CM30,40,KM30,YM40..DLX,SW,XL7 |
1 | ||
| 61707E - EXTENSION, QUARTER INNER PANEL, RH | ||||
| 61735-95703 |
CM30,40,KM30,YM40..SCA,SUC,SW |
1 | ||
| 61753B - FILM, QUARTER INNER PANEL, NO.1 | ||||
| 61753-95701 |
CM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D |
1 | ||
| 61754A - FILM, QUARTER INNER PANEL, NO.2 | ||||
| 61754-95700 |
CM30,40,KM30,YM30,40 |
1 | ||
| 61755B - FILM, QUARTER INNER PANEL, NO.3 | ||||
| 61755-95700 |
CM30,40,KM30,YM30,40 |
1 | ||
| 61899A - DUSTPROOF, QUARTER PANEL | ||||
| 61899-95701 |
CM30,40,KM30,YM30,40 |
1 | ||
| 61899-95700 |
CM30,40,KM30,YM30,40 |
2 | ||
| 61899A - DUSTPROOF, QUARTER PANEL | ||||
| 61899-95701 |
CM30,40,KM30,YM30,40 |
1 | ||
| 61899-95700 |
CM30,40,KM30,YM30,40 |
2 | ||
| 61899A - DUSTPROOF, QUARTER PANEL | ||||
| 61899-95701 |
CM30,40,KM30,YM30,40 |
1 | ||
| 61899-95700 |
CM30,40,KM30,YM30,40 |
2 | ||
| 61995 - DAM, FRONT BODY PILLAR, OUTER | ||||
| 61995-95700 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| Common parts | ||||
| 90048-71021 | ||||
| 90119-06012 | ||||
| 90159-60304 | ||||
| 90167-60001 | ||||
| 90189-06006 | ||||
| 90333-25001 | ||||
| 90467-07064 | ||||
| 90950-01011 | ||||
| 90950-01065 | ||||
| 90950-01119 | ||||
| 90950-01127 | ||||
| 90950-01217 | ||||
| 90950-01398 | ||||
| 90950-01453 | ||||
| 90950-06031 | ||||
| 93560-56016 | ||||
