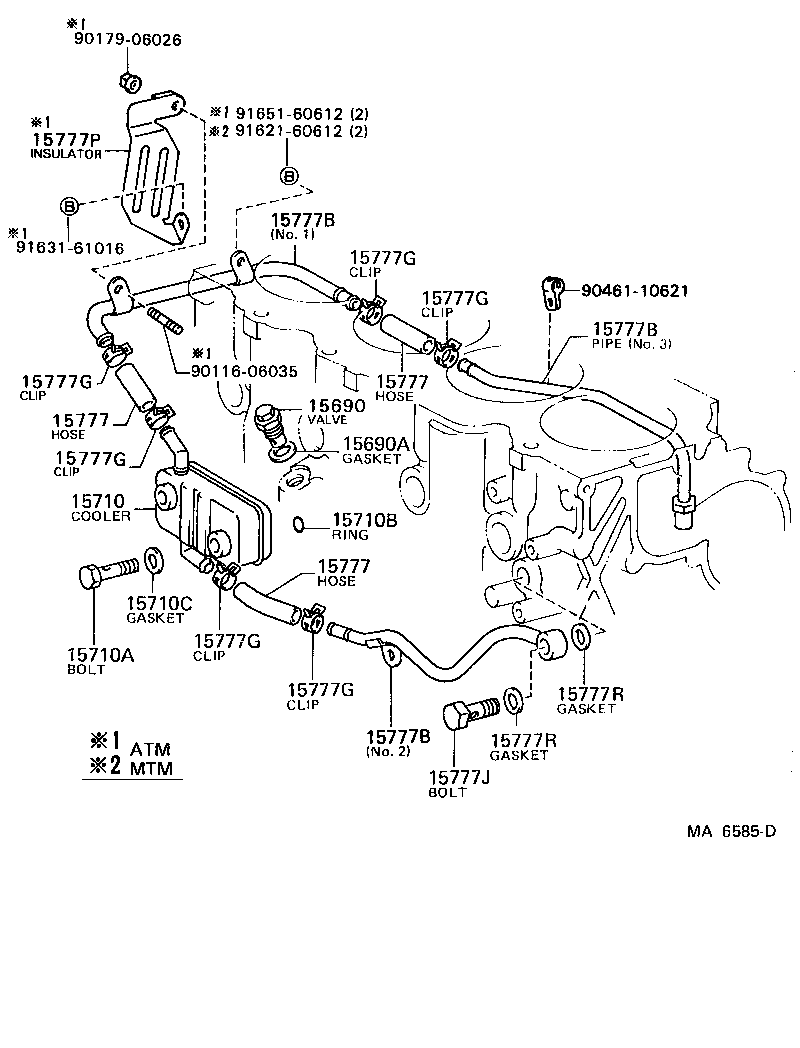

Toyota Liteace van,wagon CM41 ENGINE OIL COOLER

Part #	Description	Period	Qty
15690 - VALVE ASSY, OIL COOLER RELIEF
15690-64010	2C..CM3#,41	08/1988 - 01/1992	1
15690A - GASKET(FOR OIL COOLER RELIEF VALVE)
90430-22003	2C..CM3#,41	08/1988 - 01/1992	1
15710 - COOLER ASSY, OIL
15710-64010	2C..CM3#,41	08/1988 - 01/1992	1
15710A - BOLT, UNION(FOR OIL COOLER)
90401-18009	2C..CM3#,41	08/1988 - 01/1992	2
15710B - RING, O(FOR OIL COOLER)
90301-22004	2C..CM3#,41	08/1988 - 01/1992	2
15710C - GASKET(FOR OIL COOLER)
90430-18021	2C..CM3#,41	11/1988 - 01/1992	2
90430-18012	2C..CM3#,41	08/1988 - 11/1988	2
15777 - HOSE, OIL COOLER
90445-21006	2C..CM3#,41	08/1988 - 01/1992	3
15777 - HOSE, OIL COOLER
90445-21006	2C..CM3#,41	08/1988 - 01/1992	3
15777 - HOSE, OIL COOLER
90445-21006	2C..CM3#,41	08/1988 - 01/1992	3
15777B - PIPE, OIL COOLER
15767-64010	2C..CM3#,41..5F NO.1	08/1988 - 10/1989	1
15768-64020	2C..CM3#,41..5F NO.2	08/1988 - 10/1989	1
15767-64010	2C..CM3#,41 NO.1	10/1989 - 06/1991	1
15768-64020	2C..CM3#,41 NO.2	10/1989 - 06/1991	1
15769-64010	2C..CM3#,41 NO.3	08/1990 - 06/1991	1
15769-64010	2C#..CM3#,4# NO.3	08/1988 - 08/1990	1
15767-64011	2C..CM3#,41 NO.1	06/1991 - 01/1992	1
15768-64021	2C..CM3#,41 NO.2	06/1991 - 01/1992	1
15769-64011	2C..CM3#,41 NO.3	06/1991 - 01/1992	1
15777B - PIPE, OIL COOLER
15767-64010	2C..CM3#,41..5F NO.1	08/1988 - 10/1989	1
15768-64020	2C..CM3#,41..5F NO.2	08/1988 - 10/1989	1
15767-64010	2C..CM3#,41 NO.1	10/1989 - 06/1991	1
15768-64020	2C..CM3#,41 NO.2	10/1989 - 06/1991	1
15769-64010	2C..CM3#,41 NO.3	08/1990 - 06/1991	1
15769-64010	2C#..CM3#,4# NO.3	08/1988 - 08/1990	1
15767-64011	2C..CM3#,41 NO.1	06/1991 - 01/1992	1
15768-64021	2C..CM3#,41 NO.2	06/1991 - 01/1992	1
15769-64011	2C..CM3#,41 NO.3	06/1991 - 01/1992	1
15777B - PIPE, OIL COOLER
15767-64010	2C..CM3#,41..5F NO.1	08/1988 - 10/1989	1
15768-64020	2C..CM3#,41..5F NO.2	08/1988 - 10/1989	1
15767-64010	2C..CM3#,41 NO.1	10/1989 - 06/1991	1
15768-64020	2C..CM3#,41 NO.2	10/1989 - 06/1991	1
15769-64010	2C..CM3#,41 NO.3	08/1990 - 06/1991	1
15769-64010	2C#..CM3#,4# NO.3	08/1988 - 08/1990	1
15767-64011	2C..CM3#,41 NO.1	06/1991 - 01/1992	1
15768-64021	2C..CM3#,41 NO.2	06/1991 - 01/1992	1
15769-64011	2C..CM3#,41 NO.3	06/1991 - 01/1992	1
15777G - CLAMP OR CRIP, HOSE
90467-20005	2C#..CM3#,4#	08/1988 - 01/1992	6
15777G - CLAMP OR CRIP, HOSE
90467-20005	2C#..CM3#,4#	08/1988 - 01/1992	6
15777G - CLAMP OR CRIP, HOSE
90467-20005	2C#..CM3#,4#	08/1988 - 01/1992	6
15777G - CLAMP OR CRIP, HOSE
90467-20005	2C#..CM3#,4#	08/1988 - 01/1992	6
15777G - CLAMP OR CRIP, HOSE
90467-20005	2C#..CM3#,4#	08/1988 - 01/1992	6
15777G - CLAMP OR CRIP, HOSE
90467-20005	2C#..CM3#,4#	08/1988 - 01/1992	6
15777J - BOLT, UNION(FOR OIL COOLER PIPE)
90401-20004	2C..CM3#,41	08/1990 - 01/1992	1
90401-20004	2C#..CM3#,4#	08/1988 - 08/1990	1
15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT)
90430-20004	2C#..CM3#,4#	08/1988 - 01/1992	2
15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT)
90430-20004	2C#..CM3#,4#	08/1988 - 01/1992	2
Common parts
90116-06035
90179-06026
90461-10621
91621-60612
91631-61016
91651-60612

CM41V-MDSH (1988)

(8808- )2C
