CM41V-MDSEH (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

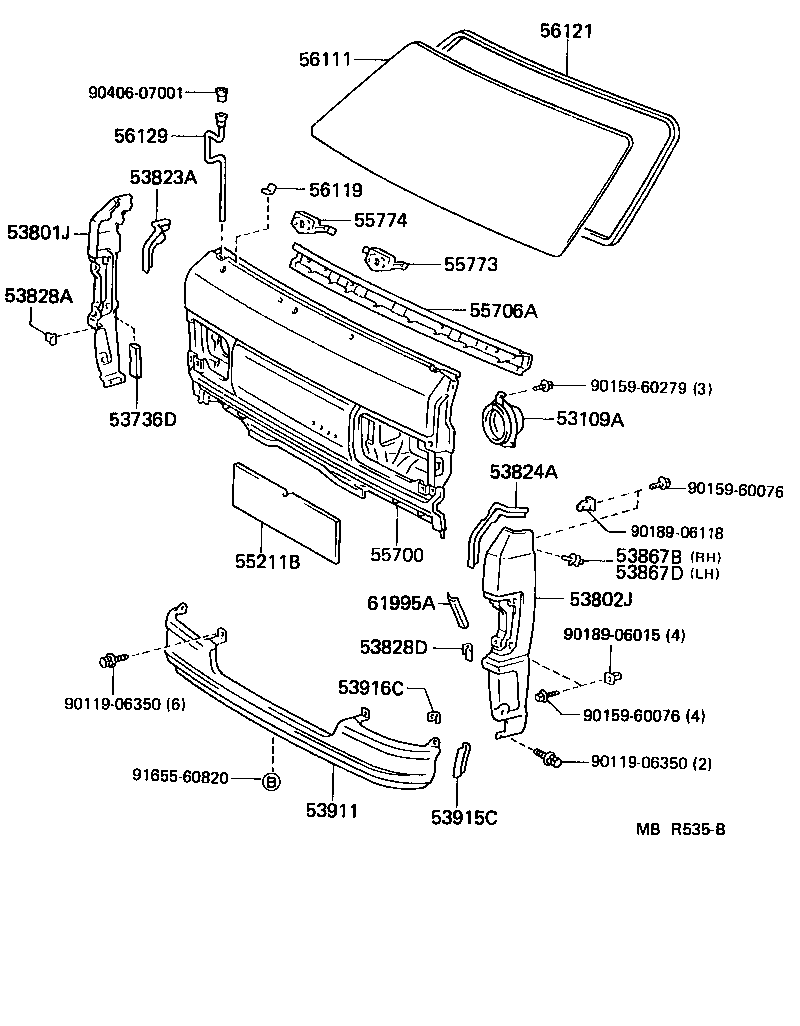

Click highlighted areas on diagram

diagram 53109A 53736D 53801J 53802J 53823A 53824A 53828A 53828D 53867B 53867D 53911 53915C 53916C 55211B 55700 55706A 55773 55774 56111 56119 56121 56129 61995A 9011906350 9011906350 9015960076 9015960076 9015960279 9018906015 9018906118 9040607001 9165560820
Part # Description Qty Price
53109A - COVER SUB-ASSY, HEADLAMP SERVICE HOLE
53109-95700

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

 2
53736D - SEAL, FENDER APRON
53736-27010

CM40..SW;CM40..5F..SSW;CM3#,41..DLX,SSW,SUP,SW

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
53801J - PANEL SUB-ASSY, FRONT SIDE, RH
53801-95706

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

 1
53802J - PANEL SUB-ASSY, FRONT SIDE, LH
53802-95708

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

 1
53823A - PROTECTOR, FRONT SIDE PANEL, NO.2
53823-95703

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

 1
53824A - PROTECTOR, FRONT SIDE
53824-95703

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

 1
53828A - PROTECTOR, FRONT SIDE PANEL, NO.3
53828-95702

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

 1
53828D - PROTECTOR, FRONT SIDE PANEL, NO.3 LH
53828-95702

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

 1
53867B - RETAINER, FRONT SIDE PANEL
53867-95700

CM3#,4#,KM3#,YM3#,40

 1
53867D - RETAINER, FRONT SIDE PANEL, LH
53867-95700

CM3#,4#,KM3#,YM3#,40

 1
53911 - PANEL, FRONT VALANCE
53901-95702

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

 1
53915C - PROTECTOR, LOWER SHROUD
53915-95704

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

 2
53916C - PROTECTOR, LOWER SHROUD, NO.2
53916-95702

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

 2
55211B - SILENCER, FRONT PANEL
55211-95701

CM3#,4#,KM3#,YM3#,40

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55700 - PANEL ASSY, FRONT
55701-95745

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

 1
55706A - REINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER
55706-95706

CM3#,4#,KM3#,YM3#,40

 1
55773 - RETAINER, WIPER SHAFT, CENTER
55773-95704

CM3#,4#,KM3#,YM40..DLX,SSW,SUP,SW

 1
55773-95705

CM3#,4#,KM3#,YM3#,40

 1
55773-95704

CM3#,4#,KM3#,YM30,40

 1
55774 - RETAINER, WIPER SHAFT SIDE
55774-95704

CM3#,4#,KM3#,YM40..DLX,SSW,SUP,SW

 1
55774-95706

CM3#,4#,KM3#,YM3#,40

 1
55774-95704

CM3#,4#,KM3#,YM30,40

 1
56111 - GLASS, WINDSHIELD
56111-95714

CM30,36,4#,KM30,35,36,YM31,40..DLX,LD,SW

*LAM,T=5.3

 1
56119 - SEAL, WINDSHIELD GLASS
56119-95700

CM3#,4#,KM3#,YM3#,40

 2
56121 - WEATHERSTRIP, WINDSHIELD
56121-95708

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

 1
56129 - HOSE, WINDSHIELD DRAIN
56129-95700

CM3#,4#,KM3#,YM3#,40

 2
Common parts
90119-06350
90159-60076
90159-60279
90189-06015
90189-06118
90406-07001
91655-60820
