CM41V-MDSE (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1986
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

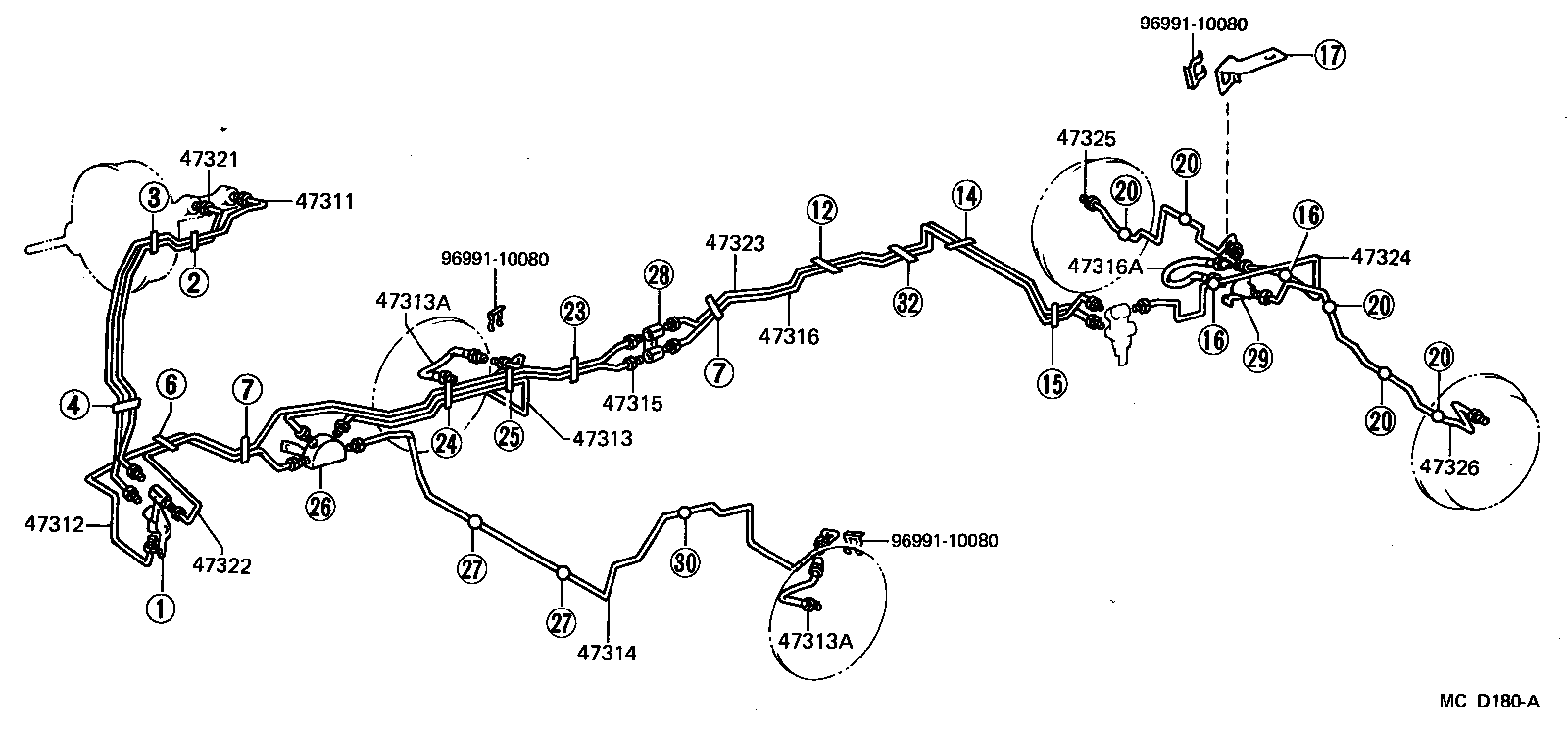

ILLUST NO. 1 OF 3(8510- )CM4#,YM40

Click highlighted areas on diagram

diagram 47311 47312 47313 47313A 47313A 47314 47315 47316 47316A 47321 47322 47323 47324 47325 47326 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-27180

CM3#,4#,KM3#,YM30,40

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33555

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-27130

CM3#,4#,KM3#,YM30,40

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-27090

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

 1
Common parts
96991-10080
