CM40G-PXSX (1988)
Toyota Liteace Van,Wagon
Production
Aug 1988
-
Jan 1992
Engine
2CT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )CM4#,YM40

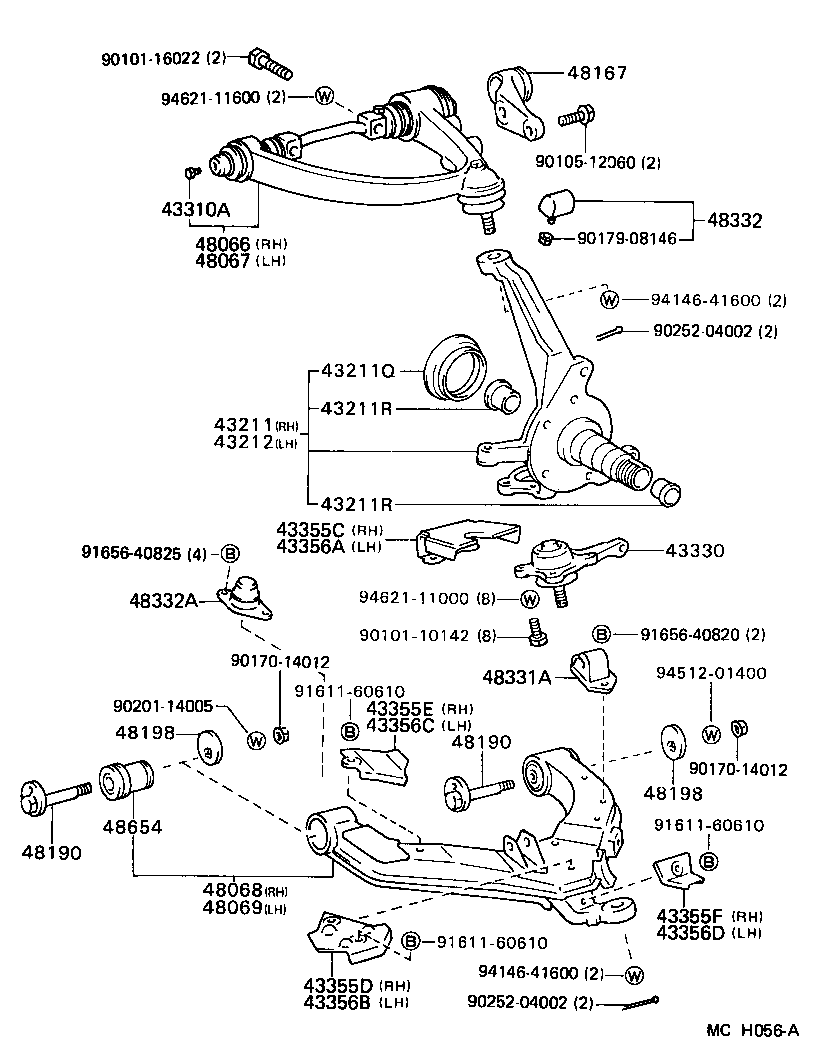

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43201-28010 |
CM4#,YM40 |
1 | ||
| 43211Q - SEAL, OIL (FOR STEERING KNUCKLE) | ||||
| 90316-60002 |
CM4#,YM40 |
2 | ||
| 43211R - BUSH (FOR STEERING KNUCKLE) | ||||
| 90999-70069 |
CM4#,YM40 内側 |
2 | ||
| 90999-70068 |
CM4#,YM40 内側 |
2 | ||
| 90381-30003 |
CM4#,YM40 OUTER |
2 | ||
| 43211R - BUSH (FOR STEERING KNUCKLE) | ||||
| 90999-70069 |
CM4#,YM40 内側 |
2 | ||
| 90999-70068 |
CM4#,YM40 内側 |
2 | ||
| 90381-30003 |
CM4#,YM40 OUTER |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43202-28010 |
CM4#,YM40 |
1 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
CM4#,YM40 |
4 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43340-29115 |
CM4#,YM40 左側 |
1 | ||
| 43330-29165 |
CM4#,YM40 右側 |
1 | ||
| 43355C - DEFLECTOR, LOWER ARM ICE, RH NO.1 | ||||
| 43355-28060 |
CM4#,YM40 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 43355D - DEFLECTOR, LOWER ARM ICE, RH NO.2 | ||||
| 43355-28030 |
CM4#,YM40 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 43355E - DEFLECTOR, LOWER ARM ICE, RH NO.3 | ||||
| 43355-28040 |
CM4#,YM40 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 43355F - DEFLECTOR, LOWER ARM ICE, RH NO.4 | ||||
| 43355-28050 |
CM4#,YM40 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 43356A - DEFLECTOR, LOWER ARM ICE, LH NO.1 | ||||
| 43355-28060 |
CM4#,YM40 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 43356B - DEFLECTOR, LOWER ARM ICE, LH NO.2 | ||||
| 43356-28020 |
CM4#,YM40 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 43356C - DEFLECTOR, LOWER ARM ICE, LH NO.3 | ||||
| 43356-28030 |
CM4#,YM40 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 43356D - DEFLECTOR, LOWER ARM ICE, LH NO.4 | ||||
| 43355-28050 |
CM4#,YM40 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-28030 |
CM4#,YM40 |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48067-28030 |
CM4#,YM40 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-28031 |
CM4#,YM40 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-28031 |
CM4#,YM40 |
1 | ||
| 48167 - ARM, TORQUE | ||||
| 48106-28020 |
CM4#,YM40 |
2 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-27010 |
CM4#,YM40 |
4 | ||
| 48190-27020 |
CM4#,YM40 |
4 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-27010 |
CM4#,YM40 |
4 | ||
| 48190-27020 |
CM4#,YM40 |
4 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-27010 |
CM4#,YM40 |
4 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-27010 |
CM4#,YM40 |
4 | ||
| 48331A - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-28020 |
CM4#,YM40 |
2 | ||
| 48332 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48305-30030 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 48332A - BUMPER, FRONT SPRING, NO.3 | ||||
| 48332-28010 |
CM4#,YM40 |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-28021 |
CM4#,YM40 |
4 | ||
| Common parts | ||||
| 90101-10142 | ||||
| 90101-16022 | ||||
| 90105-12060 | ||||
| 90170-14012 | ||||
| 90179-08146 | ||||
| 90201-14005 | ||||
| 90252-04002 | ||||
| 91611-60610 | ||||
| 91656-40820 | ||||
| 91656-40825 | ||||
| 94146-41600 | ||||
| 94512-01400 | ||||
| 94621-11000 | ||||
| 94621-11600 | ||||
