CM40G-PXSX (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

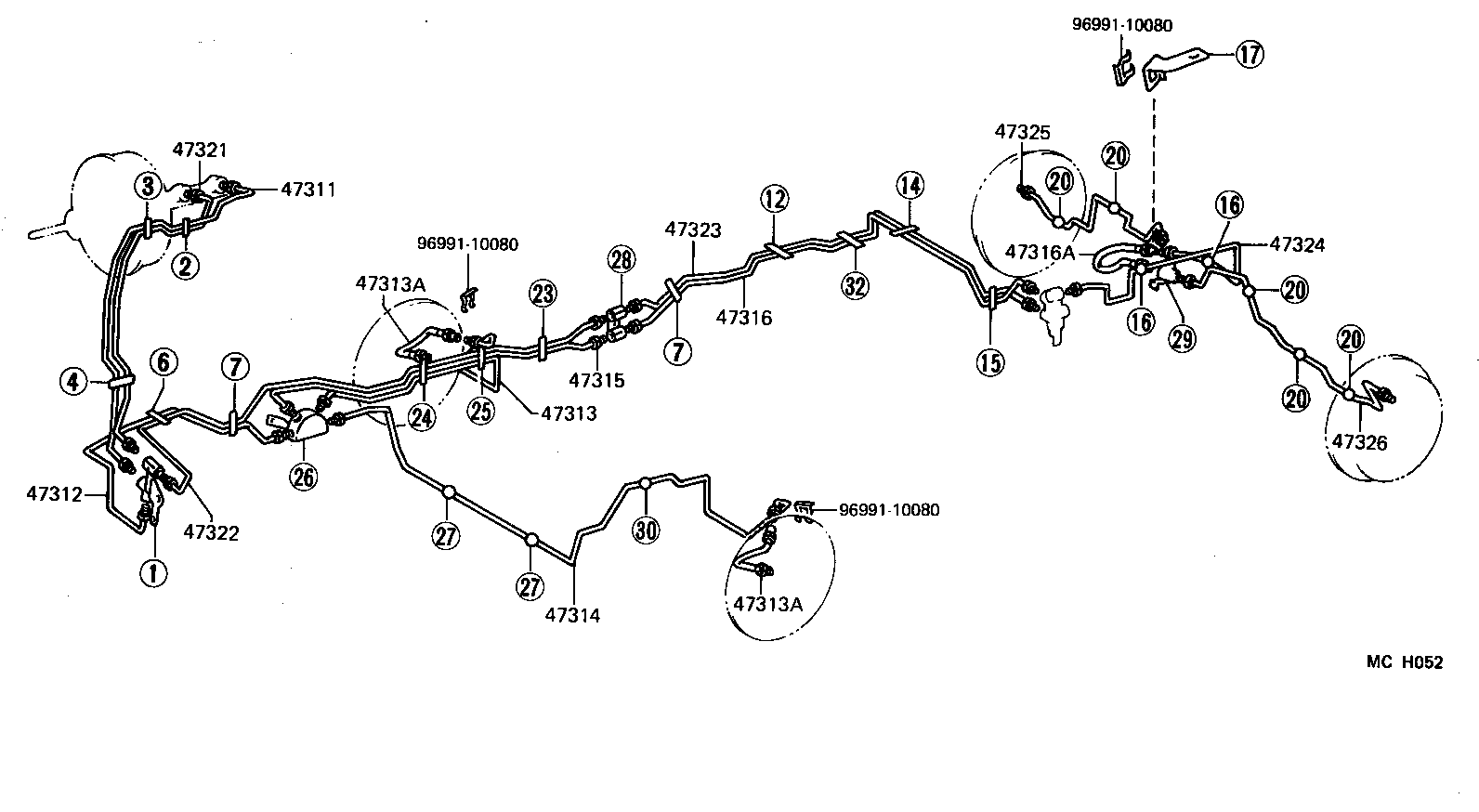

ILLUST NO. 1 OF 3(8808- )CM4#,YM40

Click highlighted areas on diagram

diagram 47311 47312 47313 47313A 47313A 47314 47315 47316 47316A 47321 47322 47323 47324 47325 47326 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-27180

CM3#,4#,KM3#,YM3#,40

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-27120

CM4#,YM40

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-27070

CM4#,YM40

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-33055

CM4#,YM40

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-33055

CM4#,YM40

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-27071

CM4#,YM40

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-27030

CM4#,YM40

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-27140

CM4#,YM40

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33555

CM36,KM35,36..V1;CM30,31,4#,KM30,31,YM3#,40

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-27130

CM3#,4#,KM3#,YM3#,40

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-27170

CM4#,YM40

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-27390

CM4#,YM40

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-27090

CM36,KM35,36..V1;CM30,31,4#,KM30,31,YM3#,40

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-27090

CM4#,YM40

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-27080

CM4#,YM40

 1
Common parts
96991-10080

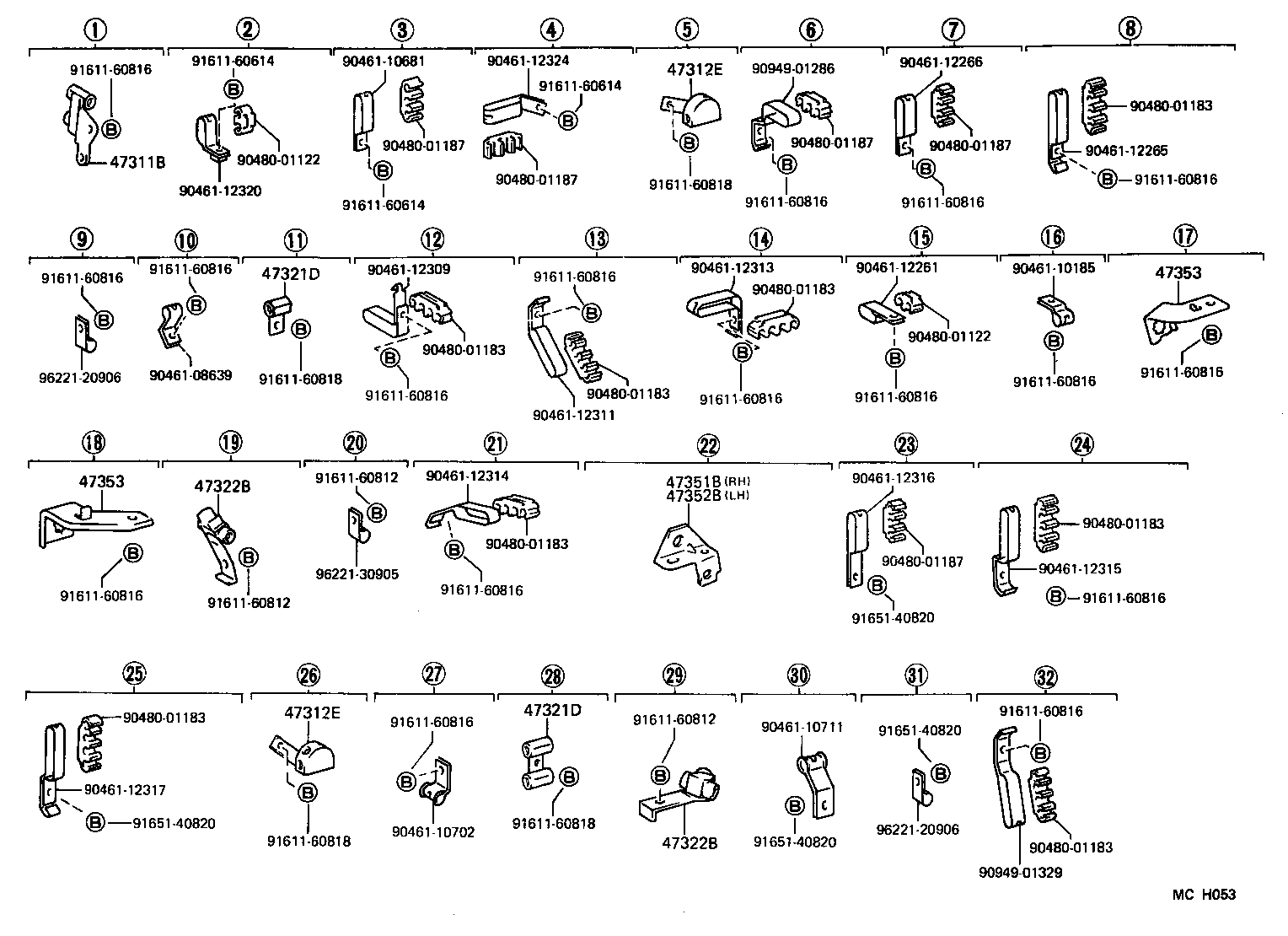

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

diagram 47311B 47312E 47312E 47321D 47321D 47322B 47322B 47351B 47352B 47353 47353 9046108639 9046110185 9046110681 9046110702 9046110711 9046112261 9046112265 9046112266 9046112309 9046112311 9046112313 9046112314 9046112315 9046112316 9046112317 9046112320 9046112324 9048001122 9048001122 9048001183 9048001183 9048001183 9048001183 9048001183 9048001183 9048001183 9048001183 9048001187 9048001187 9048001187 9048001187 9048001187 9094901286 9094901329 9161160614 9161160614 9161160614 9161160812 9161160812 9161160812 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160818 9161160818 9161160818 9161160818 9165140820 9165140820 9165140820 9165140820 9622120906 9622120906 9622130905
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10136

CM3#,4#,KM3#,YM3#,40

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90414-10016

CM3#,4#,KM3#,YM3#,40

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90414-10016

CM3#,4#,KM3#,YM3#,40

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10062

CM3#,4#,KM3#,YM3#,40

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10062

CM3#,4#,KM3#,YM3#,40

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10196

CM4#,YM40

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10196

CM4#,YM40

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47355-27050

CM36,KM35,36..V1;CM30,31,4#,KM30,31,YM3#,40

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47355-27050

CM36,KM35,36..V1;CM30,31,4#,KM30,31,YM3#,40

 1
Common parts
90461-08639
90461-10185
90461-10681
90461-10702
90461-10711
90461-12261
90461-12265
90461-12266
90461-12309
90461-12311
90461-12313
90461-12314
90461-12315
90461-12316
90461-12317
90461-12320
90461-12324
90480-01122
90480-01183
90480-01187
90949-01286
90949-01329
91611-60614
91611-60812
91611-60816
91611-60818
91651-40820
96221-20906
96221-30905

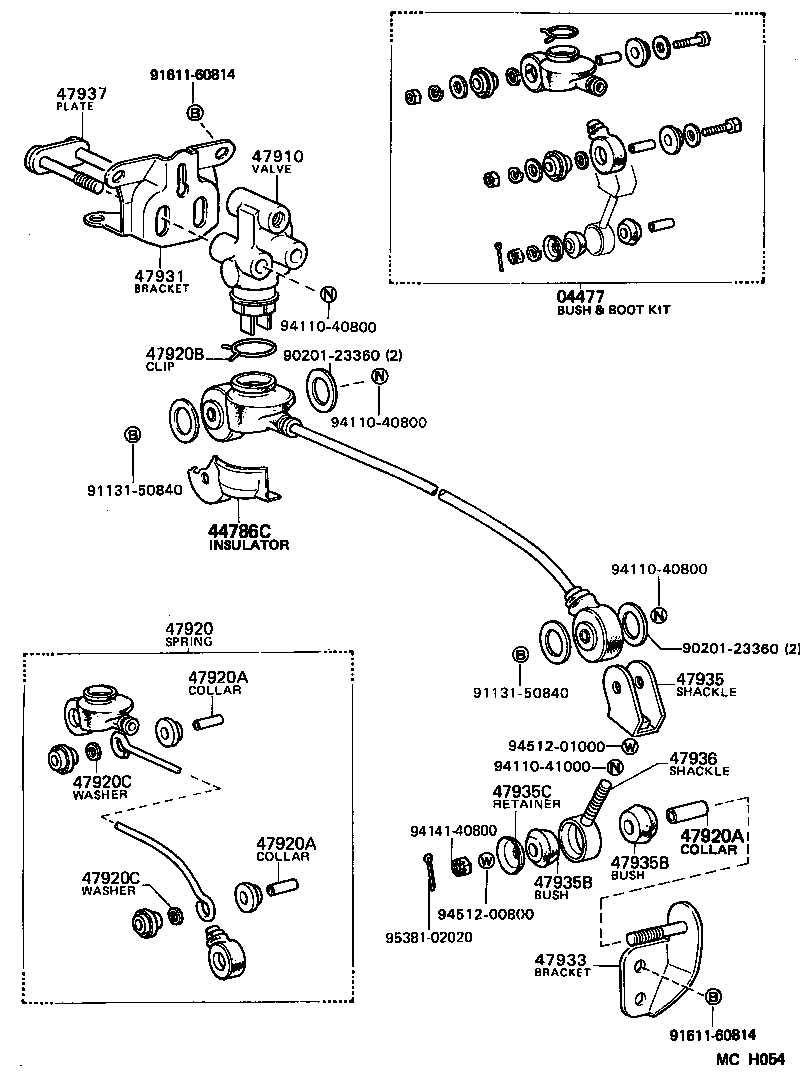

ILLUST NO. 3 OF 3(8808- )

Click highlighted areas on diagram

diagram 04477 44786C 47910 47920 47920A 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935B 47935B 47935C 47936 47937 9020123360 9020123360 9113150840 9113150840 9161160814 9161160814 9411040800 9411040800 9411040800 9411041000 9414140800 9451200800 9451201000 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010

CM3#,4#,KM3#,YM3#,40

 1
44786C - INSULATOR, LOAD SENSING VALVE HEAT
44786-28040

KM36..V1;KM30,YM30,40

 1
44786-28040

KM35,36..V1;KM30,31,YM30,40

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-28091

CM31,36,4#,KM31,35,36,YM31,40

 1
47920 - SPRING ASSY, LOAD SENSING
47920-27040

CM36,KM35,36..V1;CM30,31,4#,KM30,31,YM3#,40

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

CM3#,4#,KM3#,YM3#,40

 3
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

CM3#,4#,KM3#,YM3#,40

 3
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

CM3#,4#,KM3#,YM3#,40

 3
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

CM3#,4#,KM3#,YM3#,40

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

CM3#,4#,KM3#,YM3#,40

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

CM3#,4#,KM3#,YM3#,40

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-27070

CM3#,4#,KM3#,YM3#,40

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-27040

CM3#,4#,KM3#,YM3#,40

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35010

CM3#,4#,KM3#,YM3#,40

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

CM3#,4#,KM3#,YM3#,40

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

CM3#,4#,KM3#,YM3#,40

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

CM3#,4#,KM3#,YM3#,40

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-28010

CM3#,4#,KM3#,YM3#,40

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

CM3#,4#,KM3#,YM3#,40

 1
Common parts
90201-23360
91131-50840
91611-60814
94110-40800
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020
