CM40G-PQSX (1988)
Toyota Liteace Van,Wagon
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-95702 |
CM30..5F..SUC..TD;CM30,40,YM30,40..FXV |
1 | ||
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-95702 |
CM30..5F..SUC..TD;CM30,40,YM30,40..FXV |
1 | ||
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-95702 |
CM30..5F..SUC..TD;CM30,40,YM30,40..FXV |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-95708 |
CM30..5F..SUC..TD;CM30,40,YM30,40..FXV |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-95708 |
CM30..5F..SUC..TD;CM30,40,YM30,40..FXV |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-95708 |
CM30..5F..SUC..TD;CM30,40,YM30,40..FXV |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63101-95709 |
CM30..5F..SUC..TD;CM30,40,YM30,40..FXV |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63101-95709 |
CM30..5F..SUC..TD;CM30,40,YM30,40..FXV |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63101-95709 |
CM30..5F..SUC..TD;CM30,40,YM30,40..FXV |
1 | ||
| Common parts | ||||
| 90149-60032 | ||||
| 90159-60122 | ||||
| 90189-05019 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63023 - HINGE SUB-ASSY, ROOF WINDOW MALE, FRONT | ||||
| 63023-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63024 - SEAL SUB-ASSY, ROOF WINDOW HINGE, NO.1 | ||||
| 63024-95701 |
CM30,40,YM30,40..FXV,GXL FOR EVENT |
1 | ||
| 63024-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63025A - HINGE SUB-ASSY, ROOF WINDOW MALE | ||||
| 63025-95702 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63026A - HINGE SUB-ASSY, ROOF WINDOW FEMALE | ||||
| 63026-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
4 | ||
| 63027 - LOCK SUB-ASSY, ROOF WINDOW, RH | ||||
| 63027-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
1 | ||
| 63028 - LOCK SUB-ASSY, ROOF WINDOW, LH | ||||
| 63028-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
1 | ||
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-95702 |
CM30..5F..SUC..TD;CM30,40,YM30,40..FXV |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-95708 |
CM30..5F..SUC..TD;CM30,40,YM30,40..FXV |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63101-95709 |
CM30..5F..SUC..TD;CM30,40,YM30,40..FXV |
1 | ||
| 63201D - GLASS SUB-ASSY, ROOF WINDOW, NO.1 RH | ||||
| 63201-9570606 |
CM30,40,YM30,40..FXV,GXL *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,SABLE,TRIM4# |
1 | ||
| 63201-9570603 |
CM30,40,YM30,40..FXV,GXL *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,GRAY,TRIM1# |
1 | ||
| 63201-95711 |
CM30,40,YM30,40..FXV *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾐﾗ-ｺ-ﾄ),FXV ﾘﾐﾃﾂﾄﾞ,21R |
1 | ||
| 63201-95711 |
CM30,40,YM30,40..FXV,GXL *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,*TT,T=4.0,BRONZE,ｱﾘ(ﾐﾗ-ｺ-ﾄ) |
1 | ||
| 63201-95708 |
CM30,40,YM30,40..FXV,GXL *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 63202D - GLASS SUB-ASSY, ROOF WINDOW, NO.1 LH | ||||
| 63202-9570306 |
CM30,40,YM30,40..FXV,GXL *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,SABLE,TRIM4# |
1 | ||
| 63202-95708 |
CM30,40,YM30,40..FXV,GXL *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,*TT,T=4.0,BRONZE,ｱﾘ(ﾐﾗ-ｺ-ﾄ) |
1 | ||
| 63202-9570303 |
CM30,40,YM30,40..FXV,GXL *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,GRAY,TRIM1# |
1 | ||
| 63202-95708 |
CM30,40,YM30,40..FXV *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾐﾗ-ｺ-ﾄ),FXV ﾘﾐﾃﾂﾄﾞ,21R |
1 | ||
| 63202-95705 |
CM30,40,YM30,40..FXV,GXL *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 63203D - GLASS SUB-ASSY, ROOF WINDOW, NO.2 RH | ||||
| 63203-9571001 |
CM30,40,YM30,40..FXV,GXL *TT,厚さ=4.0,ｸﾞﾚｰ,*TT,T=4.0,GRAY,BLACK,BLACK,TRIM1#,4# |
1 | ||
| 63203-95713 |
CM30,40,YM30,40..FXV *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾐﾗ-ｺ-ﾄ),FXV ﾘﾐﾃﾂﾄﾞ,21R |
1 | ||
| 63203-9570801 |
CM30,40,YM30,40..FXV,GXL *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,BLACK,TRIM1#,4# |
1 | ||
| 63203-95713 |
CM30,40,YM30,40..FXV,GXL *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,*TT,T=4.0,ｱﾘ(ﾐﾗｰｺｰﾄ),BRONZE |
1 | ||
| 63204D - GLASS SUB-ASSY, ROOF WINDOW, NO.2 LH | ||||
| 63204-9570401 |
CM30,40,YM30,40..FXV,GXL *TT,厚さ=4.0,ｸﾞﾚｰ,BLACK,TRIM1#,4# |
1 | ||
| 63204-95707 |
CM30,40,YM30,40..FXV,GXL *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,*TT,T=4.0,BRONZE,ｱﾘ(ﾐﾗ-ｺ-ﾄ) |
1 | ||
| 63204-95707 |
CM30,40,YM30,40..FXV *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾐﾗ-ｺ-ﾄ),FXV ﾘﾐﾃﾂﾄﾞ,21R |
1 | ||
| 63204-9570201 |
CM30,40,YM30,40..FXV,GXL *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,BLACK,TRIM1#,4# |
1 | ||
| 63205F - GLASS SUB-ASSY, ROOF WINDOW, NO.3 RH | ||||
| 63205-95710 |
CM30,40,YM30,40..FXV,GXL *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 63205-95711 |
CM30,40,YM30,40..FXV,GXL *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,*TT,T=4.0,BRONZE,ｱﾘ(ﾐﾗ-ｺ-ﾄ) |
1 | ||
| 63205-95708 |
CM30,40,YM30,40..FXV,GXL *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 63205-95711 |
CM30,40,YM30,40..FXV *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾐﾗ-ｺ-ﾄ),FXV ﾘﾐﾃﾂﾄﾞ,21R |
1 | ||
| 63206F - GLASS SUB-ASSY, ROOF WINDOW, NO.3 LH | ||||
| 63206-95708 |
CM30,40,YM30,40..FXV *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾐﾗ-ｺ-ﾄ),FXV ﾘﾐﾃﾂﾄﾞ,21R |
1 | ||
| 63206-95708 |
CM30,40,YM30,40..FXV,GXL *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,*TT,T=4.0,BRONZE,ｱﾘ(ﾐﾗ-ｺ-ﾄ) |
1 | ||
| 63206-95705 |
CM30,40,YM30,40..FXV,GXL *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 63206-95707 |
CM30,40,YM30,40..FXV,GXL *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 63250 - BASE ASSY, REMOVABLE ROOF LOCK | ||||
| 63250-95703 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63251E - DAM, ROOF WINDOW, NO.1 | ||||
| 63251-95706 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63252E - DAM, ROOF WINDOW, NO.2 | ||||
| 63252-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63253E - DAM, ROOF WINDOW, NO.3 | ||||
| 63253-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63260 - HANDLE ASSY, REMOVABLE ROOF LOCK | ||||
| 63260-95708 |
CM30,40,YM30,40..FXV |
2 | ||
| 63261A - SUPPORT, ROOF WINDOW LOCK, NO.1 | ||||
| 63261-95703 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63263 - SUPPORT, ROOF WINDOW LOCK, NO.2 | ||||
| 63263-95703 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63273D - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-95702 |
CM30,40,YM30,40..FXV,GXL FOR EVENT |
1 | ||
| 63273-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
4 | ||
| 63273K - RETAINER, ROOF WINDOW HINGE, REAR | ||||
| 63273-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
8 | ||
| 63273L - RETAINER, ROOF WINDOW HINGE, FRONT | ||||
| 63273-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
4 | ||
| 63273L - RETAINER, ROOF WINDOW HINGE, FRONT | ||||
| 63273-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
4 | ||
| 63275A - PLATE, ROOF WINDOW HINGE | ||||
| 63275-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
4 | ||
| 63276A - SEAL, ROOF WINDOW HINGE | ||||
| 63276-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
4 | ||
| 63605 - HINGE SUB-ASSY, TILT ROOF, RH | ||||
| 63605-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) ﾌﾛﾝﾄ |
1 | ||
| 63605-95702 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) ﾘﾔ |
1 | ||
| 63605 - HINGE SUB-ASSY, TILT ROOF, RH | ||||
| 63605-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) ﾌﾛﾝﾄ |
1 | ||
| 63605-95702 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) ﾘﾔ |
1 | ||
| 63606 - HINGE SUB-ASSY, TILT ROOF, LH | ||||
| 63606-95702 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) ﾘﾔ |
1 | ||
| 63606-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) ﾌﾛﾝﾄ |
1 | ||
| 63606 - HINGE SUB-ASSY, TILT ROOF, LH | ||||
| 63606-95702 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) ﾘﾔ |
1 | ||
| 63606-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) ﾌﾛﾝﾄ |
1 | ||
| Common parts | ||||
| 90116-06050 | ||||
| 90116-06091 | ||||
| 90159-60162 | ||||
| 90179-06115 | ||||
| 90179-08092 | ||||
| 90385-11005 | ||||
| 90541-06031 | ||||
| 90561-14001 | ||||
| 91656-60616 | ||||
| 93260-56010 | ||||
| 94180-40600 | ||||

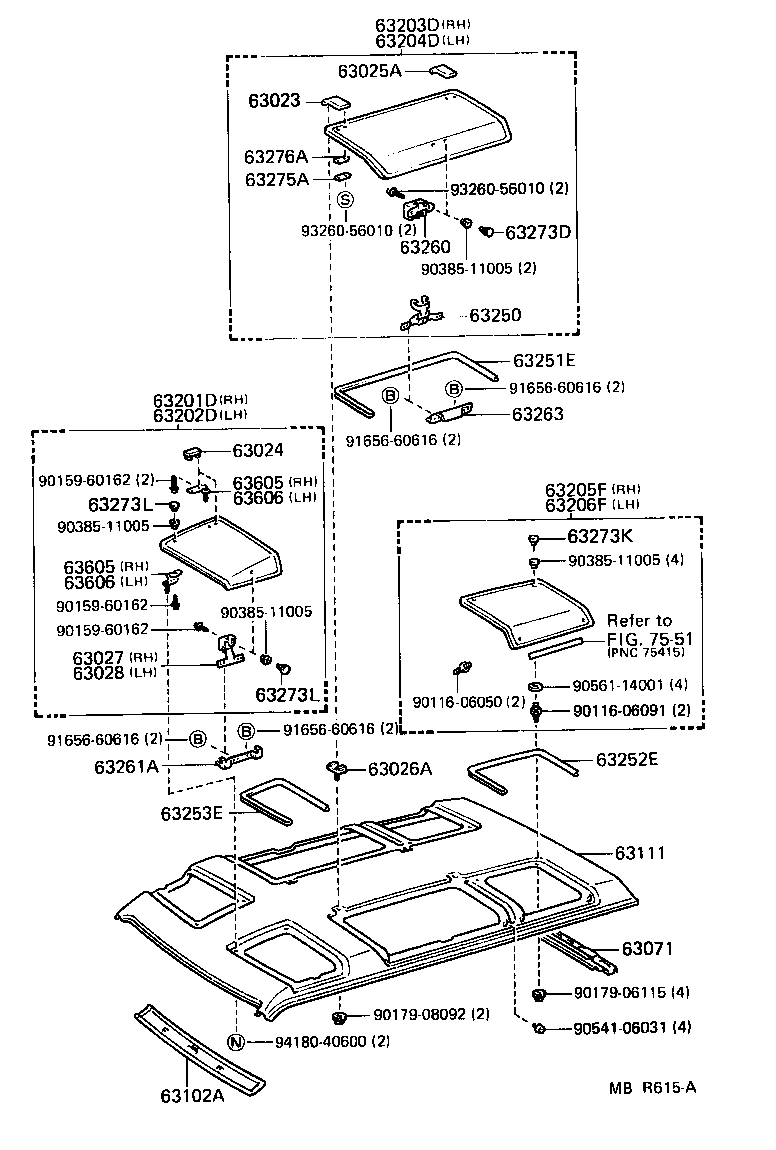

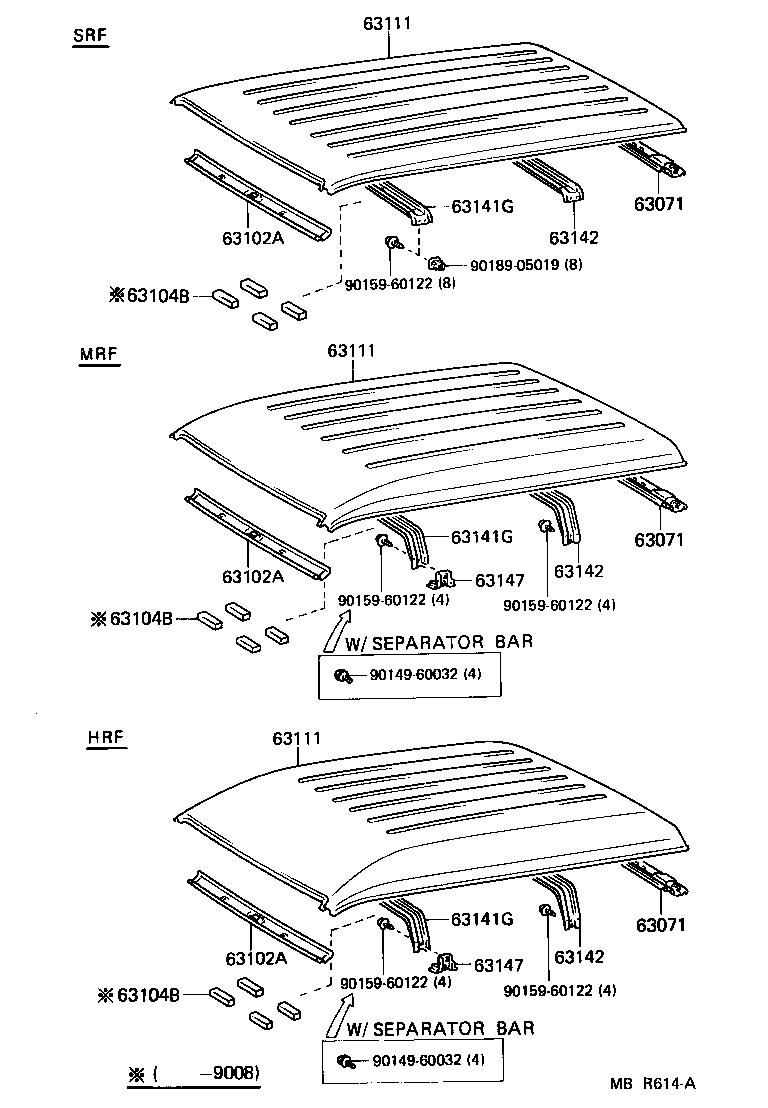

| Linked diagrams | ||||
| 7551 | ||||
