CM40G-PQSX (1988)
Toyota Liteace Van,Wagon

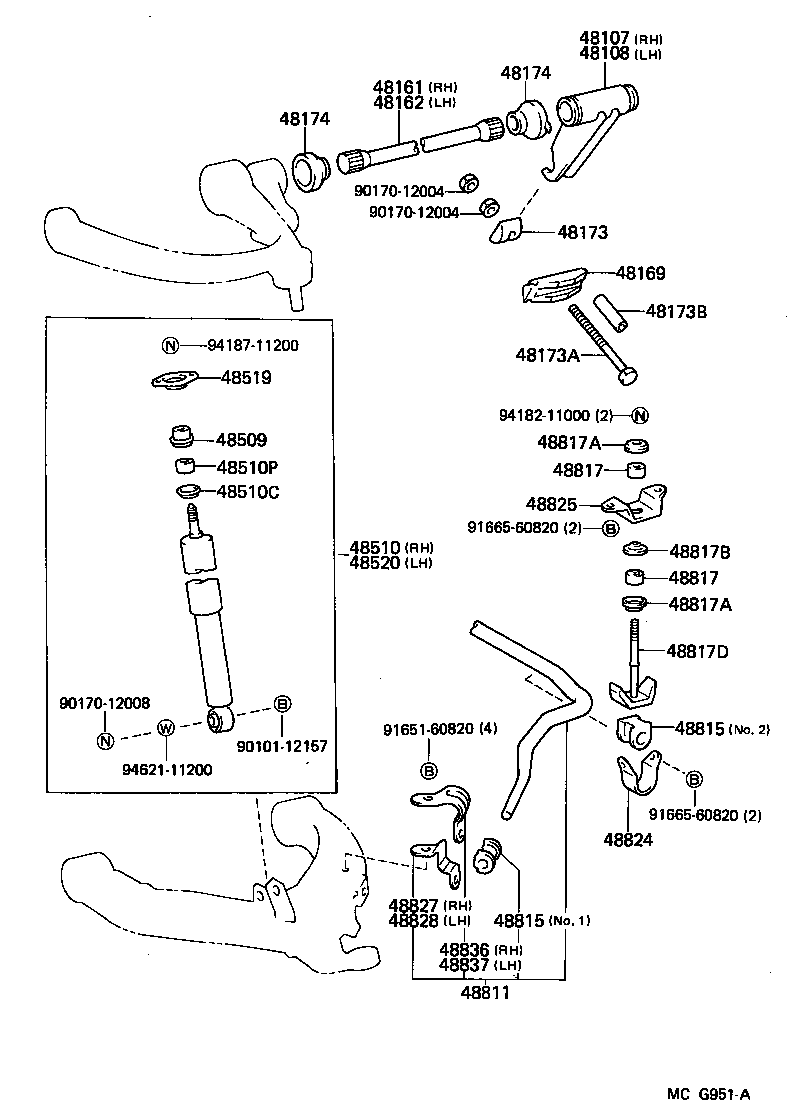

(8808- )CM40,YM40..FXV
TEMS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48107 - ARM SUB-ASSY, ANCHOR, RH | ||||
| 48107-27050 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 48107-27030 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 48108 - ARM SUB-ASSY, ANCHOR, LH | ||||
| 48108-27050 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 48108-27020 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 48161 - SPRING, TORSION BAR, RH | ||||
| 48161-27120 |
CM4#,YM40 |
1 | ||
| 48161-27200 |
CM40,YM40..FXV ｱﾘ(TEMS) |
1 | ||
| 48162 - SPRING, TORSION BAR, LH | ||||
| 48162-27200 |
CM40,YM40..FXV ｱﾘ(TEMS) |
1 | ||
| 48162-27120 |
CM4#,YM40 |
1 | ||
| 48169 - SWIVEL, ANCHOR ARM | ||||
| 48169-27020 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 48173 - SEAT, ANCHOR ARM ADJUSTER | ||||
| 48173-27020 |
CM3#,4#,KM3#,YM3#,40 右側 |
1 | ||
| 48173-27010 |
CM3#,4#,KM3#,YM3#,40 左側 |
1 | ||
| 48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING) | ||||
| 90101-12059 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 48173B - HOSE(FOR ANCHOR ARM ADJUSTING BOLT) | ||||
| 90446-14001 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 48174 - COVER, TORSION BAR DUST | ||||
| 48174-27010 |
CM3#,4#,KM3#,YM3#,40 ﾌﾛﾝﾄ |
2 | ||
| 48175-27010 |
CM3#,4#,KM3#,YM3#,40 ﾘﾔ |
2 | ||
| 48174 - COVER, TORSION BAR DUST | ||||
| 48174-27010 |
CM3#,4#,KM3#,YM3#,40 ﾌﾛﾝﾄ |
2 | ||
| 48175-27010 |
CM3#,4#,KM3#,YM3#,40 ﾘﾔ |
2 | ||
| 48509 - RETAINER SUB-ASSY, SHOCK ABSORBER CUSHION | ||||
| 48509-27030 |
CM40,YM40..FXV |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48500-29475 |
CM40,YM40..FXV ｱﾘ(TEMS) |
1 | ||
| 48500-29355 |
CM4#,YM40 |
1 | ||
| 48500-29356 |
CM4#,YM40 |
1 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02123 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 90948-02070 |
CM30,40,YM30,40..FXV ｱﾘ(TEMS) |
2 | ||
| 48510P - CUSHION, FRONT SHOCK ABSORBER, NO.2 | ||||
| 90948-01029 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 90948-01032 |
CM30,40,YM30,40..FXV ｱﾘ(TEMS) |
2 | ||
| 48519 - BRACKET, ACTUATOR SUPPORT, FRONT | ||||
| 48519-27010 |
CM40,YM40..FXV |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48500-29355 |
CM4#,YM40 |
1 | ||
| 48500-29475 |
CM40,YM40..FXV ｱﾘ(TEMS) |
1 | ||
| 48500-29356 |
CM4#,YM40 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48804-28011 |
CM4#,YM40 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-30100 |
CM4#,YM40 NO.2 |
2 | ||
| 48815-28030 |
CM4#,YM40 NO.1 |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-30100 |
CM4#,YM40 NO.2 |
2 | ||
| 48815-28030 |
CM4#,YM40 NO.1 |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01002 |
CM4#,YM40 |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01002 |
CM4#,YM40 |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02004 |
CM4#,YM40 |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02004 |
CM4#,YM40 |
4 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02005 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 48817D - BOLT(FOR FRONT STABILIZER) | ||||
| 48819-28011 |
CM4#,YM40 |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-28030 |
CM4#,YM40 |
2 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-28020 |
CM4#,YM40 |
2 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48827-28011 |
CM4#,YM40 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48828-28011 |
CM4#,YM40 |
1 | ||
| 48836 - BRACKET, FRONT STABILIZER END, RH | ||||
| 48836-28011 |
CM4#,YM40 |
1 | ||
| 48837 - BRACKET, FRONT STABILIZER END, LH | ||||
| 48837-28021 |
CM4#,YM40 |
1 | ||
| Common parts | ||||
| 90101-12157 | ||||
| 90170-12004 | ||||
| 90170-12008 | ||||
| 91651-60820 | ||||
| 91665-60820 | ||||
| 94182-11000 | ||||
| 94187-11200 | ||||
| 94621-11200 | ||||

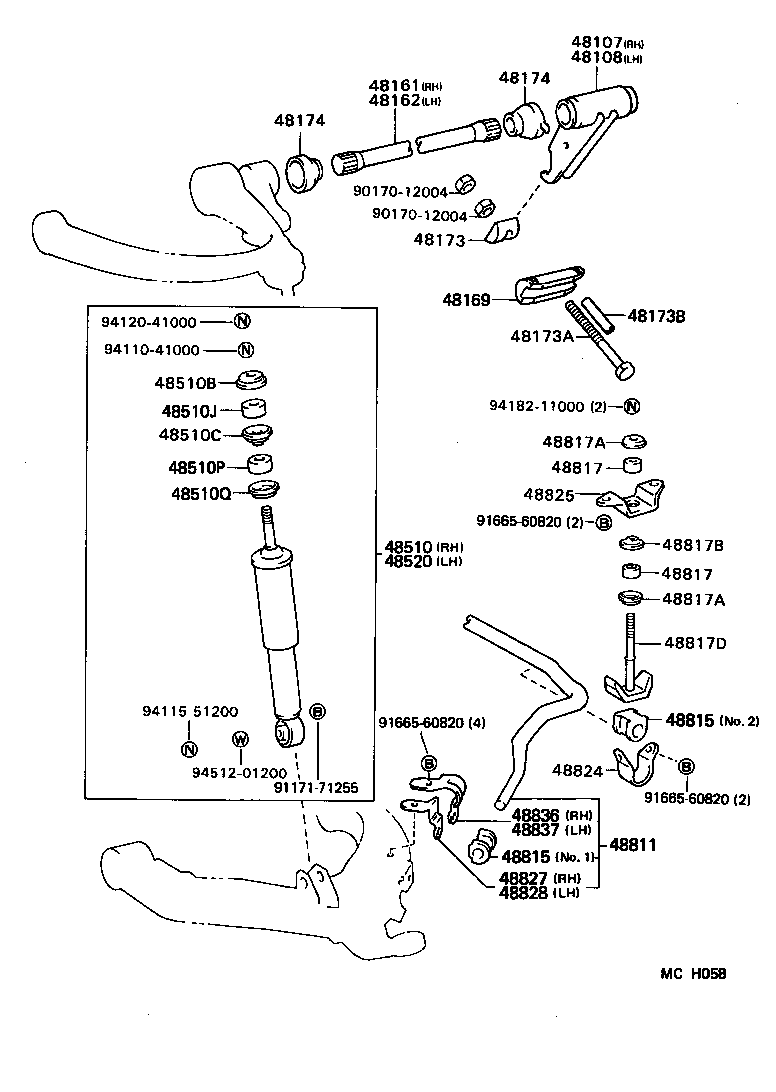

(8808- )CM4#,YM40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48107 - ARM SUB-ASSY, ANCHOR, RH | ||||
| 48107-27050 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 48107-27030 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 48108 - ARM SUB-ASSY, ANCHOR, LH | ||||
| 48108-27050 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 48108-27020 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 48161 - SPRING, TORSION BAR, RH | ||||
| 48161-27120 |
CM4#,YM40 |
1 | ||
| 48161-27200 |
CM40,YM40..FXV ｱﾘ(TEMS) |
1 | ||
| 48162 - SPRING, TORSION BAR, LH | ||||
| 48162-27200 |
CM40,YM40..FXV ｱﾘ(TEMS) |
1 | ||
| 48162-27120 |
CM4#,YM40 |
1 | ||
| 48169 - SWIVEL, ANCHOR ARM | ||||
| 48169-27020 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 48173 - SEAT, ANCHOR ARM ADJUSTER | ||||
| 48173-27020 |
CM3#,4#,KM3#,YM3#,40 右側 |
1 | ||
| 48173-27010 |
CM3#,4#,KM3#,YM3#,40 左側 |
1 | ||
| 48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING) | ||||
| 90101-12059 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 48173B - HOSE(FOR ANCHOR ARM ADJUSTING BOLT) | ||||
| 90446-14001 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 48174 - COVER, TORSION BAR DUST | ||||
| 48174-27010 |
CM3#,4#,KM3#,YM3#,40 ﾌﾛﾝﾄ |
2 | ||
| 48175-27010 |
CM3#,4#,KM3#,YM3#,40 ﾘﾔ |
2 | ||
| 48174 - COVER, TORSION BAR DUST | ||||
| 48174-27010 |
CM3#,4#,KM3#,YM3#,40 ﾌﾛﾝﾄ |
2 | ||
| 48175-27010 |
CM3#,4#,KM3#,YM3#,40 ﾘﾔ |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48500-29475 |
CM40,YM40..FXV ｱﾘ(TEMS) |
1 | ||
| 48500-29355 |
CM4#,YM40 |
1 | ||
| 48500-29356 |
CM4#,YM40 |
1 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02123 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 90948-02070 |
CM30,40,YM30,40..FXV ｱﾘ(TEMS) |
2 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01003 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 48510P - CUSHION, FRONT SHOCK ABSORBER, NO.2 | ||||
| 90948-01029 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 90948-01032 |
CM30,40,YM30,40..FXV ｱﾘ(TEMS) |
2 | ||
| 48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02076 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48500-29355 |
CM4#,YM40 |
1 | ||
| 48500-29475 |
CM40,YM40..FXV ｱﾘ(TEMS) |
1 | ||
| 48500-29356 |
CM4#,YM40 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48804-28011 |
CM4#,YM40 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-30100 |
CM4#,YM40 NO.2 |
2 | ||
| 48815-28030 |
CM4#,YM40 NO.1 |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-30100 |
CM4#,YM40 NO.2 |
2 | ||
| 48815-28030 |
CM4#,YM40 NO.1 |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01002 |
CM4#,YM40 |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01002 |
CM4#,YM40 |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02004 |
CM4#,YM40 |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02004 |
CM4#,YM40 |
4 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02005 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 48817D - BOLT(FOR FRONT STABILIZER) | ||||
| 48819-28011 |
CM4#,YM40 |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-28030 |
CM4#,YM40 |
2 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-28020 |
CM4#,YM40 |
2 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48827-28011 |
CM4#,YM40 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48828-28011 |
CM4#,YM40 |
1 | ||
| 48836 - BRACKET, FRONT STABILIZER END, RH | ||||
| 48836-28011 |
CM4#,YM40 |
1 | ||
| 48837 - BRACKET, FRONT STABILIZER END, LH | ||||
| 48837-28021 |
CM4#,YM40 |
1 | ||
| Common parts | ||||
| 90170-12004 | ||||
| 91171-71255 | ||||
| 91665-60820 | ||||
| 94110-41000 | ||||
| 94115-51200 | ||||
| 94120-41000 | ||||
| 94182-11000 | ||||
| 94512-01200 | ||||
