CM40G-PQSX (1988)
Toyota Liteace Van,Wagon

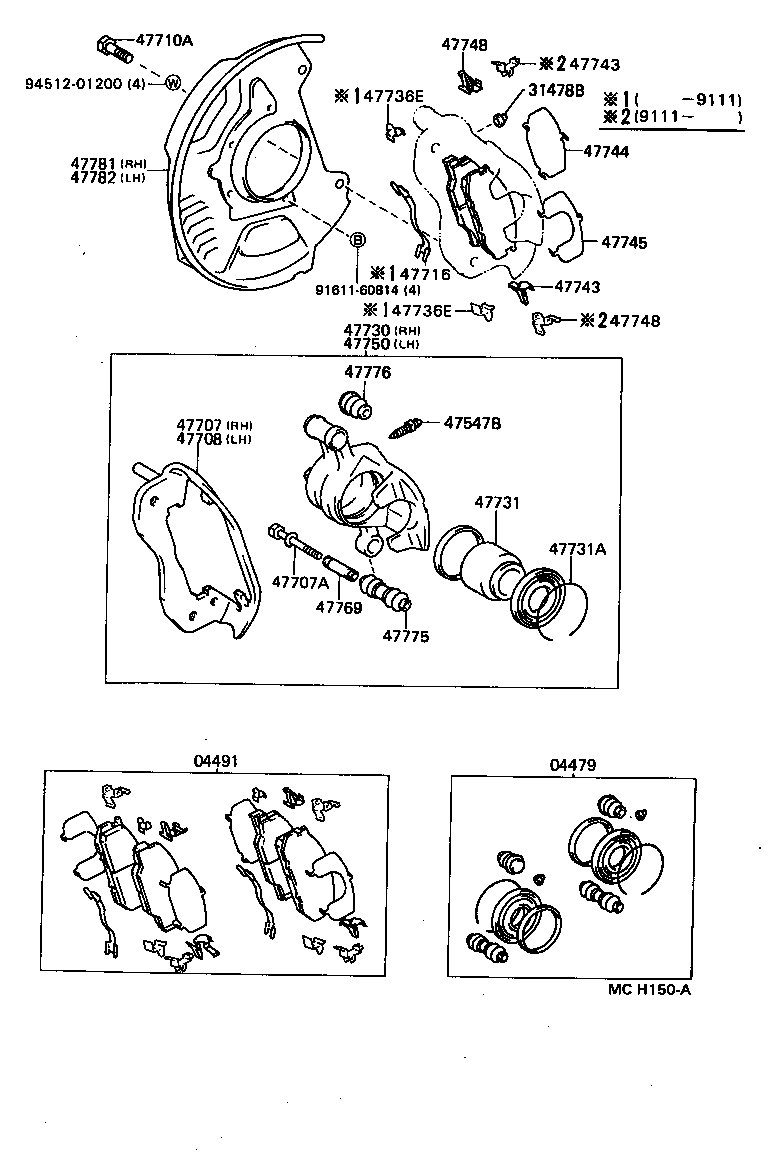

ILLUST NO. 1 OF 2(8808- )CM4#,YM40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-27010 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-27110 |
CM4#,YM40 |
1 | ||
| 04491-27120 |
CM4#,YM40 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 47707 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH | ||||
| 47707-27010 |
CM4#,YM40 |
1 | ||
| 47707A - BOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE) | ||||
| 90119-08384 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 47708 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH | ||||
| 47708-27010 |
CM4#,YM40 |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12123 |
CM4#,YM40 *12−1.25PX28.1−20 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-28020 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-27020 |
CM4#,YM40 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-14090 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-69002 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 47736E - PLATE, FRONT DISC BRAKE PAD GUIDE, NO.1 | ||||
| 47736-14030 |
CM3#,4#,KM3#,YM3#,40 |
4 | ||
| 47736E - PLATE, FRONT DISC BRAKE PAD GUIDE, NO.1 | ||||
| 47736-14030 |
CM3#,4#,KM3#,YM3#,40 |
4 | ||
| 47743 - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47743-14040 |
CM3#,4#,KM3#,YM3#,40 下側 |
2 | ||
| 47743-14040 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 47743-28010 |
CM3#,4#,KM3#,YM3#,40 上側 |
2 | ||
| 47743 - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47743-14040 |
CM3#,4#,KM3#,YM3#,40 下側 |
2 | ||
| 47743-14040 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 47743-28010 |
CM3#,4#,KM3#,YM3#,40 上側 |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-14070 |
CM4#,YM40 |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47744-27020 |
CM4#,YM40 |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-28010 |
CM3#,4#,KM3#,YM3#,40 下側 |
2 | ||
| 47748-14050 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 47748-14050 |
CM3#,4#,KM3#,YM3#,40 上側 |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-28010 |
CM3#,4#,KM3#,YM3#,40 下側 |
2 | ||
| 47748-14050 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 47748-14050 |
CM3#,4#,KM3#,YM3#,40 上側 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-27020 |
CM4#,YM40 |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-28010 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-17010 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 47776 - BOOT, MAIN PIN(FOR FRONT DISC BRAKE) | ||||
| 47776-14010 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-28080 |
CM4#,YM40 |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-28080 |
CM4#,YM40 |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 94512-01200 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-27040 |
CM4#,YM40 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-14020 |
CM4#,YM40 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-14020 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
