CM40G-PQSX (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )2CT

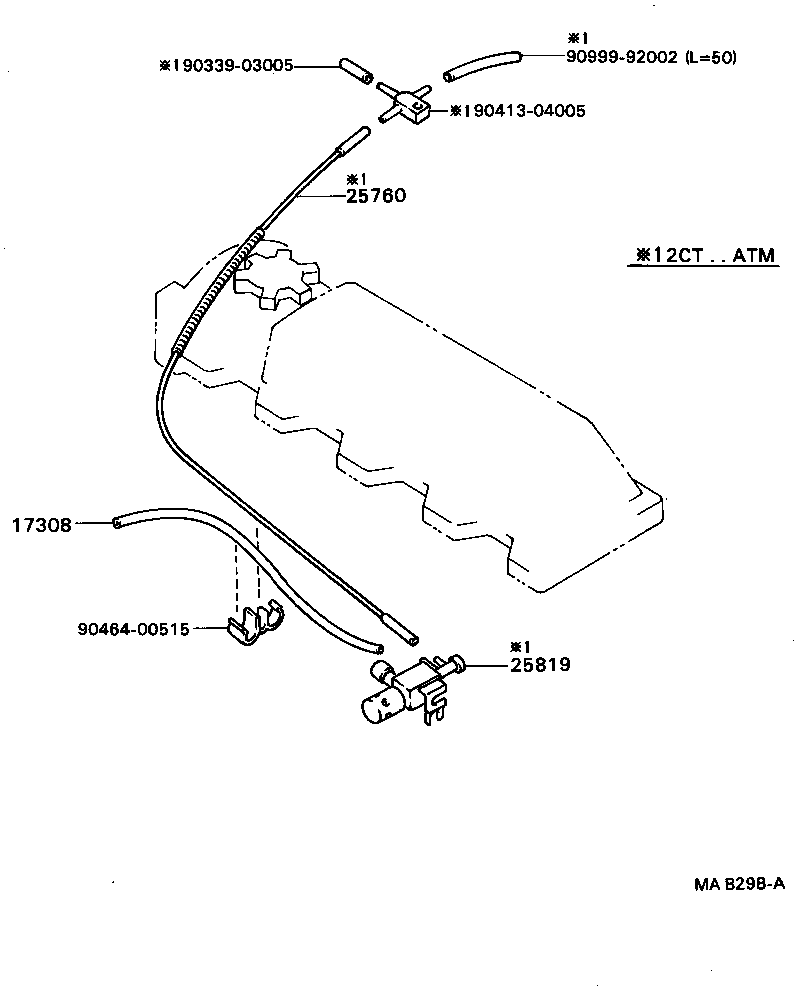

Click highlighted areas on diagram

diagram 17308 25760 25819 9033903005 9041304005 9046400515 9099992002
Part # Description Qty Price
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-64040

2CT..CM30,40

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-64020

2CT..CM30,40..4FC

 1
25819 - VALVE ASSY, VACUUM REGULATING
25819-64040

2CT..CM30,40..4FC

 1
Common parts
90339-03005
90413-04005
90464-00515
90999-92002
