CM40G-MXSX (1988)
Toyota Liteace Van,Wagon

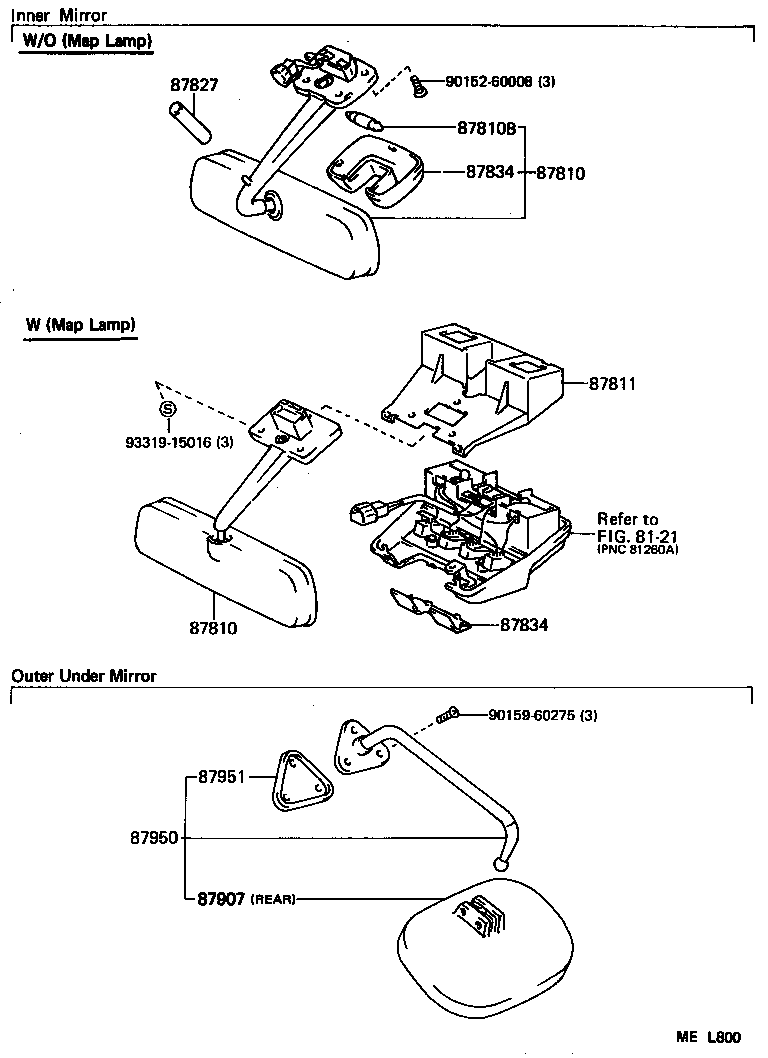

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-95705 |
CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM30..(SSW,SUC)..DSL;CM31,40,KM30,31,36,YM3#,40..GXL,SCA,SSW,SUC,SUP |
1 | ||
| 87801-2801001 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) ｱﾘ(ﾏﾂﾌﾟ ﾗﾝﾌﾟ),BLACK,BLACK,TRIM1#,4# |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-95705 |
CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM30..(SSW,SUC)..DSL;CM31,40,KM30,31,36,YM3#,40..GXL,SCA,SSW,SUC,SUP |
1 | ||
| 87801-2801001 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) ｱﾘ(ﾏﾂﾌﾟ ﾗﾝﾌﾟ),BLACK,BLACK,TRIM1#,4# |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 90981-11027 |
CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW 12V 10W |
1 | ||
| 87811 - BRACKET, INNER RR VIEW MIRROR | ||||
| 87811-87001 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-22020 |
CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW 長さ=35 |
1 | ||
| 87828-23010 |
CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW 長さ=38.5 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-8700306 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) LIGHT SABLE,TRIM4# |
1 | ||
| 81243-95701 |
CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 87834-8700313 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-8700306 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) LIGHT SABLE,TRIM4# |
1 | ||
| 81243-95701 |
CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 87834-8700313 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-95J02 |
CM3#,4#,KM3#,YM30,40..DLX,FXV,GXL,SCA,SSW,SUC,SUP,SW REAR |
1 | ||
| 87907-95J02 |
CM3#,4#,KM3#,YM3#,40..DLX,FXV,GXL,SCA,SSW,SUC,SUP,SW REAR |
1 | ||
| 87907-95J06 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC FRONT |
1 | ||
| 87950 - MIRROR ASSY, OUTER UNDER REAR VIEW | ||||
| 87950-95702 |
CM3#,4#,KM3#,YM3#,40..HRF,MRF |
1 | ||
| 87951 - GASKET, OUTER UNDER REAR VIEW MIRROR | ||||
| 87951-95701 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 87951-95701 |
CM3#,4#,KM3#,YM3#,40..HRF,MRF |
1 | ||
| Common parts | ||||
| 90152-60008 | ||||
| 90159-60275 | ||||
| 93319-15016 | ||||
| Linked diagrams | ||||
| 8121 | ||||

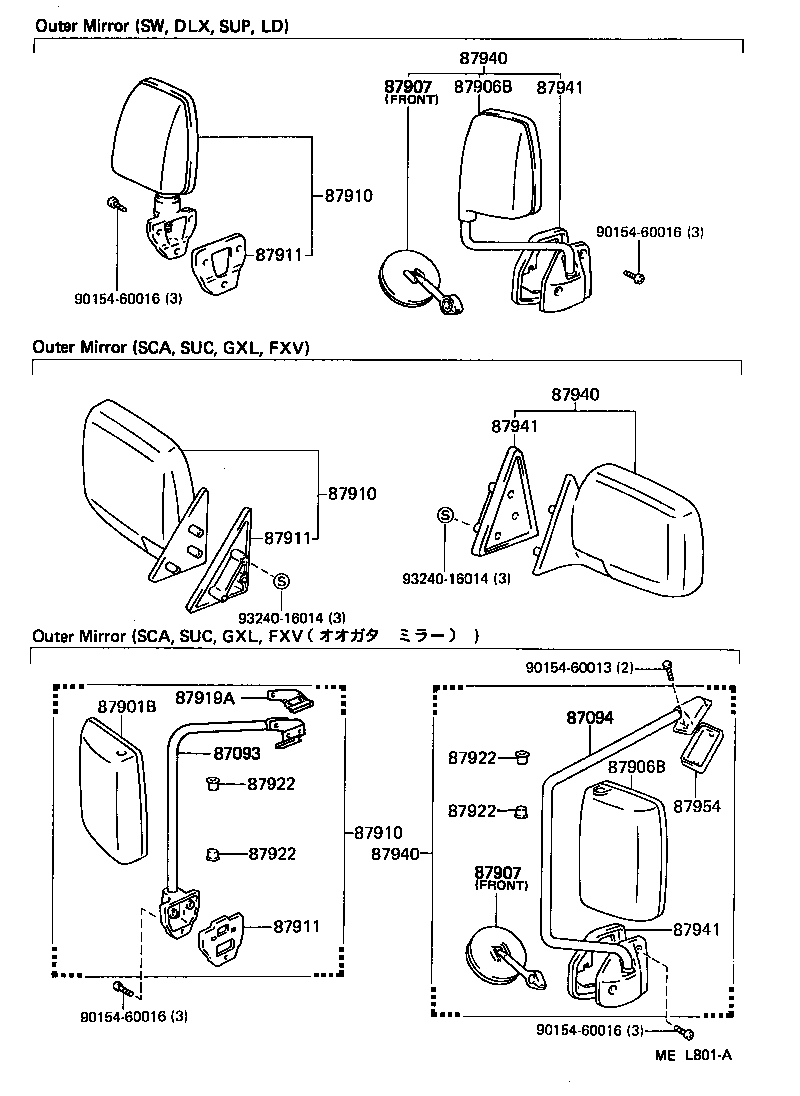

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87093 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH | ||||
| 87093-95703 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
1 | ||
| 87094 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH | ||||
| 87094-95704 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87908-87001 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87908-87001 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87908-87001 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-95J02 |
CM3#,4#,KM3#,YM30,40..DLX,FXV,GXL,SCA,SSW,SUC,SUP,SW REAR |
1 | ||
| 87907-95J02 |
CM3#,4#,KM3#,YM3#,40..DLX,FXV,GXL,SCA,SSW,SUC,SUP,SW REAR |
1 | ||
| 87907-95J06 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC FRONT |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-95J02 |
CM3#,4#,KM3#,YM30,40..DLX,FXV,GXL,SCA,SSW,SUC,SUP,SW REAR |
1 | ||
| 87907-95J02 |
CM3#,4#,KM3#,YM3#,40..DLX,FXV,GXL,SCA,SSW,SUC,SUP,SW REAR |
1 | ||
| 87907-95J06 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC FRONT |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-9571933 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,SILVER METALLIC,25P |
1 | ||
| 87910-9571923 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,GRAY METALLIC,168 ,23L |
1 | ||
| 87910-9571915 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BEIGE METALLIC,4K1 ,24L |
1 | ||
| 87910-9571902 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87910-9571907 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,LIGHT GREEN M,X64 |
1 | ||
| 87910-9572015 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,BEIGE METALLIC,4K1 |
1 | ||
| 87910-9572003 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87910-9572202 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87910-9571903 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87910-9572223 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,GRAY METALLIC,168 ,23L |
1 | ||
| 87910-9572213 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87910-9571923 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,GRAY METALLIC,168 ,23L |
1 | ||
| 87910-9572207 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,LIGHT GREEN METALLIC,6J9 |
1 | ||
| 87910-2702013 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,GRAY M,168 ,23L |
1 | ||
| 87910-9571902 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87910-2701005 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,BEIGE M,4K1 |
1 | ||
| 87910-9571903 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87910-9571907 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,LIGHT GREEN M,6J9 ,29R |
1 | ||
| 87910-95723 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ｵｵｶﾞﾀ ﾐﾗｰ |
1 | ||
| 87910-2702002 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87910-95718 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- BLACK |
1 | ||
| 87910-2702007 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,LIGHT GREEN M,6J9 |
1 | ||
| 87910-9571915 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BEIGE METALLIC,4K1 |
1 | ||
| 87910-2702013 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,GRAY M,168 |
1 | ||
| 87910-9571934 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BLUEISH GRAY M,20T |
1 | ||
| 87910-9571923 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,GRAY METALLIC,168 |
1 | ||
| 87910-2702004 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,BLUEISH GRAY M,20T |
1 | ||
| 87910-2702003 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,SILVER M,148 |
1 | ||
| 87910-9571924 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,DARK BLUE M,26S |
1 | ||
| 87910-9571901 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,BLACK,27J |
1 | ||
| 87910-9571906 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,DARK REDDISH BRWON M,22T |
1 | ||
| 87910-95719J0 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,DARK GREENISH BLUE M,28T |
1 | ||
| 87910-9571923 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,GRAY METALLIC,168 |
1 | ||
| 87910-95719E0 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,BEIGE,24U |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-9571933 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,SILVER METALLIC,25P |
1 | ||
| 87910-9571923 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,GRAY METALLIC,168 ,23L |
1 | ||
| 87910-9571915 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BEIGE METALLIC,4K1 ,24L |
1 | ||
| 87910-9571902 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87910-9571907 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,LIGHT GREEN M,X64 |
1 | ||
| 87910-9572015 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,BEIGE METALLIC,4K1 |
1 | ||
| 87910-9572003 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87910-9572202 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87910-9571903 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87910-9572223 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,GRAY METALLIC,168 ,23L |
1 | ||
| 87910-9572213 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87910-9571923 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,GRAY METALLIC,168 ,23L |
1 | ||
| 87910-9572207 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,LIGHT GREEN METALLIC,6J9 |
1 | ||
| 87910-2702013 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,GRAY M,168 ,23L |
1 | ||
| 87910-9571902 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87910-2701005 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,BEIGE M,4K1 |
1 | ||
| 87910-9571903 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87910-9571907 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,LIGHT GREEN M,6J9 ,29R |
1 | ||
| 87910-95723 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ｵｵｶﾞﾀ ﾐﾗｰ |
1 | ||
| 87910-2702002 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87910-95718 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- BLACK |
1 | ||
| 87910-2702007 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,LIGHT GREEN M,6J9 |
1 | ||
| 87910-9571915 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BEIGE METALLIC,4K1 |
1 | ||
| 87910-2702013 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,GRAY M,168 |
1 | ||
| 87910-9571934 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BLUEISH GRAY M,20T |
1 | ||
| 87910-9571923 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,GRAY METALLIC,168 |
1 | ||
| 87910-2702004 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,BLUEISH GRAY M,20T |
1 | ||
| 87910-2702003 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,SILVER M,148 |
1 | ||
| 87910-9571924 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,DARK BLUE M,26S |
1 | ||
| 87910-9571901 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,BLACK,27J |
1 | ||
| 87910-9571906 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,DARK REDDISH BRWON M,22T |
1 | ||
| 87910-95719J0 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,DARK GREENISH BLUE M,28T |
1 | ||
| 87910-9571923 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,GRAY METALLIC,168 |
1 | ||
| 87910-95719E0 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,BEIGE,24U |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-9571933 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,SILVER METALLIC,25P |
1 | ||
| 87910-9571923 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,GRAY METALLIC,168 ,23L |
1 | ||
| 87910-9571915 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BEIGE METALLIC,4K1 ,24L |
1 | ||
| 87910-9571902 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87910-9571907 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,LIGHT GREEN M,X64 |
1 | ||
| 87910-9572015 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,BEIGE METALLIC,4K1 |
1 | ||
| 87910-9572003 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87910-9572202 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87910-9571903 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87910-9572223 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,GRAY METALLIC,168 ,23L |
1 | ||
| 87910-9572213 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87910-9571923 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,GRAY METALLIC,168 ,23L |
1 | ||
| 87910-9572207 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,LIGHT GREEN METALLIC,6J9 |
1 | ||
| 87910-2702013 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,GRAY M,168 ,23L |
1 | ||
| 87910-9571902 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87910-2701005 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,BEIGE M,4K1 |
1 | ||
| 87910-9571903 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87910-9571907 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,LIGHT GREEN M,6J9 ,29R |
1 | ||
| 87910-95723 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ｵｵｶﾞﾀ ﾐﾗｰ |
1 | ||
| 87910-2702002 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87910-95718 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- BLACK |
1 | ||
| 87910-2702007 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,LIGHT GREEN M,6J9 |
1 | ||
| 87910-9571915 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BEIGE METALLIC,4K1 |
1 | ||
| 87910-2702013 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,GRAY M,168 |
1 | ||
| 87910-9571934 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BLUEISH GRAY M,20T |
1 | ||
| 87910-9571923 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,GRAY METALLIC,168 |
1 | ||
| 87910-2702004 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,BLUEISH GRAY M,20T |
1 | ||
| 87910-2702003 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,SILVER M,148 |
1 | ||
| 87910-9571924 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,DARK BLUE M,26S |
1 | ||
| 87910-9571901 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,BLACK,27J |
1 | ||
| 87910-9571906 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,DARK REDDISH BRWON M,22T |
1 | ||
| 87910-95719J0 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,DARK GREENISH BLUE M,28T |
1 | ||
| 87910-9571923 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,GRAY METALLIC,168 |
1 | ||
| 87910-95719E0 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,BEIGE,24U |
1 | ||
| 87911 - GASKET, OUTER REAR VIEW MIRROR, RH | ||||
| 87955-95701 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC ｵｵｶﾞﾀ ﾐﾗ- |
1 | ||
| 87911-95702 |
CM30,40,YM30,40..FXV,GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
1 | ||
| 87911-95702 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
1 | ||
| 87911-95702 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
2 | ||
| 87911-95702 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
1 | ||
| 87911 - GASKET, OUTER REAR VIEW MIRROR, RH | ||||
| 87955-95701 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC ｵｵｶﾞﾀ ﾐﾗ- |
1 | ||
| 87911-95702 |
CM30,40,YM30,40..FXV,GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
1 | ||
| 87911-95702 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
1 | ||
| 87911-95702 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
2 | ||
| 87911-95702 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
1 | ||
| 87911 - GASKET, OUTER REAR VIEW MIRROR, RH | ||||
| 87955-95701 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC ｵｵｶﾞﾀ ﾐﾗ- |
1 | ||
| 87911-95702 |
CM30,40,YM30,40..FXV,GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
1 | ||
| 87911-95702 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
1 | ||
| 87911-95702 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
2 | ||
| 87911-95702 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
1 | ||
| 87919A - BRACKET, OUTER MIRROR | ||||
| 87919-95700 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
1 | ||
| 87922 - BUSH, REAR VIEW MIRROR SUPPORT | ||||
| 87913-87004 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
4 | ||
| 87922 - BUSH, REAR VIEW MIRROR SUPPORT | ||||
| 87913-87004 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
4 | ||
| 87922 - BUSH, REAR VIEW MIRROR SUPPORT | ||||
| 87913-87004 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
4 | ||
| 87922 - BUSH, REAR VIEW MIRROR SUPPORT | ||||
| 87913-87004 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
4 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-9572402 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87940-9572407 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,LIGHT GREEN METALLIC,X64 |
1 | ||
| 87940-9572433 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,SILVER METALLIC,25P |
1 | ||
| 87940-9572415 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BEIGE METALLIC,4K1 ,24L |
1 | ||
| 87940-9572503 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87940-9572423 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,GRAY METALLIC,168 ,23L |
1 | ||
| 87940-9572515 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,BEIGE METALLIC,4K1 |
1 | ||
| 87940-9572403 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87940-9572713 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87940-9572707 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,LIGHT GREEN METALLIC,6J9 |
1 | ||
| 87940-9572723 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,GRAY METALLIC,168 ,23L |
1 | ||
| 87940-9572423 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,GRAY METALLIC,168 ,23L |
1 | ||
| 87940-9572702 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87940-95705 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BLACK |
1 | ||
| 87940-95728 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ｵｵｶﾞﾀ ﾐﾗｰ |
1 | ||
| 87940-2702013 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,GRAY M,168 ,23L |
1 | ||
| 87940-9572402 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87940-9572407 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,LIGHT GREEN METALLIC,6J9 ,29R |
1 | ||
| 87940-9572403 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87940-9572415 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BEIGE METALLIC,4K1 |
1 | ||
| 87940-2702013 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,GRAY M,168 |
1 | ||
| 87940-2702003 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,SILVER M,148 |
1 | ||
| 87940-2702007 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,LIGHT GREEN M,6J9 |
1 | ||
| 87940-2702002 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87940-9572434 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BLUEISH GRAY M,20T |
1 | ||
| 87940-9572424 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,DARK BLUE M,26S |
1 | ||
| 87940-9572423 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,GRAY METALLIC,168 |
1 | ||
| 87940-9572423 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,GRAY METALLIC,168 |
1 | ||
| 87940-95724E0 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,BEIGE,24U |
1 | ||
| 87940-9572401 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,BLACK,27J |
1 | ||
| 87940-9572406 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,DARK REDDISH BROWN M,22T |
1 | ||
| 87940-2701005 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,BEIGE M,4K1 |
1 | ||
| 87940-2702004 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,BLUEISH GRAY M,20T |
1 | ||
| 87940-95724J0 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,DARK GREENISH BLUE M,28T |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-9572402 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87940-9572407 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,LIGHT GREEN METALLIC,X64 |
1 | ||
| 87940-9572433 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,SILVER METALLIC,25P |
1 | ||
| 87940-9572415 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BEIGE METALLIC,4K1 ,24L |
1 | ||
| 87940-9572503 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87940-9572423 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,GRAY METALLIC,168 ,23L |
1 | ||
| 87940-9572515 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,BEIGE METALLIC,4K1 |
1 | ||
| 87940-9572403 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87940-9572713 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87940-9572707 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,LIGHT GREEN METALLIC,6J9 |
1 | ||
| 87940-9572723 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,GRAY METALLIC,168 ,23L |
1 | ||
| 87940-9572423 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,GRAY METALLIC,168 ,23L |
1 | ||
| 87940-9572702 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87940-95705 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BLACK |
1 | ||
| 87940-95728 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ｵｵｶﾞﾀ ﾐﾗｰ |
1 | ||
| 87940-2702013 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,GRAY M,168 ,23L |
1 | ||
| 87940-9572402 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87940-9572407 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,LIGHT GREEN METALLIC,6J9 ,29R |
1 | ||
| 87940-9572403 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87940-9572415 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BEIGE METALLIC,4K1 |
1 | ||
| 87940-2702013 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,GRAY M,168 |
1 | ||
| 87940-2702003 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,SILVER M,148 |
1 | ||
| 87940-2702007 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,LIGHT GREEN M,6J9 |
1 | ||
| 87940-2702002 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87940-9572434 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BLUEISH GRAY M,20T |
1 | ||
| 87940-9572424 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,DARK BLUE M,26S |
1 | ||
| 87940-9572423 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,GRAY METALLIC,168 |
1 | ||
| 87940-9572423 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,GRAY METALLIC,168 |
1 | ||
| 87940-95724E0 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,BEIGE,24U |
1 | ||
| 87940-9572401 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,BLACK,27J |
1 | ||
| 87940-9572406 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,DARK REDDISH BROWN M,22T |
1 | ||
| 87940-2701005 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,BEIGE M,4K1 |
1 | ||
| 87940-2702004 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,BLUEISH GRAY M,20T |
1 | ||
| 87940-95724J0 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,DARK GREENISH BLUE M,28T |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-9572402 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87940-9572407 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,LIGHT GREEN METALLIC,X64 |
1 | ||
| 87940-9572433 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,SILVER METALLIC,25P |
1 | ||
| 87940-9572415 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BEIGE METALLIC,4K1 ,24L |
1 | ||
| 87940-9572503 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87940-9572423 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,GRAY METALLIC,168 ,23L |
1 | ||
| 87940-9572515 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,BEIGE METALLIC,4K1 |
1 | ||
| 87940-9572403 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87940-9572713 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87940-9572707 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,LIGHT GREEN METALLIC,6J9 |
1 | ||
| 87940-9572723 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,GRAY METALLIC,168 ,23L |
1 | ||
| 87940-9572423 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,GRAY METALLIC,168 ,23L |
1 | ||
| 87940-9572702 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87940-95705 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BLACK |
1 | ||
| 87940-95728 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ｵｵｶﾞﾀ ﾐﾗｰ |
1 | ||
| 87940-2702013 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,GRAY M,168 ,23L |
1 | ||
| 87940-9572402 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87940-9572407 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,LIGHT GREEN METALLIC,6J9 ,29R |
1 | ||
| 87940-9572403 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,SILVER METALLIC,148 |
1 | ||
| 87940-9572415 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BEIGE METALLIC,4K1 |
1 | ||
| 87940-2702013 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,GRAY M,168 |
1 | ||
| 87940-2702003 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,SILVER M,148 |
1 | ||
| 87940-2702007 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,LIGHT GREEN M,6J9 |
1 | ||
| 87940-2702002 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,RED MICA,3H4 |
1 | ||
| 87940-9572434 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,BLUEISH GRAY M,20T |
1 | ||
| 87940-9572424 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,DARK BLUE M,26S |
1 | ||
| 87940-9572423 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-,GRAY METALLIC,168 |
1 | ||
| 87940-9572423 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,GRAY METALLIC,168 |
1 | ||
| 87940-95724E0 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,BEIGE,24U |
1 | ||
| 87940-9572401 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,BLACK,27J |
1 | ||
| 87940-9572406 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,DARK REDDISH BROWN M,22T |
1 | ||
| 87940-2701005 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,BEIGE M,4K1 |
1 | ||
| 87940-2702004 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾋ-ﾀ ﾐﾗ-,BLUEISH GRAY M,20T |
1 | ||
| 87940-95724J0 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,DARK GREENISH BLUE M,28T |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87941-95703 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
1 | ||
| 87941-95704 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC ｵｵｶﾞﾀ ﾐﾗ- |
1 | ||
| 87941-95703 |
CM30,40,YM30,40..FXV,GXL |
1 | ||
| 87941-95703 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
2 | ||
| 87941-95703 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87941-95703 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
1 | ||
| 87941-95704 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC ｵｵｶﾞﾀ ﾐﾗ- |
1 | ||
| 87941-95703 |
CM30,40,YM30,40..FXV,GXL |
1 | ||
| 87941-95703 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
2 | ||
| 87941-95703 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87941-95703 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
1 | ||
| 87941-95704 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC ｵｵｶﾞﾀ ﾐﾗ- |
1 | ||
| 87941-95703 |
CM30,40,YM30,40..FXV,GXL |
1 | ||
| 87941-95703 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
2 | ||
| 87941-95703 |
CM30,40,YM30,40..GXL ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
1 | ||
| 87954 - GASKET, OUTER REAR VIEW MIRROR BASE, UPPER LH | ||||
| 87954-95701 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
1 | ||
| Common parts | ||||
| 90154-60013 | ||||
| 90154-60016 | ||||
| 93240-16014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
