CM40G-MQSX (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2CT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CM4#,YM40

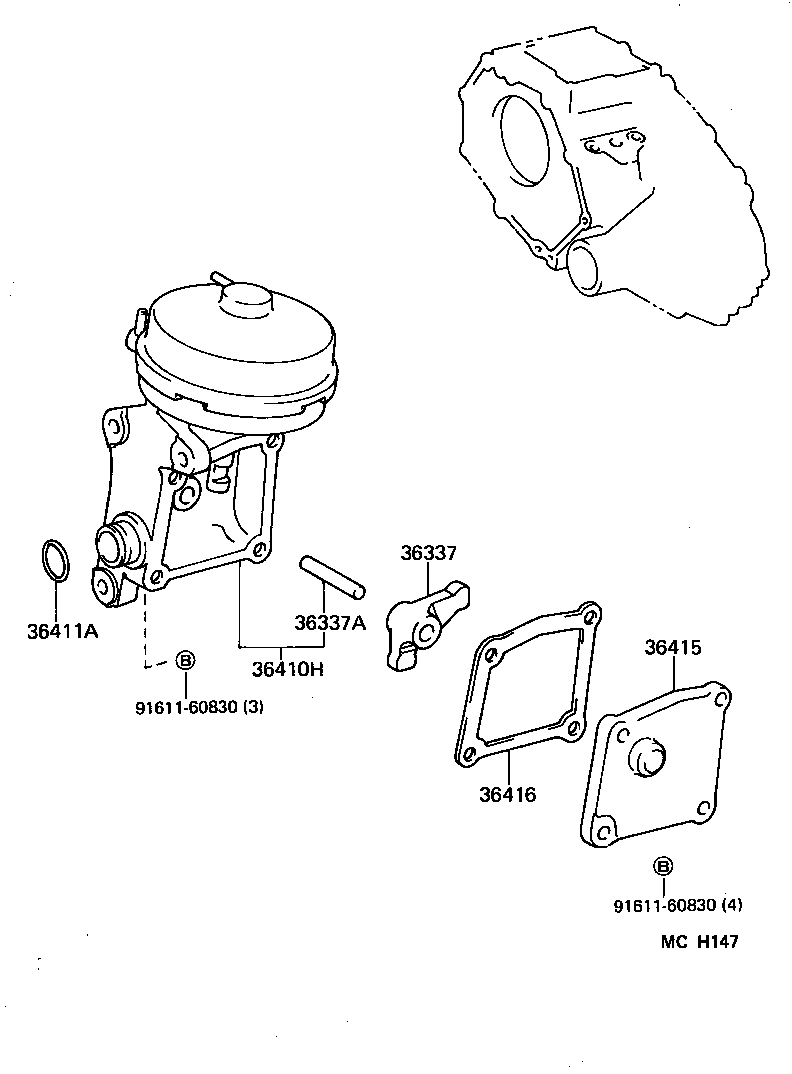

Click highlighted areas on diagram

diagram 36337 36337A 36410H 36411A 36415 36416 9161160830 9161160830
Part # Description Qty Price
36337 - LEVER, FRONT DRIVE SHIFT LINK
36337-28010

CM4#,YM40

 1
36337A - PIN, STRAIGHT (FOR FRONT DRIVE SHIFT LINK LEVER)
90250-10018

CM4#,YM40

 1
36410H - ACTUATOR ASSY, TRANSFER VACUUM
36410-28010

CM4#,YM40

 1
36410-28011

CM4#,YM40

 1
36411A - RING, O (FOR DIAPHRAGM CYLINDER)
96721-24022

CM4#,YM40

 1
36415 - COVER, DIAPHRAGM CYLINDER
36415-28010

CM4#,YM40

 1
36416 - GASKET, DIAPHRAGM CYLINDER
36416-28010

CM4#,YM40

 1
Common parts
91611-60830
