CM40G-MQSX (1988)
Toyota Liteace Van,Wagon

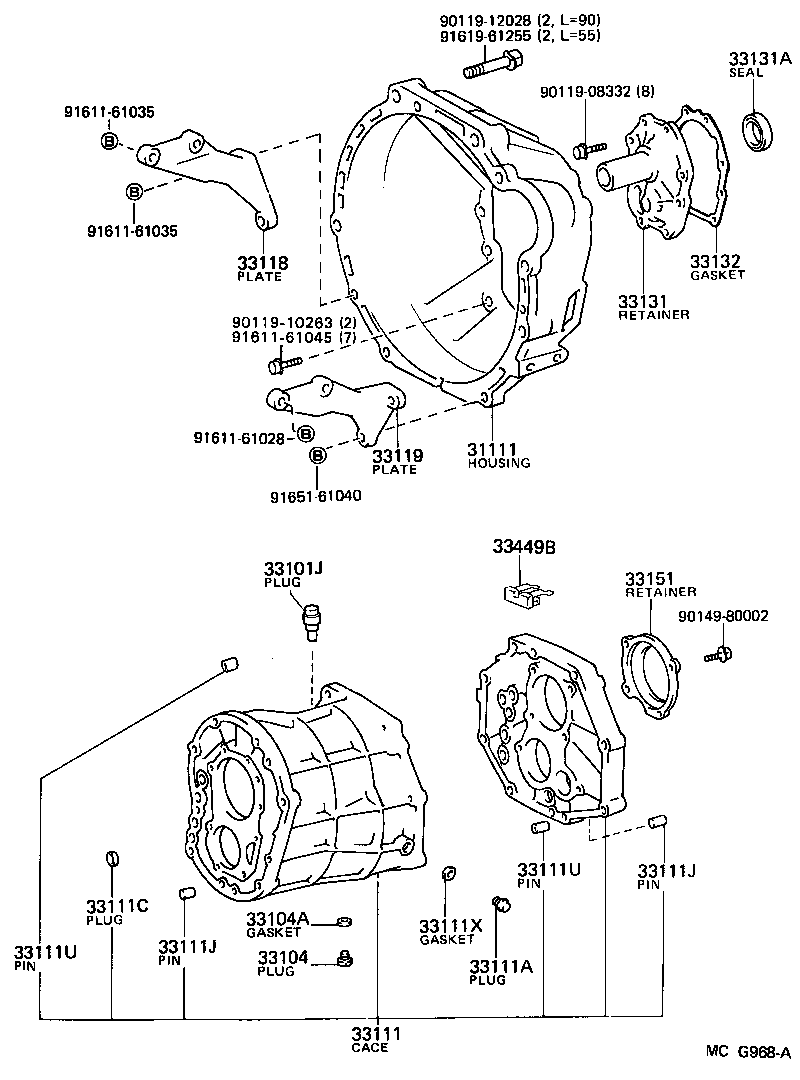

(8808- )YM3#,40..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-28020 |
YM3#,40..5F |
1 | ||
| 31111-28030 |
CM3#,4#..5F |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-30040 |
YM3#,40..5F |
1 | ||
| 33101J - PLUG, BREATHER | ||||
| 90930-03085 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18021 |
CM3#,4#..5F |
1 | ||
| 90341-18057 |
KM30,31,35,YM3#,40..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
CM3#,4#,KM3#,YM3#,40..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-28020 |
KM31,YM3#,40..5F |
1 | ||
| 33101-35060 |
CM3#,4#..5F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
CM3#,4#,KM3#,YM3#,40..MTM |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 外径=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 長さ=16,外径=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 長さ=16,外径=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 長さ=11,外径=11 |
2 | ||
| 90253-15001 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 長さ=14,外径=15 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 長さ=11,外径=11 |
2 | ||
| 90253-15001 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 長さ=14,外径=15 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
CM3#,4#,KM3#,YM3#,40..MTM |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-28010 |
YM3#,40..5F |
1 | ||
| 33118-14033 |
CM3#,4#..5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-28010 |
YM3#,40..5F |
1 | ||
| 33119-14050 |
CM3#,4#..5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-26020 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30014 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 90311-30010 |
CM3#,4#,KM30,31,36,YM30,40..5F |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-28010 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-35030 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-26010 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10263 | ||||
| 90149-80002 | ||||
| 91611-61028 | ||||
| 91611-61040 | ||||
| 91611-61045 | ||||
| 91611-61050 | ||||
| 91619-61255 | ||||
| 91659-61260 | ||||

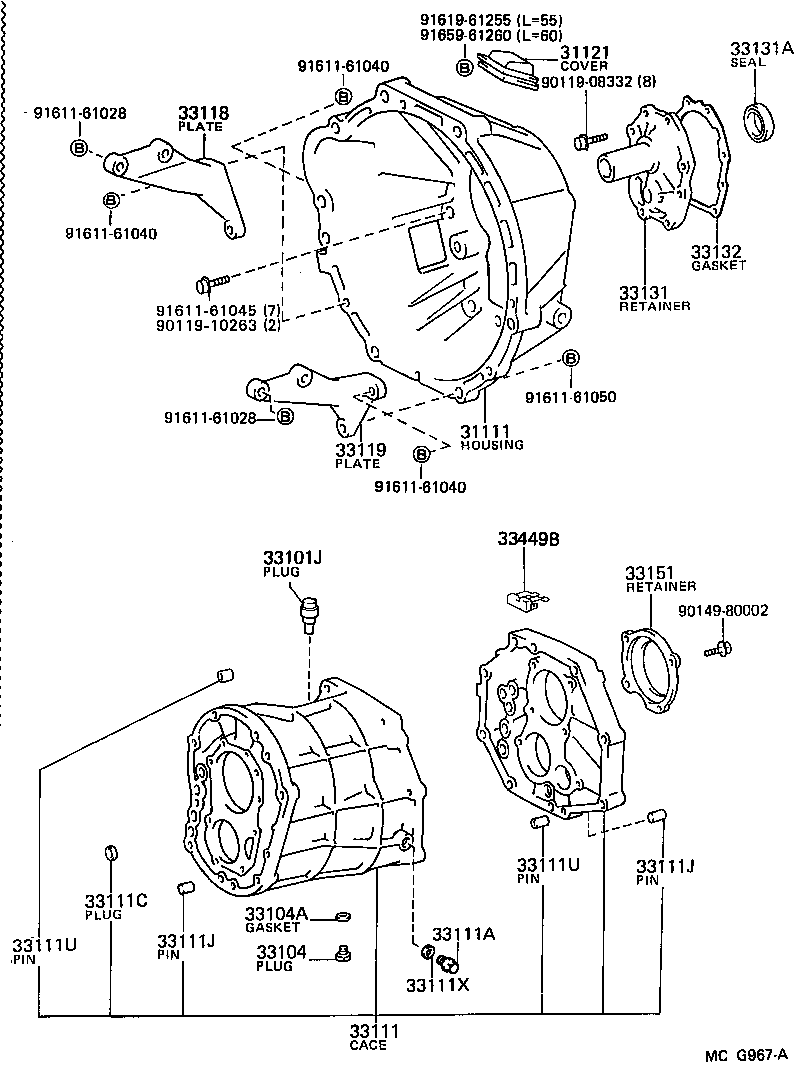

(8808- )CM3#,4#..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-28020 |
YM3#,40..5F |
1 | ||
| 31111-28030 |
CM3#,4#..5F |
1 | ||
| 33101J - PLUG, BREATHER | ||||
| 90930-03085 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18021 |
CM3#,4#..5F |
1 | ||
| 90341-18057 |
KM30,31,35,YM3#,40..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
CM3#,4#,KM3#,YM3#,40..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-28020 |
KM31,YM3#,40..5F |
1 | ||
| 33101-35060 |
CM3#,4#..5F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
CM3#,4#,KM3#,YM3#,40..MTM |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 外径=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 長さ=16,外径=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 長さ=16,外径=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 長さ=11,外径=11 |
2 | ||
| 90253-15001 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 長さ=14,外径=15 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 長さ=11,外径=11 |
2 | ||
| 90253-15001 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 長さ=14,外径=15 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
CM3#,4#,KM3#,YM3#,40..MTM |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-28010 |
YM3#,40..5F |
1 | ||
| 33118-14033 |
CM3#,4#..5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-28010 |
YM3#,40..5F |
1 | ||
| 33119-14050 |
CM3#,4#..5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-26020 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30014 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 90311-30010 |
CM3#,4#,KM30,31,36,YM30,40..5F |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-28010 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-35030 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-26010 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10263 | ||||
| 90119-12028 | ||||
| 90149-80002 | ||||
| 91611-61028 | ||||
| 91611-61035 | ||||
| 91611-61045 | ||||
| 91619-61255 | ||||
| 91651-61040 | ||||
