CM40G-MNSX (1988)
Toyota Liteace Van,Wagon
ILLUST NO. 1 OF 3(8808- )W4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53829A - PROTECTOR, FRONT FENDER, LOWER | ||||
| 53839-95700 |
CM3#,4#,KM3#,YM3#,40 左側 |
1 | ||
| 53829-95700 |
CM3#,4#,KM3#,YM3#,40 右側 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-95704 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-95702 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-95700 |
CM30..W4D..SW;CM31,36,4#,KM3#,YM3#,40;CM30..FXV,GXL,LD,SSW,SUC |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-95706 |
CM30,40,KM30,YM40..LD |
1 | ||
| 61031B - EXTENSION SUB-ASSY, QUARTER PANEL, RH | ||||
| 61031-95700 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-95705 |
CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-95705 |
CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-95701 |
CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-95705 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-95704 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61207-95709 |
CM30,40,KM30,YM40..LD |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61208-95713 |
CM30,40,KM30,YM40..LD |
1 | ||
| 61263B - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61263-95702 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61264A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61264-95702 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-95702 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-95702 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH | ||||
| 61302-95725 |
CM3#,4#,KM3#,YM31,40..DLX,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 61302-95724 |
CM40,YM40..W4D..(LD,SSW,SW) ｱﾘ(FR + RR + SIDE ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-95714 |
CM30,40,KM30,YM40..LD |
1 | ||
| 61339B - SEAL, CENTER BODY PILLAR, INNER NO.1 | ||||
| 61339-95701 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61351 - COVER, CENTER BODY, INNER RH | ||||
| 61347-95712 |
CM30,40,KM30,YM40..LD |
1 | ||
| 61352 - COVER, CENTER BODY, INNER, LH | ||||
| 61387-95700 |
CM30,40,KM30,YM40..LD |
1 | ||
| 61353 - COVER, CENTER PILLAR UPPER | ||||
| 61348-95707 |
CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC) |
1 | ||
| 61371 - RAIL, NO.1 CENTER INNER, RH | ||||
| 61371-95700 |
CM36,KM35,36..V4D..VSG;CM30,4#,KM30,31,YM31,40..(V4D,W4D)..(DLX,LD,SSW,SUP,SW) |
1 | ||
| 61382A - RAIL, NO.2 CENTER, INNER LH | ||||
| 61382-95700 |
CM30,40,KM30,YM40..LD,SSW,SW;CM36,41,KM35,36..VSG..(02S,03S) |
1 | ||
| 61411D - PANEL, FENDER, OUTER RH | ||||
| 61411-95702 |
CM40,YM40..LD;CM3#,41,KM3#,YM31..DLX,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 61412D - PANEL, FENDER, OUTER LH | ||||
| 61412-95702 |
KM30..W4D;CM40,YM40..LD;CM3#,41,KM31,35,36,YM31..DLX,LD,SSW,SUC,SUP,SW |
1 | ||
| 61421A - PANEL, FENDER, INNER RH | ||||
| 61421-95702 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61422A - PANEL, FENDER, INNER LH | ||||
| 61422-95702 |
KM30..W4D;CM3#,4#,KM31,35,36,YM3#,40 |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-95702 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-95703 |
KM30..W4D;CM3#,4#,KM31,35,36,YM3#,40 |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61502-95701 |
CM30,40,KM30,YM40..LD,SSW,SW |
1 | ||
| 61605C - PANEL SUB-ASSY, QUATER, REAR INNER RH | ||||
| 61605-95703 |
CM30,40,KM30,YM40..LD |
1 | ||
| 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-95702 |
CM3#,4#,KM3#,YM3#,40..HRF,MRF |
1 | ||
| 61606C - PANEL SUB-ASSY, QUATER, REAR INNER LH | ||||
| 61606-95703 |
CM30,40,KM30,YM40..LD |
1 | ||
| 61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-95701 |
CM3#,4#,KM3#,YM3#,40..HRF,MRF |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-95G39 |
CM30..4FC..SUC;CM40..W4D..(LD,SSW,SW);CM30,KM30,YM40..W4D..(HRF,MRF)..(LD,SCA,SSW,SUC,SW)..(CBR,DSL) |
1 | ||
| 61601-95G51 |
CM40,YM40..W4D..(LD,SSW,SW) ｱﾘ(FR + RR + SIDE ﾏﾂﾄﾞｶﾞ-ﾄ) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-95747 |
CM30..4FC..SUC;CM30..(HRF,MRF)..DSL;CM31,36,41,KM31,35,36,YM31..V1..(HRF,MRF);CM40,KM30,YM40..(HRF,MRF)..(LD,SCA,SSW,SUC,SW) |
1 | ||
| 61602-95771 |
CM40,YM40..W4D..(LD,SSW,SW) ｱﾘ(FR + RR + SIDE ﾏﾂﾄﾞｶﾞ-ﾄ) |
1 | ||
| 61619D - REINFORCEMENT, QUARTER PANEL, RH | ||||
| 61619-95704 |
CM30,36,4#,KM3#,YM3#,40..V4D,W4D 右側 |
1 | ||
| 61623E - EXTENSION, QUARTER INNER PANEL, REAR RH | ||||
| 61623-95704 |
KM36..VSG..(HRF,MRF);CM3#,4#,KM30,31,35,YM31,40..(HRF,MRF)..(DLX,LD,SSW,SUP,SW) |
1 | ||
| 61624E - EXTENSION, QUARTER INNER PANEL, REAR LH | ||||
| 61624-95704 |
KM36..VSG..(HRF,MRF);CM3#,4#,KM30,31,35,YM31,40..(HRF,MRF)..(DLX,LD,SSW,SUP,SW) |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-95705 |
CM36,KM35,36..V1;CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61631-95705 |
CM36,KM35,36..V1;CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-95702 |
CM36,KM35,36..V1;CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-95702 |
CM36,KM35,36..V1;CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 61647C - REINFORCEMENT, WHEEL HOUSE, RH | ||||
| 61647-95700 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61648C - REINFORCEMENT, WHEEL HOUSE, LH | ||||
| 61647-95700 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61662A - PLATE, QUARTER PANEL OUTER EXTENSION, LOWER REAR | ||||
| 61662-95700 |
CM3#,4#,KM3#,YM3#,40 左側 |
1 | ||
| 61673B - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61673-95701 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC |
1 | ||
| 61674B - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61674-95701 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC |
1 | ||
| 61675C - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER REAR RH | ||||
| 61675-95701 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC |
1 | ||
| 61676C - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER REAR LH | ||||
| 61676-95700 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC |
1 | ||
| 61703G - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61703-95725 |
CM30,40,KM30,YM40..LD |
1 | ||
| 61995 - DAM, FRONT BODY PILLAR, OUTER | ||||
| 61995-95700 |
CM3#,4#,KM3#,YM3#,40 ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 53881-95701 |
CM3#,4#,KM3#,YM31,40..DLX,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 53881-95701 |
CM3#,4#,KM3#,YM31,40..DLX,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 53881-95701 |
CM3#,4#,KM3#,YM31,40..DLX,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 53881-95701 |
CM3#,4#,KM3#,YM31,40..DLX,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| Common parts | ||||
| 90048-71021 | ||||
| 90119-06012 | ||||
| 90159-60304 | ||||
| 90167-60001 | ||||
| 90189-06006 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90467-07064 | ||||
| 90950-01011 | ||||
| 90950-01065 | ||||
| 90950-01127 | ||||
| 90950-01133 | ||||
| 90950-01217 | ||||
| 90950-01398 | ||||
| 90950-01429 | ||||
| 90950-01453 | ||||
| 90950-06031 | ||||
| 90950-06053 | ||||
| 93560-56016 | ||||

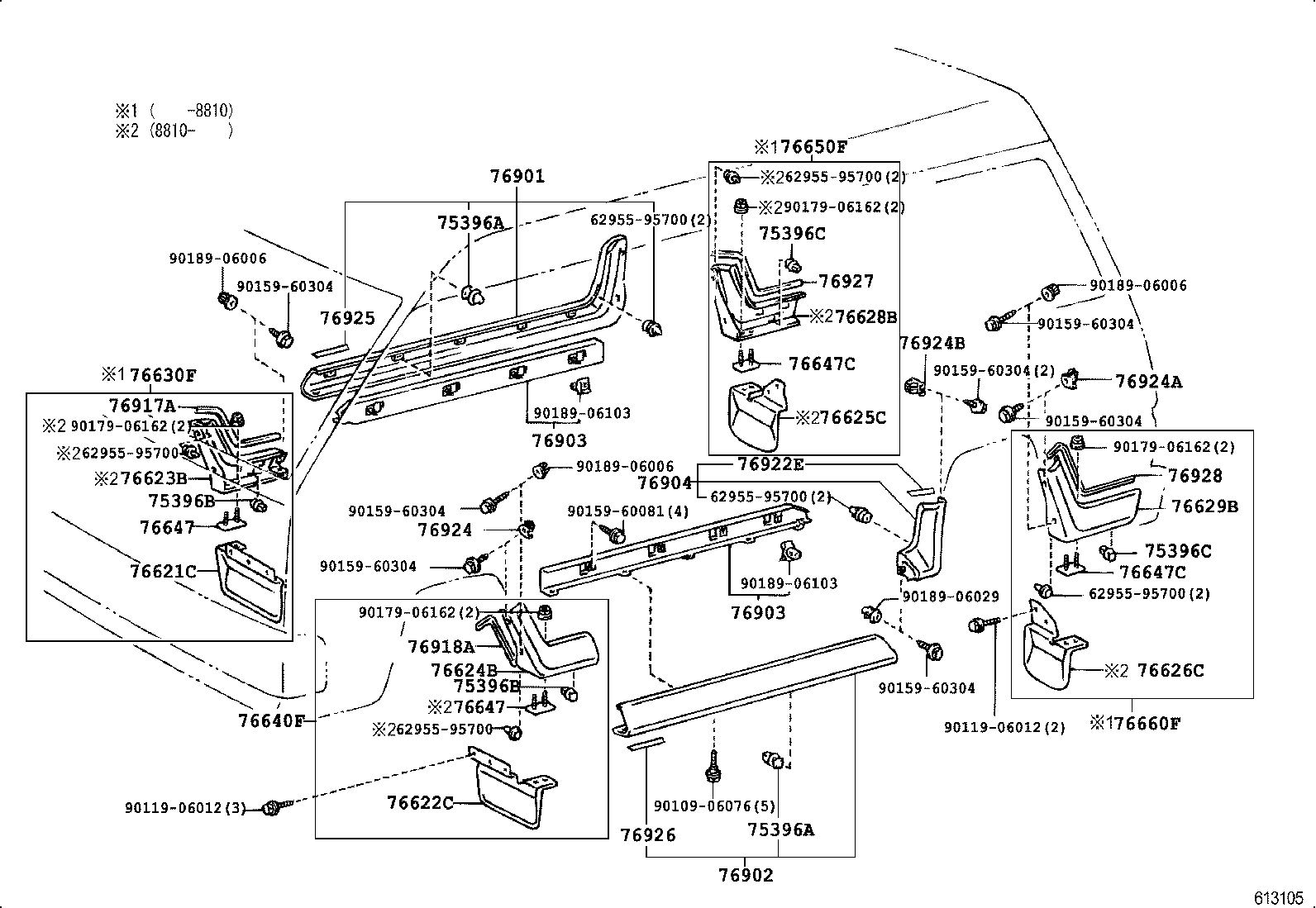

ILLUST NO. 2 OF 3(8808- )CM40,YM40 ; (8808- )CM30,KM30,YM30..FXV,GXL,SUC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75396A - CLIP, OUTSIDE MOULDING, NO.2 | ||||
| 75396-16020 |
CM30,KM30,YM30..FXV,GXL,SUC;CM40,YM40..W4D..(FXV,GXL,LD,SW) |
10 | ||
| 75396A - CLIP, OUTSIDE MOULDING, NO.2 | ||||
| 75396-16020 |
CM30,KM30,YM30..FXV,GXL,SUC;CM40,YM40..W4D..(FXV,GXL,LD,SW) |
10 | ||
| 75396B - CLIP, OUTSIDE MOULDING, NO.2 | ||||
| 75396-16020 |
CM40,YM40..W4D |
4 | ||
| 75396B - CLIP, OUTSIDE MOULDING, NO.2 | ||||
| 75396-16020 |
CM40,YM40..W4D |
4 | ||
| 75396C - CLIP, OUTSIDE MOULDING, NO.2 REAR | ||||
| 75396-16020 |
CM40,YM40..W4D;CM30,KM30,YM30..FXV,GXL,SUC |
4 | ||
| 75396C - CLIP, OUTSIDE MOULDING, NO.2 REAR | ||||
| 75396-16020 |
CM40,YM40..W4D;CM30,KM30,YM30..FXV,GXL,SUC |
4 | ||
| 76621C - MUDGUAD, FRONT FENDER, RH | ||||
| 76621-95703 |
CM40,YM40..W4D |
1 | ||
| 76622C - MUDGUARD, FRONT FENDER, LH | ||||
| 76622-95703 |
CM40,YM40..W4D |
1 | ||
| 76623B - MUDGUARD, FRONT FENDER, UPPER RH | ||||
| 76623-95700 |
CM40,YM40..W4D |
1 | ||
| 76624B - MUDGUARD, FRONT FENDER, UPPER LH | ||||
| 76624-95700 |
CM40,YM40..W4D |
1 | ||
| 76625C - MUDGUAD, QUARTER PANEL, REAR RH | ||||
| 76625-95703 |
CM40,YM40..W4D |
1 | ||
| 76626C - MUDGUAD, QUARTER PANEL, REAR LH | ||||
| 76626-95704 |
CM40,YM40..W4D |
1 | ||
| 76628B - MUDGUARD, QUARTER PANEL, UPPER REAR RH | ||||
| 76628-95700 |
CM40,YM40..W4D;CM30,KM30,YM30..FXV,GXL,SUC |
1 | ||
| 76629B - MUDGUARD, QUARTER PANEL, UPPER REAR LH | ||||
| 76629-95700 |
CM40,YM40..W4D;CM30,KM30,YM30..FXV,GXL,SUC |
1 | ||
| 76630F - MUDGUARD ASSY, FRONT RH | ||||
| 76630-95700 |
CM40,YM40;CM30,KM30,YM30..FXV,GXL,SUC |
1 | ||
| 76640F - MUDGUARD ASSY, FRONT LH | ||||
| 76640-95700 |
CM40,YM40;CM30,KM30,YM30..FXV,GXL,SUC |
1 | ||
| 76647 - RETAINER, QUARTER PANEL REAR MUDGUARD | ||||
| 76647-95700 |
CM40,YM40..W4D |
2 | ||
| 76647 - RETAINER, QUARTER PANEL REAR MUDGUARD | ||||
| 76647-95700 |
CM40,YM40..W4D |
2 | ||
| 76647C - RETAINER, QUARTER PANEL REAR MUDGUARD | ||||
| 76647-95700 |
CM40,YM40..W4D;CM30,KM30,YM30..FXV,GXL,SUC |
2 | ||
| 76647C - RETAINER, QUARTER PANEL REAR MUDGUARD | ||||
| 76647-95700 |
CM40,YM40..W4D;CM30,KM30,YM30..FXV,GXL,SUC |
2 | ||
| 76650F - MUDGUARD ASSY, REAR RH | ||||
| 76650-95700 |
CM40,YM40 |
1 | ||
| 76660F - MUDGUARD ASSY, REAR LH | ||||
| 76660-95700 |
CM40,YM40 |
1 | ||
| 76901 - MUDGUARD SUB-ASSY, SIDE, RH | ||||
| 76901-95700 |
CM30,KM30,YM30..FXV,GXL,SUC;CM40,YM40..W4D..(FXV,GXL,LD,SW) |
1 | ||
| 76902 - MUDGUARD SUB-ASSY, SIDE, LH | ||||
| 76902-95700 |
CM30,KM30,YM30..FXV,GXL,SUC;CM40,YM40..W4D..(FXV,GXL,LD,SW) |
1 | ||
| 76903 - RETAINER SUB-ASSY, SIDE MUDGUARD | ||||
| 76903-95700 |
CM30,KM30,YM30..FXV,GXL,SUC;CM40,YM40..W4D..(FXV,GXL,LD,SW) |
2 | ||
| 76903 - RETAINER SUB-ASSY, SIDE MUDGUARD | ||||
| 76903-95700 |
CM30,KM30,YM30..FXV,GXL,SUC;CM40,YM40..W4D..(FXV,GXL,LD,SW) |
2 | ||
| 76904 - MUDGUARD SUB-ASSY, SIDE, NO.2 | ||||
| 76904-95700 |
CM30,KM30,YM30..FXV,GXL,SUC;CM40,YM40..W4D..(FXV,GXL,LD,SW) |
1 | ||
| 76917A - PROTECTER, FRONT MUDGUARD, RH | ||||
| 76917-95700 |
CM40,YM40..W4D |
1 | ||
| 76918A - PROTECTER, FRONT MUDGUARD, LH | ||||
| 76918-95700 |
CM40,YM40..W4D |
1 | ||
| 76922E - PROTECTOR, SIDE MUDGUARD, NO.2 | ||||
| 76922-95700 |
CM40,YM40..W4D..(FXV,GXL,LD,SW) |
1 | ||
| 76924 - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-95700 |
CM40,YM40..W4D;CM30,KM30,YM30..FXV,GXL,SUC |
2 | ||
| 76924A - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-95700 |
CM40,YM40..W4D;CM30,KM30,YM30..FXV,GXL,SUC |
2 | ||
| 76924B - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-95700 |
CM30,KM30,YM30..FXV,GXL,SUC;CM40,YM40..W4D..(FXV,GXL,LD,SW) |
4 | ||
| 76925 - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76925-95700 |
CM40,YM40..W4D..(FXV,GXL,LD,SW) |
1 | ||
| 76926 - PROTECTOR, SIDE MUDGUARD, LH | ||||
| 76926-95700 |
CM40,YM40..W4D..(FXV,GXL,LD,SW) |
1 | ||
| 76927 - PROTECTER, REAR MUDGUARD, RH | ||||
| 76927-95700 |
CM40,YM40..W4D;CM30,KM30,YM30..FXV,GXL,SUC |
1 | ||
| 76928 - PROTECTER, REAR MUDGUARD, LH | ||||
| 76928-95700 |
CM40,YM40..W4D;CM30,KM30,YM30..FXV,GXL,SUC |
1 | ||
| Common parts | ||||
| 62955-95700 | ||||
| 90109-06076 | ||||
| 90119-06012 | ||||
| 90159-60081 | ||||
| 90159-60304 | ||||
| 90179-06162 | ||||
| 90189-06006 | ||||
| 90189-06029 | ||||
| 90189-06103 | ||||
ILLUST NO. 3 OF 3(8808- )CM30,40,KM30,YM30,40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61753B - FILM, QUARTER INNER PANEL, NO.1 | ||||
| 61753-95701 |
CM30,36,4#,KM3#,YM3#,40..V4D,W4D,W5D |
1 | ||
| 61754A - FILM, QUARTER INNER PANEL, NO.2 | ||||
| 61754-95700 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 61754A - FILM, QUARTER INNER PANEL, NO.2 | ||||
| 61754-95700 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 61755B - FILM, QUARTER INNER PANEL, NO.3 | ||||
| 61755-95700 |
CM30,40,KM30,YM30,40 |
1 | ||
| 61899A - DUSTPROOF, QUARTER PANEL | ||||
| 61899-95700 |
CM30..5F..FXV;CM40,KM30,YM30,40;CM30..GXL,LD,SSW,SUC,SW 100 X 100 X 510 |
2 | ||
| 61899-95701 |
CM30..5F..FXV;CM40,KM30,YM30,40;CM30..GXL,LD,SSW,SUC,SW 100 X 100 X 170 |
1 | ||
| 61899A - DUSTPROOF, QUARTER PANEL | ||||
| 61899-95700 |
CM30..5F..FXV;CM40,KM30,YM30,40;CM30..GXL,LD,SSW,SUC,SW 100 X 100 X 510 |
2 | ||
| 61899-95701 |
CM30..5F..FXV;CM40,KM30,YM30,40;CM30..GXL,LD,SSW,SUC,SW 100 X 100 X 170 |
1 | ||
| 61899A - DUSTPROOF, QUARTER PANEL | ||||
| 61899-95700 |
CM30..5F..FXV;CM40,KM30,YM30,40;CM30..GXL,LD,SSW,SUC,SW 100 X 100 X 510 |
2 | ||
| 61899-95701 |
CM30..5F..FXV;CM40,KM30,YM30,40;CM30..GXL,LD,SSW,SUC,SW 100 X 100 X 170 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
