CM40G-MMSFX (1989)
Toyota Liteace Van,Wagon
(9008- )2CT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15690 - VALVE ASSY, OIL COOLER RELIEF | ||||
| 15690-55020 |
2CT..CM30,40 |
1 | ||
| 15690-64030 |
2CT..CM40 |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-64040 |
2CT..CM30,40 |
1 | ||
| 15710-64060 |
2CT..CM40 |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 90301-24006 |
2CT..CM40 |
1 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 90301-61003 |
2CT..CM30,40 |
1 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 90445-21006 |
2CT..CM30,40 |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15768-64050 |
2CT..CM30,40 NO.2 |
1 | ||
| 15767-64030 |
2CT..CM30,40 NO.1 |
1 | ||
| 15769-64010 |
2CT..CM30,40 NO.3 |
1 | ||
| 15768-64080 |
2CT..CM30,40 NO.2 |
1 | ||
| 15767-64031 |
2CT..CM30,40 NO.1 |
1 | ||
| 15769-64010 |
2C#..CM3#,4# NO.3 |
1 | ||
| 15768-64081 |
2CT..CM30,40 NO.2 |
1 | ||
| 15769-64011 |
2CT..CM30,40 NO.3 |
1 | ||
| 15767-64030 |
2CT..CM30,40 NO.1 |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15768-64050 |
2CT..CM30,40 NO.2 |
1 | ||
| 15767-64030 |
2CT..CM30,40 NO.1 |
1 | ||
| 15769-64010 |
2CT..CM30,40 NO.3 |
1 | ||
| 15768-64080 |
2CT..CM30,40 NO.2 |
1 | ||
| 15767-64031 |
2CT..CM30,40 NO.1 |
1 | ||
| 15769-64010 |
2C#..CM3#,4# NO.3 |
1 | ||
| 15768-64081 |
2CT..CM30,40 NO.2 |
1 | ||
| 15769-64011 |
2CT..CM30,40 NO.3 |
1 | ||
| 15767-64030 |
2CT..CM30,40 NO.1 |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15768-64050 |
2CT..CM30,40 NO.2 |
1 | ||
| 15767-64030 |
2CT..CM30,40 NO.1 |
1 | ||
| 15769-64010 |
2CT..CM30,40 NO.3 |
1 | ||
| 15768-64080 |
2CT..CM30,40 NO.2 |
1 | ||
| 15767-64031 |
2CT..CM30,40 NO.1 |
1 | ||
| 15769-64010 |
2C#..CM3#,4# NO.3 |
1 | ||
| 15768-64081 |
2CT..CM30,40 NO.2 |
1 | ||
| 15769-64011 |
2CT..CM30,40 NO.3 |
1 | ||
| 15767-64030 |
2CT..CM30,40 NO.1 |
1 | ||
| 15777C - HOSE, OIL COOLER | ||||
| 15778-64010 |
2CT..CM30,40 NO.2 |
1 | ||
| 15777-64020 |
2CT..CM30,40 NO.1 |
1 | ||
| 15777-64021 |
2CT..CM30,40 NO.1 |
1 | ||
| 15777C - HOSE, OIL COOLER | ||||
| 15778-64010 |
2CT..CM30,40 NO.2 |
1 | ||
| 15777-64020 |
2CT..CM30,40 NO.1 |
1 | ||
| 15777-64021 |
2CT..CM30,40 NO.1 |
1 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2C#..CM3#,4# |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2C#..CM3#,4# |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2C#..CM3#,4# |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2C#..CM3#,4# |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2C#..CM3#,4# |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2C#..CM3#,4# |
6 | ||
| 15777J - BOLT, UNION(FOR OIL COOLER PIPE) | ||||
| 90401-20004 |
2C#..CM3#,4# |
1 | ||
| 90401-20010 |
2CT..CM30,40 |
1 | ||
| 15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT) | ||||
| 90430-20004 |
2C#..CM3#,4# |
2 | ||
| 15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT) | ||||
| 90430-20004 |
2C#..CM3#,4# |
2 | ||
| Common parts | ||||
| 90461-10621 | ||||
| 91621-60612 | ||||

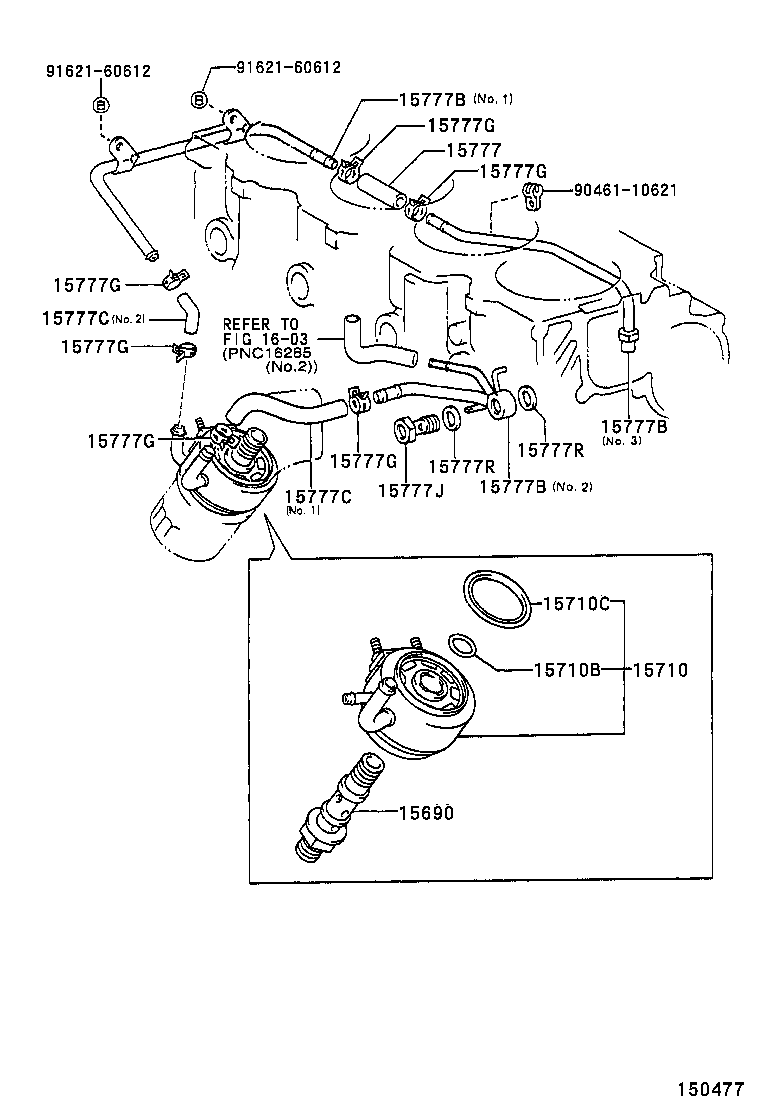

| Linked diagrams | ||||
| 1603 | ||||
(8808-9008)2CT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15690 - VALVE ASSY, OIL COOLER RELIEF | ||||
| 15690-55020 |
2CT..CM30,40 |
1 | ||
| 15690-64030 |
2CT..CM40 |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-64040 |
2CT..CM30,40 |
1 | ||
| 15710-64060 |
2CT..CM40 |
1 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 90301-61003 |
2CT..CM30,40 |
1 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 90445-21006 |
2CT..CM30,40 |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15768-64050 |
2CT..CM30,40 NO.2 |
1 | ||
| 15767-64030 |
2CT..CM30,40 NO.1 |
1 | ||
| 15769-64010 |
2CT..CM30,40 NO.3 |
1 | ||
| 15768-64080 |
2CT..CM30,40 NO.2 |
1 | ||
| 15767-64031 |
2CT..CM30,40 NO.1 |
1 | ||
| 15769-64010 |
2C#..CM3#,4# NO.3 |
1 | ||
| 15768-64081 |
2CT..CM30,40 NO.2 |
1 | ||
| 15769-64011 |
2CT..CM30,40 NO.3 |
1 | ||
| 15767-64030 |
2CT..CM30,40 NO.1 |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15768-64050 |
2CT..CM30,40 NO.2 |
1 | ||
| 15767-64030 |
2CT..CM30,40 NO.1 |
1 | ||
| 15769-64010 |
2CT..CM30,40 NO.3 |
1 | ||
| 15768-64080 |
2CT..CM30,40 NO.2 |
1 | ||
| 15767-64031 |
2CT..CM30,40 NO.1 |
1 | ||
| 15769-64010 |
2C#..CM3#,4# NO.3 |
1 | ||
| 15768-64081 |
2CT..CM30,40 NO.2 |
1 | ||
| 15769-64011 |
2CT..CM30,40 NO.3 |
1 | ||
| 15767-64030 |
2CT..CM30,40 NO.1 |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15768-64050 |
2CT..CM30,40 NO.2 |
1 | ||
| 15767-64030 |
2CT..CM30,40 NO.1 |
1 | ||
| 15769-64010 |
2CT..CM30,40 NO.3 |
1 | ||
| 15768-64080 |
2CT..CM30,40 NO.2 |
1 | ||
| 15767-64031 |
2CT..CM30,40 NO.1 |
1 | ||
| 15769-64010 |
2C#..CM3#,4# NO.3 |
1 | ||
| 15768-64081 |
2CT..CM30,40 NO.2 |
1 | ||
| 15769-64011 |
2CT..CM30,40 NO.3 |
1 | ||
| 15767-64030 |
2CT..CM30,40 NO.1 |
1 | ||
| 15777C - HOSE, OIL COOLER | ||||
| 15778-64010 |
2CT..CM30,40 NO.2 |
1 | ||
| 15777-64020 |
2CT..CM30,40 NO.1 |
1 | ||
| 15777-64021 |
2CT..CM30,40 NO.1 |
1 | ||
| 15777C - HOSE, OIL COOLER | ||||
| 15778-64010 |
2CT..CM30,40 NO.2 |
1 | ||
| 15777-64020 |
2CT..CM30,40 NO.1 |
1 | ||
| 15777-64021 |
2CT..CM30,40 NO.1 |
1 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2C#..CM3#,4# |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2C#..CM3#,4# |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2C#..CM3#,4# |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2C#..CM3#,4# |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2C#..CM3#,4# |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2C#..CM3#,4# |
6 | ||
| 15777J - BOLT, UNION(FOR OIL COOLER PIPE) | ||||
| 90401-20004 |
2C#..CM3#,4# |
1 | ||
| 90401-20010 |
2CT..CM30,40 |
1 | ||
| 15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT) | ||||
| 90430-20004 |
2C#..CM3#,4# |
2 | ||
| 15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT) | ||||
| 90430-20004 |
2C#..CM3#,4# |
2 | ||
| Common parts | ||||
| 90461-10621 | ||||
| 91621-60612 | ||||
