Toyota Liteace van,wagon CM36 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
JP
LITEACE VAN,WAGON
CM36V-PDZF (1988)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

CM36V-PDZF (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992

Engine 2C

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

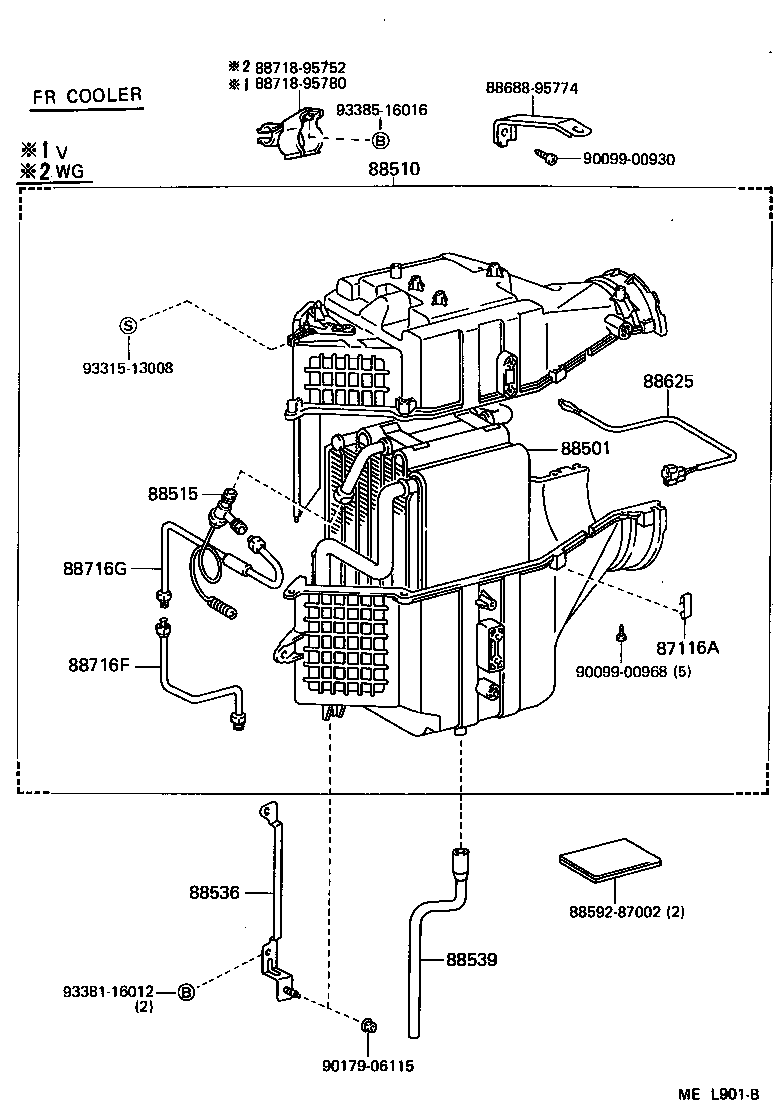

ILLUST NO. 1 OF 4(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	YM30;CM31,36,4#,KM31,35,36..V4D,V5D,W5D	08/1988 - 08/1990	5
87116-14010	CM31,36,41,KM31,36,YM3#	08/1990 - 01/1992	5
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95712	YM30;CM31,36,4#,KM31,35,36..V4D,V5D,W5D ﾌﾛﾝﾄ	08/1988 - 08/1990	1
88501-95712	CM31,36,41,KM31,36,YM3# ﾌﾛﾝﾄ	08/1990 - 01/1992	1
88510 - UNIT ASSY, COOLER
88510-95723	YM30..GXL;CM31,36,4#,KM31,35,36..V4D,V5D,W5D ﾌﾛﾝﾄ	08/1988 - 08/1990	1
88510-95723	CM31,36,41,KM31,36,YM3#..DLX,GXL,SUP ﾌﾛﾝﾄ	08/1990 - 01/1992	1
88515 - VALVE, COOLER EXPANSION
88515-87004	CM31,36,41,KM31,35,36,YM31	08/1988 - 01/1992	1
88536 - BRACKET, COOLING UNIT, NO.1
88688-95747	YM30;CM31,36,4#,KM31,35,36..V4D,V5D,W5D	08/1988 - 08/1990	1
88688-95747	CM31,36,41,KM31,36,YM3#	08/1990 - 01/1992	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95709	YM30;CM31,36,4#,KM31,35,36..V4D,V5D,W5D ﾌﾛﾝﾄ	08/1988 - 08/1990	1
88539-95709	CM31,36,41,KM31,36,YM3# ﾌﾛﾝﾄ	08/1990 - 01/1992	1
88625 - THERMISTOR, COOLER, NO.1
88625-12070	YM30;CM31,36,4#,KM31,35,36..V4D,V5D,W5D ﾌﾛﾝﾄ	08/1988 - 08/1990	1
88625-12070	KM31,36,YM31;CM36,41,YM30..MRF,SRF ﾌﾛﾝﾄ	08/1990 - 01/1992	1
88625-12070	CM31,36..HRF FR	08/1990 - 01/1992	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-95753	YM30;CM31,36,4#,KM31,35,36..V4D,V5D,W5D ﾌﾛﾝﾄ	08/1988 - 08/1990	1
88716-95753	CM31,36,41,KM31,36,YM3# ﾌﾛﾝﾄ	08/1990 - 01/1992	1
88716G - PIPE, COOLER REFRIGERANT LIQUID, G
88716-95752	CM31,36,41,KM31,36,YM3#	08/1990 - 01/1992	1
88716-95752	YM30;CM31,36,4#,KM31,35,36..V4D,V5D,W5D	08/1988 - 08/1990	1
Common parts
88592-87002
88688-95774
88718-95752
88718-95780
90099-00930
90099-00968
90179-06115
93315-13008
93381-16012
93385-16016

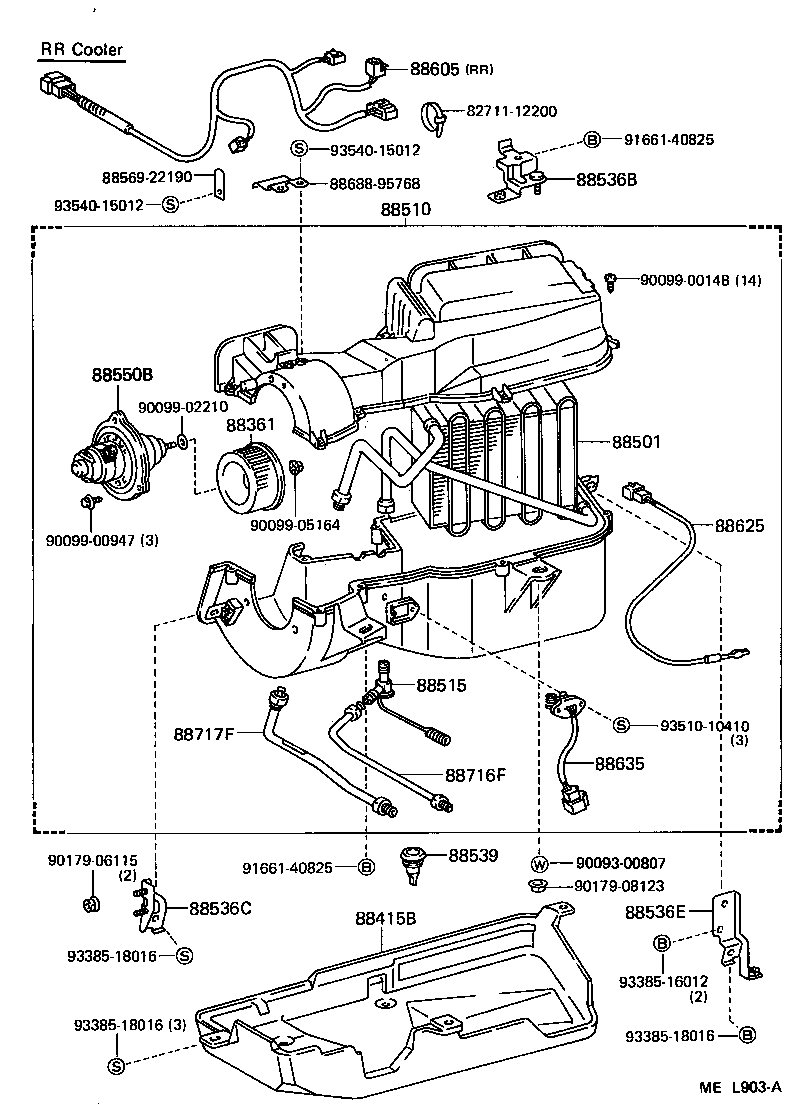

ILLUST NO. 3 OF 4(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95712	YM30;CM31,36,4#,KM31,35,36..V4D,V5D,W5D ﾌﾛﾝﾄ	08/1988 - 08/1990	1
88501-95712	CM31,36,41,KM31,36,YM3# ﾌﾛﾝﾄ	08/1990 - 01/1992	1
88510 - UNIT ASSY, COOLER
88510-95723	YM30..GXL;CM31,36,4#,KM31,35,36..V4D,V5D,W5D ﾌﾛﾝﾄ	08/1988 - 08/1990	1
88510-95723	CM31,36,41,KM31,36,YM3#..DLX,GXL,SUP ﾌﾛﾝﾄ	08/1990 - 01/1992	1
88515 - VALVE, COOLER EXPANSION
88515-87004	CM31,36,41,KM31,35,36,YM31	08/1988 - 01/1992	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95709	YM30;CM31,36,4#,KM31,35,36..V4D,V5D,W5D ﾌﾛﾝﾄ	08/1988 - 08/1990	1
88539-95709	CM31,36,41,KM31,36,YM3# ﾌﾛﾝﾄ	08/1990 - 01/1992	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95728	KM31,35,36	08/1988 - 08/1990	1
88605-95727	CM31,36	08/1988 - 01/1992	1
88625 - THERMISTOR, COOLER, NO.1
88625-12070	YM30;CM31,36,4#,KM31,35,36..V4D,V5D,W5D ﾌﾛﾝﾄ	08/1988 - 08/1990	1
88625-12070	KM31,36,YM31;CM36,41,YM30..MRF,SRF ﾌﾛﾝﾄ	08/1990 - 01/1992	1
88625-12070	CM31,36..HRF FR	08/1990 - 01/1992	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-95753	YM30;CM31,36,4#,KM31,35,36..V4D,V5D,W5D ﾌﾛﾝﾄ	08/1988 - 08/1990	1
88716-95753	CM31,36,41,KM31,36,YM3# ﾌﾛﾝﾄ	08/1990 - 01/1992	1
Common parts
82711-12200
88569-22190
88688-95768
90093-00807
90099-00148
90099-00947
90099-02210
90099-05164
90179-06115
90179-08123
91661-40825
93385-16012
93385-18016
93510-10410
93540-15012

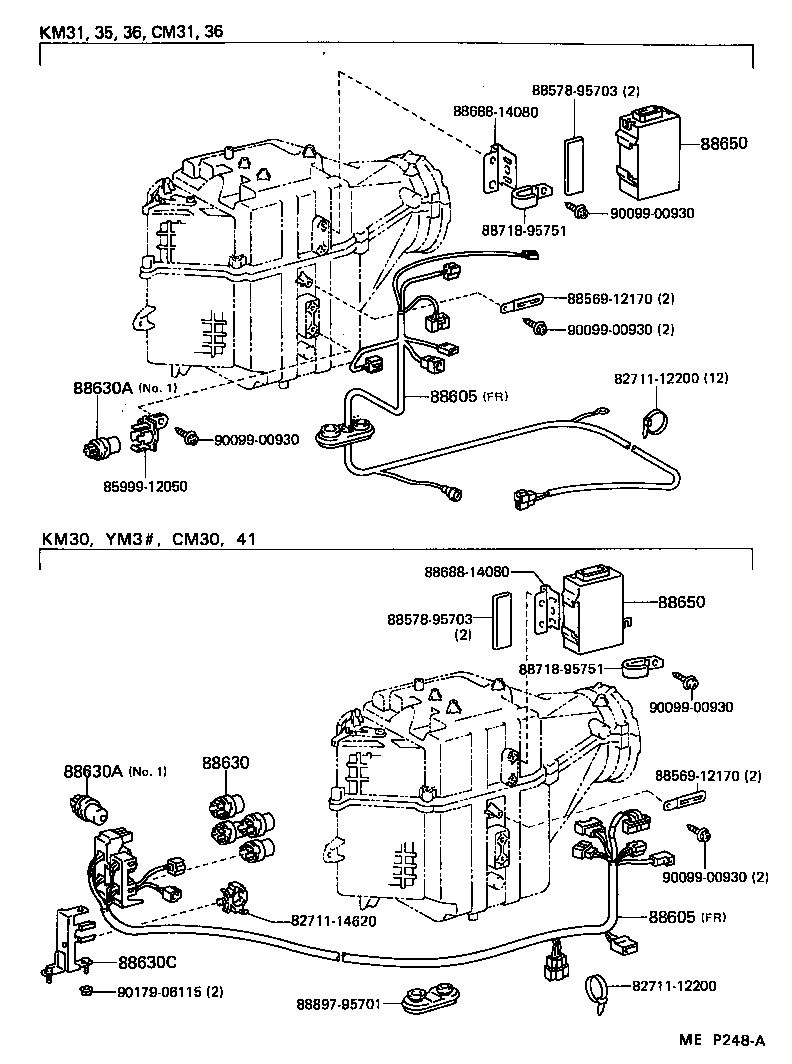

ILLUST NO. 2 OF 4(8808- )CM3#,41,KM3#,YM3#

Click highlighted areas on diagram

Part #	Description	Period	Qty
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95728	KM31,35,36	08/1988 - 08/1990	1
88605-95727	CM31,36	08/1988 - 01/1992	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95728	KM31,35,36	08/1988 - 08/1990	1
88605-95727	CM31,36	08/1988 - 01/1992	1
88630A - RELAY ASSY, COOLER
90987-03001	YM30;CM31,36,4#..V4D,V5D,W5D NO.1	08/1988 - 08/1990	1
90987-03001	CM31,36,41,YM30 NO.1	08/1990 - 01/1992	1
88630-60020	KM31,36 NO.1	08/1990 - 01/1992	1
88630A - RELAY ASSY, COOLER
90987-03001	YM30;CM31,36,4#..V4D,V5D,W5D NO.1	08/1988 - 08/1990	1
90987-03001	CM31,36,41,YM30 NO.1	08/1990 - 01/1992	1
88630-60020	KM31,36 NO.1	08/1990 - 01/1992	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-87101	KM31,35,36	08/1988 - 08/1990	1
88650-14030	CM31,36,41	08/1988 - 01/1992	1
88650-27010	KM31,36	08/1990 - 01/1992	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-87101	KM31,35,36	08/1988 - 08/1990	1
88650-14030	CM31,36,41	08/1988 - 01/1992	1
88650-27010	KM31,36	08/1990 - 01/1992	1
Common parts
82711-12200
82711-14620
85999-12050
88569-12170
88578-95703
88688-14080
88718-95751
88897-95701
90099-00930
90179-06115

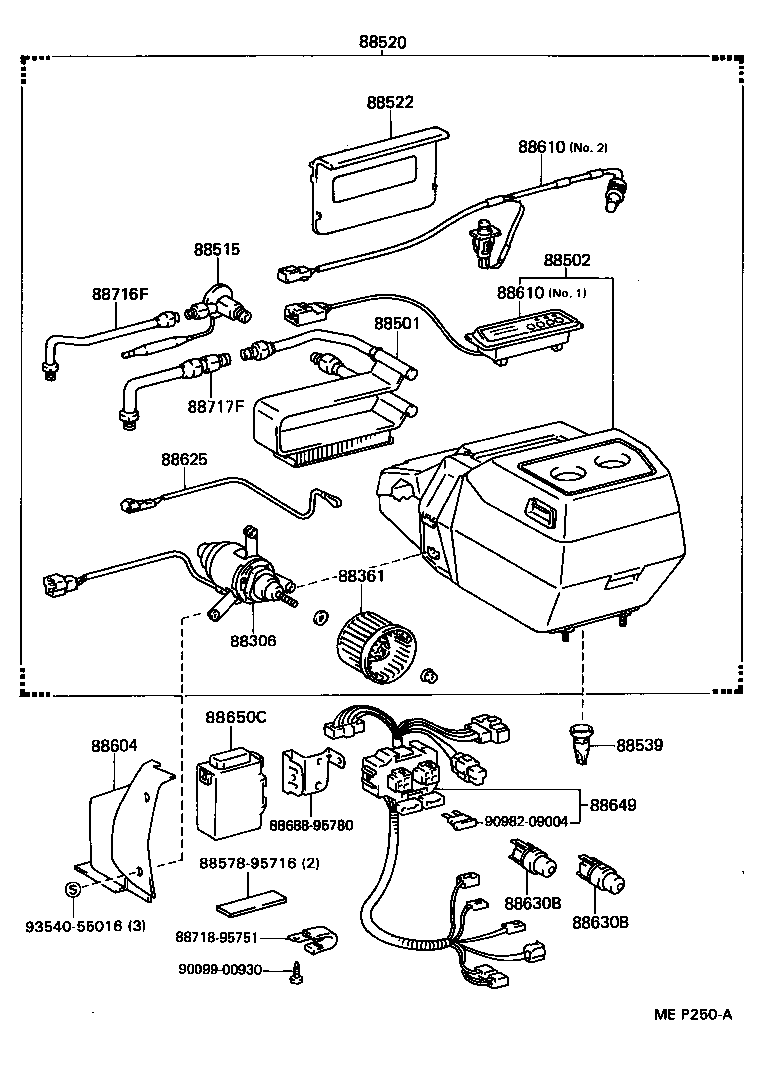

ILLUST NO. 4 OF 4(8808- )

Click highlighted areas on diagram

COOL BOX

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95712	YM30;CM31,36,4#,KM31,35,36..V4D,V5D,W5D ﾌﾛﾝﾄ	08/1988 - 08/1990	1
88501-95712	CM31,36,41,KM31,36,YM3# ﾌﾛﾝﾄ	08/1990 - 01/1992	1
88515 - VALVE, COOLER EXPANSION
88515-87004	CM31,36,41,KM31,35,36,YM31	08/1988 - 01/1992	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95709	YM30;CM31,36,4#,KM31,35,36..V4D,V5D,W5D ﾌﾛﾝﾄ	08/1988 - 08/1990	1
88539-95709	CM31,36,41,KM31,36,YM3# ﾌﾛﾝﾄ	08/1990 - 01/1992	1
88625 - THERMISTOR, COOLER, NO.1
88625-12070	YM30;CM31,36,4#,KM31,35,36..V4D,V5D,W5D ﾌﾛﾝﾄ	08/1988 - 08/1990	1
88625-12070	KM31,36,YM31;CM36,41,YM30..MRF,SRF ﾌﾛﾝﾄ	08/1990 - 01/1992	1
88625-12070	CM31,36..HRF FR	08/1990 - 01/1992	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-95753	YM30;CM31,36,4#,KM31,35,36..V4D,V5D,W5D ﾌﾛﾝﾄ	08/1988 - 08/1990	1
88716-95753	CM31,36,41,KM31,36,YM3# ﾌﾛﾝﾄ	08/1990 - 01/1992	1
Common parts
88578-95716
88688-95780
88718-95751
90099-00930
90982-09004
93540-55016
