CM36V-PDZF (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )DLX,SSW,SUP,SW

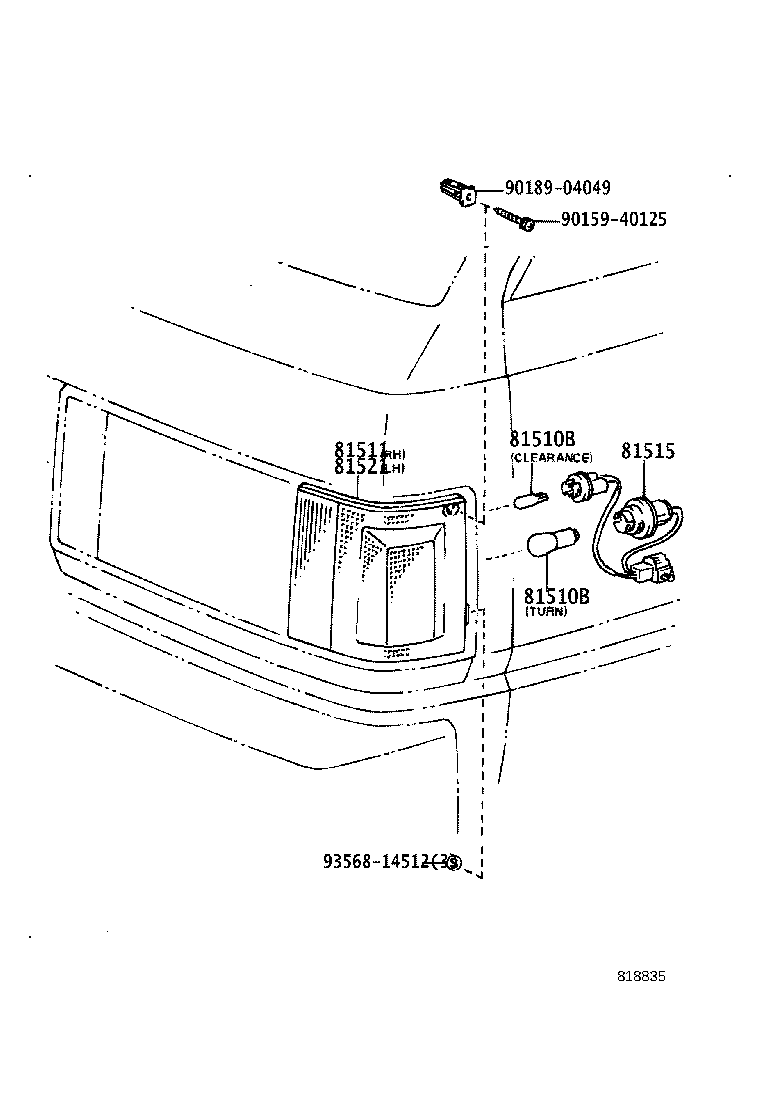

Click highlighted areas on diagram

diagram 81510B 81510B 81511 81515 81521 9015940125 9018904049 9356814512
Part # Description Qty Price
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-12050

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

12V 5W,CLEARANCE

 2
99132-11210

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

12V 21W,TURN

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-12050

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

12V 5W,CLEARANCE

 2
99132-11210

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

12V 21W,TURN

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-95706

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-95706

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

 2
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-95706

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

 1
Common parts
90159-40125
90189-04049
93568-14512
