CM36V-PDZF (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )DLX,LD,SW

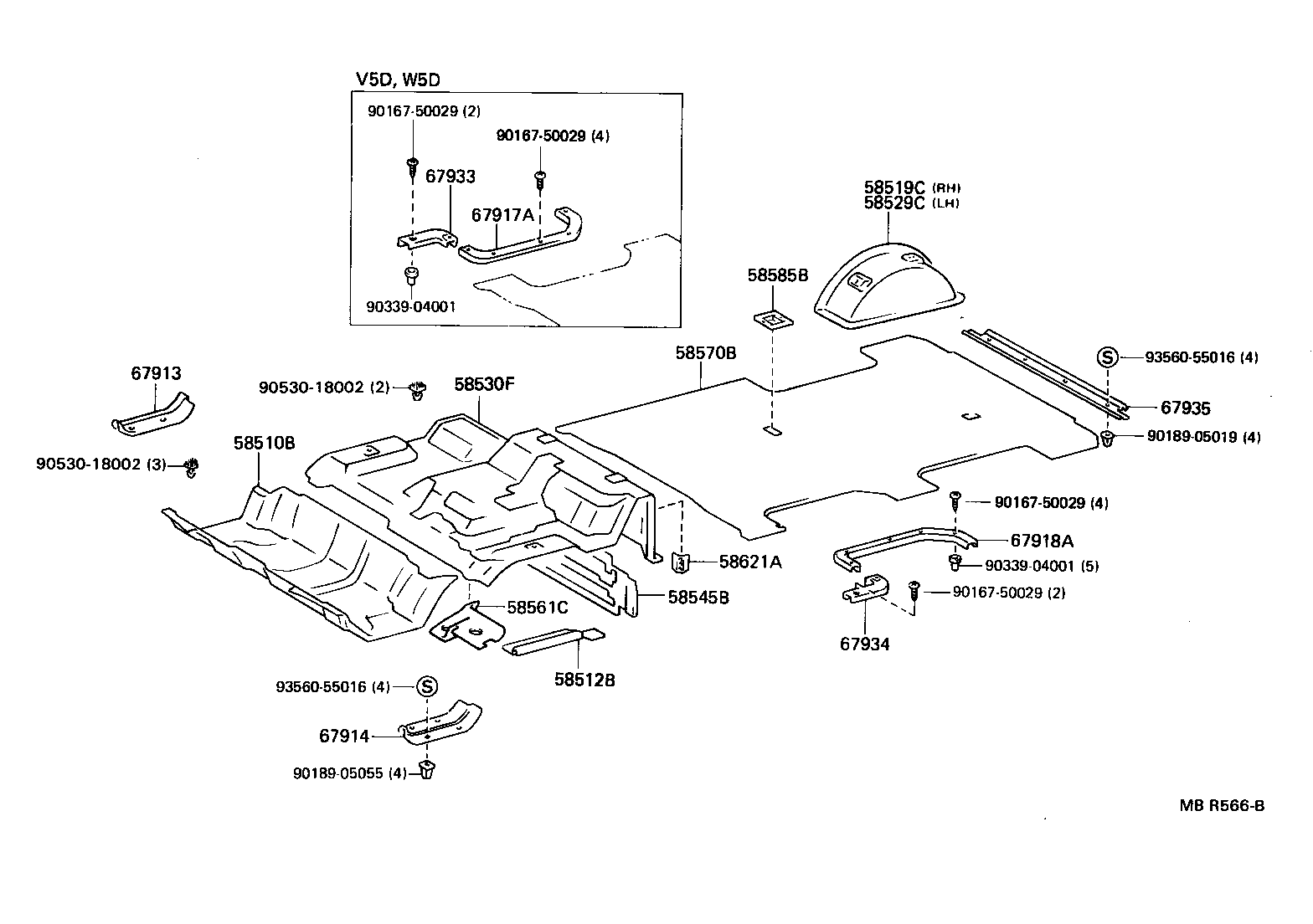

Click highlighted areas on diagram

diagram 58510B 58512B 58519C 58529C 58530F 58545B 58561C 58570B 58585B 58621A 67913 67914 67917A 67918A 67933 67934 67935 9016750029 9016750029 9016750029 9016750029 9018905019 9018905055 9033904001 9033904001 9053018002 9053018002 9356055016 9356055016
Part # Description Qty Price
58510B - MAT, FRONT FLOOR, FRONT
58510-9570003

CM30,36,4#,KM30,36,YM31,40..(3FC,4FC,5F)..(DLX,SW)

GRAY,TRIM1#

 1
58512B - MAT, FLOOR, FRONT LH
58512-9570303

CM3#,4#,KM3#,YM3#,40

GRAY,TRIM1#

 1
58530F - MAT ASSY, HEADER
58530-95G1403

CM36,41..V1

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,GRAY,TRIM1#

 1
58530-95G1303

CM36,41,YM31..V1..DLX

GRAY,TRIM1#

 1
58545B - SILENCER, HEADER PANEL
58545-95714

KM30,31;KM35,36..V1

 1
58545-95716

CM36..V1;CM30,31,YM3#

 1
58570B - MAT ASSY, REAR FLOOR
58570-9578803

KM35,36..V1..V5D..(05S,06S)

GRAY,TRIM1#

 1
58570-95G0903

CM36,41,YM31..V1..V5D..DLX..05S

GRAY,TRIM1#

 1
58621A - PLATE, MAT SET, NO.1 LH
58621-95706

CM3#,4#,KM3#,YM31..V5D,W5D

 2
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-9570213

CM3#,4#,KM3#,YM3#,40

GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-9570213

CM3#,4#,KM3#,YM3#,40

GRAY,TRIM1#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-95705

CM3#,4#,KM3#,YM31..V5D,W5D

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-95700

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

 1
67933 - PLATE, QUARTER SCUFF, INNER RH
67933-9570003

CM3#,4#,KM3#,YM31..V5D,W5D

GRAY,TRIM1#

 1
67934 - PLATE, QUARTER SCUFF, INSIDE LH
67934-9570003

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

GRAY,TRIM1#

 1
67935 - PLATE, BACK DOOR SCUFF
67935-95703

CM36,KM35,36..V1;CM30,31,4#,KM30,31,YM31,40..DLX,LD,SSW,SUP,SW

 1
Common parts
90167-50029
90189-05019
90189-05055
90339-04001
90530-18002
93560-55016
