CM36V-PDZ (1985)
Toyota Liteace Van,Wagon

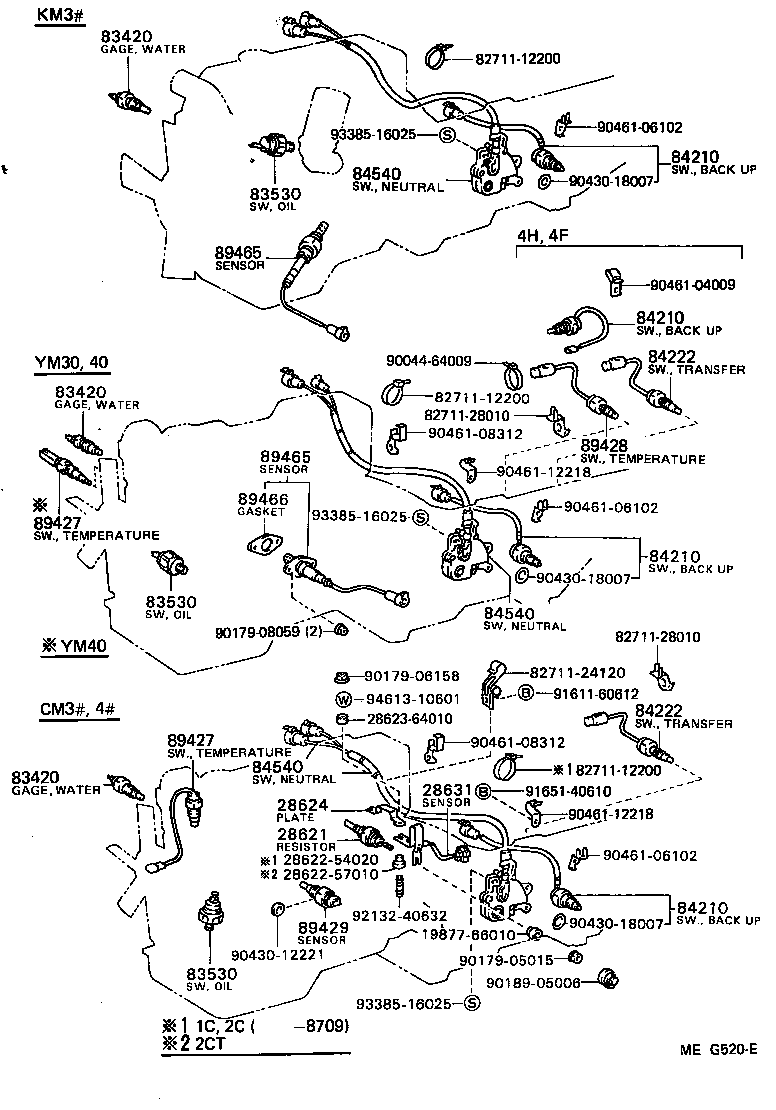

ILLUST NO. 1 OF 7(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-64011 |
1C,2C#..CM3#,4# |
1 | ||
| 28624 - PLATE, CURRENT SENSOR | ||||
| 28624-64010 |
1C,2C..CM3#,41 |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-64021 |
1C,2C..CM3#,41 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
CM3#,4# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
CM3#,4# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
CM3#,4# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-26030 |
KM30,35,36..4F,4H |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-26030 |
KM30,35,36..4F,4H |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-26030 |
KM30,35,36..4F,4H |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-26030 |
KM30,35,36..4F,4H |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-35020 |
CM30,36..4FC |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-35020 |
CM30,36..4FC |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-35020 |
CM30,36..4FC |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
CM3#,4# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28622-57010 | ||||
| 28623-64010 | ||||
| 82711-12200 | ||||
| 82711-24120 | ||||
| 82711-28010 | ||||
| 90044-64009 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90179-08059 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90461-04009 | ||||
| 90461-06102 | ||||
| 90461-08312 | ||||
| 90461-12218 | ||||
| 91611-60612 | ||||
| 91651-40610 | ||||
| 92132-40632 | ||||
| 93385-16025 | ||||
| 94613-10601 | ||||

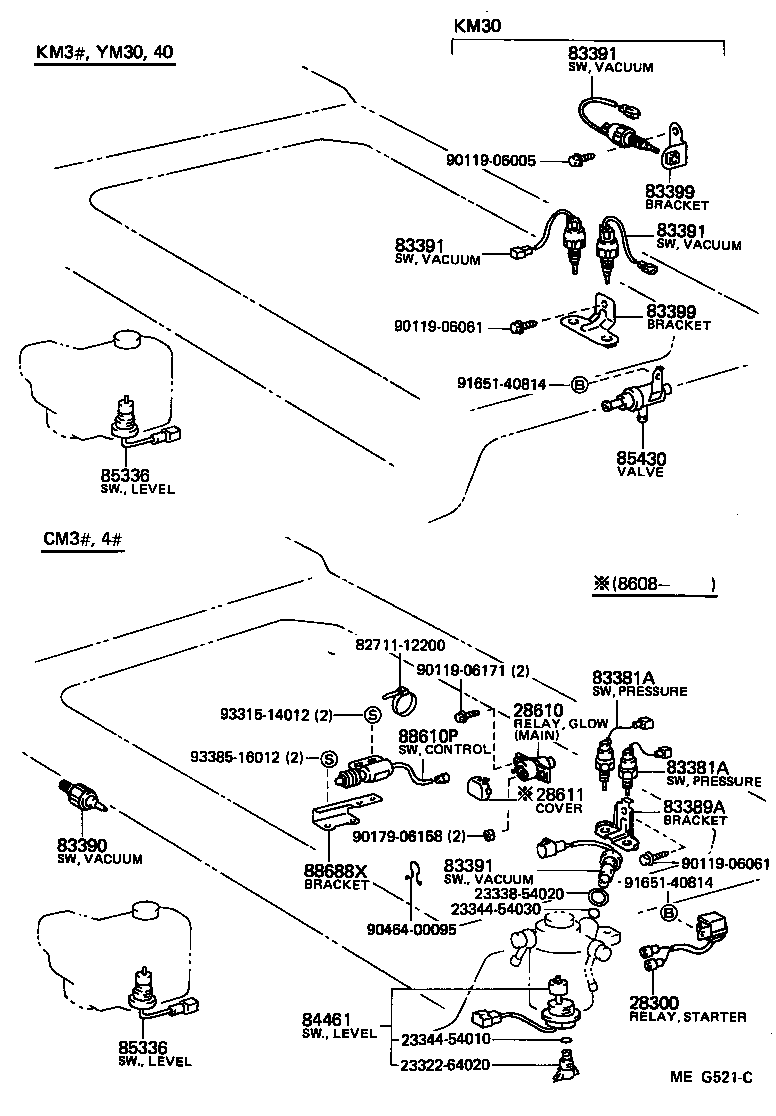

ILLUST NO. 2 OF 7(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-64010 |
2C#..CM30,36..4FC |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64030 |
1C,2C#..CM3#,4# MAIN |
1 | ||
| 28610-54021 |
1C,2C#..CM3#,4# SUB |
1 | ||
| 28610-55010 |
1C,2C#..CM3#,4# MAIN |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-55010 |
1C,2C#..CM3#,4# MAIN |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
CM3#,4# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-22060 |
CM3#,4# |
1 | ||
| 83391-32020 |
CM3#,4# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-22060 |
CM3#,4# |
1 | ||
| 83391-32020 |
CM3#,4# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-22060 |
CM3#,4# |
1 | ||
| 83391-32020 |
CM3#,4# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-22060 |
CM3#,4# |
1 | ||
| 83391-32020 |
CM3#,4# |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-26020 |
CM3#,4# |
1 | ||
| 84461-12050 |
CM3#,4# |
1 | ||
| Common parts | ||||
| 23322-64020 | ||||
| 23338-54020 | ||||
| 23344-54010 | ||||
| 23344-54030 | ||||
| 82711-12200 | ||||
| 90119-06005 | ||||
| 90119-06061 | ||||
| 90119-06171 | ||||
| 90179-06158 | ||||
| 90464-00095 | ||||
| 91651-40814 | ||||
| 93315-14012 | ||||
| 93385-16012 | ||||

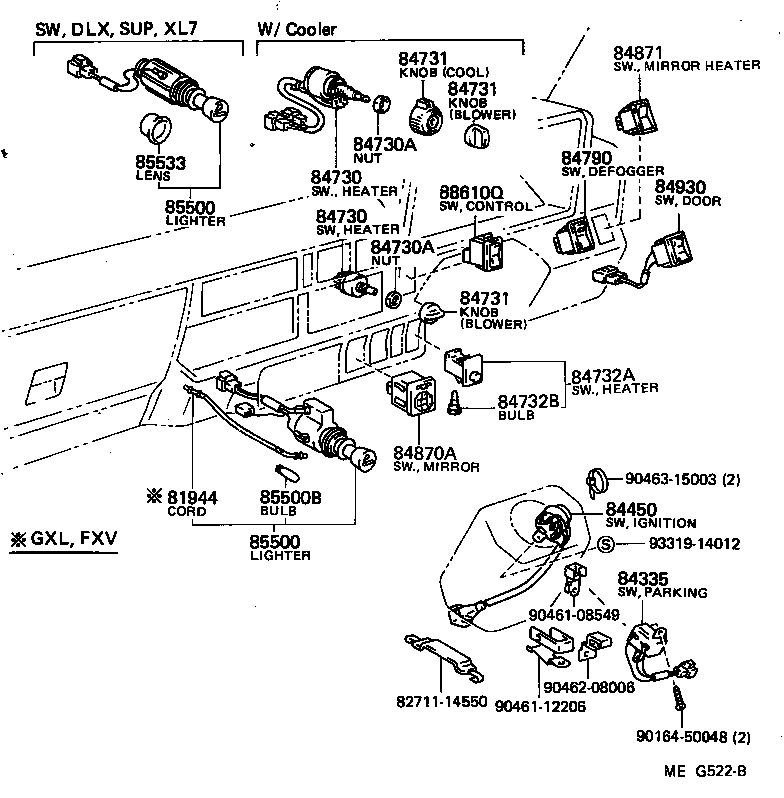

ILLUST NO. 3 OF 7(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-95701 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-27100 |
CM3#,4#,KM3#,YM40..DLX,SUC,SUP,SW,XL7 |
1 | ||
| 84450-27100 |
CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12020 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 84660-95702 |
CM3#,4#,KM3#,YM30,40 W/COOLER |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12020 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 84660-95702 |
CM3#,4#,KM3#,YM30,40 W/COOLER |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-20030 |
CM3#,4#,KM3#,YM30,40 W/COOLER,BLOWER |
1 | ||
| 84731-12010 |
CM3#,4#,KM3#,YM30,40 BLOWER |
1 | ||
| 84731-12032 |
CM3#,4#,KM3#,YM30,40 W/COOLER,COOL |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-20030 |
CM3#,4#,KM3#,YM30,40 W/COOLER,BLOWER |
1 | ||
| 84731-12010 |
CM3#,4#,KM3#,YM30,40 BLOWER |
1 | ||
| 84731-12032 |
CM3#,4#,KM3#,YM30,40 W/COOLER,COOL |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-20030 |
CM3#,4#,KM3#,YM30,40 W/COOLER,BLOWER |
1 | ||
| 84731-12010 |
CM3#,4#,KM3#,YM30,40 BLOWER |
1 | ||
| 84731-12032 |
CM3#,4#,KM3#,YM30,40 W/COOLER,COOL |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-32060 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-95702 |
CM35,36,41,KM31,35,36 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95710 |
CM3#,4#,KM3#,YM40..DLX,SCA,SUP,SW,XL7 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95710 |
CM3#,4#,KM3#,YM40..DLX,SCA,SUP,SW,XL7 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-95700 |
CM3#,4#,KM3#,YM40..DLX,SCA,SUP,SW,XL7 |
1 | ||
| 88610Q - SWITCH ASSY, IDLE UP | ||||
| 88610-95711 |
CM30,36..4FC |
1 | ||
| Common parts | ||||
| 82711-14550 | ||||
| 90164-50048 | ||||
| 90461-08549 | ||||
| 90461-12206 | ||||
| 90462-08006 | ||||
| 90463-15003 | ||||
| 93319-14012 | ||||

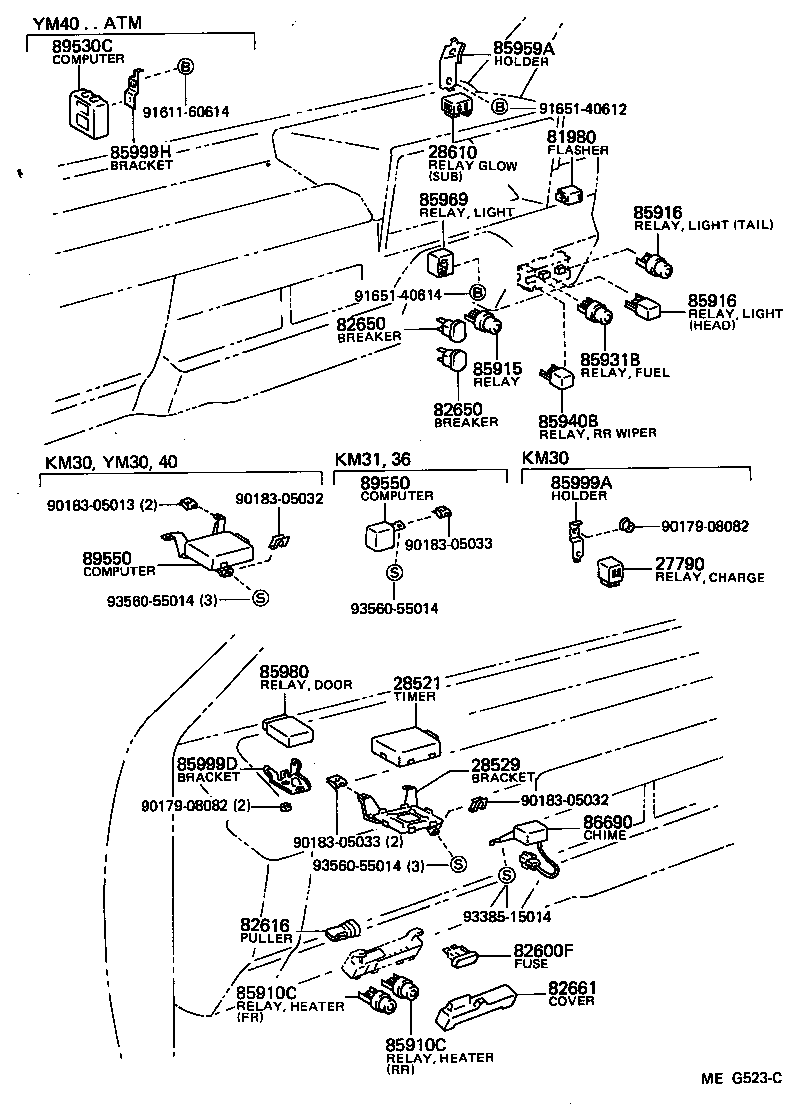

ILLUST NO. 5 OF 7(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28521 - TIMER, PREHEATING | ||||
| 28521-64290 |
1C,2C#..CM3#,4# |
1 | ||
| 28521-64260 |
1C,2C#..CM3#,4# |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-64050 |
1C,2C#..CM3#,4# |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64030 |
1C,2C#..CM3#,4# MAIN |
1 | ||
| 28610-54021 |
1C,2C#..CM3#,4# SUB |
1 | ||
| 28610-55010 |
1C,2C#..CM3#,4# MAIN |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 81980-22070 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
CM3#,4#,KM3#,YM30,40 7.5A,7.5A |
9 | ||
| 90982-09002 |
CM3#,4#,KM3#,YM30,40 10A,10A |
3 | ||
| 90982-09004 |
CM3#,4#,KM3#,YM30,40 20A,黄,20A |
1 | ||
| 90982-07011 |
CM3#,4#,KM3#,YM30,40 30A,ç·‘,30A |
1 | ||
| 90982-09003 |
CM3#,4#,KM3#,YM30,40 15A,15A |
7 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-35010 |
CM3#,4#,KM3#,YM30,40 20A,20A,W/*EL OR *PW |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-35010 |
CM3#,4#,KM3#,YM30,40 20A,20A,W/*EL OR *PW |
2 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82611-95705 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 82611-95709 |
CM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
CM3#,4#,KM3#,YM30,40 FR HEATER |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
CM3#,4#,KM3#,YM30,40 FR HEATER |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
CM3#,4#,KM3#,YM30,40 HEAD |
1 | ||
| 90987-01003 |
CM3#,4#,KM3#,YM30,40 TAIL |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
CM3#,4#,KM3#,YM30,40 HEAD |
1 | ||
| 90987-01003 |
CM3#,4#,KM3#,YM30,40 TAIL |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02004 |
CM3#,4# |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85913-30020 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 90987-04002 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-27010 |
CM3#,4# |
1 | ||
| 86690 - BUZZER ASSY, SPEED INDICATOR | ||||
| 86640-95700 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-27100 |
KM31,36 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-27100 |
KM31,36 |
1 | ||
| Common parts | ||||
| 90179-08082 | ||||
| 90183-05013 | ||||
| 90183-05032 | ||||
| 90183-05033 | ||||
| 91611-60614 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 93385-15014 | ||||
| 93560-55014 | ||||

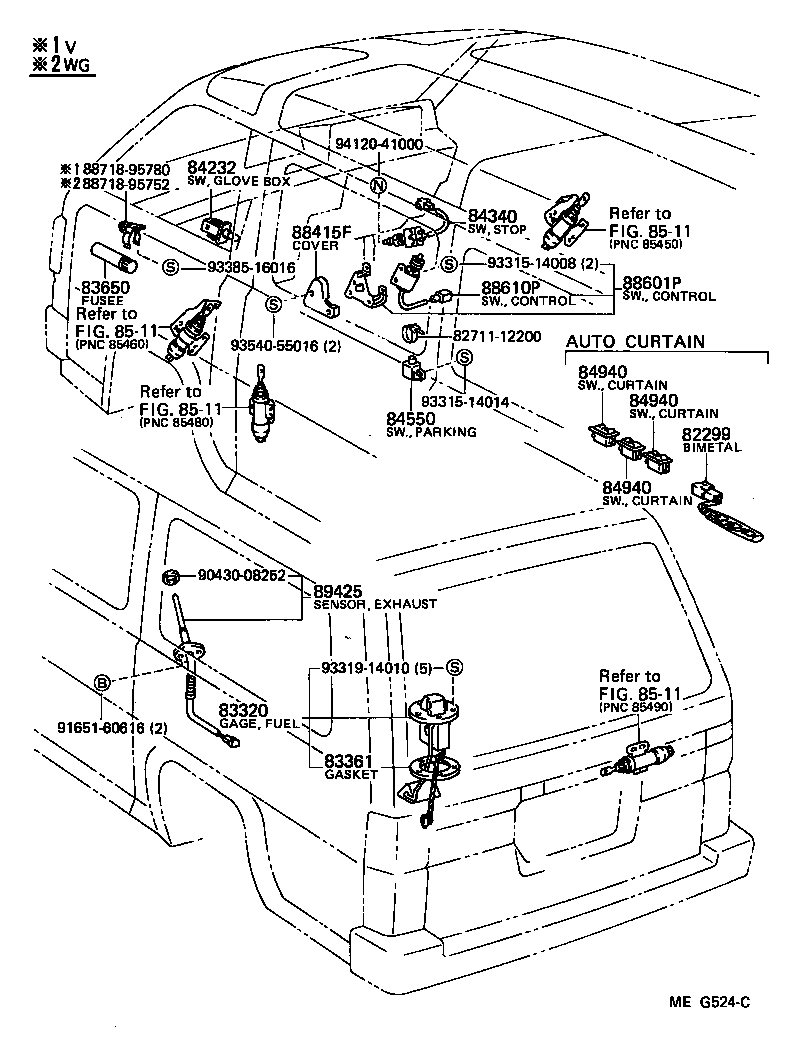

ILLUST NO. 6 OF 7(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80043 |
CM3#,KM3#..DLX,SCA,SUC,SUP,SW,XL7 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88718-95752 | ||||
| 88718-95780 | ||||
| 90430-08252 | ||||
| 91651-60616 | ||||
| 93315-14008 | ||||
| 93315-14014 | ||||
| 93319-14010 | ||||
| 93385-16016 | ||||
| 93540-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8511 | ||||

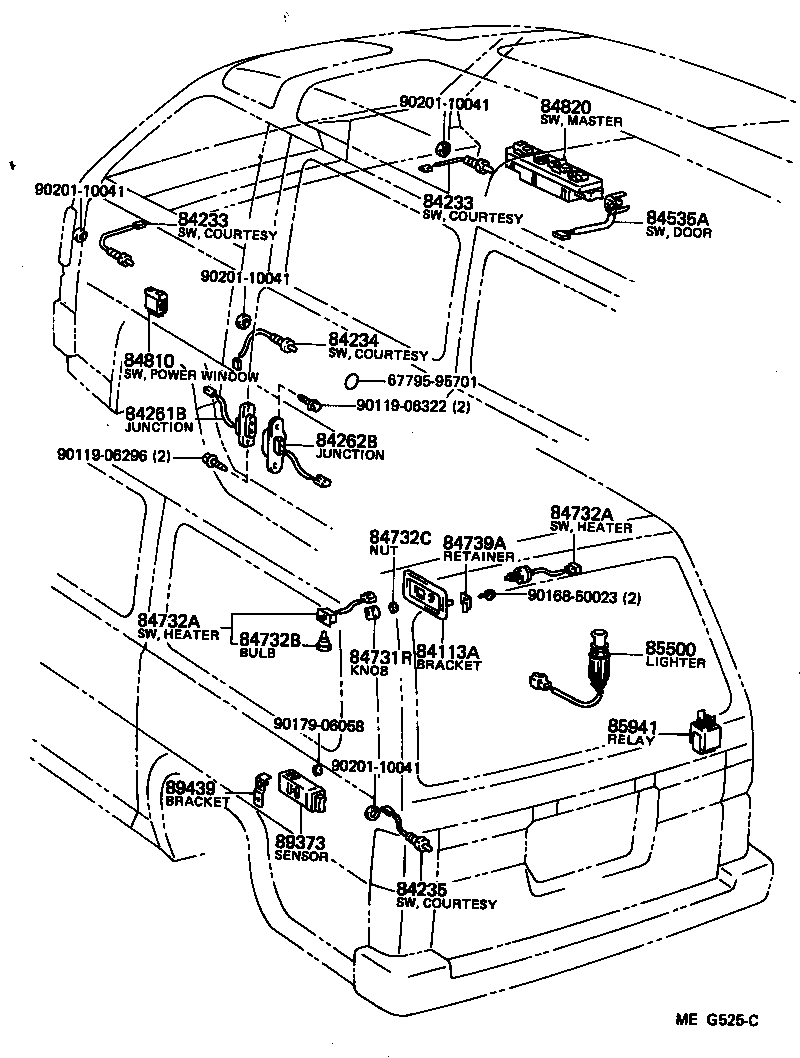

ILLUST NO. 7 OF 7(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-95703 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-95703 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-95702 |
CM35,36,41,KM31,35,36..V4D |
1 | ||
| 84230-95702 |
CM35,36,41,KM31,35,36..05S,06S |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-95703 |
CM35,36,41,KM31,35,36 |
1 | ||
| 84230-95703 |
CM35,36,41,KM31,35,36..05S,06S |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-95701 |
CM35,36,41,KM31,35,36 |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-95701 |
CM35,36,41,KM31,35,36 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95710 |
CM3#,4#,KM3#,YM40..DLX,SCA,SUP,SW,XL7 |
1 | ||
| 85941 - RELAY, WINDSHIELD WASHER | ||||
| 85941-95700 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| Common parts | ||||
| 67795-95701 | ||||
| 90119-06296 | ||||
| 90119-06322 | ||||
| 90168-50023 | ||||
| 90179-06058 | ||||
| 90201-10041 | ||||

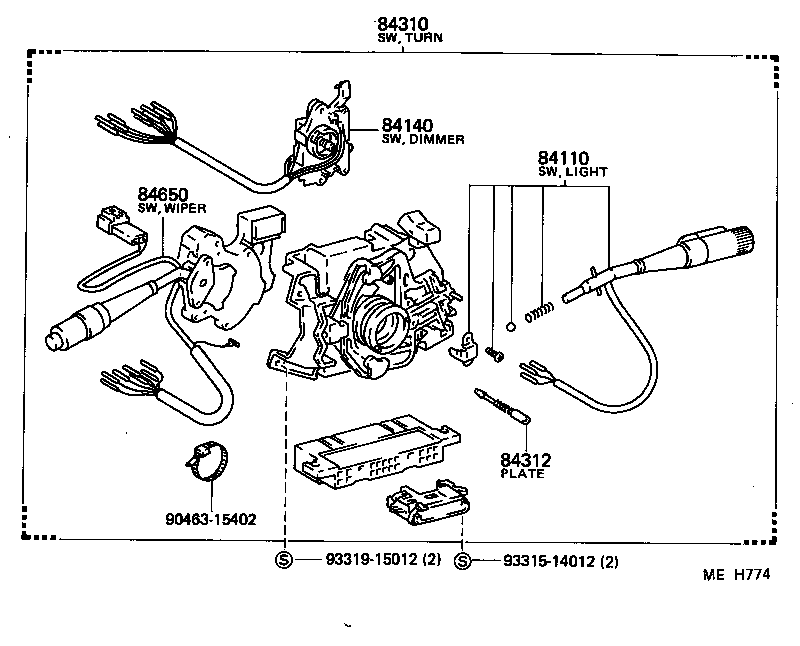

ILLUST NO. 4 OF 7(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29585 |
CM3#,4#,KM3#,YM40..DLX,SUC,SUP,SW,XL7 |
1 | ||
| 84112-29585 |
CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-27020 |
CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7 |
1 | ||
| 84140-27020 |
CM3#,4#,KM3#,YM40..DLX,SUC,SUP,SW,XL7 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-27100 |
CM3#,4#,KM30,35,36,YM40..DLX,SW,XL7 |
1 | ||
| 84310-27170 |
CM3#,KM30,35,36..DLX,SW W/RR WIPER |
1 | ||
| 84310-27100 |
CM30,4#,KM30,YM40..DLX,XL7 |
1 | ||
| 84310-27110 |
CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7 W/RR WIPER |
1 | ||
| 84310-27090 |
CM3#,KM30,35,36..DLX,SW |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-27070 |
CM3#,KM30,35,36..DLX,SW |
1 | ||
| 84652-27080 |
CM30,4#,KM30..DLX,XL7 |
1 | ||
| 84652-27090 |
CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7 W/RR WIPER |
1 | ||
| 84652-27150 |
CM3#,KM30,35,36..DLX,SW W/RR WIPER |
1 | ||
| 84652-27080 |
CM3#,4#,KM30,35,36,YM40..DLX,SW,XL7 |
1 | ||
| Common parts | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
